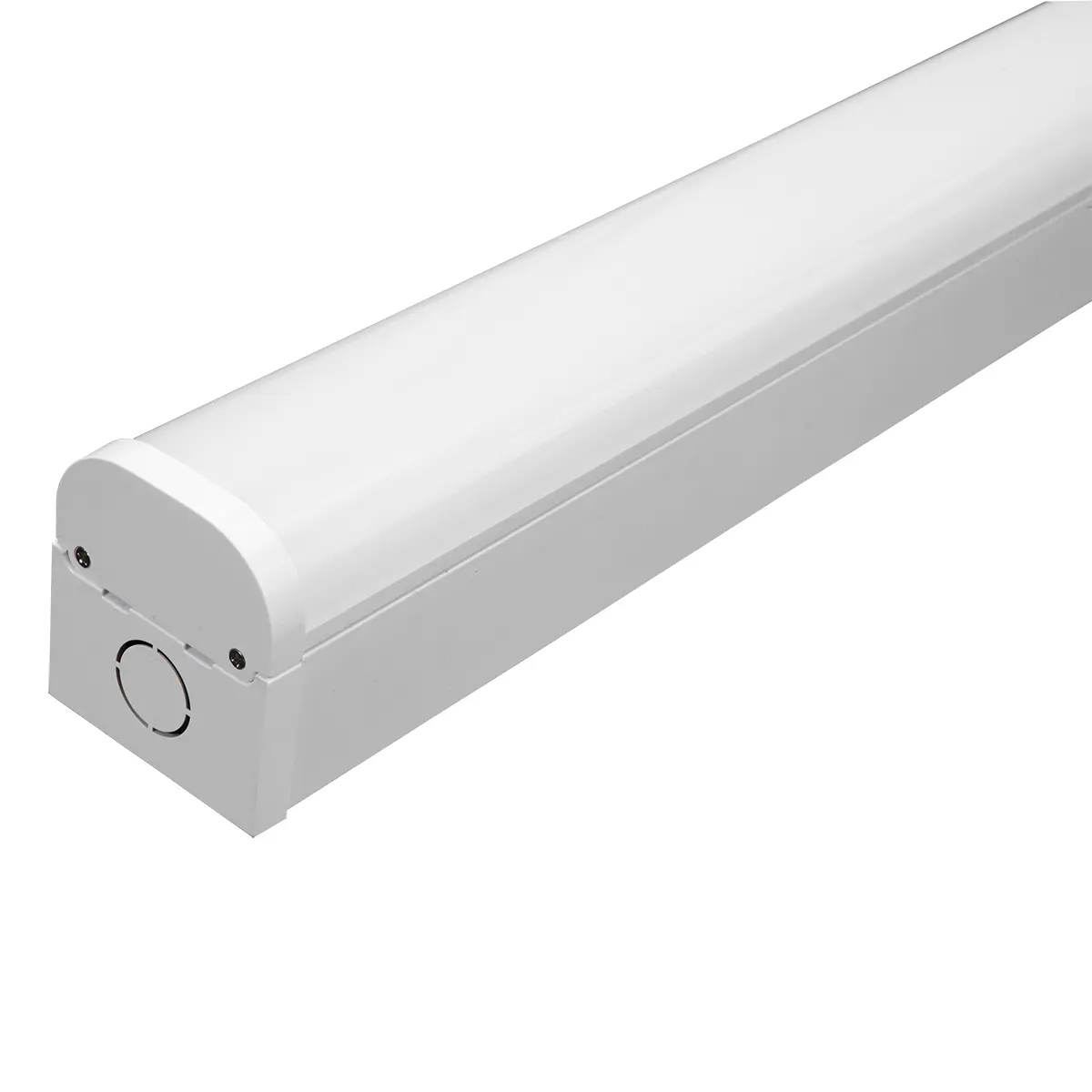

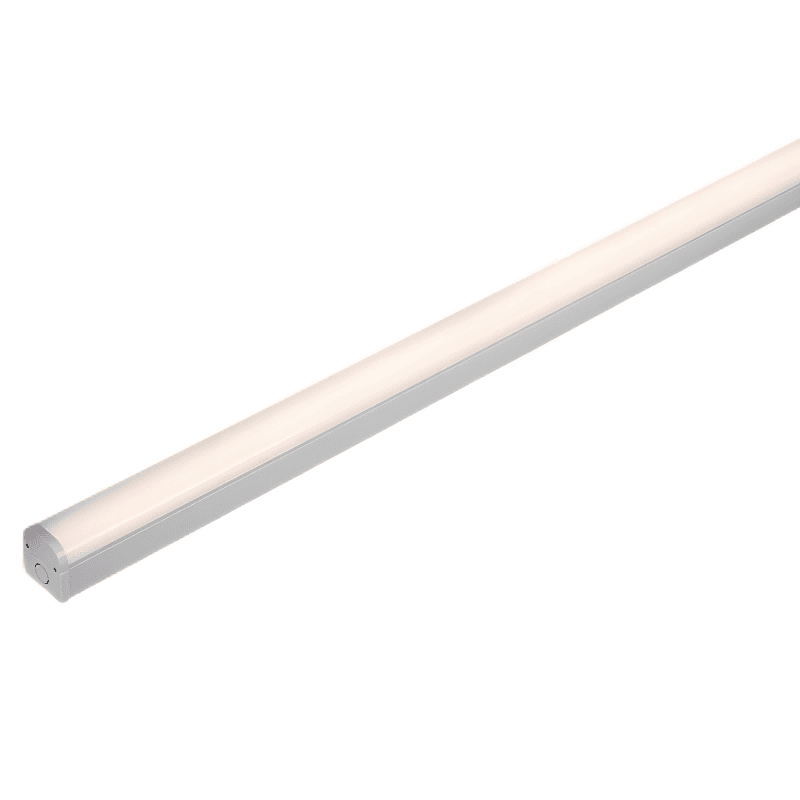

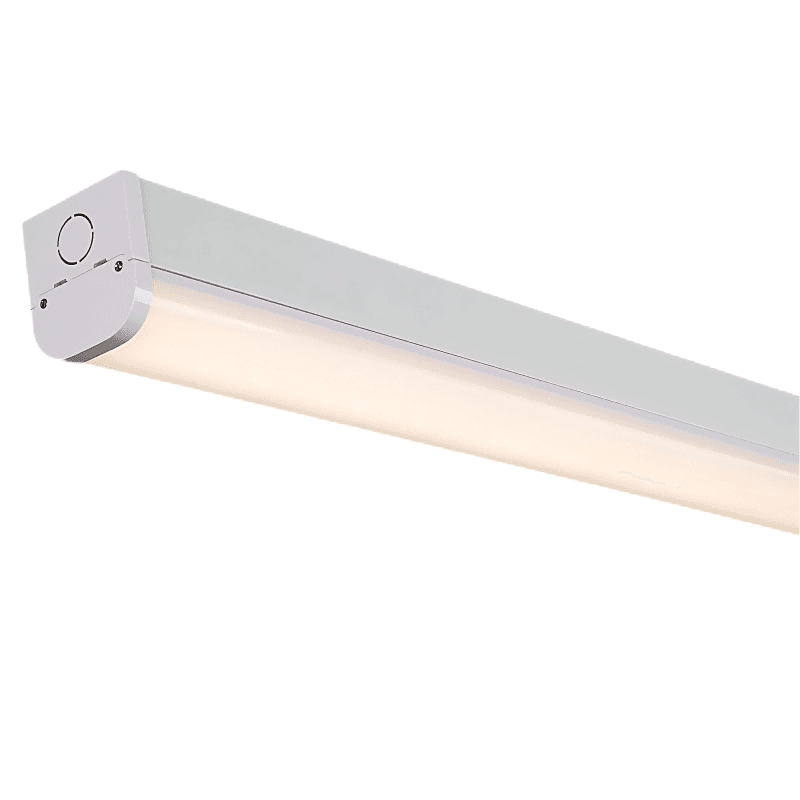

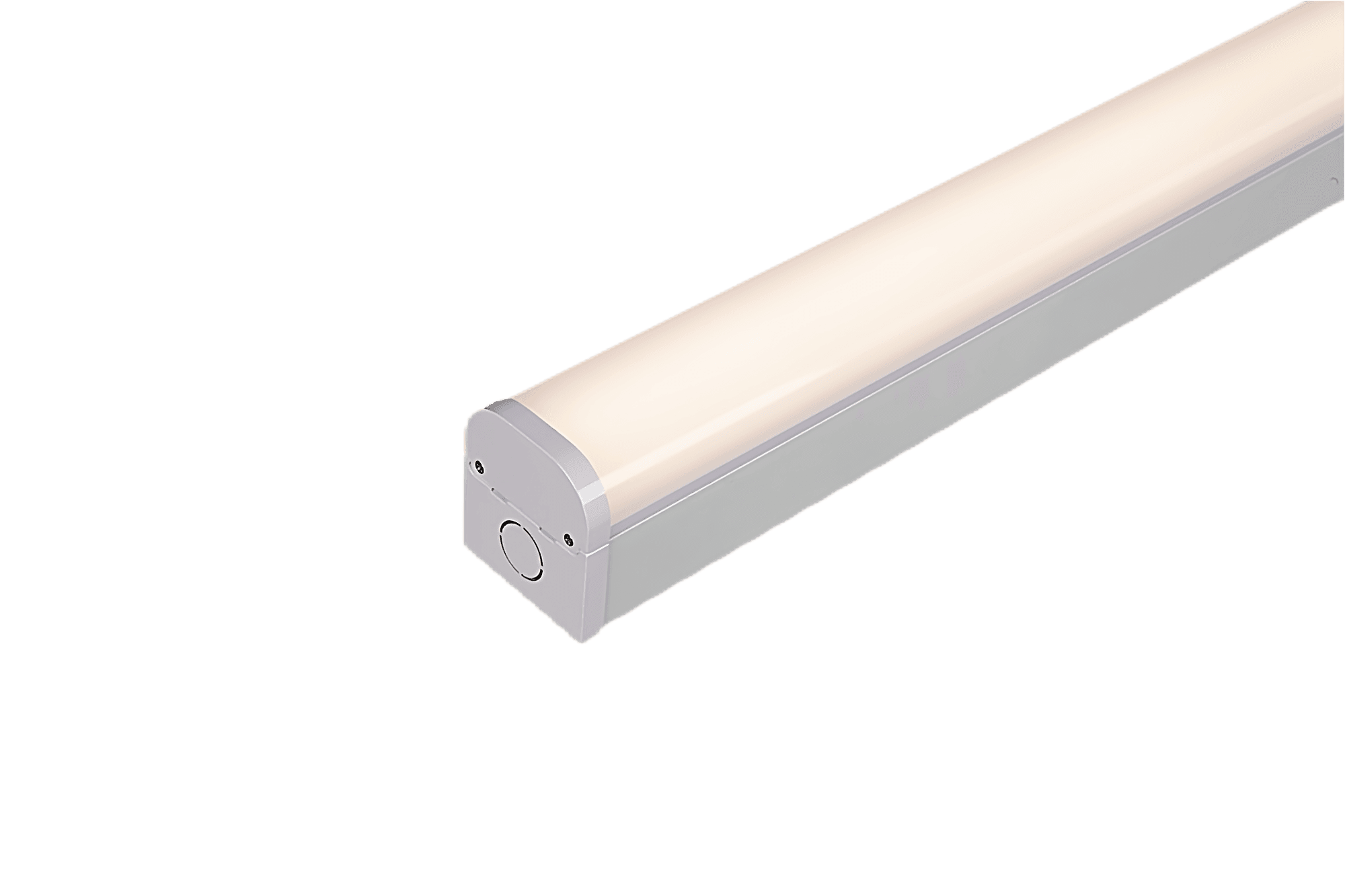

12W-55W LED Batten Light BAL001

  • LED batten
  • LED batten
  • LED batten
  • LED batten

  • High Output LED’s, up to 140lm/W

  • Best replacement for traditional batten lamps

  • High Transmittance PC cover, no shadow

  • Flicker-Free driver, High PF>0.9

  • Environmentally friendly, no mercury, No UV, No IR

  • Energy Efficiency Grade: A+

  • Quick Start instant 100% luminous flux

  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)

  • Installation: Surface Mount

Features

LEDTEK BAL001 is a simple and good solution for indoor light such as Shop, Office, School, Train station, Exhibition hall etc. Aluminum + PC structure makes good heat dissipation and uniform illumination. Multi-lumen and Multi-color can meets different customer demands. Simple and fast installation makes high efficiency and low cost work.

The length and wattage can be OEM by your request.

Model NoBAL001-12WBAL001-16WBAL001-28W
Wattage    12W     16W28W
Dimension600*55*63 (mm)600*55*63 (mm)1200*55*63 (mm)
Input VoltageAC220-240V 50/60Hz
Lumen Efficacy130-140lm/W 130-140lm/W 130-140lm/W
Luminous1560-1680lm2080-2240lm3640-3920lm
CCT2700-6500K
CRI>80
Beam Angle120°
Power Factory>0.9
IP GradeIP20
Working Temp -20˚-45˚C
Model NoBAL001-38WBAL001-40WBAL001-55W
Wattage  38W 40W55W
Dimension1200*55*63 (mm)1500*55*63 (mm)1500*55*63 (mm)
Input VoltageAC220-240V 50/60Hz
Lumen Efficacy130-140lm/W 130-140lm/W 130-140lm/W
Luminous4940-5320lm5200-5600lm7150-7700lm
CCT2700-6500K
CRI>80
Beam Angle120°
PC Cover Milky
Power Factory>0.9
IP GradeIP20
Working Temp -20˚-45˚C
