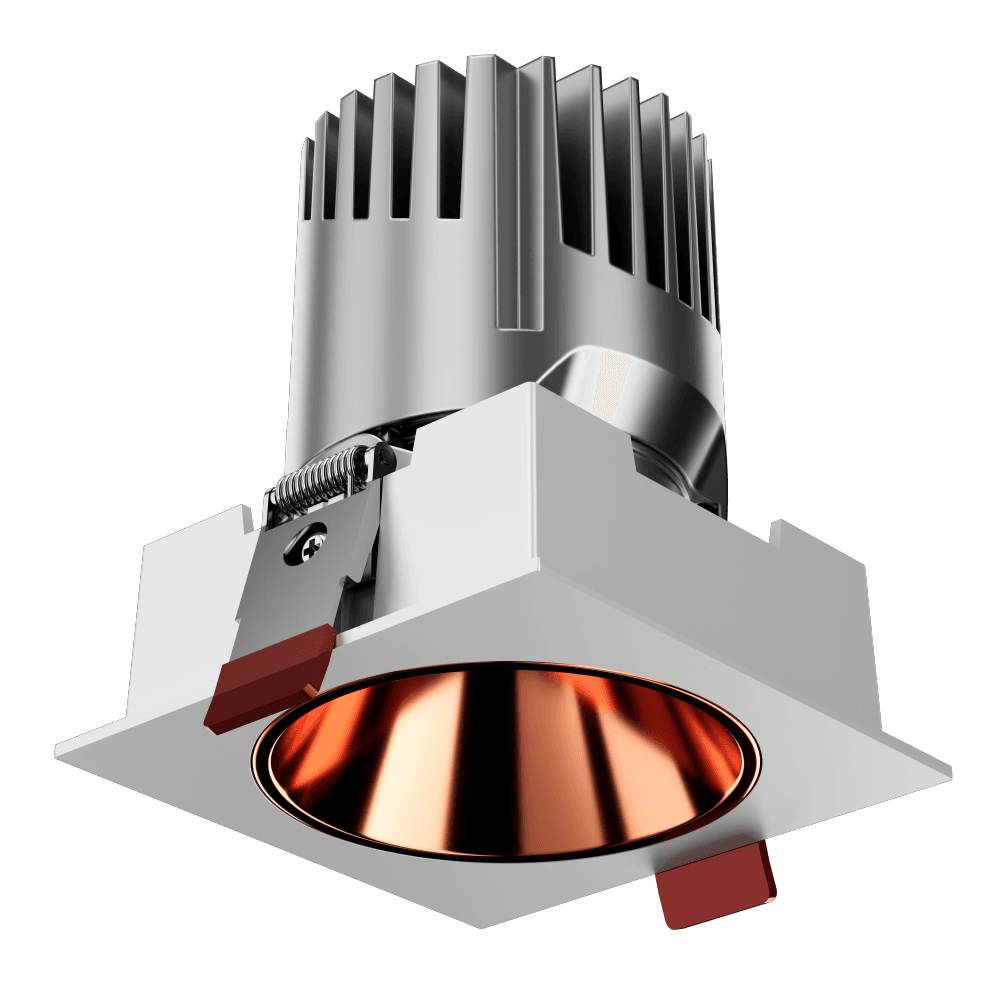

DL107 Square Recessed Downlight

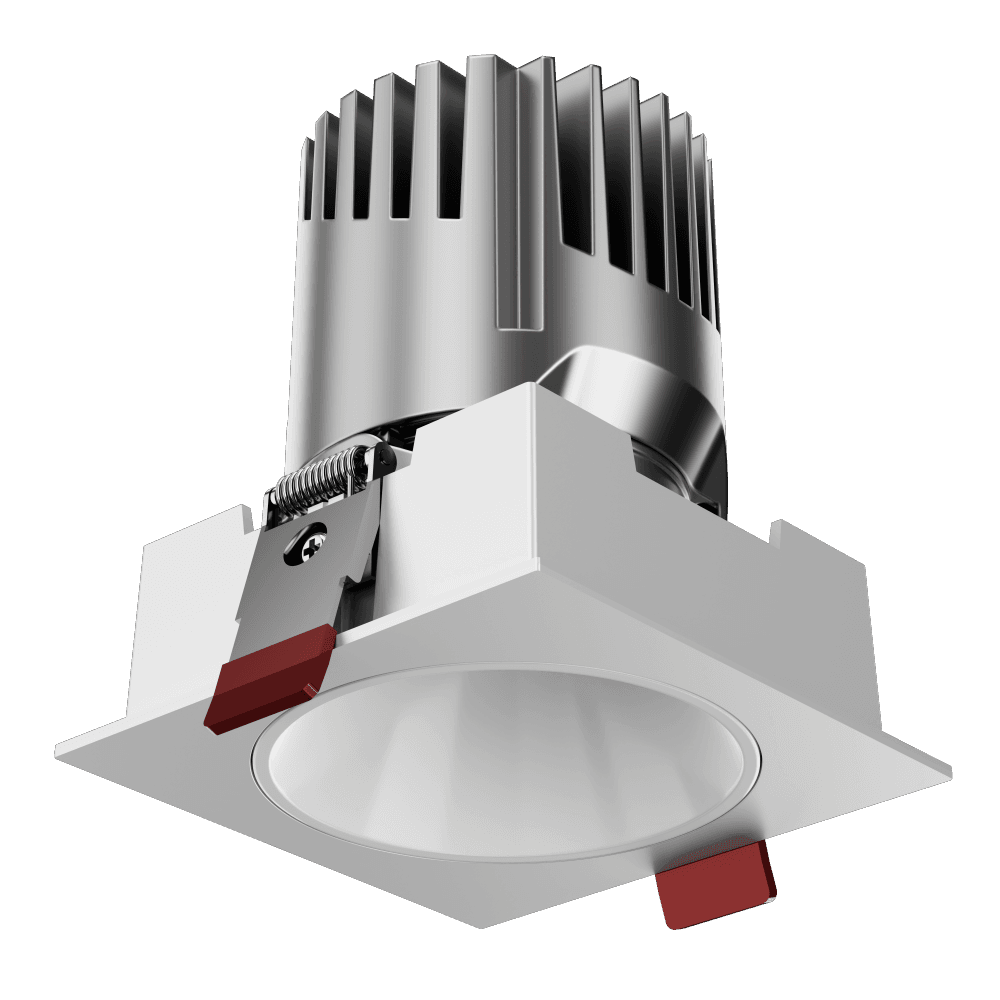

  • square LED down Light

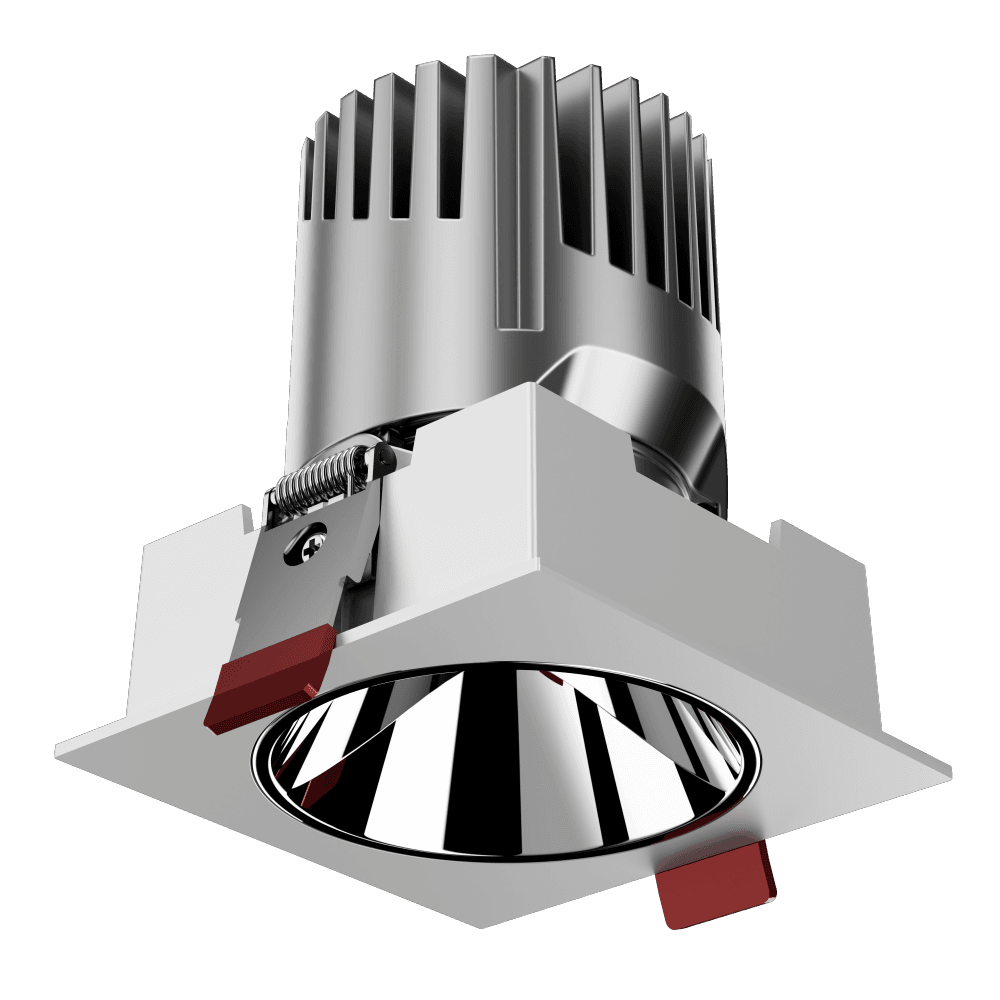

  • square LED down Light

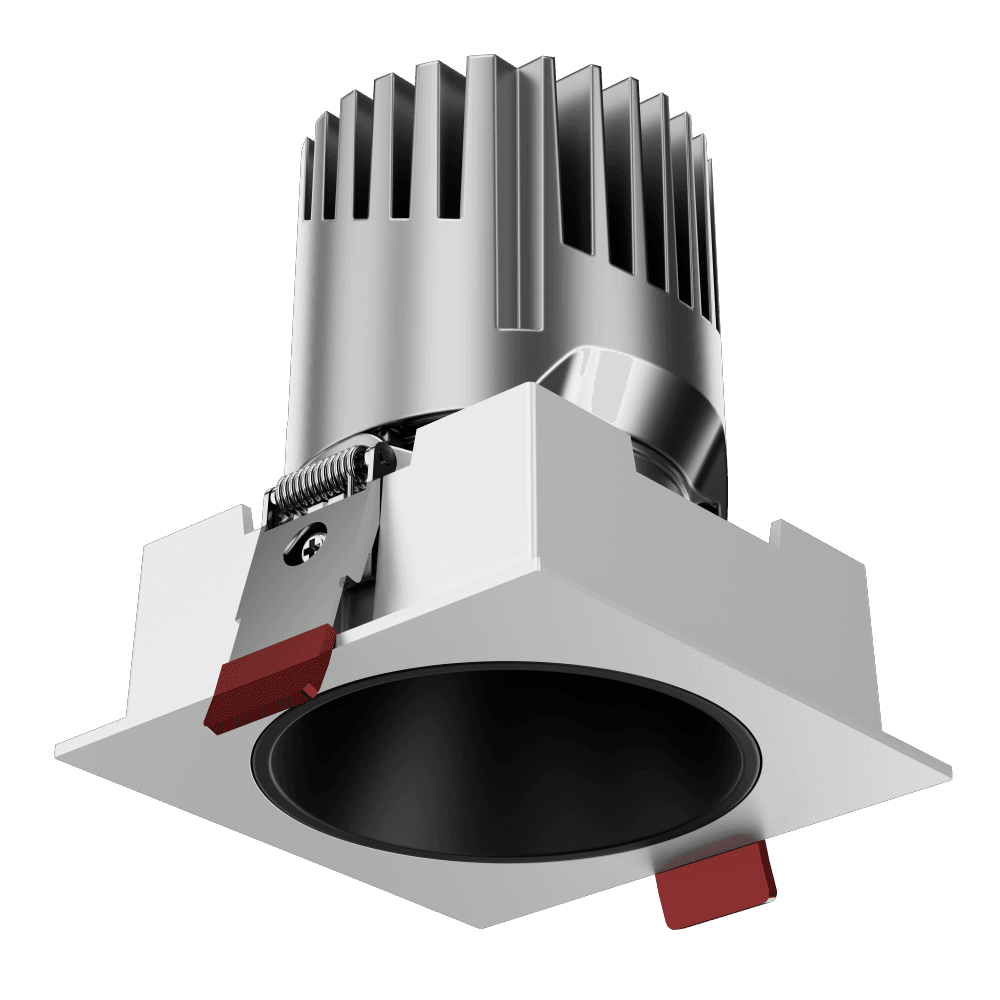

  • square LED down Light

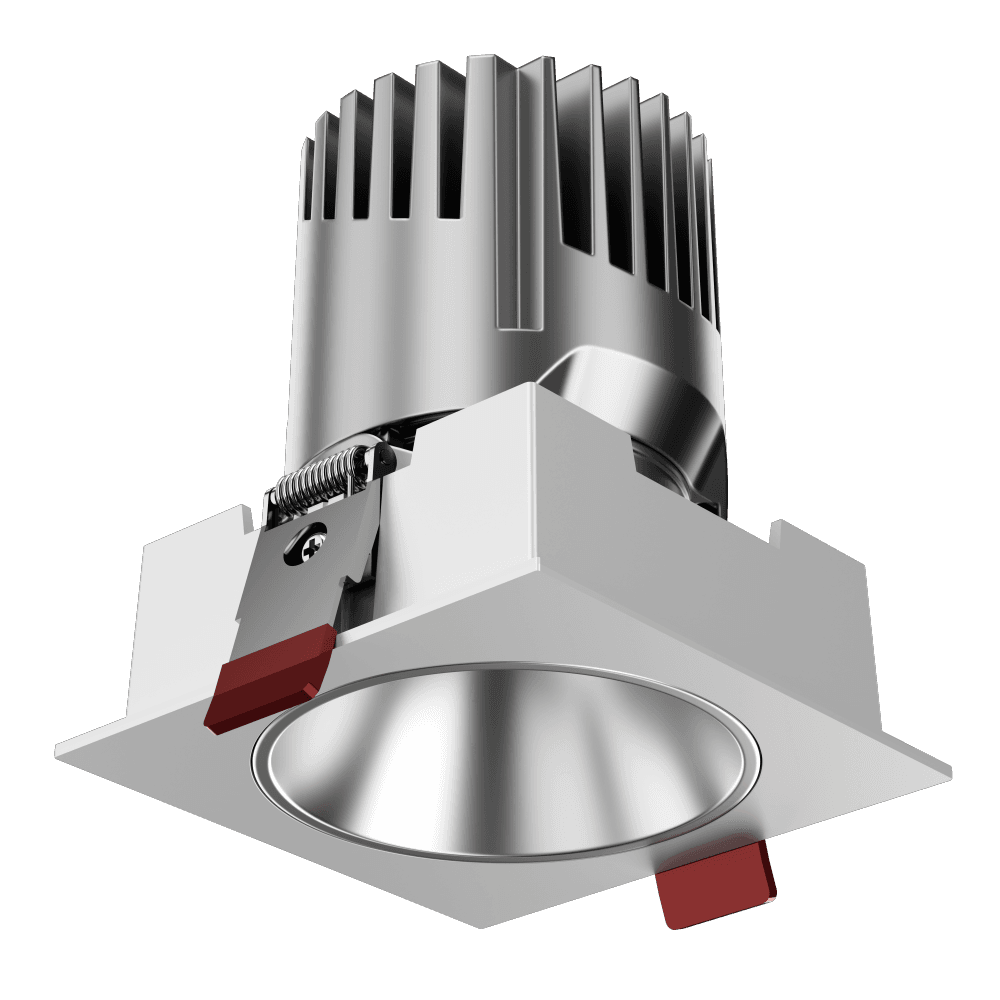

  • square LED down Light

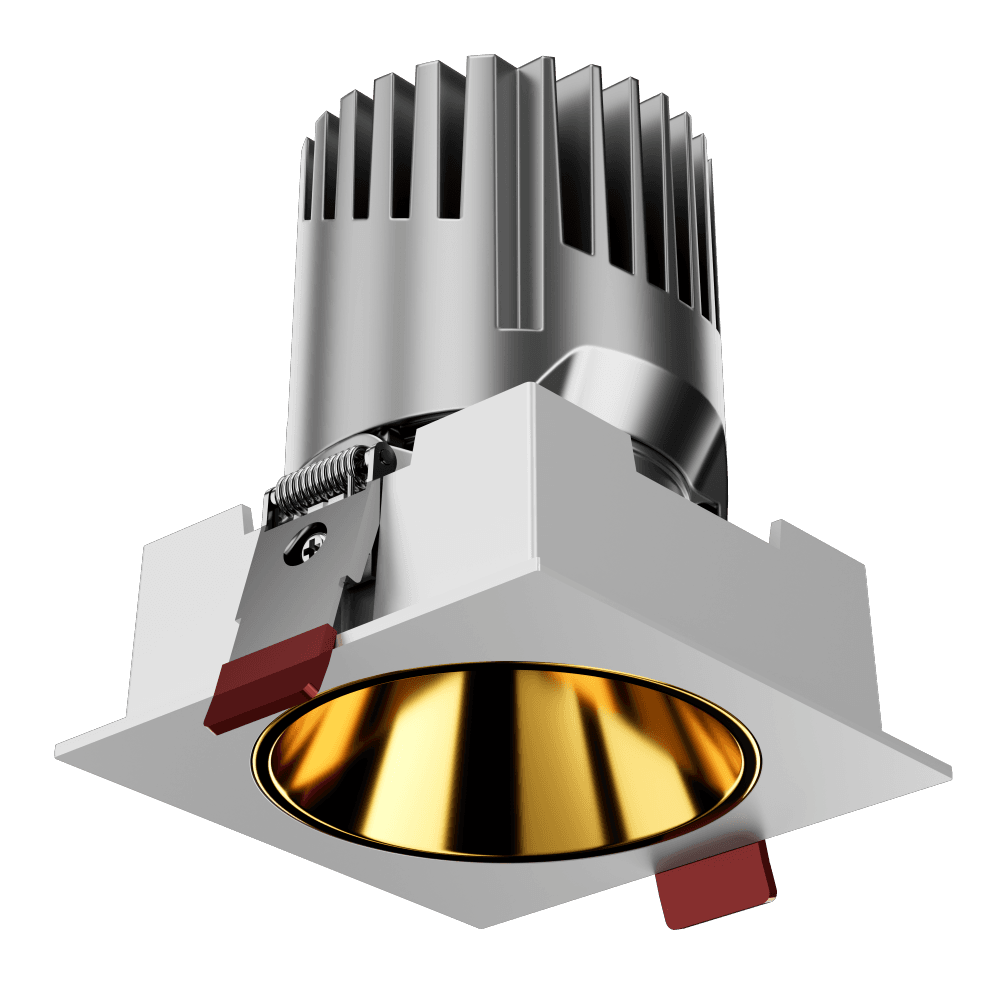

  • square LED down Light

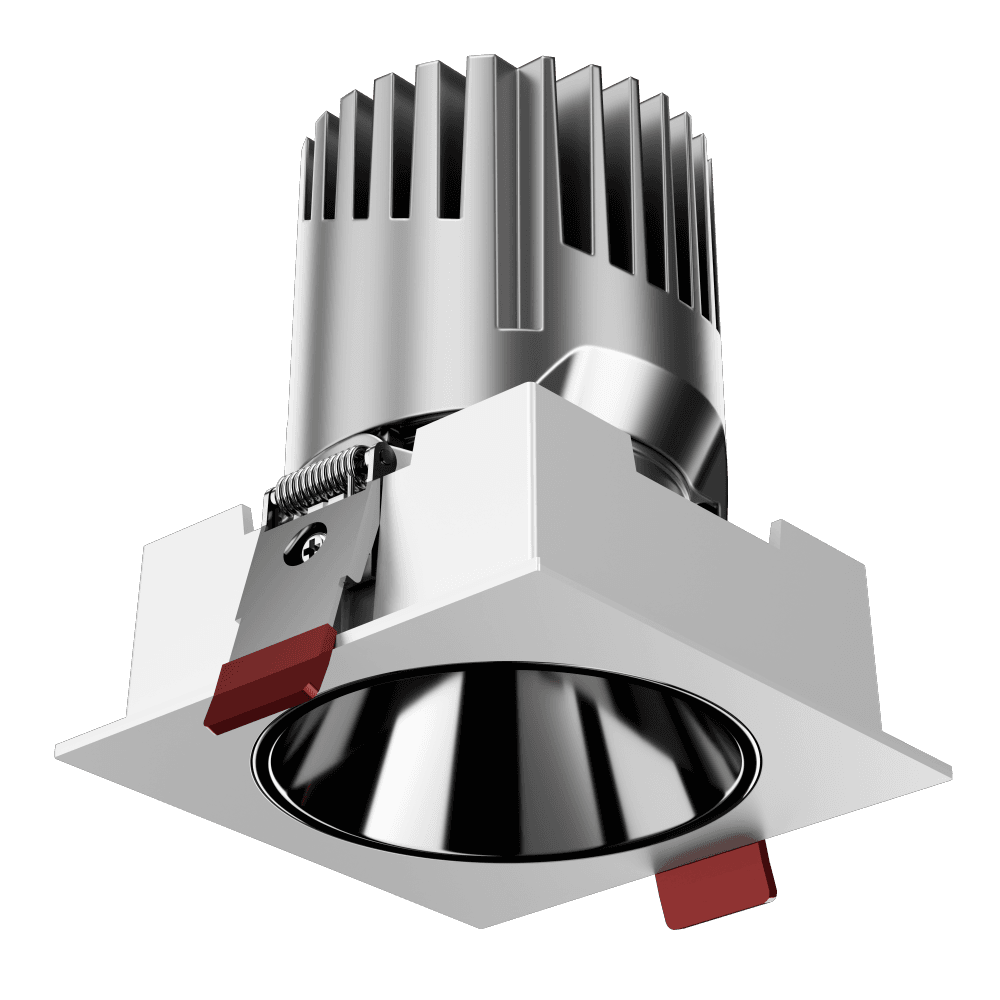

  • square LED down Light
  • square LED down Light

  • Deep reflector design to avoid direct light sources, resulting in UGR <19.

  • ADC12 aluminium die-cast housing provides very good heat dissipation.

  • CRI>80 (90 optional) light source, which restores the original colour of the object.

  • Various colours of reflector available

  • Dimming option:Non-dim,traiac dim,0/1-10V dimming or DALI dimming /

Application:

It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

Features

LEDTEK’s The DL107 LED downlight features a deep reflector design concept that offers 14/24/36 degree beam angles while significantly reducing glare. It adopts high lumen Cree/BridgeLux LEDs.
The luminaire is made of ADC12 aluminium alloy, which ensures very good heat dissipation and reduces the light decay of the LEDs.
A highly reliable LED power supply is used. It can also be equipped with a 0/1-10V or DALI power supply according to customer requirements.

Model No

DL107-7W

DL107-9W

DL107-12W

DL107-15W

Wattage7W9W12W15W
Dimension(mm) LXWXH85X85X7685X85X8685X85X94
Cutting Hole(mm)75X7575X7575X7575X75
Input Voltage(V)AC110-240V 50/60Hz
Light SourceCree/BridgeLux COB LED
CCT2700K-6500K
Luminous Flux (lm) ±5%700-770810-9901080-13201350-1650
CRI>80(90 optional)
Beam Angle15°/24°/36°/60°
LED DriverExternal LED Driver
Dimming OptionOptional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)IP40
Product FinishingReflector Color:Bright silver/Misty silver/Bright white/Misty White/Bright black/Misty black/gold etc
Materials of OpticsPMMA
Operating Temp. (℃ )-20℃ ~45℃
InstallationRecessed
Email us to get more detail datasheet.

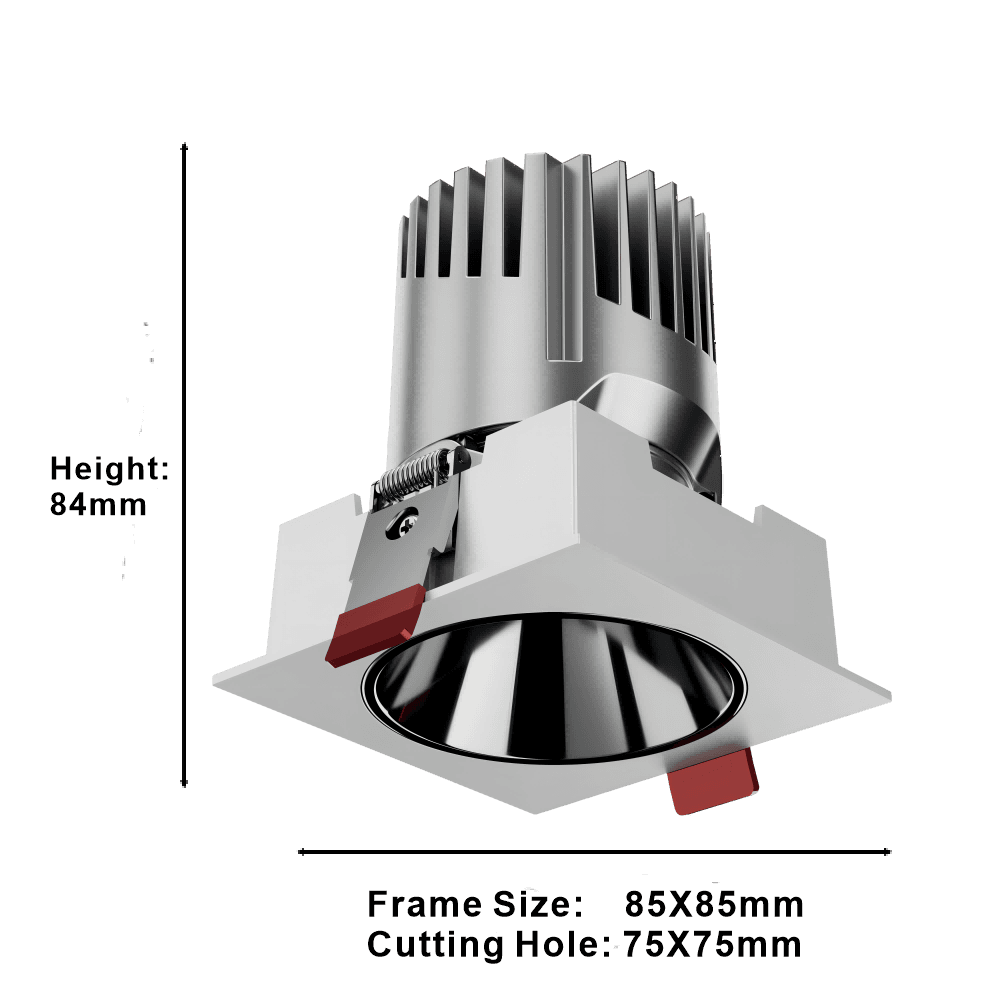

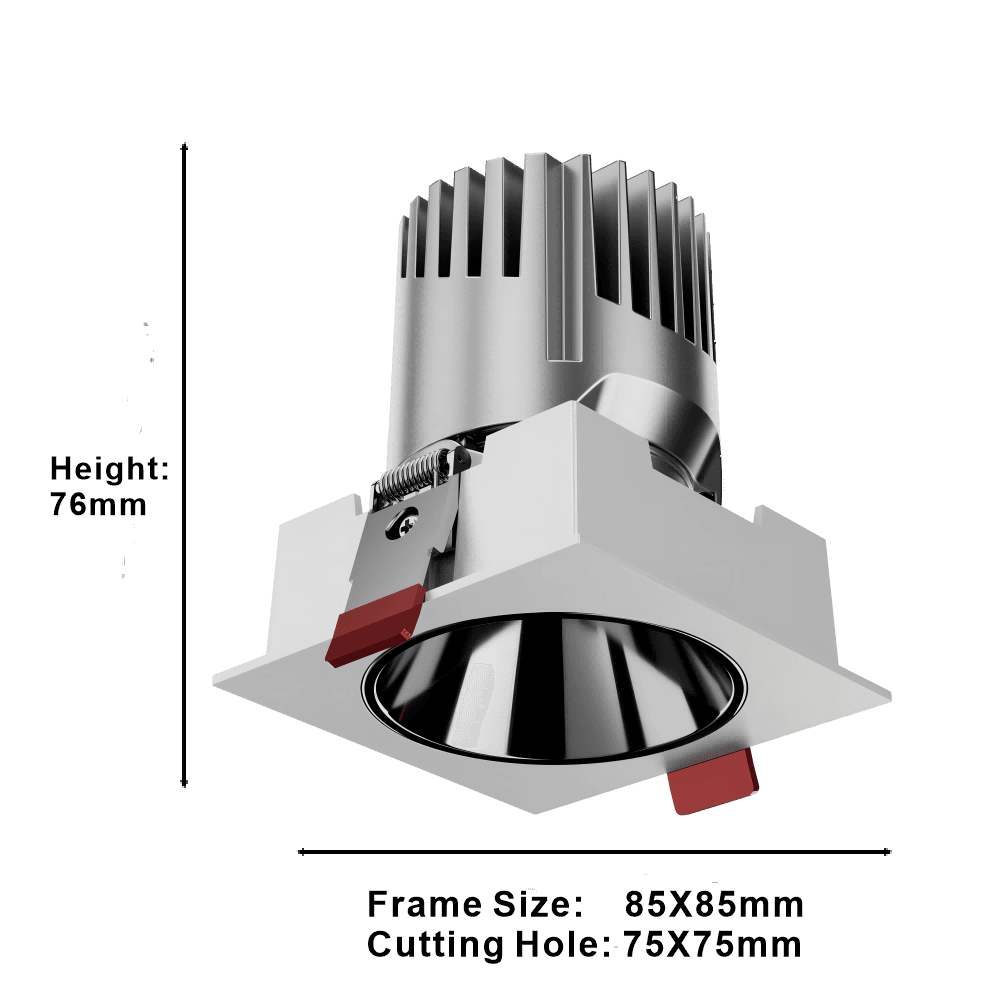

Product Size
