DL131 LED Down Light

  • COB LED DOWN LIGHT
  • COB LED DOWN LIGHT
  • COB LED DOWN LIGHT
  • COB LED DOWN LIGHT
  • COB LED DOWN LIGHT
  • COB LED DOWN LIGHT
  • COB LED DOWN LIGHT

  • Cree/BridgeLux LED Light source

  • Deep reflector design to avoid direct light sources, resulting in UGR <19.

  • ADC12 aluminium die-cast housing provides very good heat dissipation.

  • CRI>80 (90 optional) light source, which restores the original colour of the object.

  • Various colours of reflector available

  • Dimming option:Non-dim,traiac dim,0/1-10V dimming or DALI dimming

Application:

It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

Features

LEDTEK’s The DL131 LED downlight features a deep reflector design concept that offers 24/38 degree beam angles while significantly reducing glare. It adopts high lumen Cree/Bridgelux COB LED.
The luminaire is made of ADC12 aluminium alloy, which ensures very good heat dissipation and reduces the light decay of the LEDs.
A highly reliable LED power supply is used. It can also be equipped with a 0/1-10V or DALI power supply according to customer requirements.

Model No

DL131-5W

DL131-6W

DL131-7W

DL131-8W

DL131-9W

DL131-10W

Wattage5W6W7W8W9W10W
Dimension(mm)Φ87*H41
Cutting Hole Φ76
Input Voltage(V)AC110-240V 50/60Hz
Light SourceCree/Bridgelux COB LED
CCT3000K-6500K
Luminous Flux (lm) ±5%450540630720810900
CRI>80(90 optional)
Beam Angle24°/38°
LED DriverExternal LED Driver
Dimming OptionOptional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)IP40
Product FinishingReflector Color:Bright silver/Misty silver/Bright white/Misty White/Bright black/Misty black/gold etc
Materials of OpticsPMMA
Operating Temp. (℃ )-20℃ ~45℃
InstallationRecessed
Email us to get more detail datasheet.

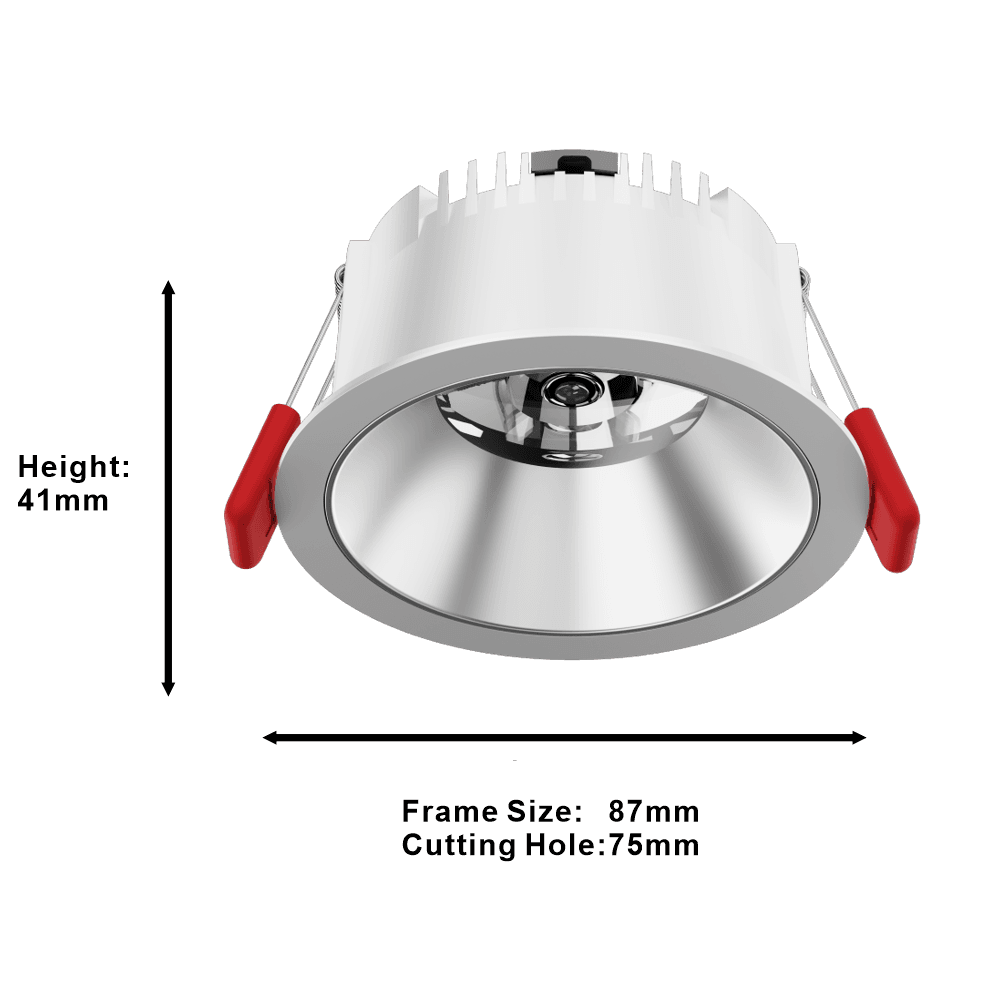

Product Size
