DL4000A LED Downlight 10W-100W 60°
Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Product Overview
LEDTEK DL4000A series LED DOWN LIGHT is a high efficiency LED DOWN LIGHT, combination of excellent optical design and materials, to achieve an amazing average luminous efficacy. LEDTEK DL4000A series LED DOWN LIGHT has 55-60 degrees beam angle, the fixture size ranges from 2.5 inches to 10 inches. The wattage covers a full range from 10W-60W. Therefore, it can be widely used in a variety of application scenarios. The fixtures are equipped with high quality LED chips and LED power supplies, provide 5year warranty.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No. | DL4000A-10W | DL4000A-12W | DL4000A-15W | DL4000A-18W | DL4000A-24W | DL4000A-30W | DL4000A-36W | DL4000A-42W | DL4000A-48W | DL4000A-60W |
|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10W | 12W | 15W | 18W | 24W | 30W | 36W | 42W | 48W | 60W |
| Dimension(mm) | Φ84*H42 | Φ90*H42 | Φ105*H42 | Φ130*H46 | Φ155*H46 | Φ175*H49 | Φ220*H57 | Φ220*H57 | Φ240*H56 | Φ240*H56 |
| Cutting Hole | Φ75 | Φ80 | Φ95 | Φ120 | Φ140 | Φ160 | Φ200 | Φ200 | Φ240 | Φ240 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||||
| Light Source | SMD 2835 LED | |||||||||
| CCT | 2700K-6500K | |||||||||
| Luminous Flux (lm) ±5% | 1000 | 1200 | 1500 | 1800 | 2400 | 3000 | 3600 | 4200 | 4800 | 6000 |
| CRI | >80(90 optional) | |||||||||
| Beam Angle | 55°-60° | |||||||||
| LED Driver | External LED Driver | |||||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||||
| Ingress Protection (IP Rating) | IP54 On Room Side / IP20 At Back Side | |||||||||
| Product Finishing | Aluminium Housing Color:White/Black Reflector Color:White/Black/Bright silver/Bright black | |||||||||
| Materials of Optics | PMMA | |||||||||
| Operating Temp. (℃ ) | -20℃ ~50℃ | |||||||||
| Installation | Recessed | |||||||||

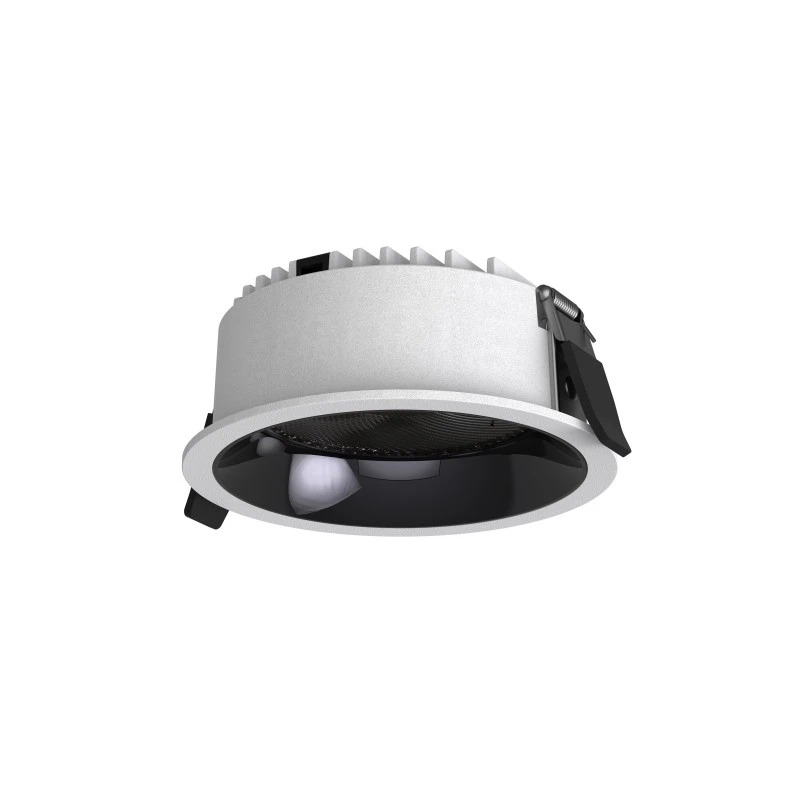

Reflectors in a variety of available colors

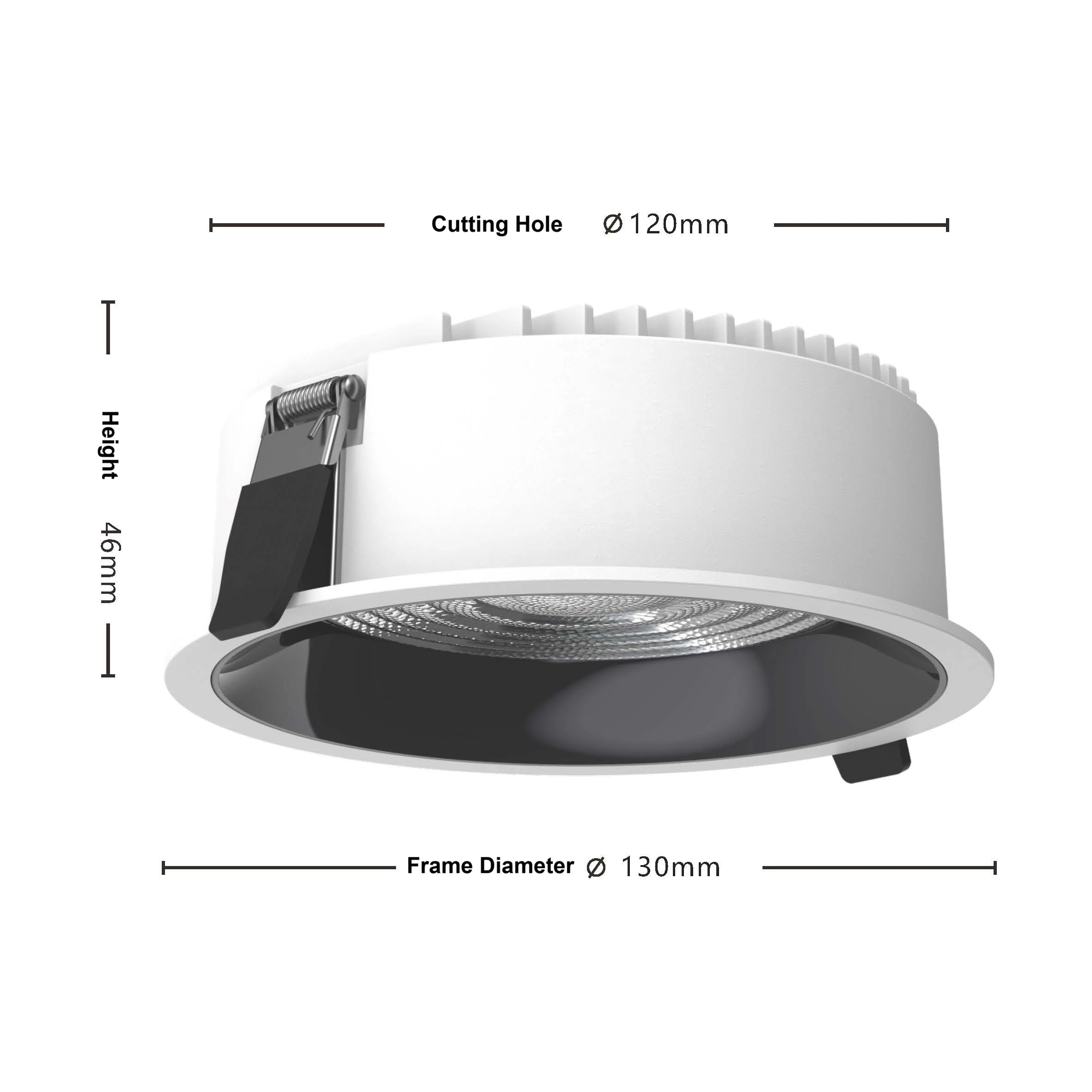

Product Size
