DL4002B Trimless IP20&IP44&IP65 Adjustable Head LED Downlight 3W-30W
Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Product Overview
The DL4002B series redefines modern lighting with its trimless design, seamlessly integrating into ceilings for a sleek, borderless aesthetic. Engineered for precision, it offers 15°, 24°, 36°, and 55° adjustable beam angles alongside customizable reflector cup colors, enabling tailored lighting for accent walls, task areas, or ambient spaces. Powered by Cree LEDs, the series delivers high lumen output (8-30W), exceptional color consistency, and a lifespan exceeding 50,000 hours. Built for versatility, it features IP20, IP54, and IP65 ratings, ensuring reliable performance in indoor, damp, or outdoor environments. The 360° adjustable tilt mechanism allows dynamic directional control, ideal for highlighting architectural details or adapting to layout changes. Perfect for commercial galleries, hospitality venues, or minimalist residences, the DL4002B combines cutting-edge technology, energy efficiency, and a discreet profile for premium, future-proof lighting solutions.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4002B-8W | DL4002B-10W | DL4002B-12W | DL4002B-15W | DL4002B-18W | DL4002B-20W |
|---|---|---|---|---|---|---|
| Wattage | 8W | 10W | 12W | 15W | 18W | 20W |
| Dimension(mm) | Φ110*H88 | Φ110*H88/Φ145*H98 | Φ110*H115/Φ145*H98 | Φ110*H115/ | Φ145*H124/Φ172*H116 | Φ145*H124/Φ172*H116 |
| Cutting Hole | Φ60 | Φ60/ Φ80 | Φ60/ Φ80 | Φ60 | Φ80/Φ100 | Φ80/Φ100 |
| IP | IP20/IP54/IP65 | IP20/IP54/IP65 | IP20/IP54/IP65 | IP20/IP54 | IP20/IP54/IP65 | IP20/IP54/IP65 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||
| Light Source | Cree LED | |||||
| CCT | 2700K-6500K | |||||
| Luminous Flux (lm) ±5% | 800lm | 1000lm | 1200lm | 1500lm | 1800lm | 2000lm |
| CRI | >80(90 optional) | |||||
| 15°/24°/36°/55° | ||||||
| LED Driver | External LED Driver | |||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||
| Product Finishing | Reflector Color:Bright silver/Misty silver/Bright white/Misty White/Bright black/Misty black/gold etc | |||||
| Materials of Optics | PMMA | |||||
| Operating Temp. (℃ ) | -20℃ ~50℃ | |||||
| Installation | Recessed | |||||
Model No | DL4002B-24W | DL4002B-28W | DL4002B-30W |
|---|---|---|---|
| Wattage | 24W | 28W | 30W |
| Dimension(mm) | Φ172*H143 | Φ172*H143 | Φ172*H143 |
| Cutting Hole | Φ100 | Φ100 | Φ100 |
| IP | IP20/IP54 | IP20/IP54 | IP20/IP54 |
| Input Voltage(V) | AC110-240V 50/60Hz | ||
| Light Source | Cree LED | ||
| CCT | 2700K-6500K | ||
| Luminous Flux (lm) ±5% | 2400lm | 2800lm | 3000lm |
| CRI | >80(90 optional) | ||
| Beam Angle | 15°/24°/36°/55° | ||
| LED Driver | External LED Driver | ||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | ||
| Product Finishing | Reflector Color:Bright silver/Misty silver/Bright white/Misty White/Bright black/Misty black/gold etc | ||
| Materials of Optics | PMMA | ||
| Operating Temp. (℃ ) | -20℃ ~50℃ | ||
| Installation | Recessed | ||

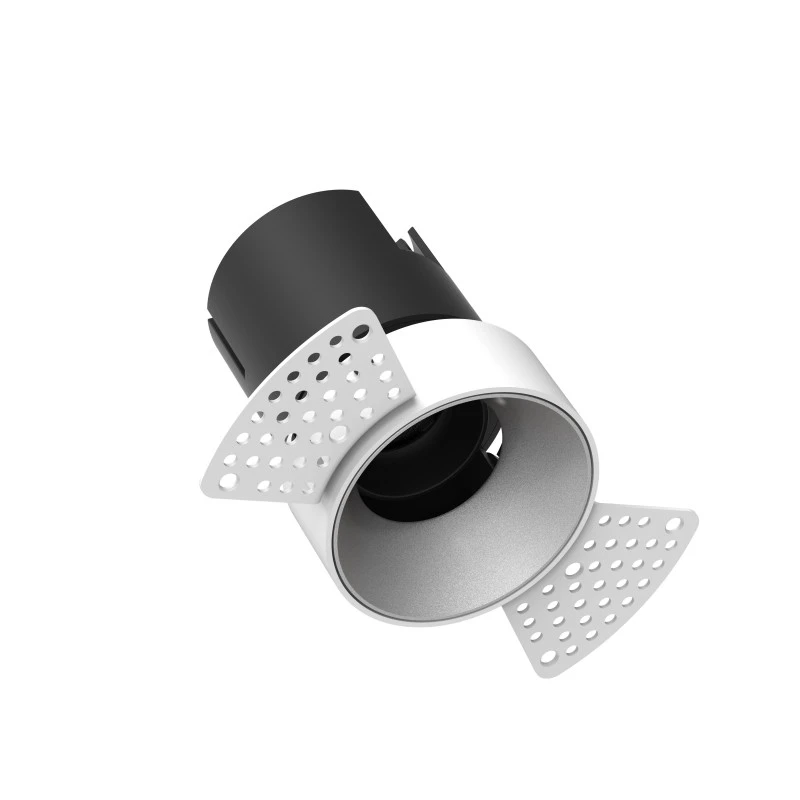

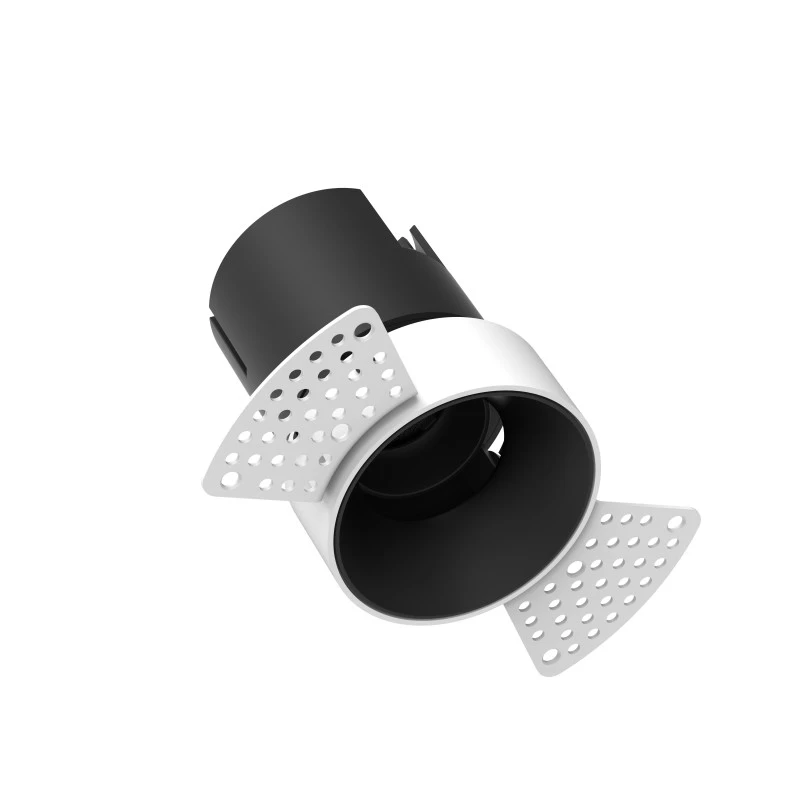

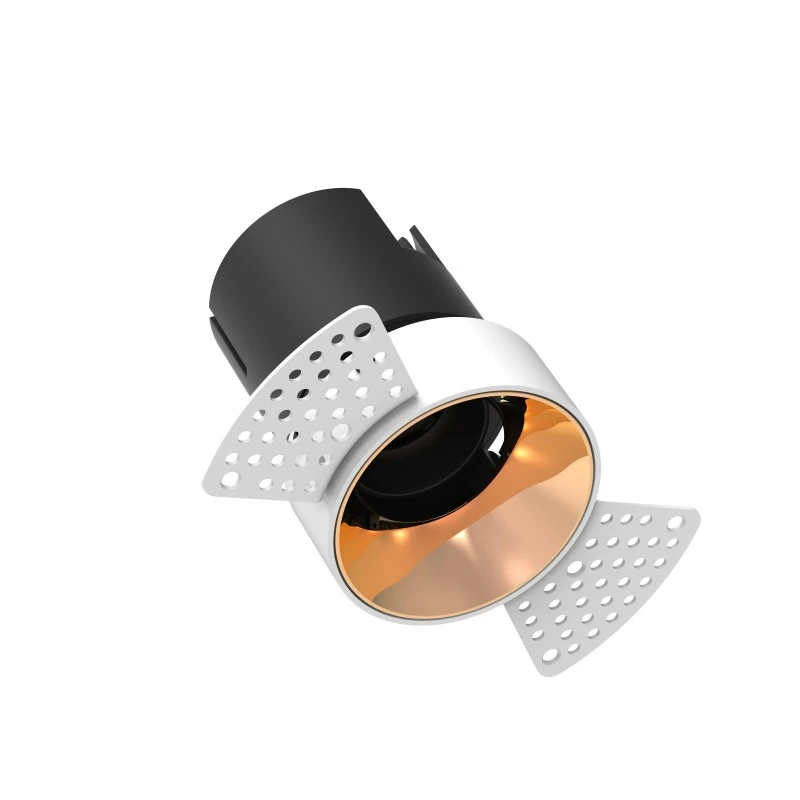

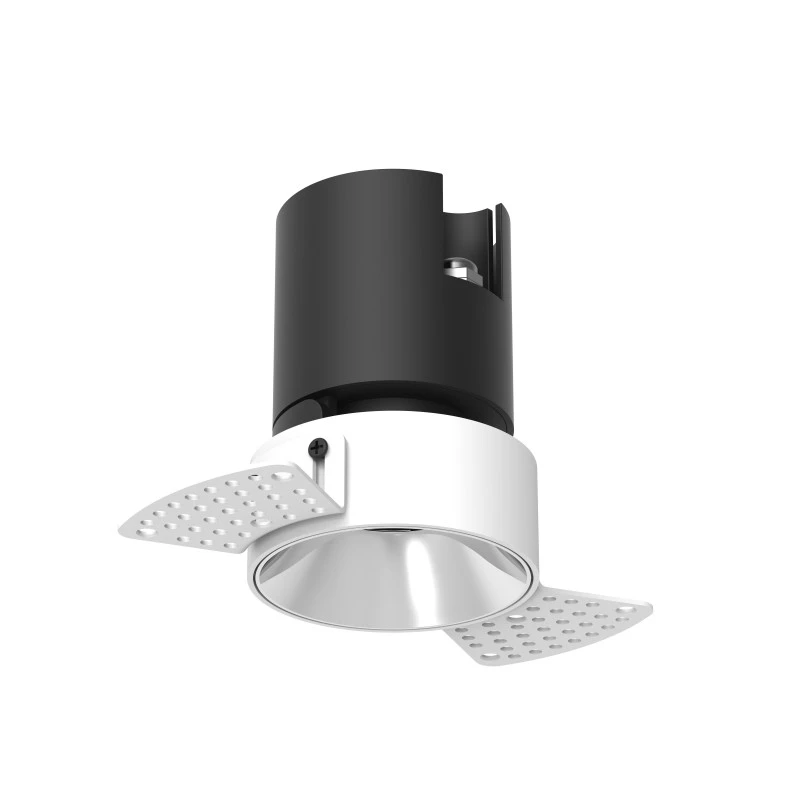

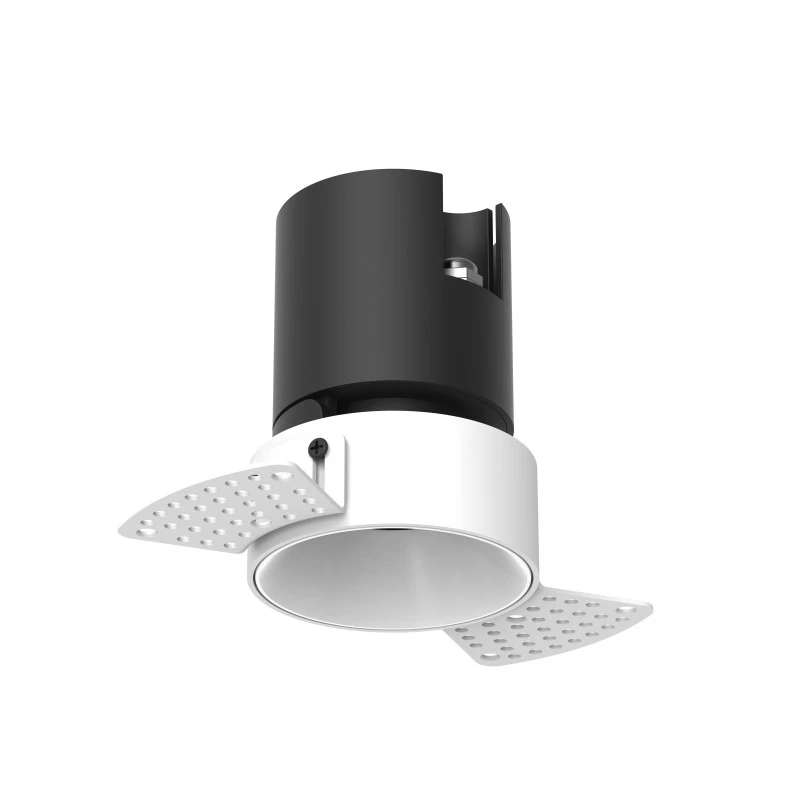

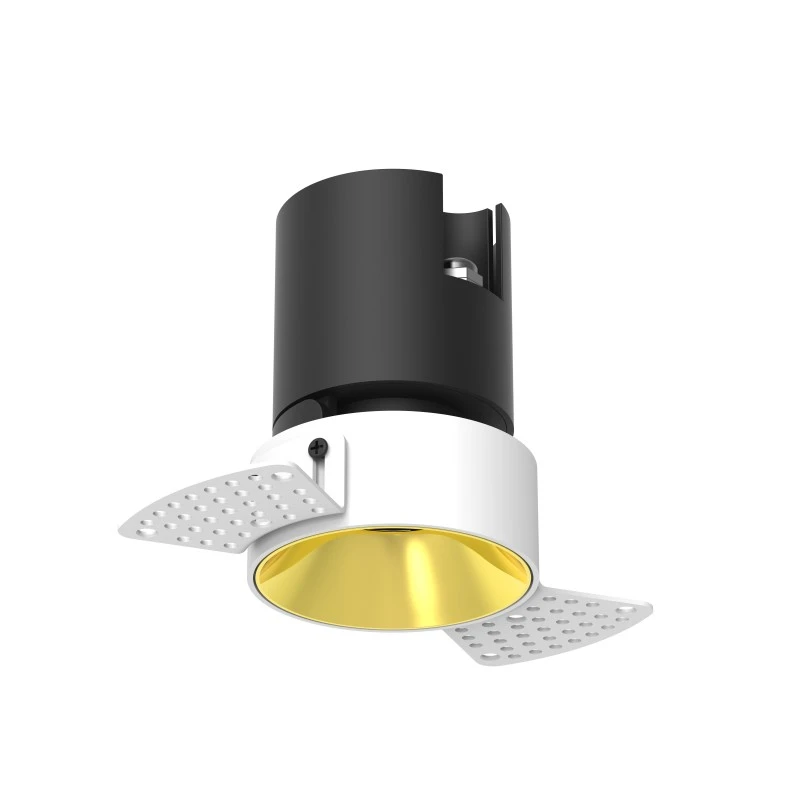

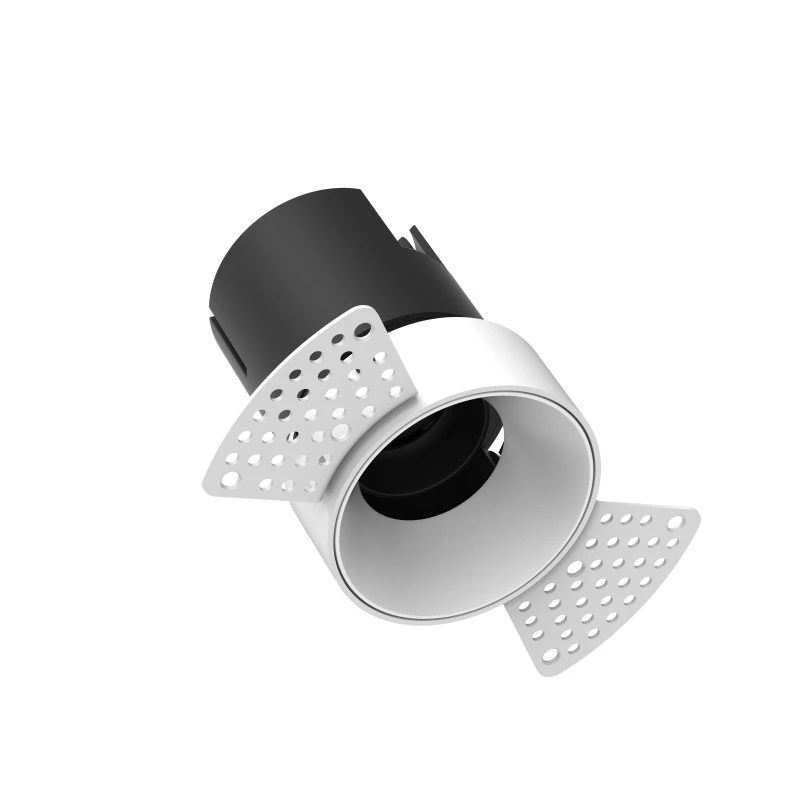

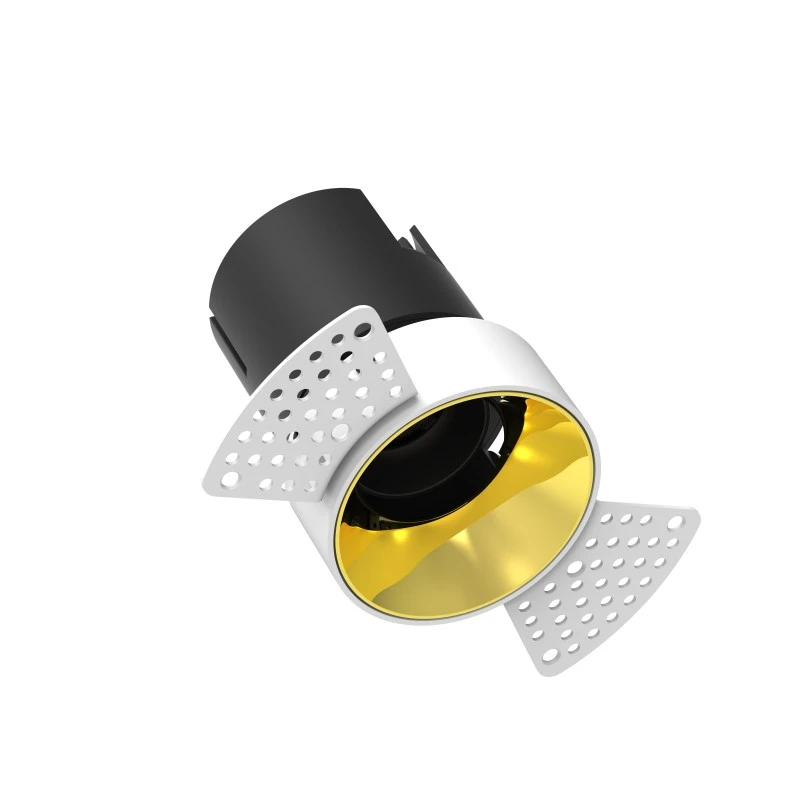

Reflectors in a variety of available colors

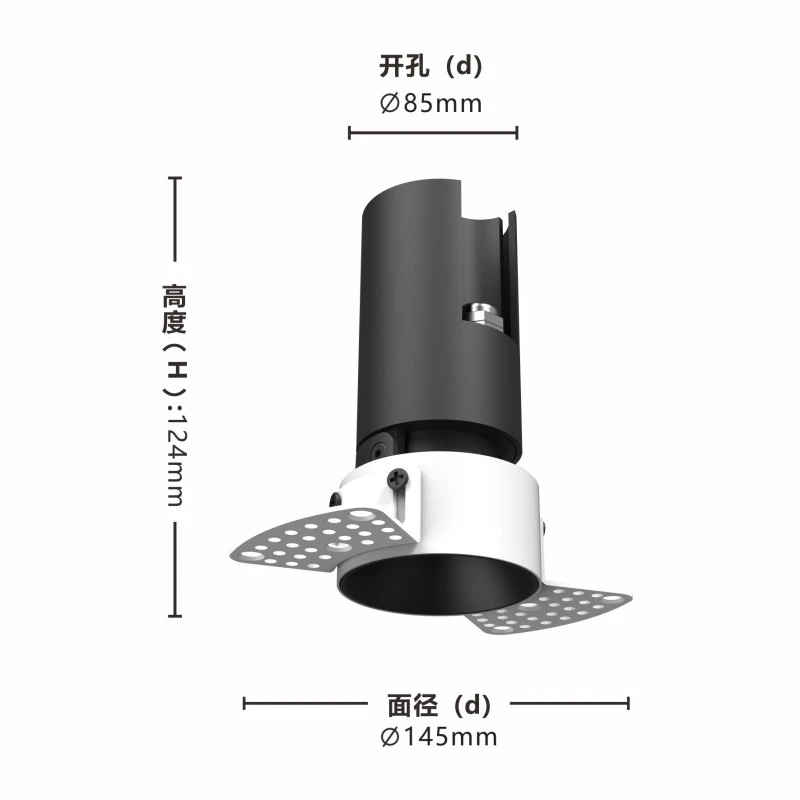

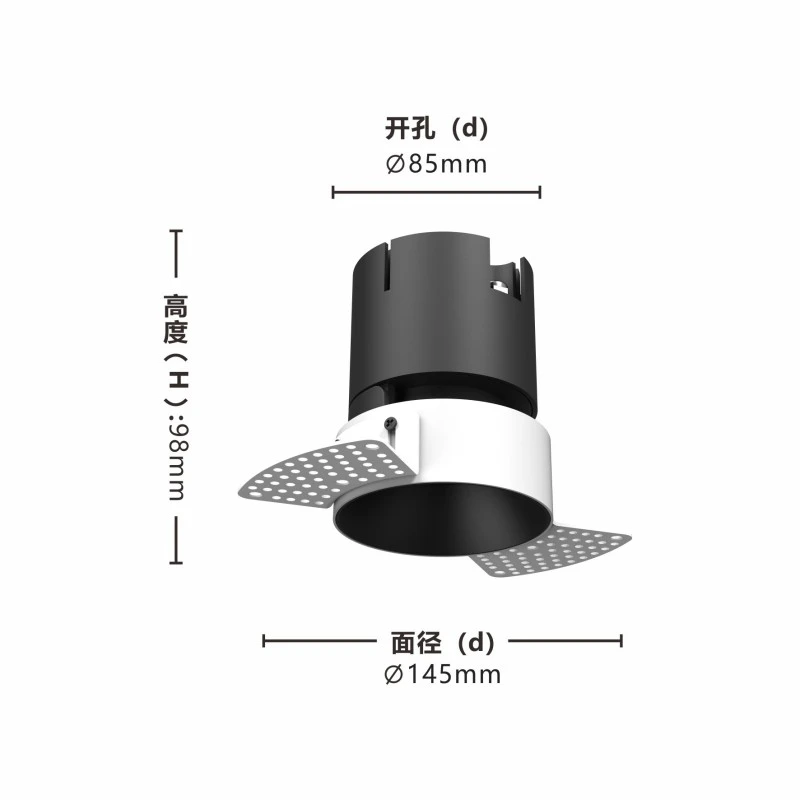

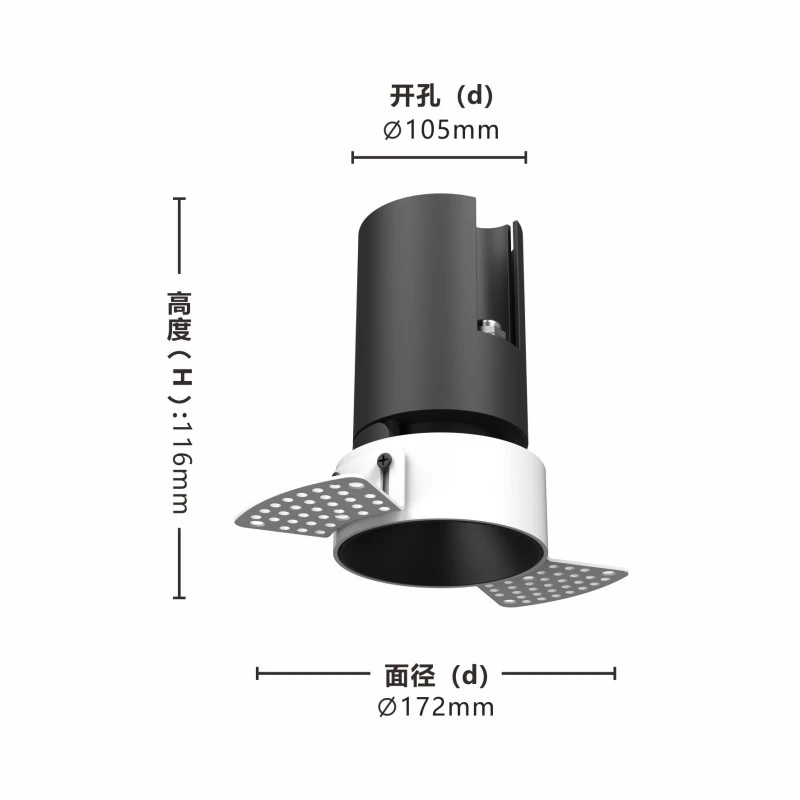

Product Size
