DL4004D LED downlight with built-in motion sensor 7W-30W

  • LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
  • LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
  • LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
  • LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
  • LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty

Key Features:

  • Built-in PIR Motion Sensor

  • Built-in Ambient Light Sensor

  • Deep reflector design to avoid direct light sources, resulting in UGR <10.

  • ADC12 aluminium die-cast housing provides very good heat dissipation.

  • Cree COB LED

  • Flicker free & High Power Factor LED Driver

  • CRI>80 (90 optional) light source, which restores the original colour of the object.

  • Wattage range: 5W-30W.

  • Various colors of reflector available

  • Dimming option:Non-dim,0/1-10V dimming or DALI dimming

  • Adjustable angle of the lamp head

  • 5 years warranty

Application:

It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

Features

The LEDTEK DL4005D LED Downlight is an innovative lighting solution that integrates a PIR motion sensor with a 360° detection angle and a 3-meter sensing radius. It also features an optional ambient light sensor that automatically detects surrounding light conditions, ensuring energy efficiency by preventing activation in well-lit environments.

With power options ranging from 5W to 30W, the DL4005D offers versatile illumination and is available in various housing colors and beam angles (15°, 24°, and 36°). Designed to seamlessly blend with the ceiling, it provides a clean and modern aesthetic.

Crafted from durable aluminum alloy for optimal heat dissipation, it incorporates Cree COB LEDs and a flicker-free driver for stable, long-lasting performance. Additionally, the deep anti-glare design ensures comfortable, eye-friendly lighting. Backed by a 5-year warranty, the DL4005D is a reliable, energy-efficient lighting choice for both residential and commercial applications.

We can customize the wattage to meet your needs.

Looking for more LED downlight ? Explore our full collection here.

Model No

DL4004D-7W
DL4004D-10W
DL4004D-12W
DL4004D-14W
DL4004D-18W
DL4004D-20W
DL4004D-25W
DL4004D-30W
Wattage7W10W12W14W18W20W25W30W
Dimension(mm)Φ84*H65Φ84*H65Φ84*H65Φ84*H65Φ104*H73Φ104*H73Φ130*H85Φ130*H85
Cutting Hole Φ75Φ75Φ75Φ75Φ95Φ95Φ120Φ120
Input Voltage(V)AC110-240V 50/60Hz
Light SourceCree COB LED
CCT2700K-6500K
Luminous Flux (lm) ±5%7001000120014001800200025003000
CRI>80(90 optional)
Beam Angle15°/24°/36°
LED DriverExternal LED Driver
Dimming OptionOptional:0/1-10V dimming or Dali dimming
Motion Sensor TypePassive Infrared (PIR) Sensor
Photocell SensorOptional Equipment With or Without Ambient Light Sensor
Detection range360°(ceiling mounting) / Radius of 3 meters
Ingress Protection (IP Rating)IP54 On Room Side / IP20 At Back Side
Product Finishing
  1. Aluminium Housing Color:White&Black
  2. Reflector Color:White/Matte white/Black/Gunmetal black/Champagne gold/Rose gold/Matte silver/Bright silver/Matte black
Materials of OpticsPMMA
Operating Temp. (℃ )-20℃ ~45℃
InstallationRecessed

functions and Features

1) With Ambient light sensor function

2) Without Ambient light sensor function

in a variety of available colors

LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty
LEDTEK DL4004D LED Spot downlight built in motion sensor Cree COB 5 years warranty

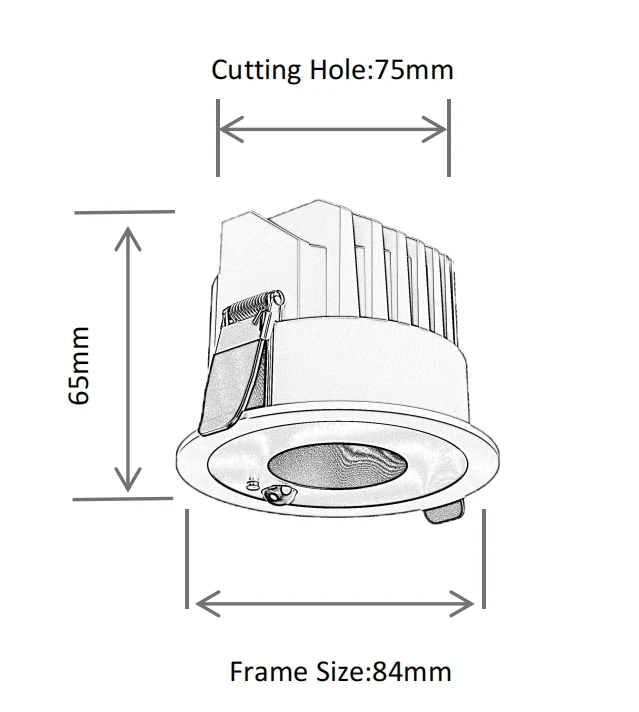

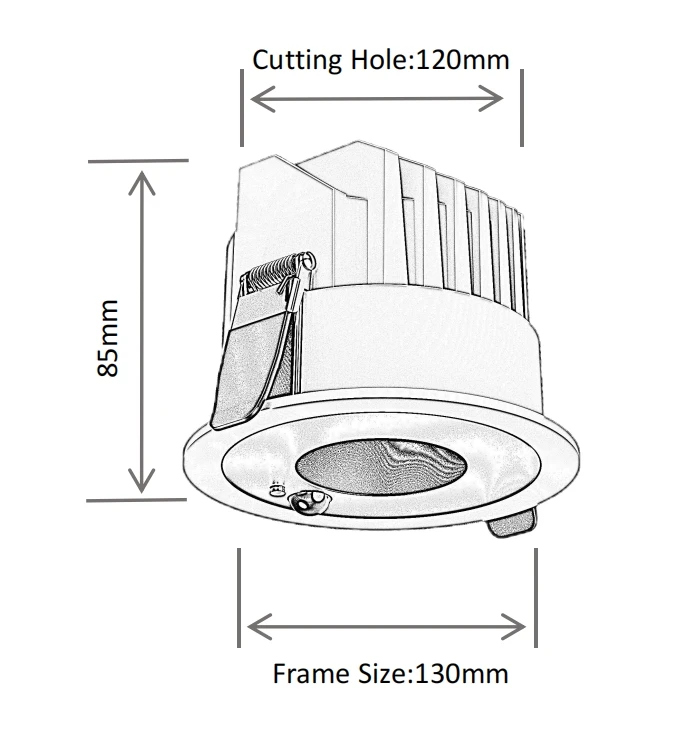

Product Size
