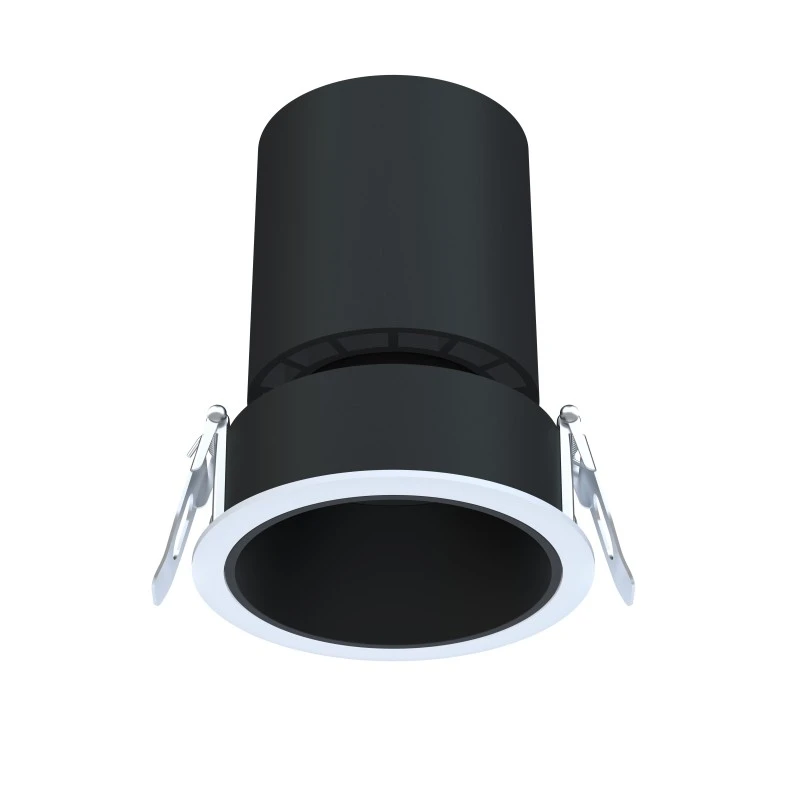

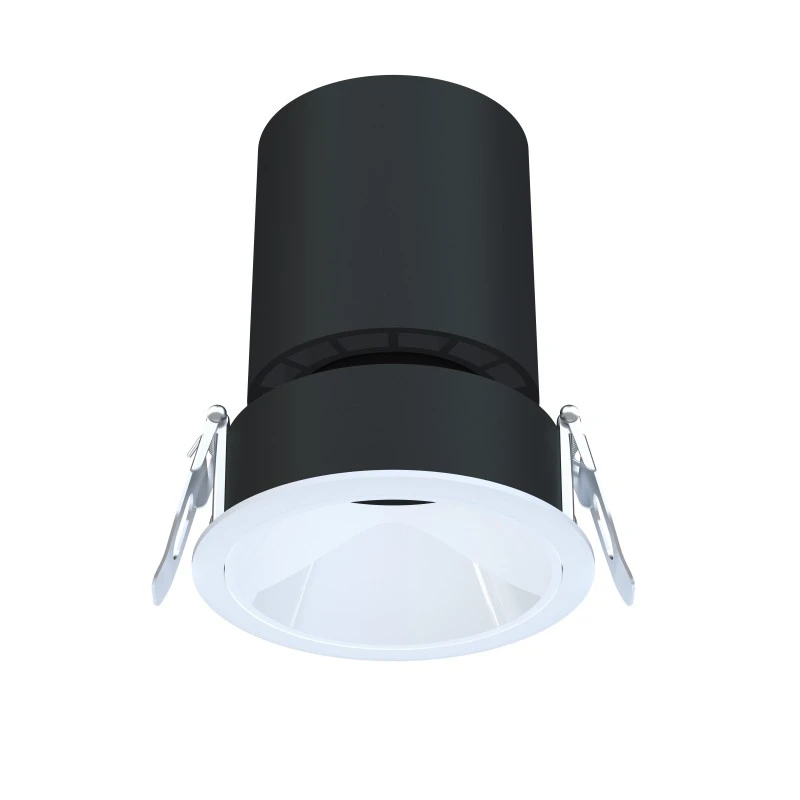

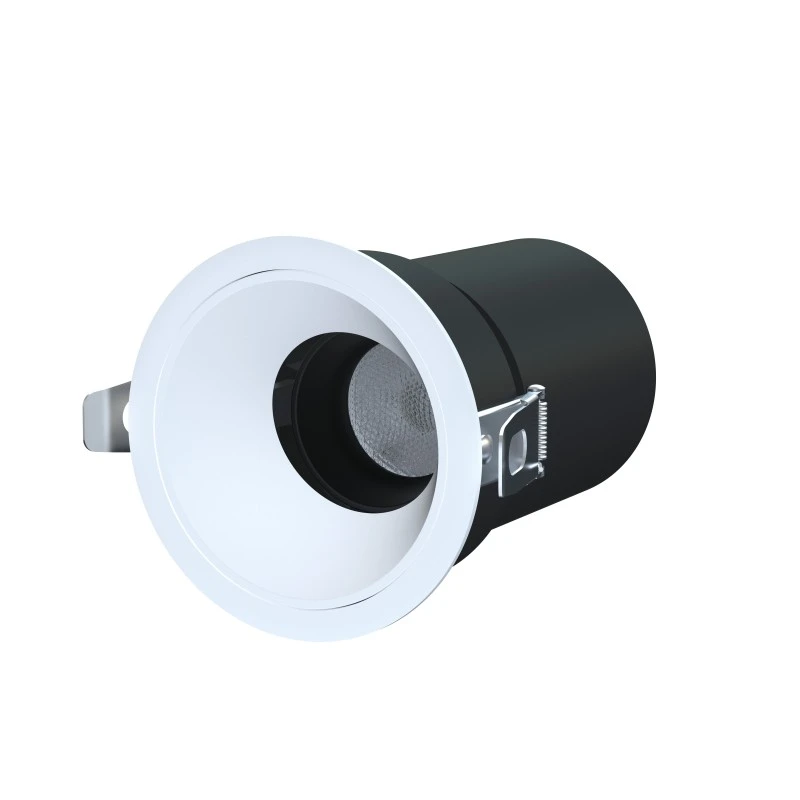

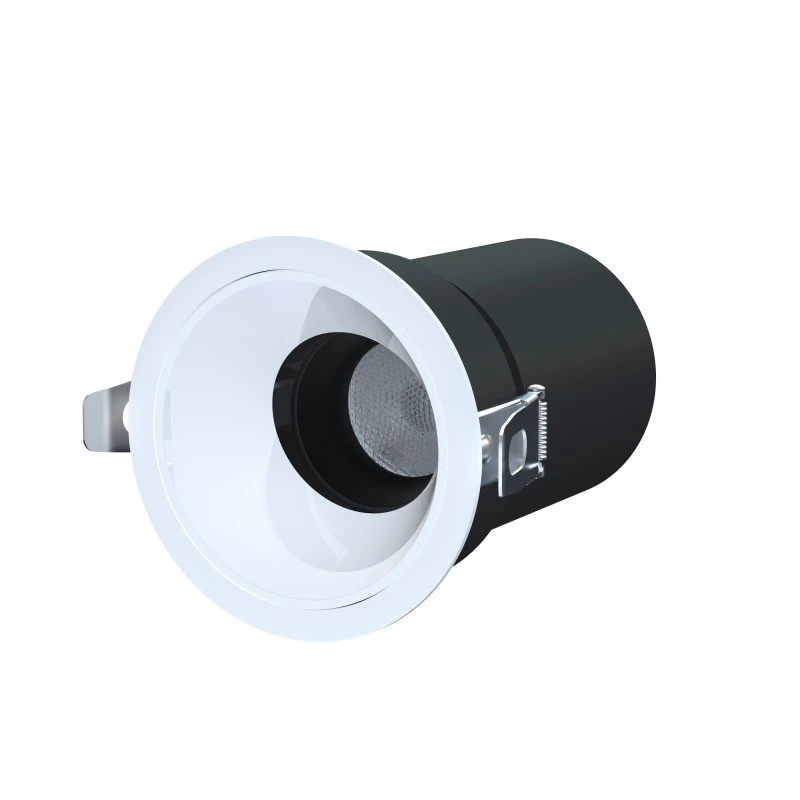

DL4011 LED Adjustable Lamp Head Down Light 5W-30W
Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Product Overview
The LEDTEK DL4011 Series LED Downlight is a high-performance lighting solution designed for both residential and commercial spaces. Offering a range of beam angles (8°/15°/24°/38°/55°) and wattages from 5W to 30W, this versatile downlight ensures precise illumination tailored to your needs. Its advanced optical design delivers a smooth, uniform light output without secondary light spots, creating a soft and comfortable ambiance.
Crafted from internationally standardized aluminum die-cast, the DL4011 features a robust construction with multiple finishes, including baking paint and powder coating, ensuring durability and a sleek aesthetic. The light boasts a deep anti-glare design with a UGR rating of less than 10 and a 60° shielding angle, providing a “see the light, not the lamp” experience.
With a 360° horizontal rotation and 30° vertical tilt adjustment, installation flexibility is unmatched. It also includes two installation spring options: VK spring and standard spring clips, ensuring easy and secure mounting. The strong convection cooling system ensures efficient heat dissipation, enhancing safety and reliability. Backed by a 5-year warranty, the LEDTEK DL4011 Series is your go-to choice for premium, energy-efficient lighting.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4011-5W | DL4011-7W | DL4011-10W | DL4011-12W | DL4011-18W | DL4011-20W | DL4011-25W | DL4011-30W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 18W | 20W | 25W | 30W |
| Dimension(mm) | Φ65*H78 | Φ65*H88/Φ85*H87 | Φ65*H88/Φ85*H90 | Φ85*H90 | Φ85*H105/Φ105*H107 | Φ85*H105/Φ105*H107 | Φ105*H117 | Φ105*H117 |
| Cutting Hole(mm) | Φ55 | Φ55/Φ75 | Φ55/Φ75 | Φ75 | Φ75/Φ95 | Φ75/Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB LED | |||||||
| CCT | 3000K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1800 | 2000 | 2500 | 3000 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 8°/15°/24°/38°/55° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP54 On Room Side / IP20 At Back Side | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||||
| Installation | Recessed | |||||||
Two optional clip

Standard spring clip

VK spring clip

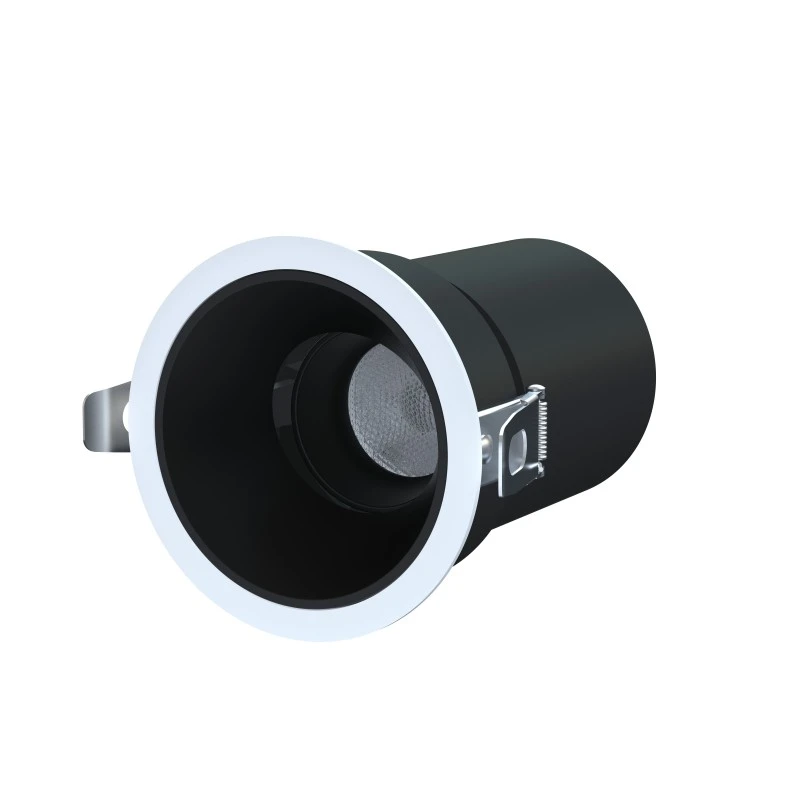

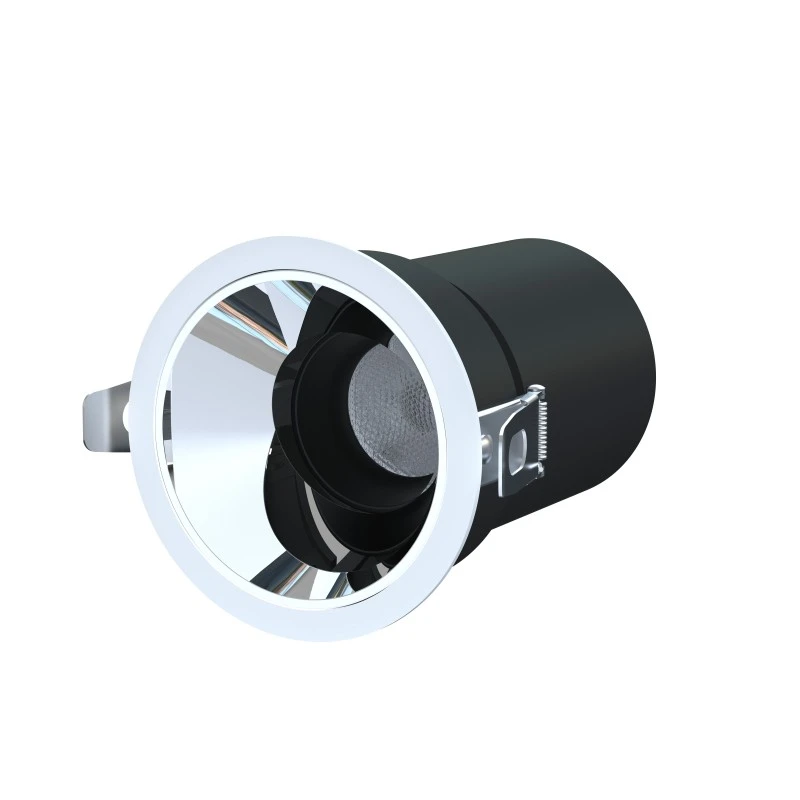

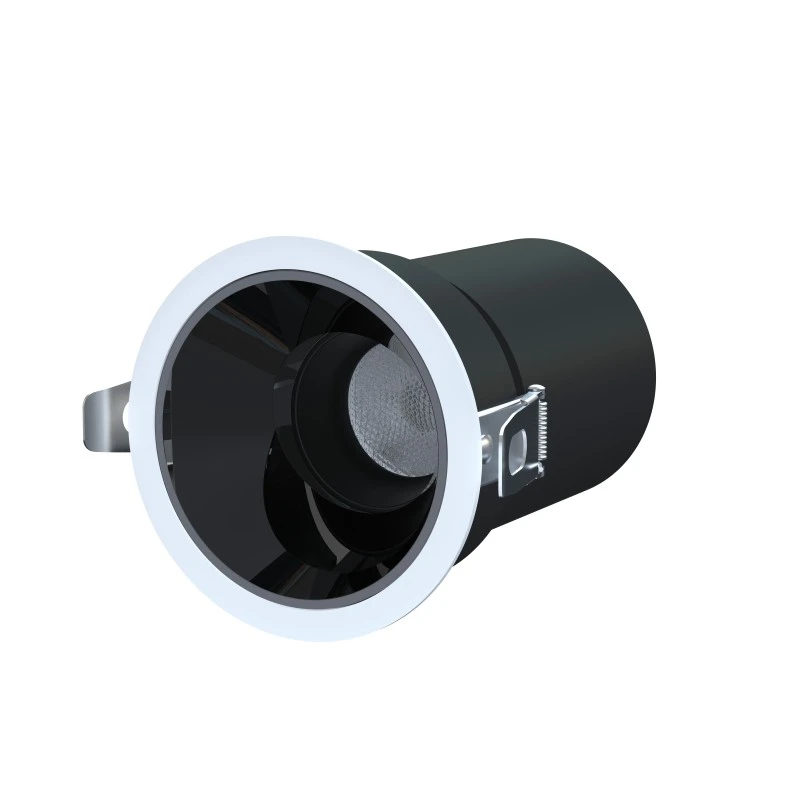

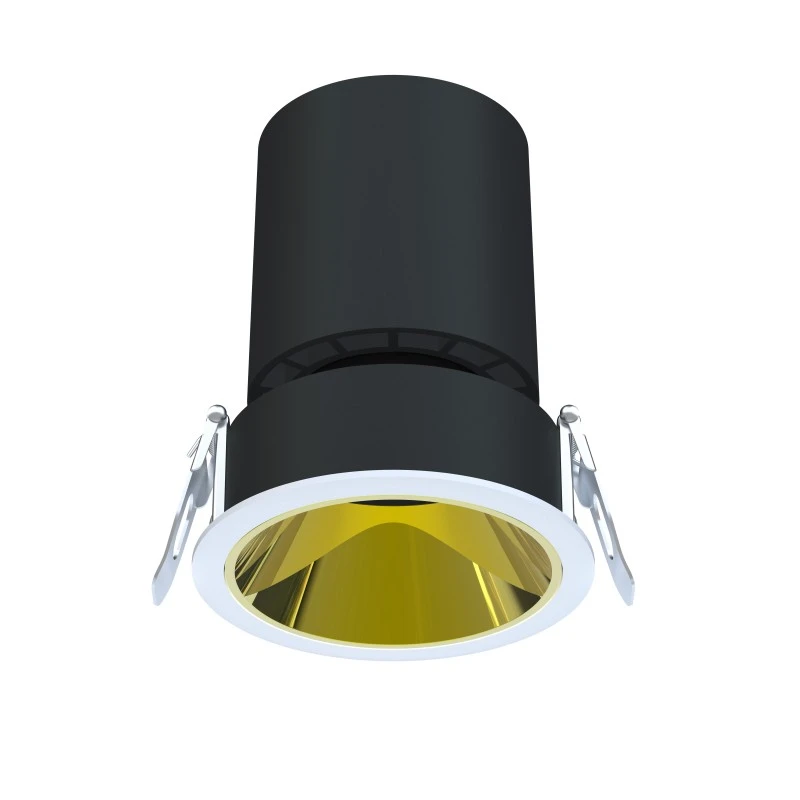

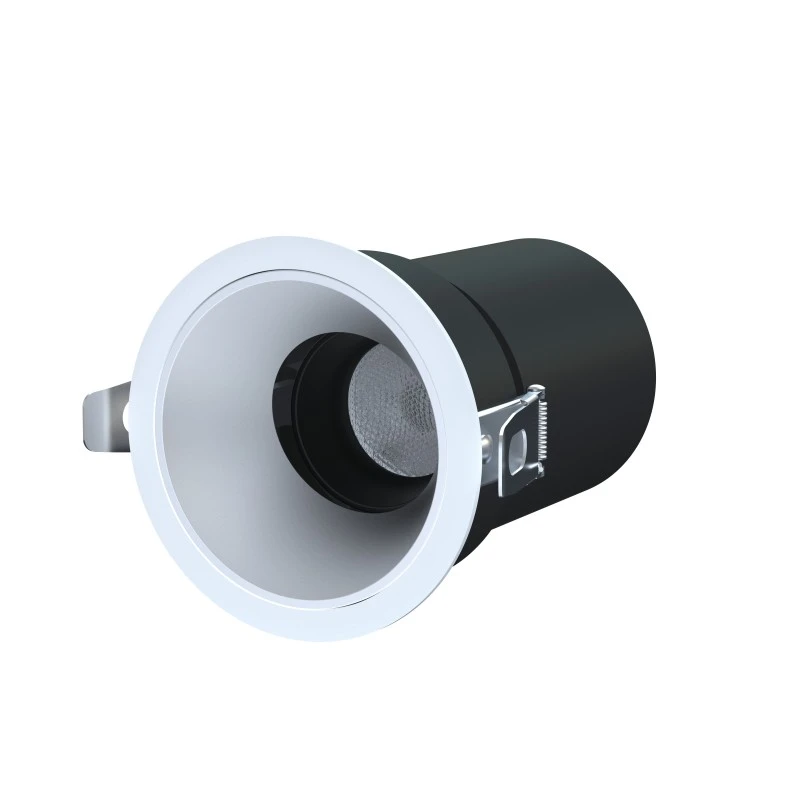

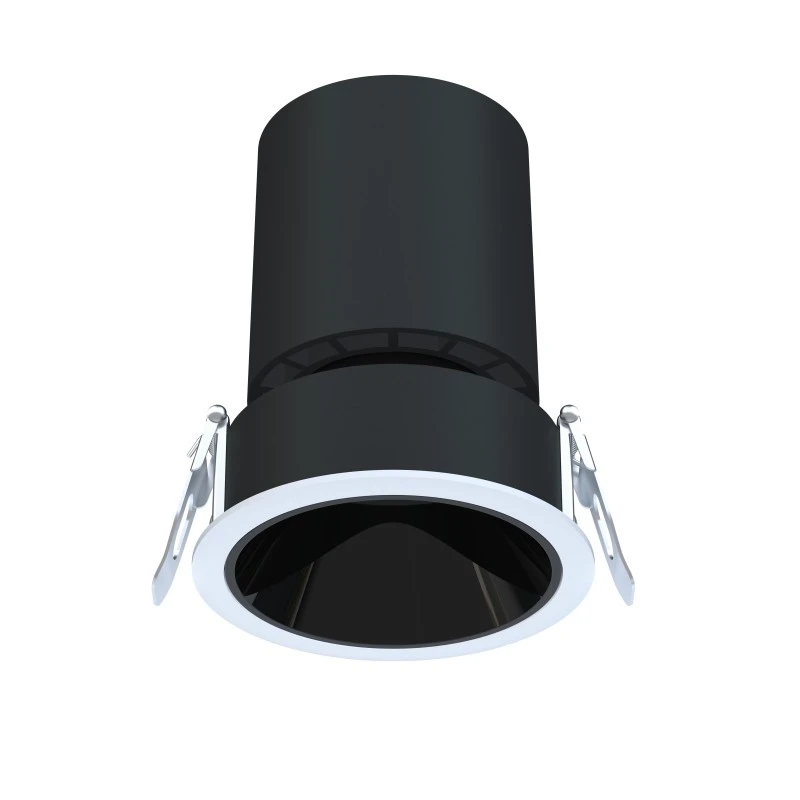

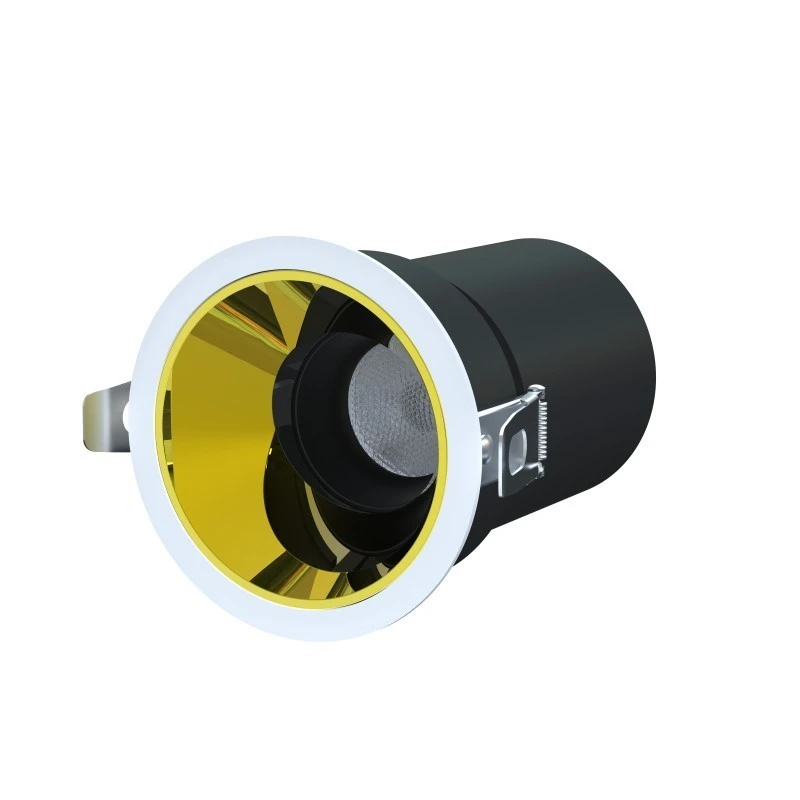

Reflectors in a variety of available colors

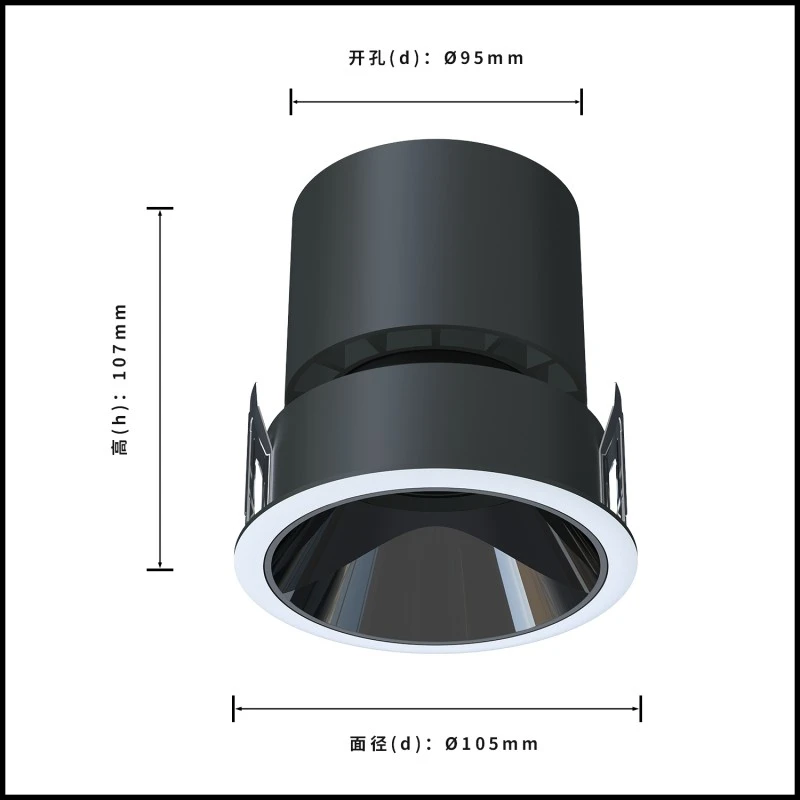

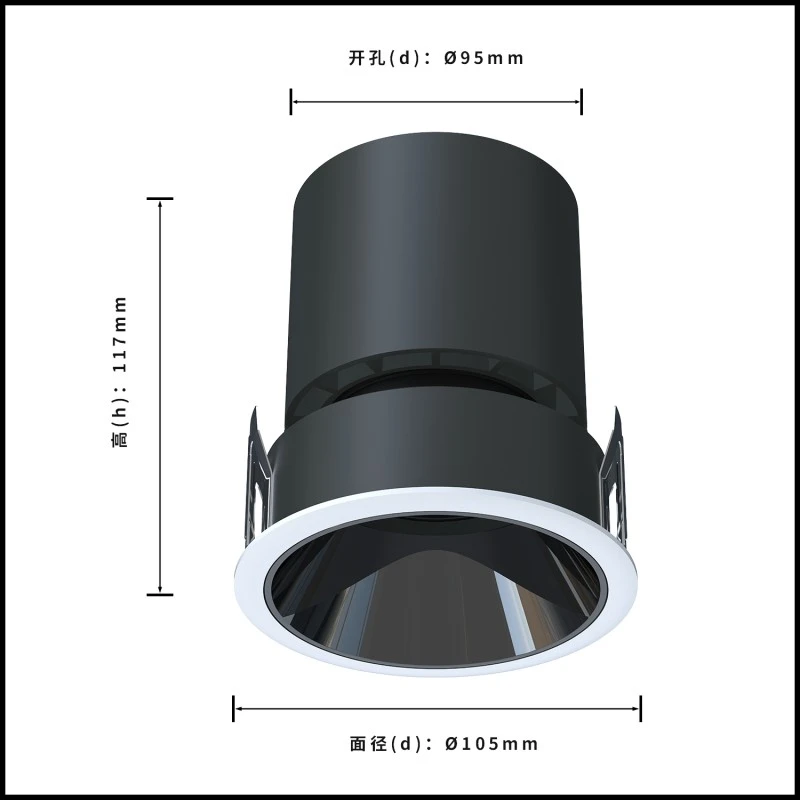

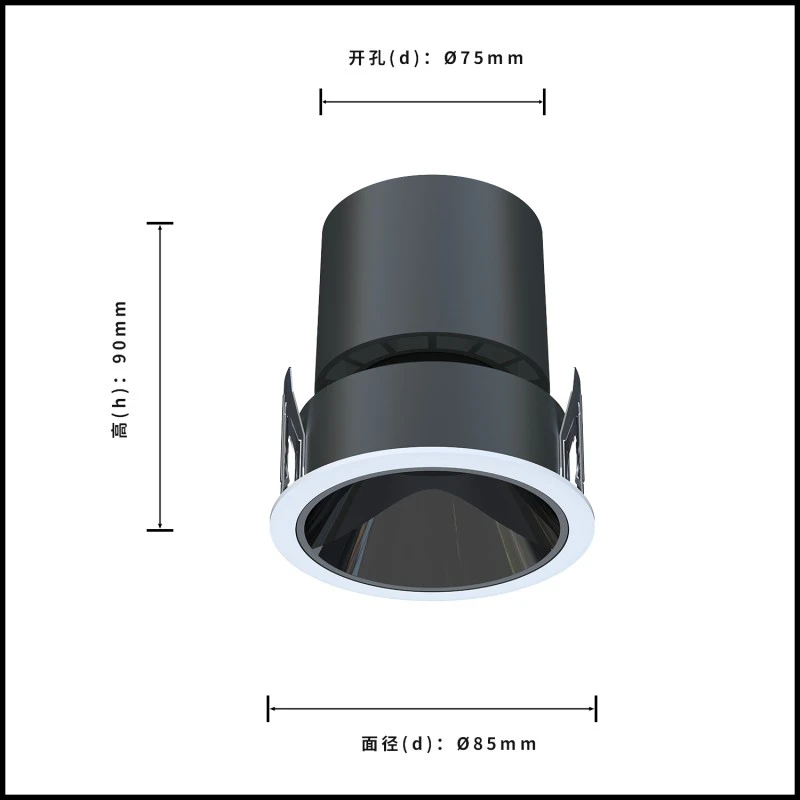

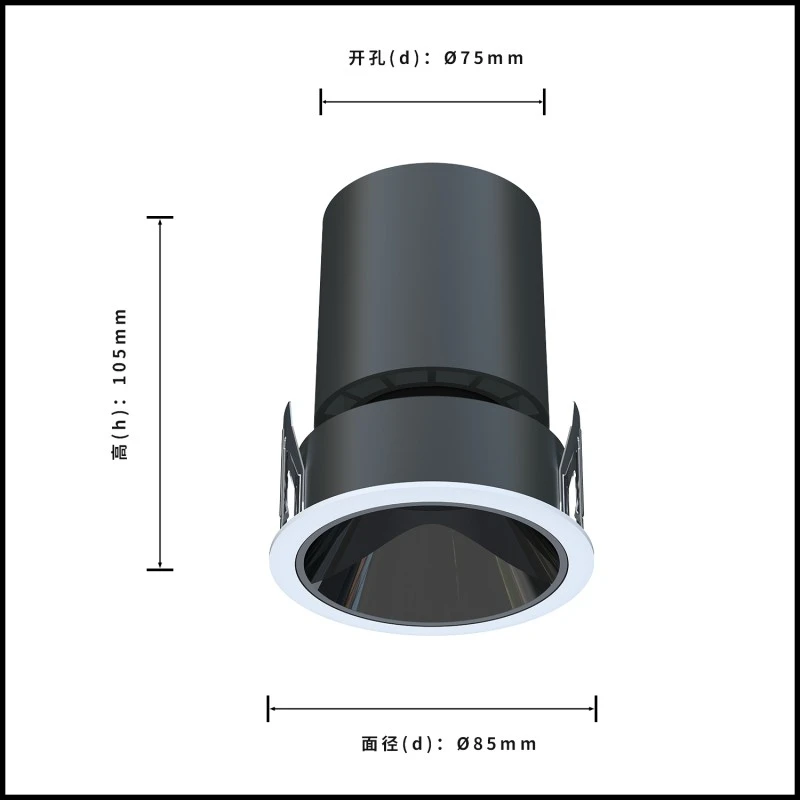

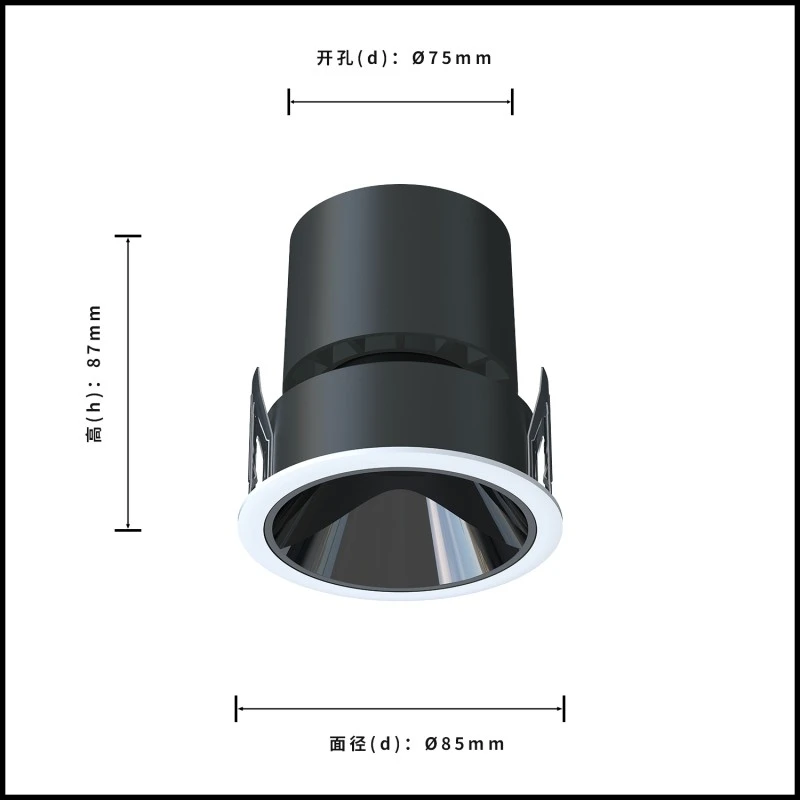

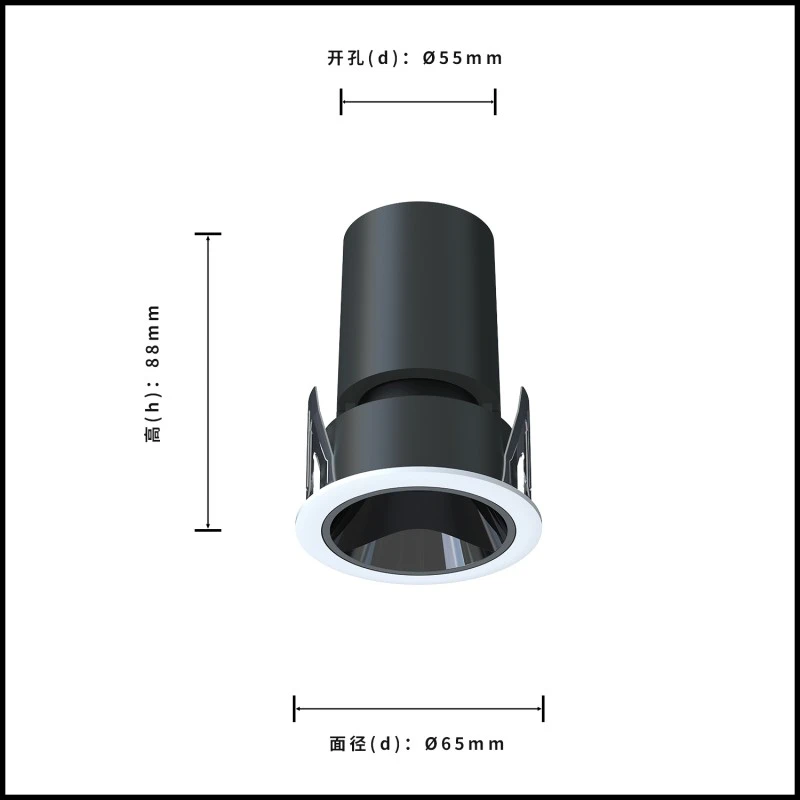

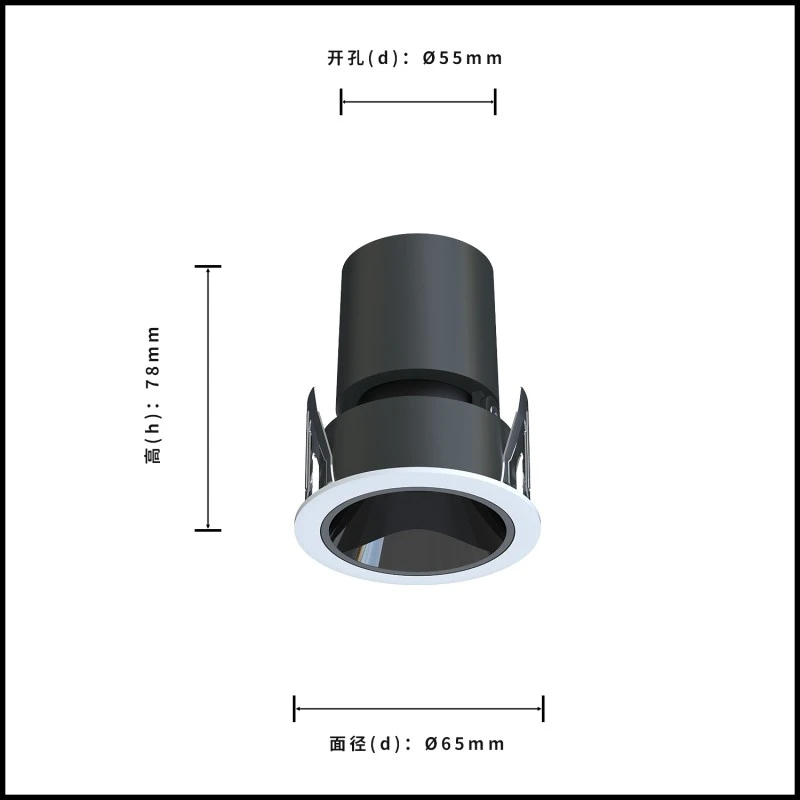

Product Size
