DL4015 Adjustable Angle Triple Head Grille LED Downlight 7W*3-20W*3
Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Features
The LEDTEK DL4015 Triple-Head Grille LED Down Light is an advanced lighting solution offering versatility and high performance. With a wattage range from 7W per head (for 3 heads) to 20W per head (for 3 heads), this downlight caters to various lighting requirements in both residential and commercial spaces. It features multiple selectable reflector colors and beam angles of 8°, 15°, 24°, 38°, and 55°, allowing you to customize the lighting to suit your specific needs.
Designed for seamless integration into ceilings, the DL4015 creates a sleek, modern appearance with a flush mount. Each of the three heads is vertically adjustable up to 30°, offering flexibility in directing the light. Constructed from durable aluminum alloy, it ensures effective heat dissipation, contributing to long-lasting performance and energy efficiency. Powered by Cree COB LEDs and a flicker-free LED driver, the DL4015 provides stable, high-quality lighting without flicker.
The deep anti-glare design enhances visual comfort, while the 5-year warranty guarantees durability. Upgrade your lighting with the LEDTEK DL4015 for efficient, high-performance illumination.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4015-7W*3 | DL4015-10W*3 | DL4015-12W*3 | DL4015-14W*3 | DL4015-16W*3 | DL4015-18W*3 | DL4015-20W*3 |
|---|---|---|---|---|---|---|---|
| Wattage | 7W*3 | 10W*3 | 12W*3 | 14W*3 | 16W*3 | 18W*3 | 20W*3 |
| Dimension(mm) | L255*W85*H80 | L255*W85*H80 | L255*W85*H80 | L255*W85*H80 | L255*W85*H95 | L255*W85*H95 | L255*W85*H95 |
| Cutting Hole | L250*W75 | ||||||
| Input Voltage(V) | AC110-240V 50/60Hz | ||||||
| Light Source | Cree COB LED | ||||||
| CCT | 2700K-6500K | ||||||
| Luminous Flux (lm) ±5% | 2100 | 3000 | 3600 | 4200 | 4800 | 5400 | 6000 |
| CRI | >80(90 optional) | ||||||
| Beam Angle | 8°/15°/24°/38°/55° | ||||||
| LED Driver | External LED Driver | ||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | ||||||
| Ingress Protection (IP Rating) | IP54 On Room Side / IP20 At Back Side | ||||||
| Product Finishing |
| ||||||
| Materials of Optics | PMMA | ||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | ||||||
| Installation | Recessed | ||||||

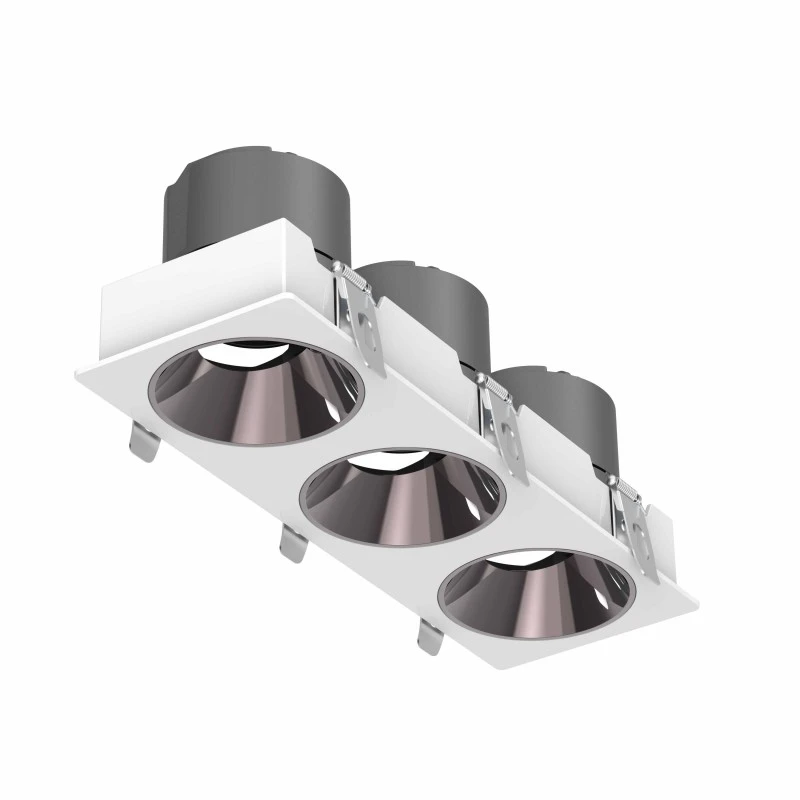

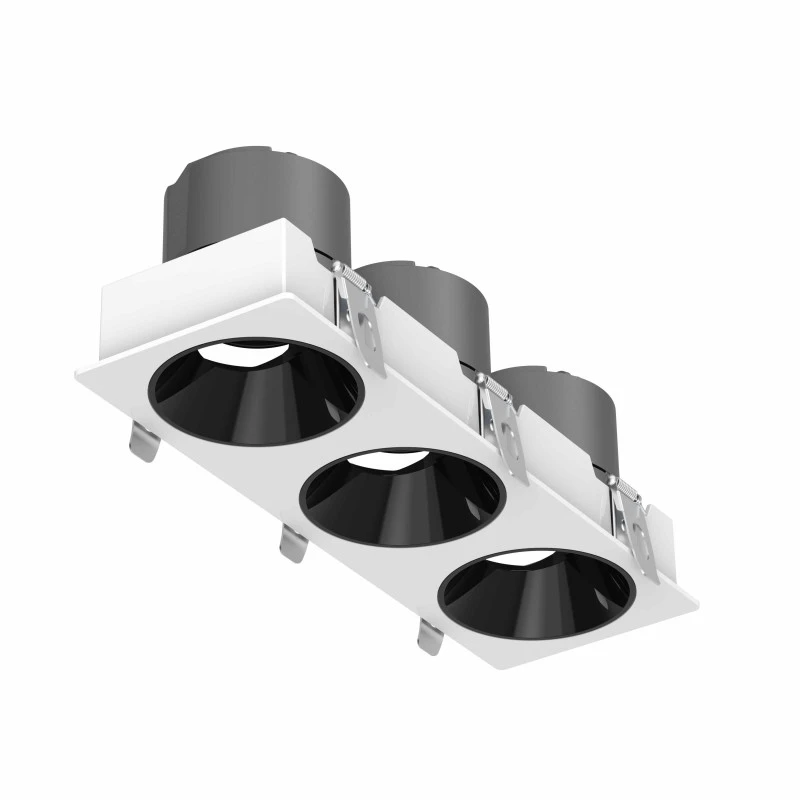

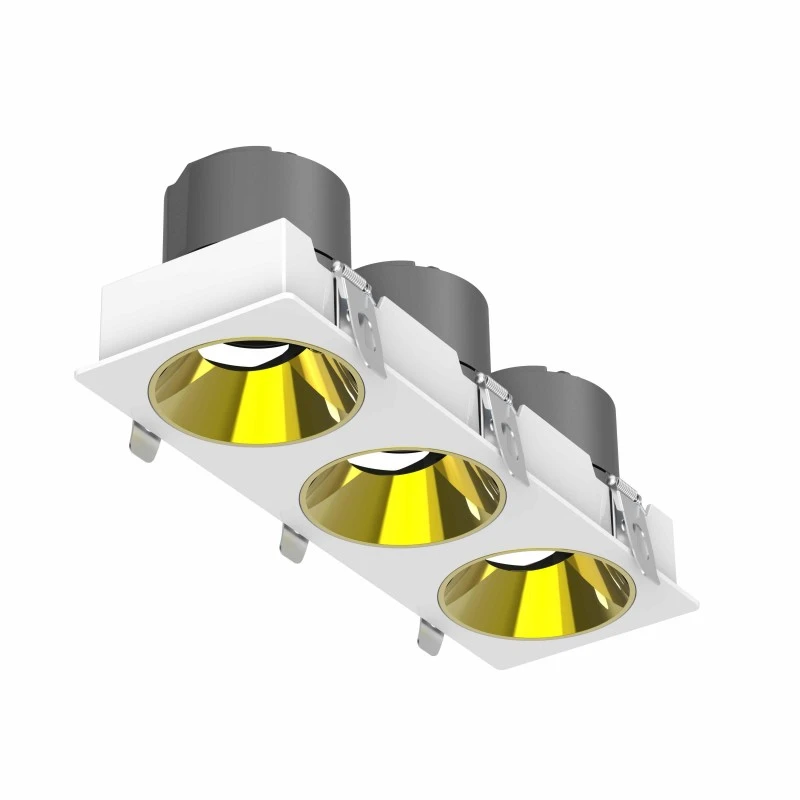

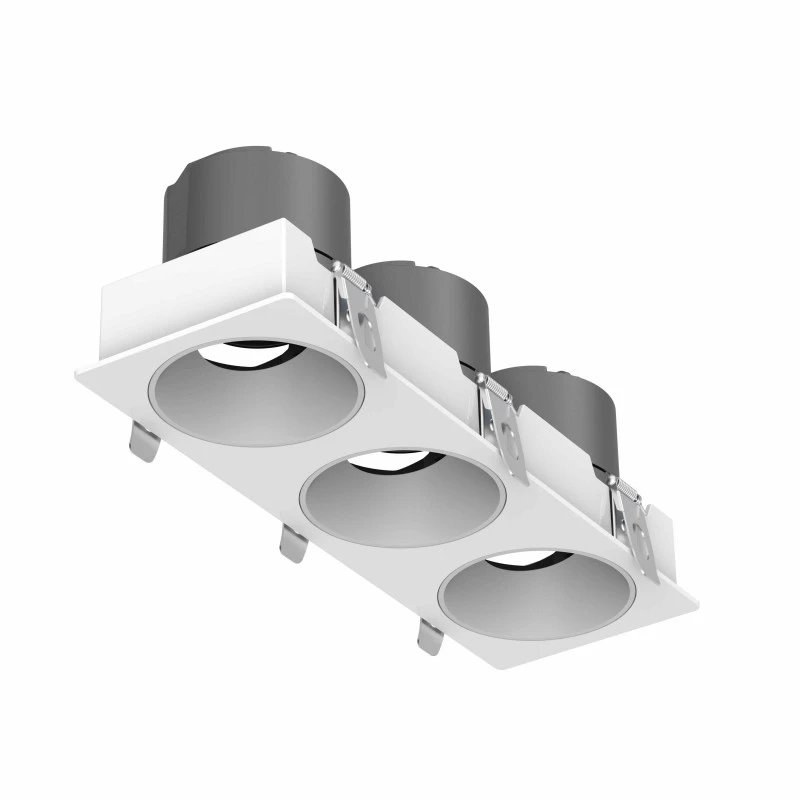

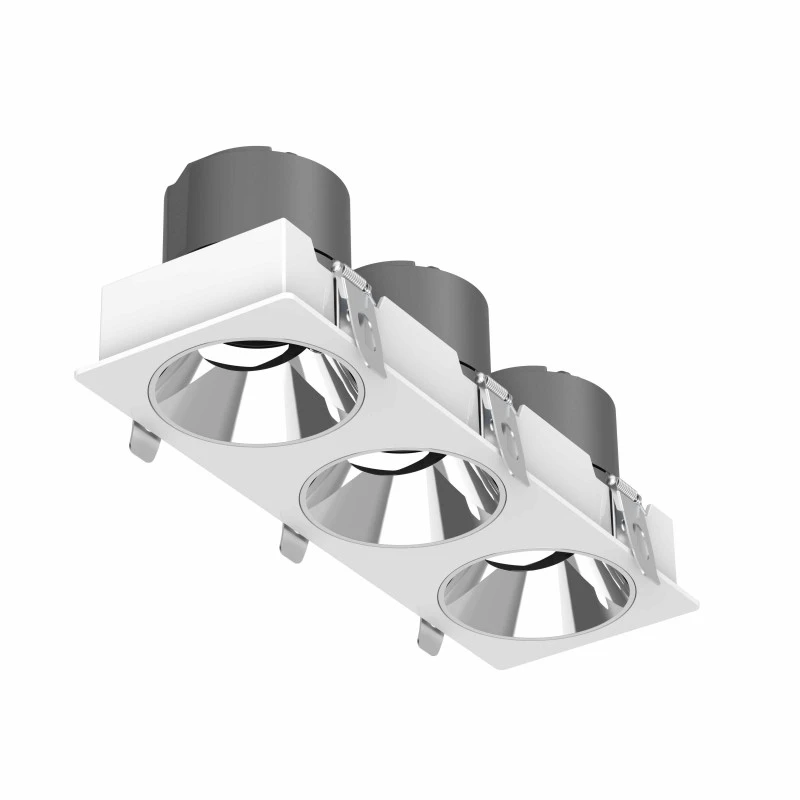

Reflectors in a variety of available colors

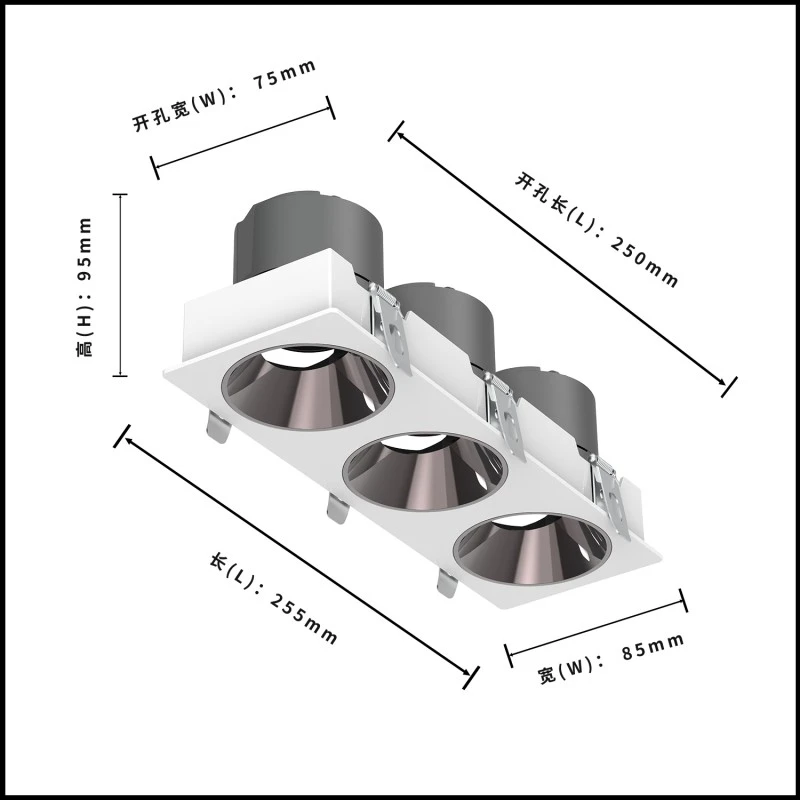

Product Size
