Key Features:

  • Deep reflector design to avoid direct light sources, resulting in UGR <10.

  • ADC12 aluminium die-cast housing provides very good heat dissipation.

  • Cree COB LED

  • Flicker free & High Power Factor LED Driver

  • CRI>80 (90 optional) light source, which restores the original colour of the object.

  • Wattage range: 7W*4-20W*4.

  • Various colors of reflector available

  • Dimming option:Non-dim,0/1-10V dimming or DALI dimming

  • Adjustable angle of the lamp head

  • 5 years warranty

Application:

It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

Features

The LEDTEK DL4015 Four-Head Grille LED Down Light is an advanced lighting solution offering versatility and high performance. With a wattage range from 7W per head (for 4 heads) to 20W per head (for 4 heads), this downlight caters to various lighting requirements in both residential and commercial spaces. It features multiple selectable reflector colors and beam angles of 8°, 15°, 24°, 38°, and 55°, allowing you to customize the lighting to suit your specific needs.

Designed for seamless integration into ceilings, the DL4015 creates a sleek, modern appearance with a flush mount. Each of the three heads is vertically adjustable up to 30°, offering flexibility in directing the light. Constructed from durable aluminum alloy, it ensures effective heat dissipation, contributing to long-lasting performance and energy efficiency. Powered by Cree COB LEDs and a flicker-free LED driver, the DL4015 provides stable, high-quality lighting without flicker.

The deep anti-glare design enhances visual comfort, while the 5-year warranty guarantees durability. Upgrade your lighting with the LEDTEK DL4015 for efficient, high-performance illumination.

We can customize the wattage to meet your needs.

Looking for more LED downlight ? Explore our full collection here.

Model No

DL4015-7W*4
DL4015-10W*4
DL4015-12W*4
DL4015-14W*4
DL4015-16W*4
DL4015-18W*4
DL4015-20W*4
Wattage7W*410W*412W*414W*416W*418W*420W*4
Dimension(mm)L170*W170*H80L170*W170*H80L170*W170*H80L170*W170*H80L170*W170*H95L170*W170*H95L170*W170*H95
Cutting HoleL165*W165
Input Voltage(V)AC110-240V 50/60Hz
Light SourceCree COB LED
CCT2700K-6500K
Luminous Flux (lm) ±5%2800400048005600640072008000
Beam Angle8°/15°/24°/38°/55°
LED DriverExternal LED Driver
Dimming OptionOptional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)IP54 On Room Side / IP20 At Back Side
Product Finishing
  1. Aluminium Housing Color:White/Black
  2. Reflector Color:White/Matte white/Black/Gunmetal black/Champagne gold/Rose gold/Matte silver/Bright silver/Matte black
Materials of OpticsPMMA
Operating Temp. (℃ )-20℃ ~45℃
InstallationRecessed

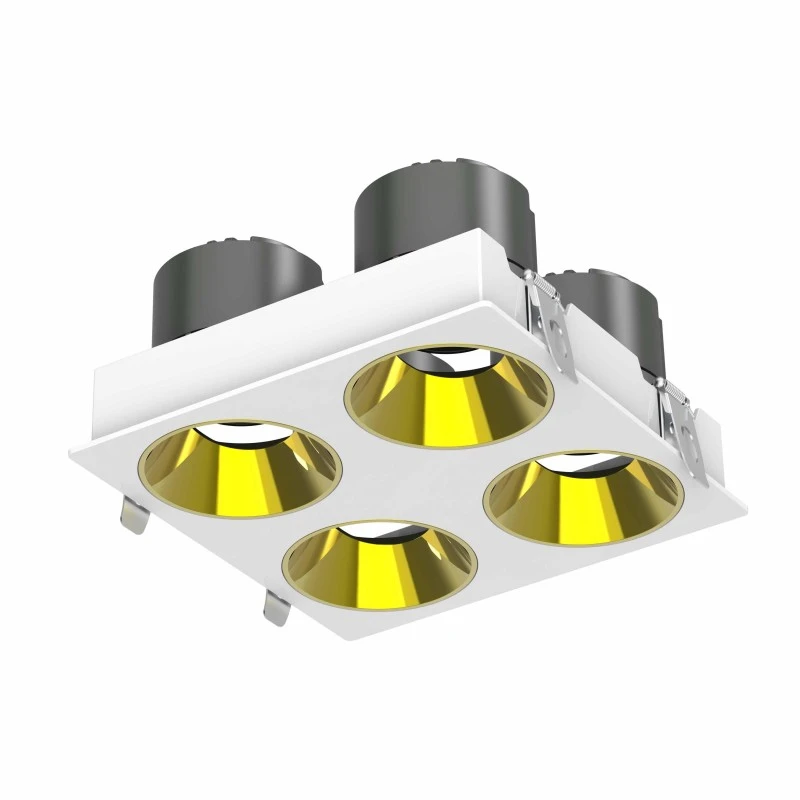

Reflectors in a variety of available colors

DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty
DL4015 LED Downlight with Cree COB Technology, Adjustable Angle, Four-Head, 5-Year Warranty

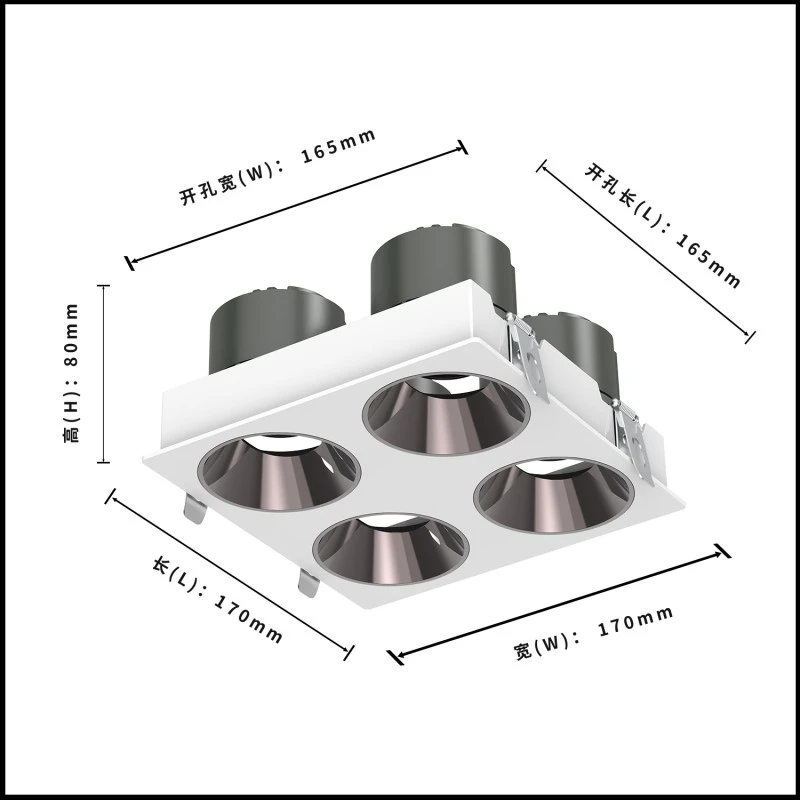

Product Size
