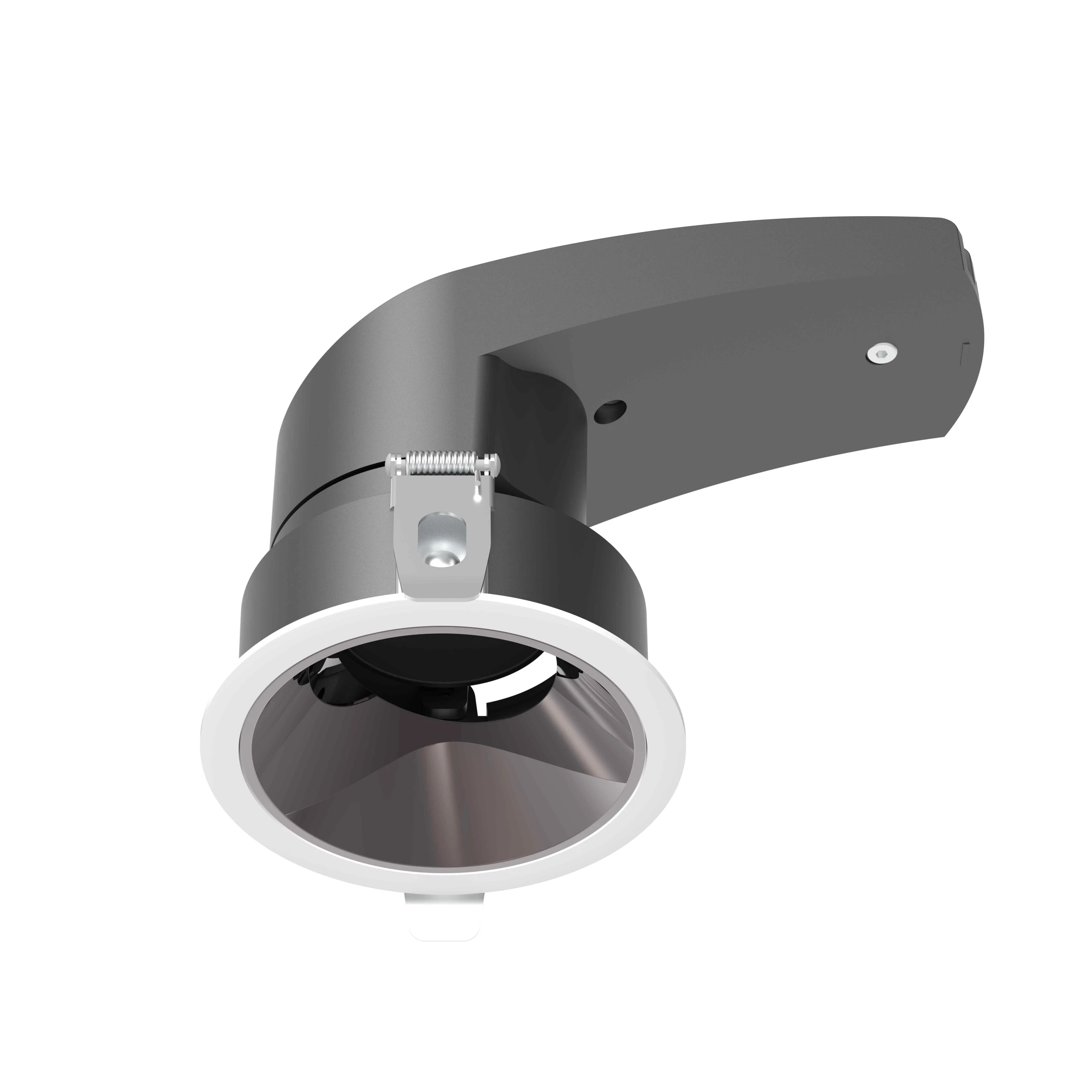

DL4020 Adjustable Head LED downlight 5W-35W

  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
  • LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.

Key Features:

  • Ideal for low ceiling spaces

  • Adjustable head (0-30 degrees)

  • Nine color options for reflectors

  • Power range: 5W to 35W

  • COB LED technology (Cree or Bridgelux)

  • Multiple beam angles: 8°, 15°, 24°, 38°, 55°

  • Includes safety rope

  • Dimming option:Non-dim,0/1-10V dimming or DALI dimming

  • 5-years warranty

Application:

With its innovative design and advanced features, the LEDTEK DL4020 Series LED Downlight is the perfect lighting solution for both residential and commercial spaces.

Features

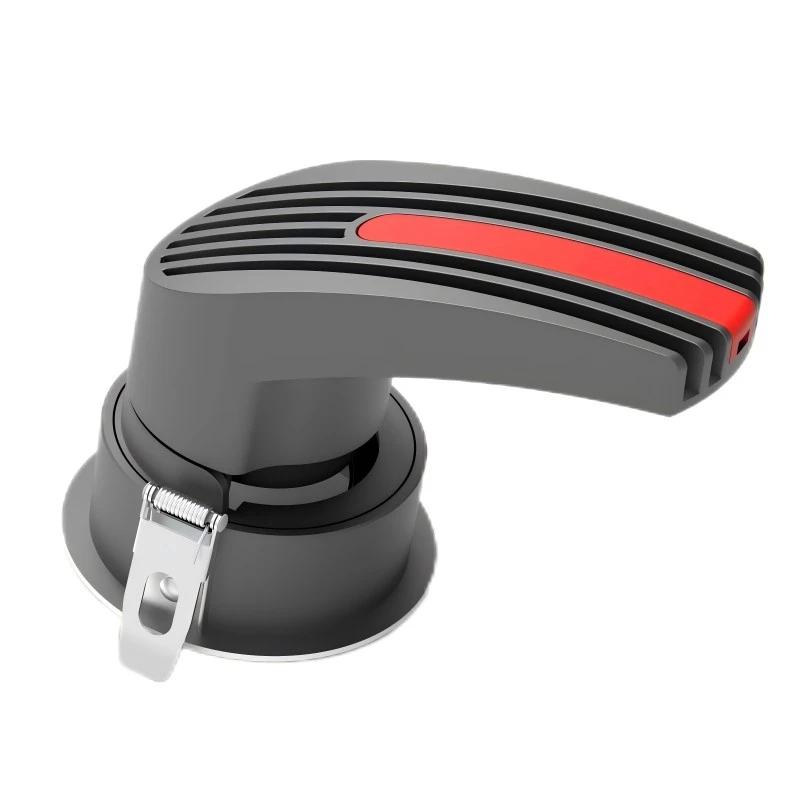

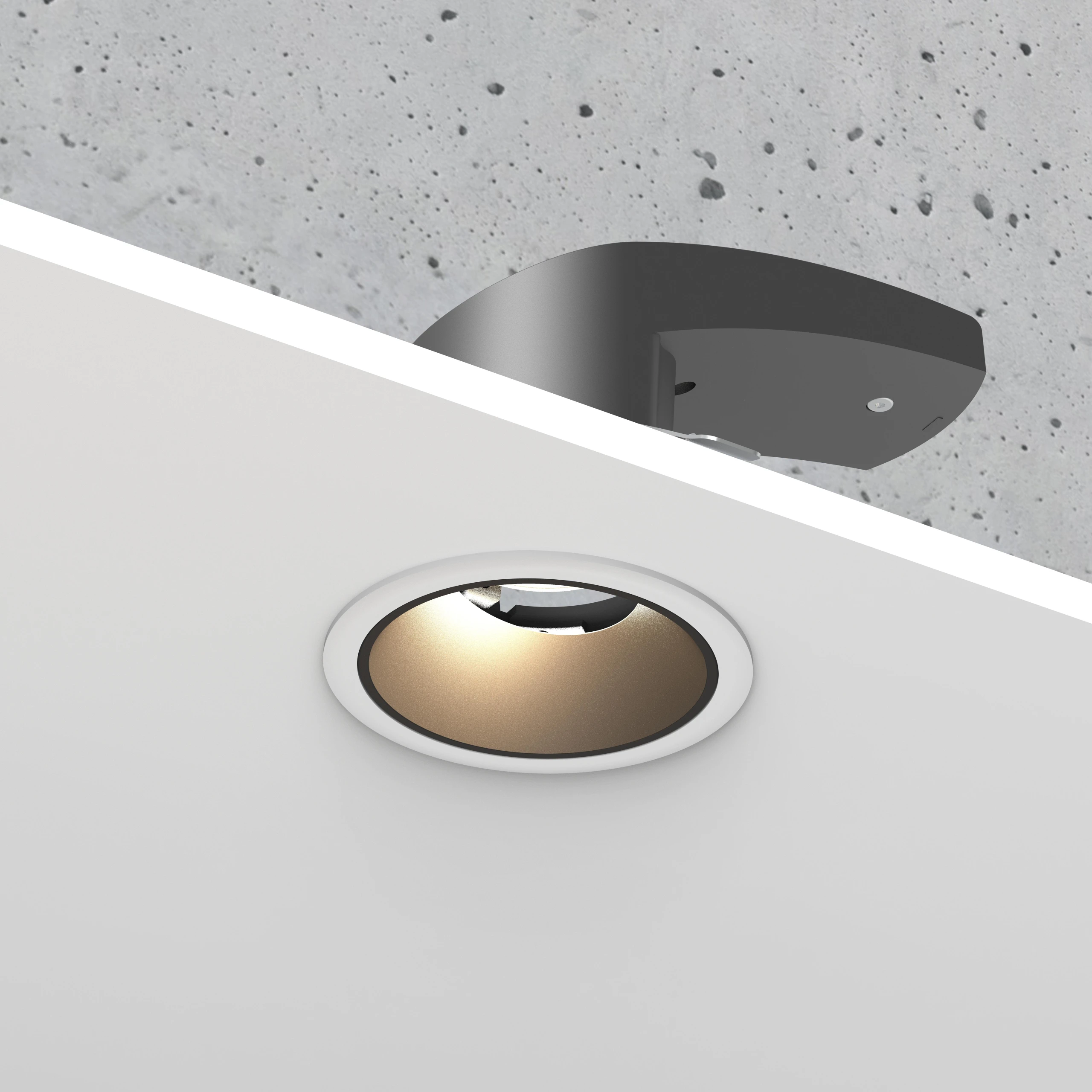

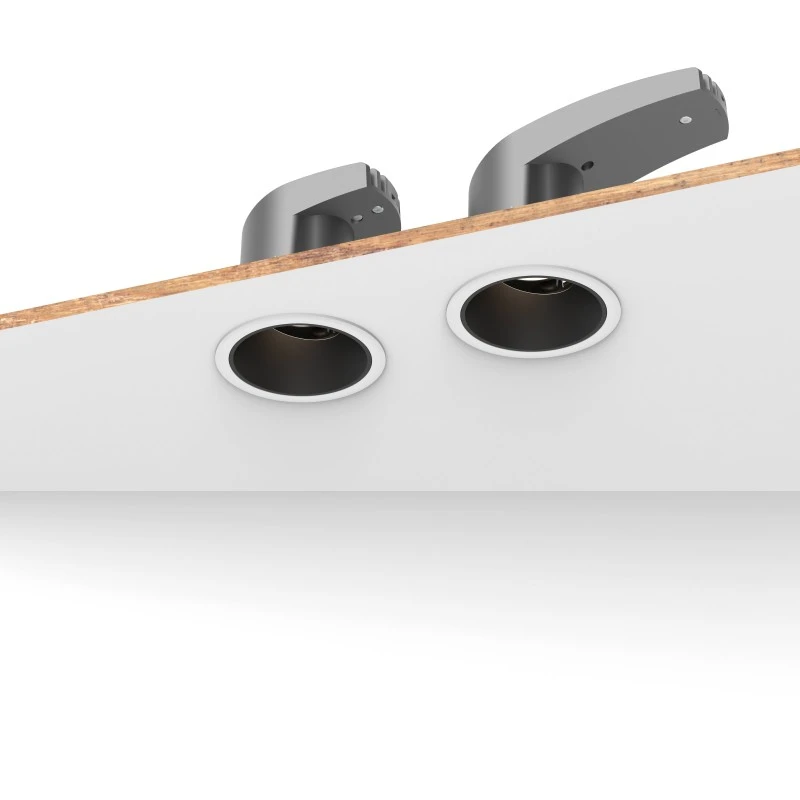

The LEDTEK DL4020 Series LED Downlight is specifically designed for spaces with low ceiling heights, making it an ideal choice for modern buildings and renovations where ceiling space is limited. Featuring a unique curved heat sink design, this downlight minimizes vertical height while maintaining an ample surface area for efficient heat dissipation. This ensures optimal performance and longevity.

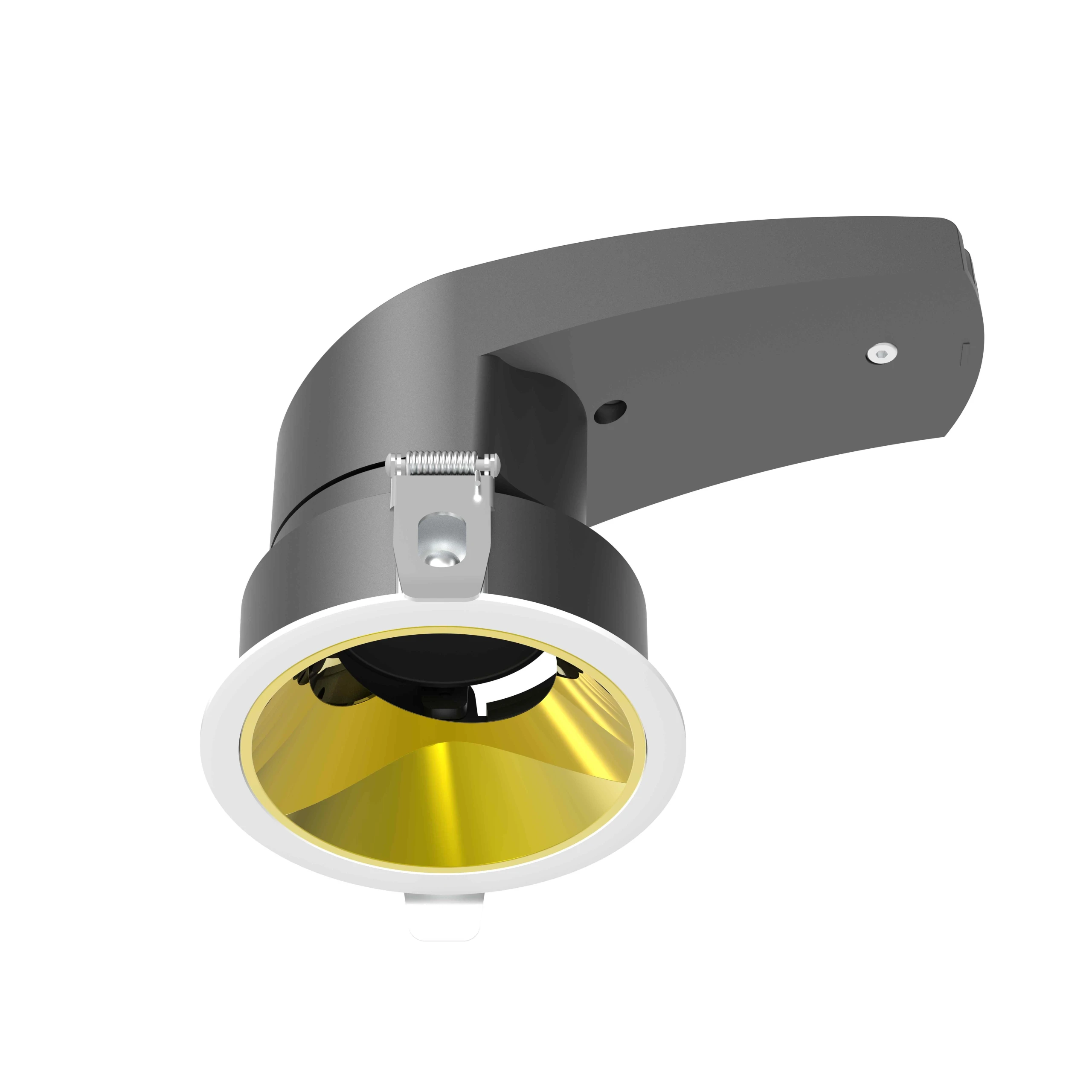

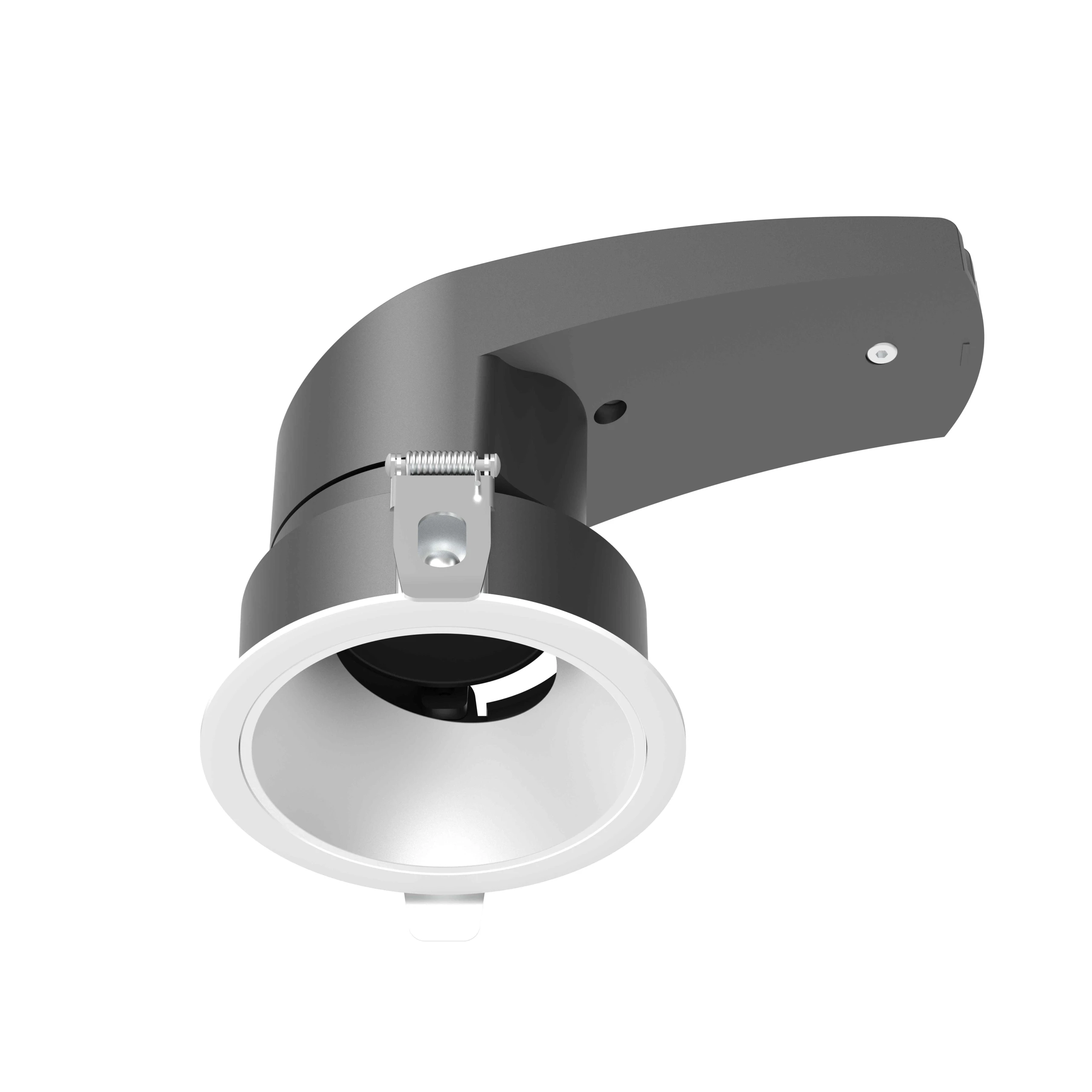

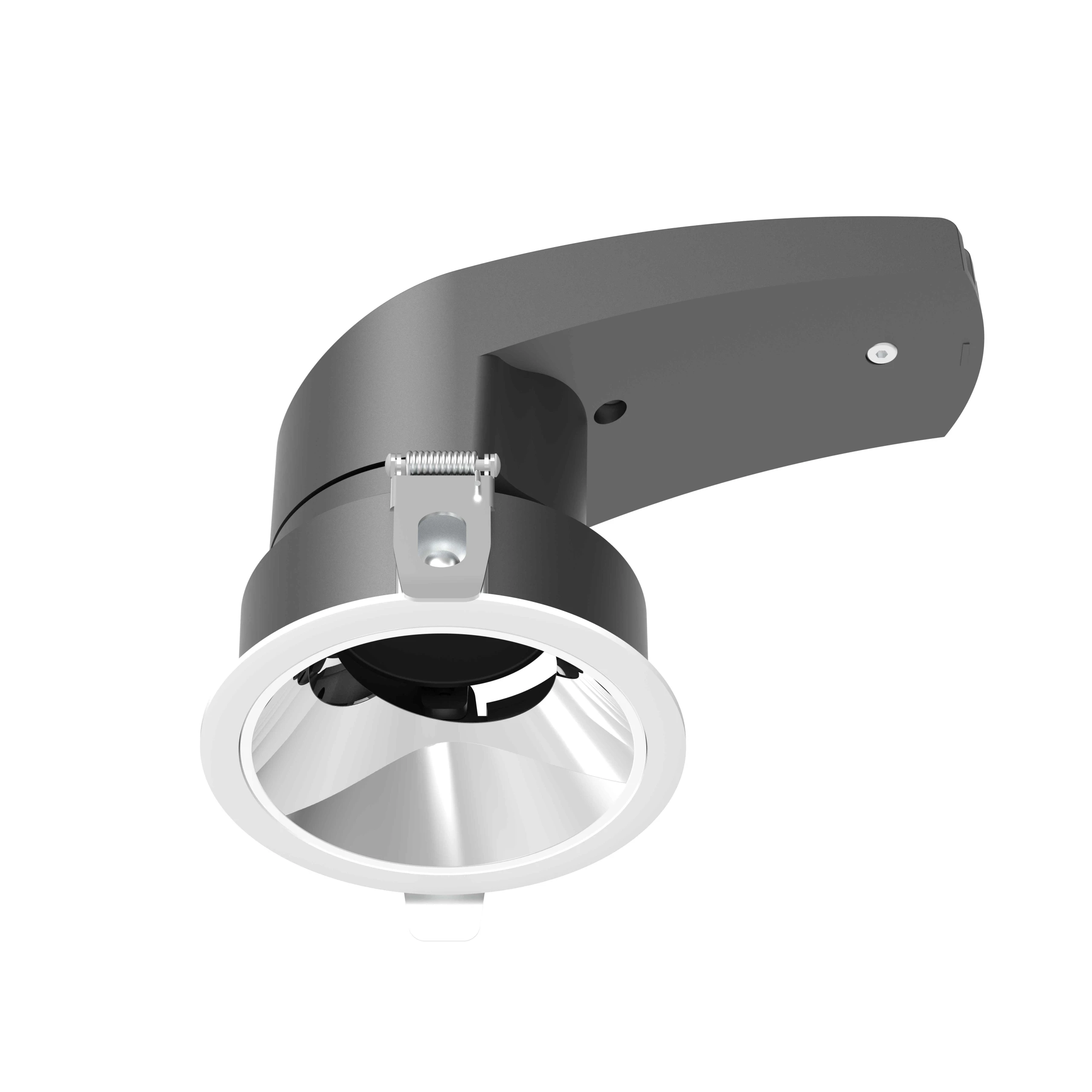

The DL4020 Series offers a versatile adjustable head that can tilt between 0 to 30 degrees, allowing for directional lighting to suit various applications. With nine different reflector colors, it gives users the flexibility to achieve their desired lighting effect and aesthetic.

Power options range from 5W to 35W, and the downlight utilizes high-quality Cree or Bridgelux COB LEDs to ensure superior brightness and energy efficiency. The available beam angles—8°, 15°, 24°, 38°, and 55°—allow for precise and customizable light distribution, making it suitable for both ambient and task lighting.

Additionally, the DL4020 series comes equipped with a safety rope to prevent accidental drops during installation. With a 5-year warranty, customers can trust in the reliability and durability of this product.

We can customize the wattage to meet your needs.

Looking for more LED downlight ? Explore our full collection here.

Model No

DL4020-7W
DL4020-10W
DL4020-12W
DL4020-18W
DL4020-20W
DL4020-25W
DL4020-30W
DL4020-35W
Wattage7W10W12W18W20W25W30W35W
Dimension(mm)Φ64*H87Φ64*H87Φ85*H92Φ85*H100Φ105*H120Φ105*H150Φ105*H150Φ105*H150
Cutting Hole Φ55Φ55Φ75Φ75Φ95Φ95Φ95Φ95
Input Voltage(V)AC110-240V 50/60Hz
Light SourceCree/BridgeLux COB LED
CCT2700K-6500K
Luminous Flux (lm) ±5%7001000120018002000250030003500
CRI>80(90 optional)
Beam Angle8°/15°/24°/38°/55°
LED DriverExternal Flicker-free LED Driver
Dimming OptionOptional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)IP54 On Room Side / IP20 At Back Side
Product Finishing
  1. Aluminium Housing Color:White&Black
  2. Reflector Color:White/Matte white/Black/Gunmetal black/Champagne gold/Rose gold/Matte silver/Bright silver/Matte black
Materials of OpticsPMMA
Operating Temp. (℃ )-20℃ ~45℃
InstallationRecessed

in a variety of available colors

LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.
LEDTEK DL4020 Adjustable Cree COB LED Downlight 5 years warranty for limited ceiling space.

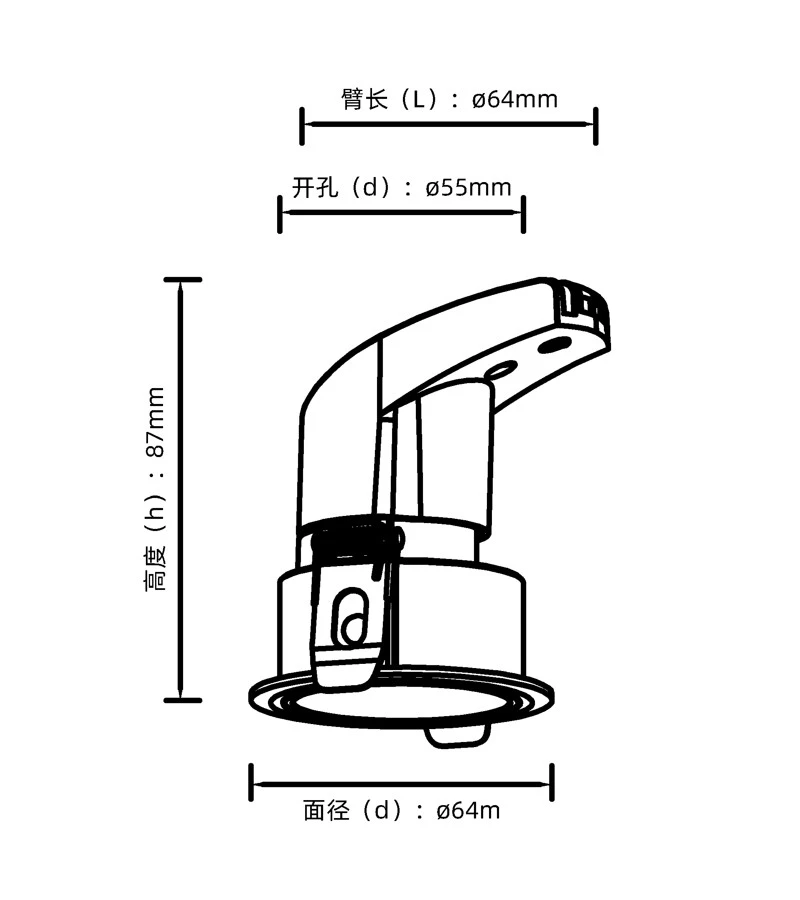

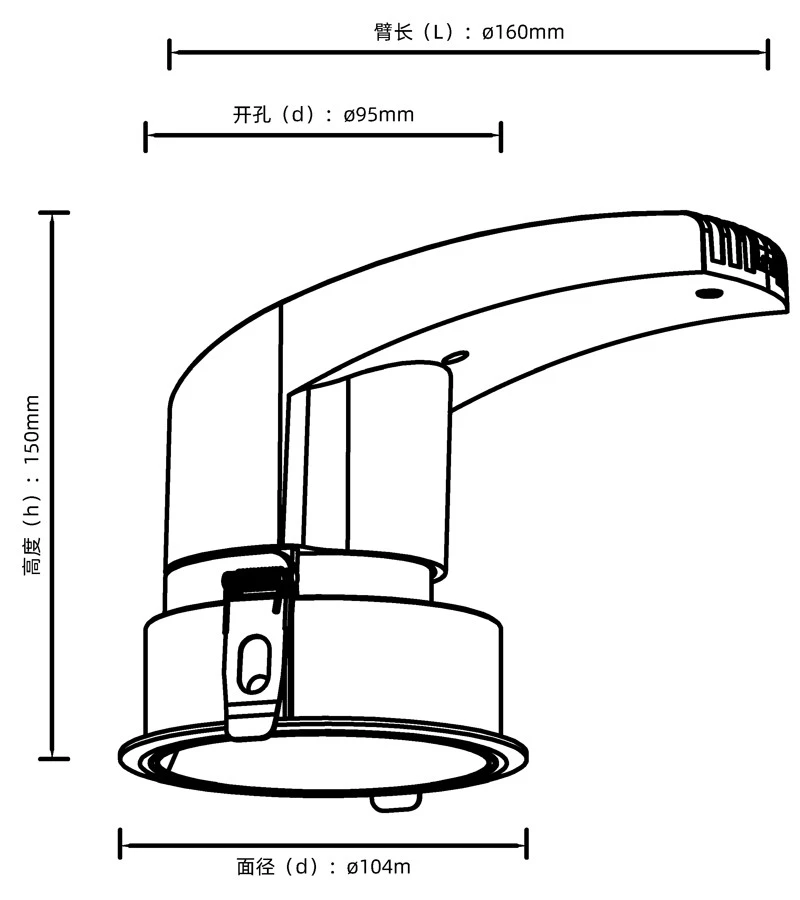

Product Size
