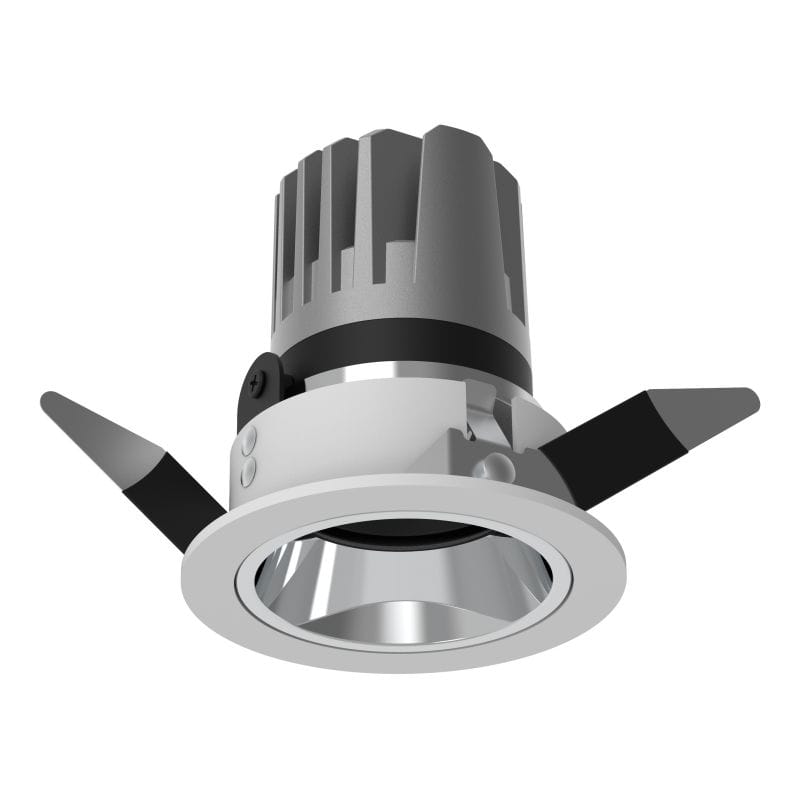

DL4047 LED COB Downlight 5W-30W
Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

Honeycomb Optional

Optional small round hole for light output

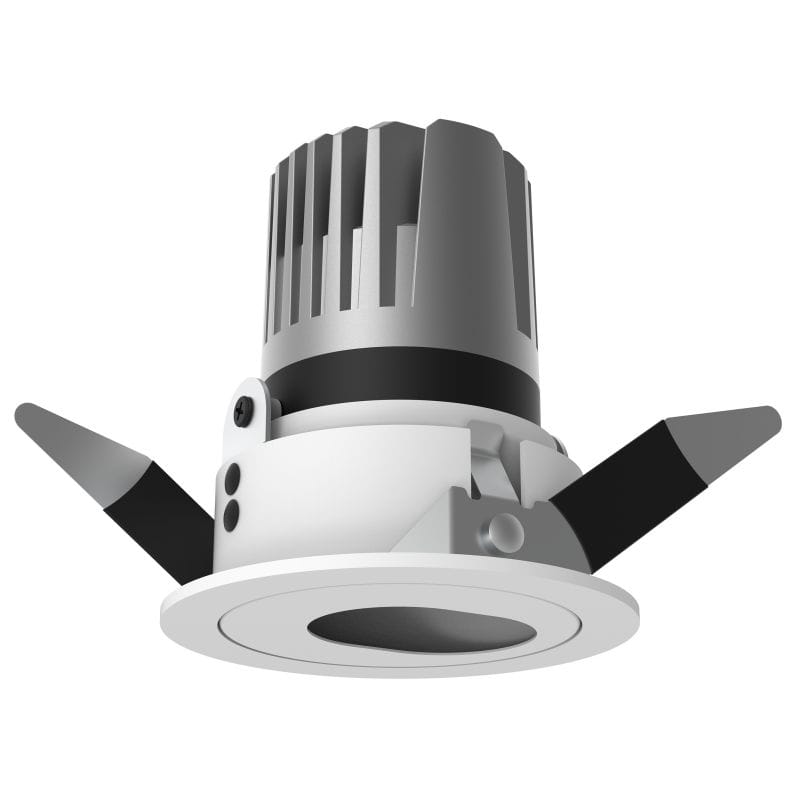

Optional oval hole for light output
Product Overview
The LEDTEK DL4047 LED Downlight is a premium lighting solution designed for seamless ceiling integration. Crafted from ADC12 aluminum, it ensures efficient heat dissipation, enhancing durability and performance. With power options ranging from 5W to 30W, this downlight meets diverse lighting needs across residential, commercial, and hospitality spaces.
Featuring a high-quality Cree COB LED, the DL4047 delivers stable, flicker-free illumination. The deep anti-glare design minimizes eye strain, while customizable reflector colors and lenses (15°, 24°, 38° beam angles) provide tailored lighting solutions. Choose between round or oval light-emitting trims, or add a honeycomb louver for superior glare control.
Built for flush ceiling installation, the DL4047 blends seamlessly into any interior. Its non-flicker LED driver ensures consistent performance, and with a 5-year warranty, reliability is guaranteed. Whether for general, accent, or task lighting, the LEDTEK DL4047 LED Downlight offers versatile, efficient, and glare-free illumination.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4047-5W | DL4047-7W | DL4047-10W | DL413-12W | DL4047-16W | DL4047-20W | DL4047-25W | DL4047-30W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 20W | 25W | 30W |
| Dimension(mm) | Φ67*H83 | Φ67*H83/Φ88*H87 | Φ67*H100/Φ88*H98 | Φ88*H98 | Φ88*H113/Φ108*H112 | Φ88*H113/Φ108*H112 | Φ108*H132 | Φ108*H132 |
| Cutting Hole | Φ55 | Φ55/ Φ75 | Φ55/Φ75 | Φ75 | Φ75/Φ95 | Φ75/Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB/BridgeLux COB | |||||||
| CCT | 2700K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 2000 | 2500 | 3000 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 15°/24°/38° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP54 On Room Side / IP20 At Back Side | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||||
| Installation | Recessed | |||||||

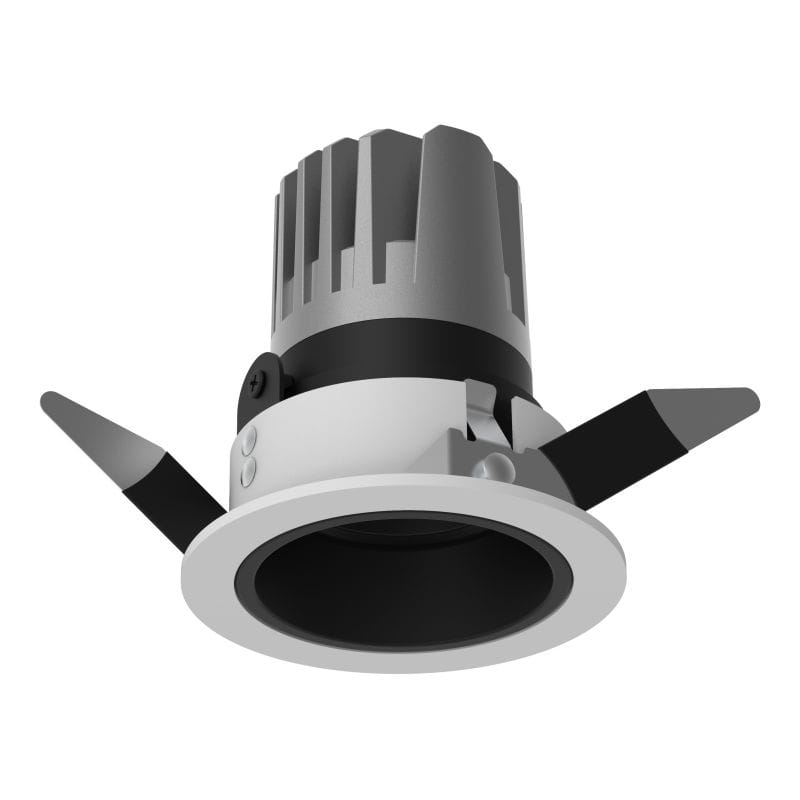

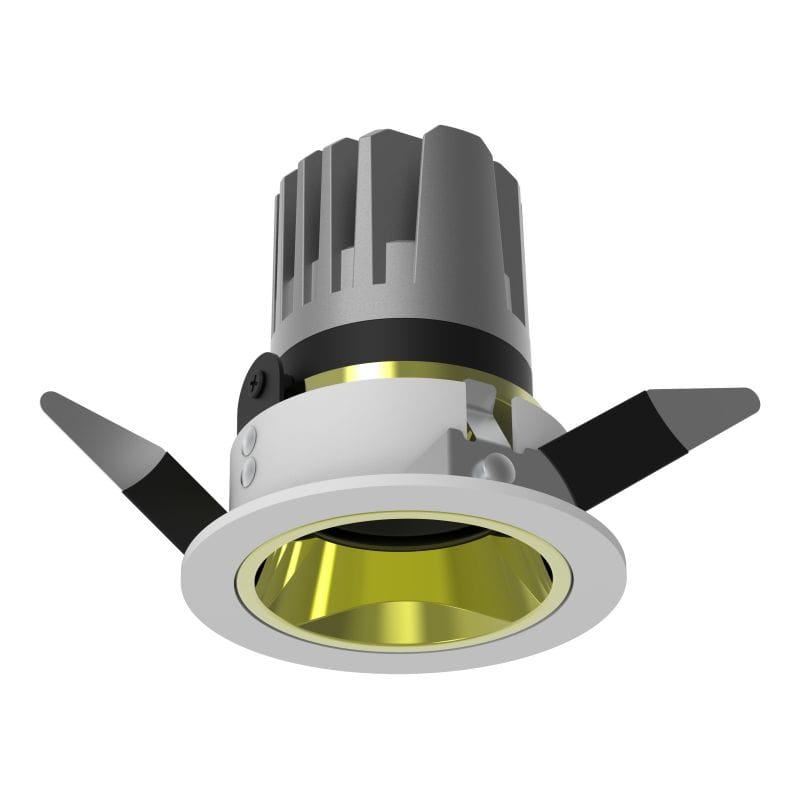

Reflectors in a variety of available colors

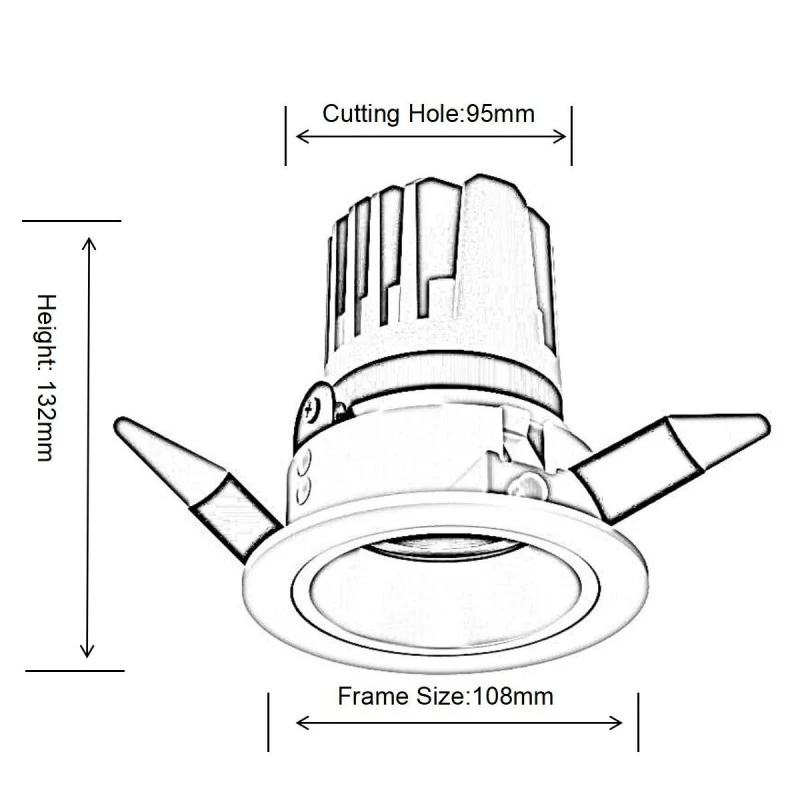

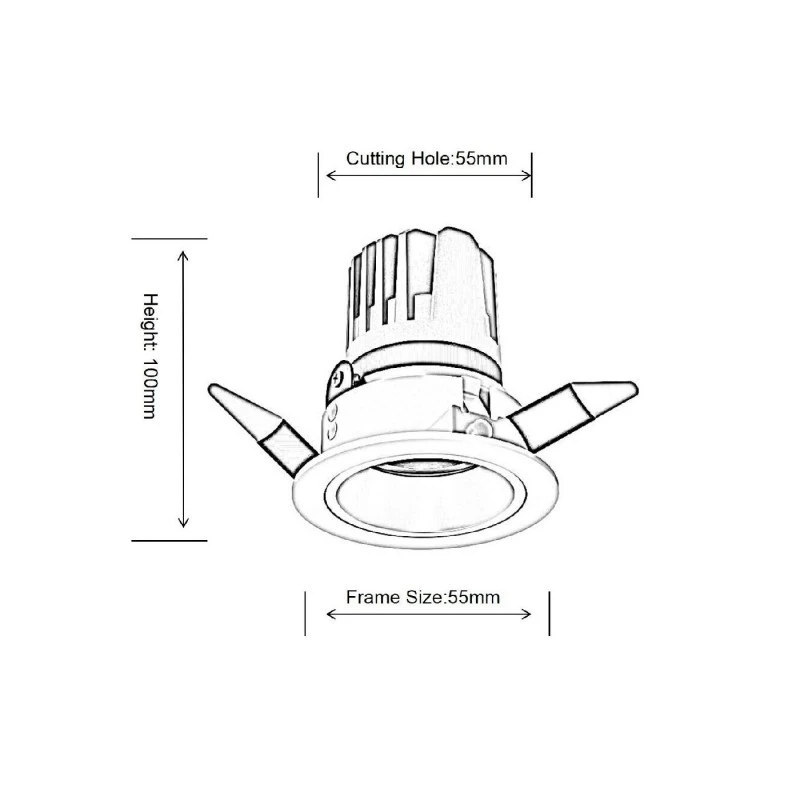

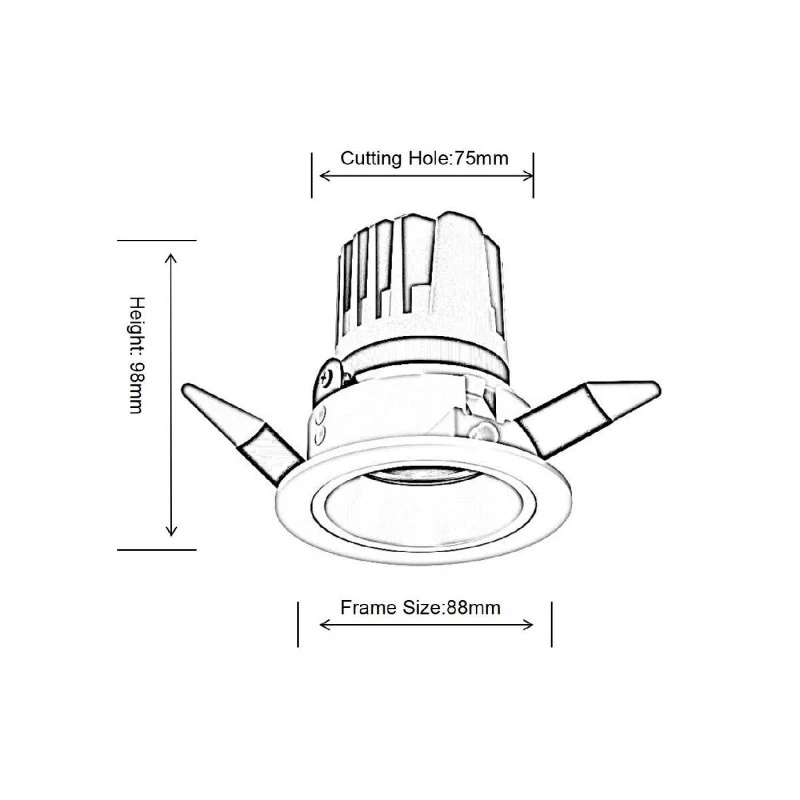

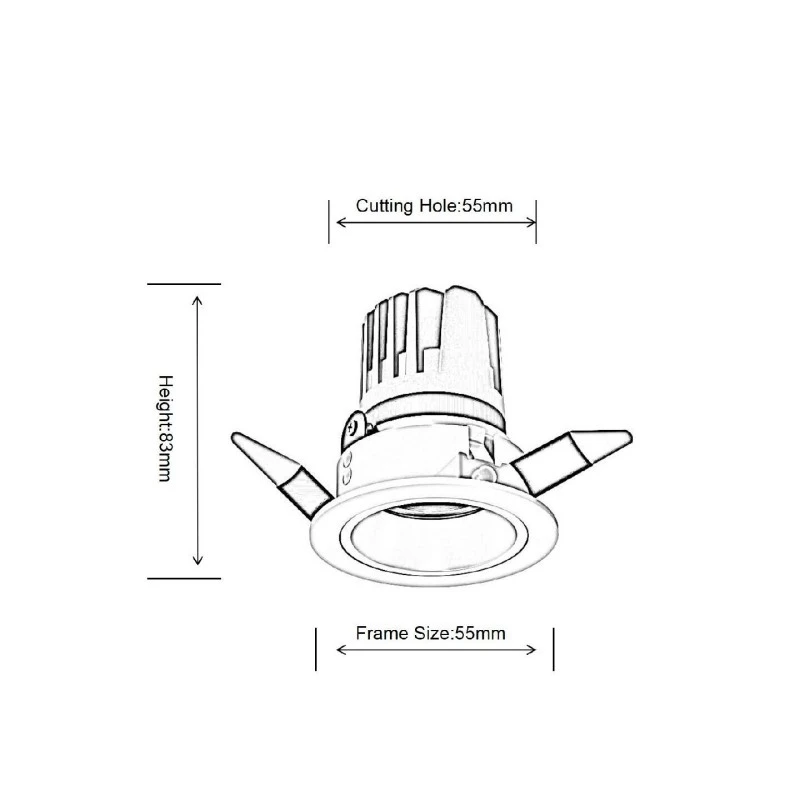

Product Size
