DL4058 SMD LED Downlight 10W-60W
Key Feature:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

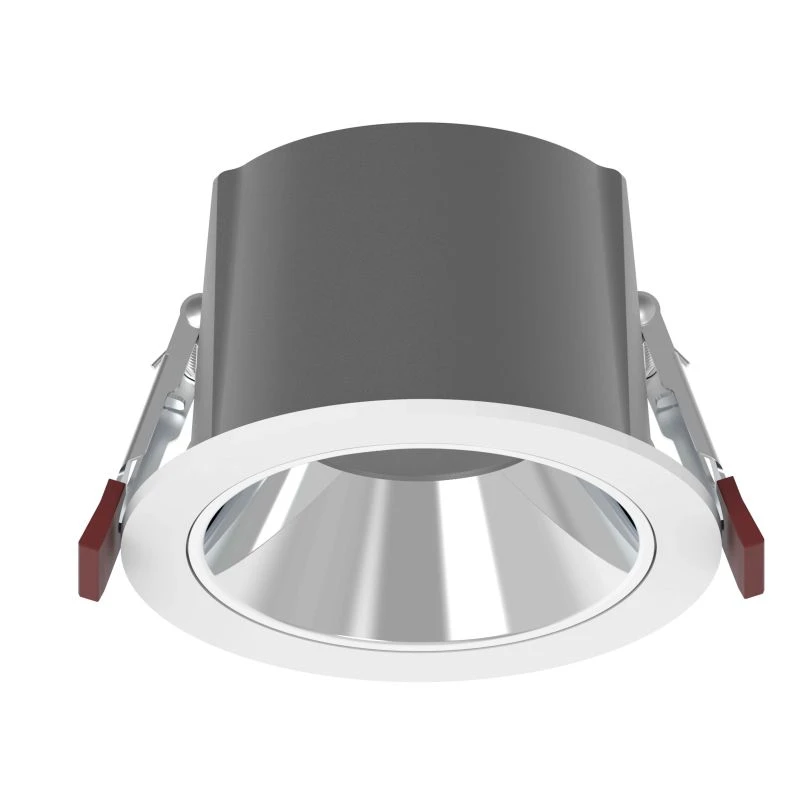

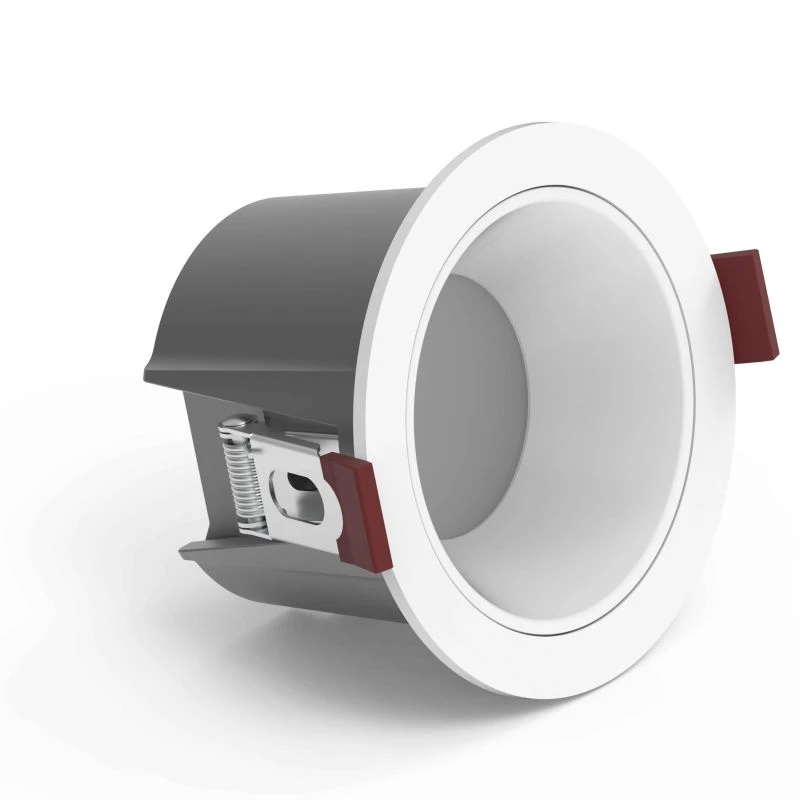

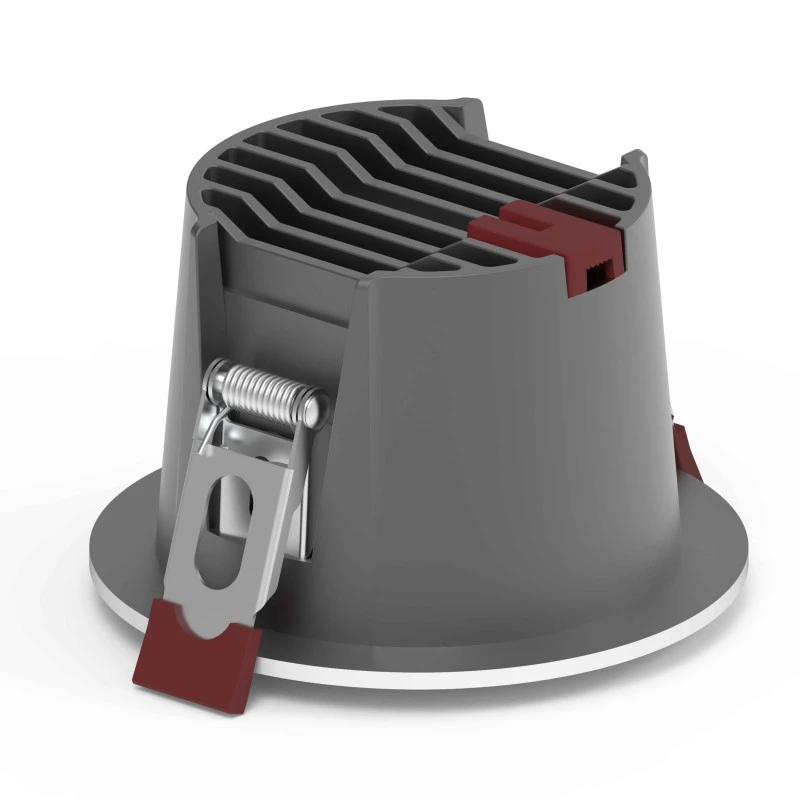

Optional Black Heatsink

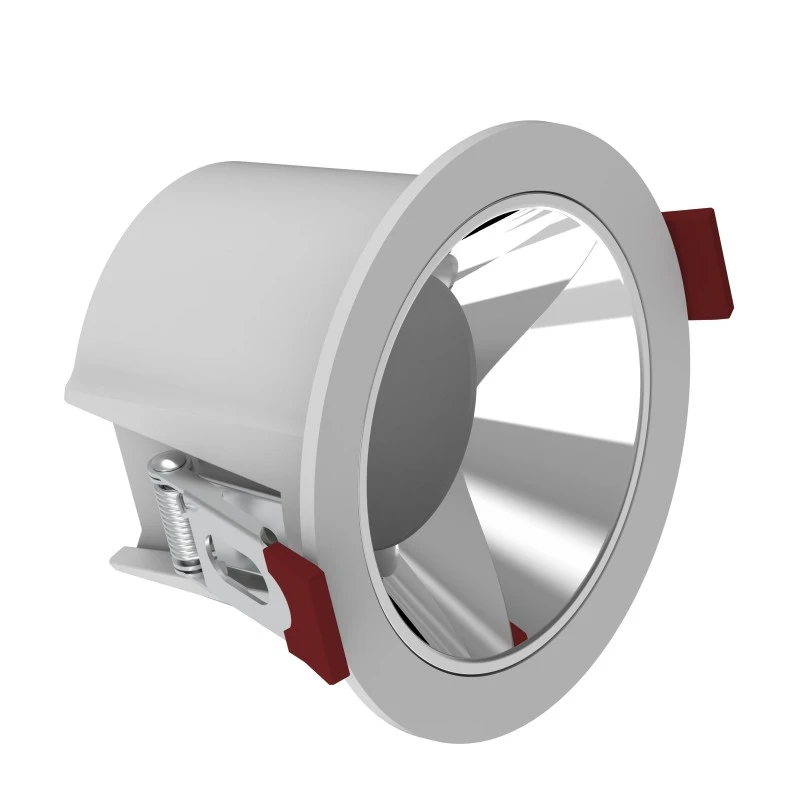

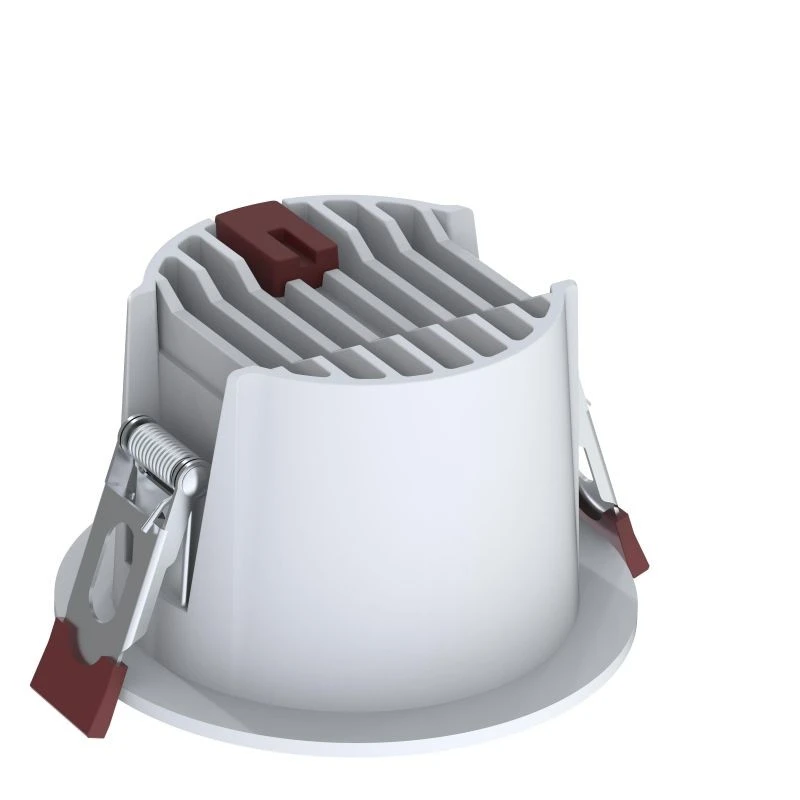

Optional White Heatsink
Features
The LEDTEK DL4058 Series LED Downlight is a high-performance, energy-efficient lighting solution designed for commercial, residential, and industrial spaces. With a power range of 10-60W and a 60-degree beam angle, this downlight delivers uniform illumination while minimizing glare, making it ideal for offices, retail stores, hotels, and homes.
Equipped with OSRAM LED light sources, the DL4058 series ensures exceptional brightness, color consistency, and a lifespan of up to 50,000 hours. Its high-quality flicker-free constant current LED driver guarantees stable performance, protecting eyes from fatigue and ensuring compliance with strict lighting standards.
This recessed downlight features a depth anti-glare design, reducing light pollution and enhancing visual comfort. Users can customize the fixture with optional diffuser covers—choose between a high-transparency cover for maximum light output or an anti-glare cover for softer, evenly distributed light. The rear heat sink is available in white or black, seamlessly blending into any ceiling design. Additionally, the reflector housing offers eight stylish color options: White, Black, Matte Silver, Matte Black, Gunmetal, Bright Silver, Champagne, and Rose Gold, enabling aesthetic flexibility for diverse interiors.
Built for durability, the DL4058 series comes with a 5-year warranty, backed by robust thermal management to ensure long-term reliability. Whether upgrading existing systems or installing new setups, this downlight adapts effortlessly to various applications while prioritizing energy savings and user comfort.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4058-10W | DL4058-12W | DL4058-16W | DL4058-20W | DL4058-30W | DL4058-40W | DL4058-50W | DL4058-60W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 10W | 12W | 16W | 20W | 30W | 40W | 50W | 60W |
| Dimension(mm) | Φ90*H56 | Φ95*H60 | Φ105*H64 | Φ130*H72 | Φ160*H82 | Φ180*H90 | Φ230*H100 | Φ230*H100 |
| Cutting Hole | Φ75 | Φ80 | Φ95 | Φ120 | Φ145 | Φ160 | Φ200 | Φ200 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | OSRAM SMD LED CHIP | |||||||
| CCT | 2700K-6500K | |||||||
| Luminous Flux (lm) ±5% | 1000 | 1200 | 1600 | 2000 | 3000 | 4000 | 5000 | 6000 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 60° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP54 On Room Side / IP20 At Back Side | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~55℃ | |||||||
| Installation | Recessed | |||||||

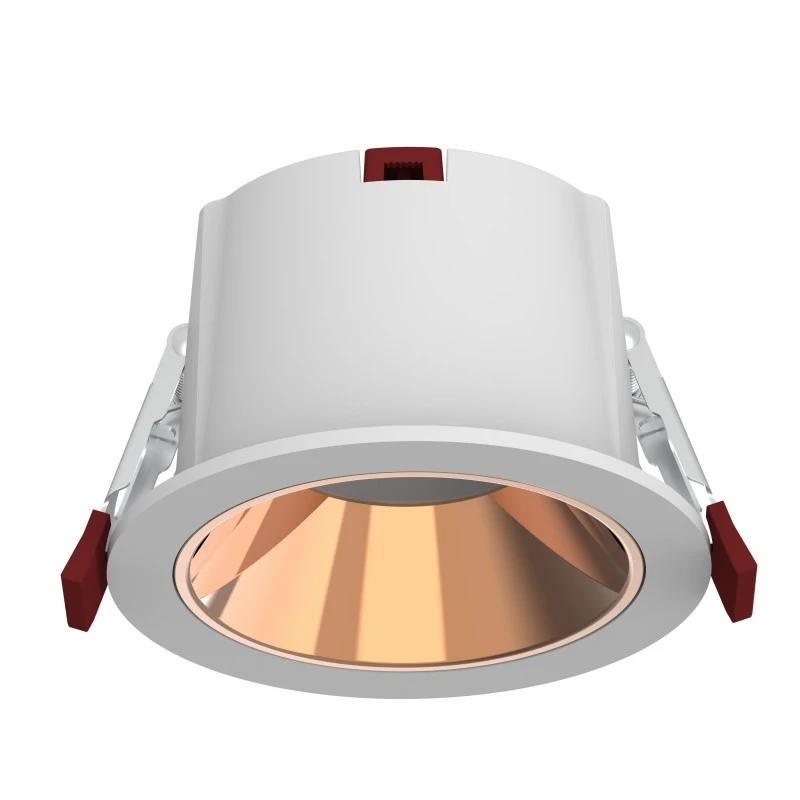

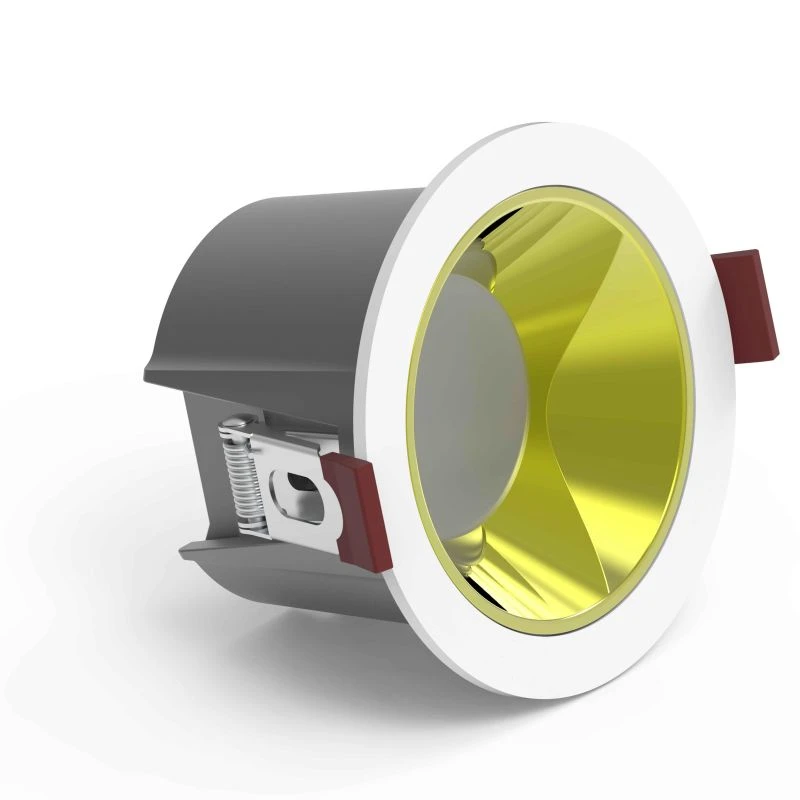

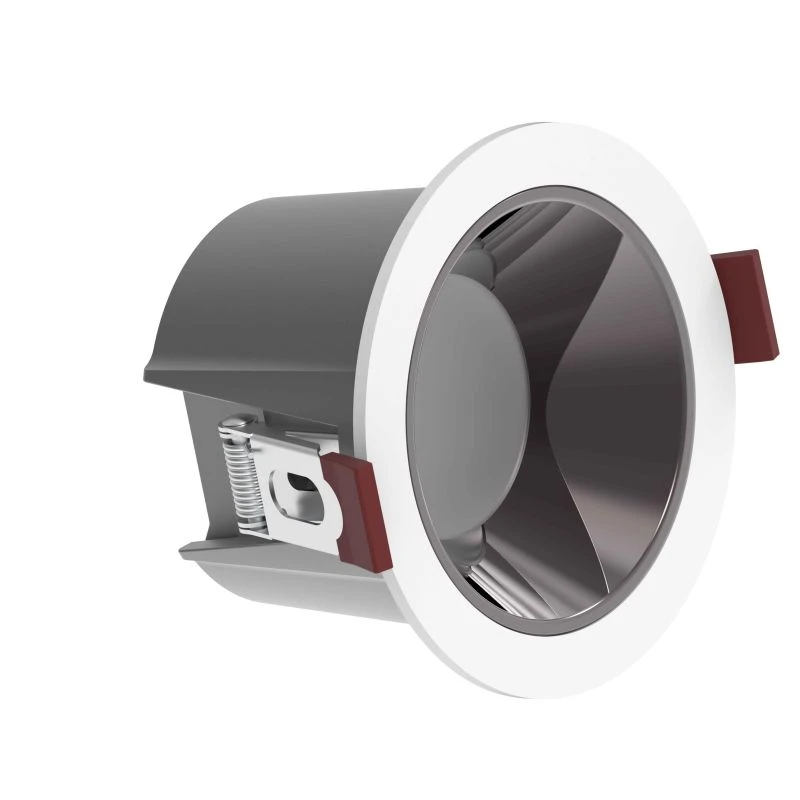

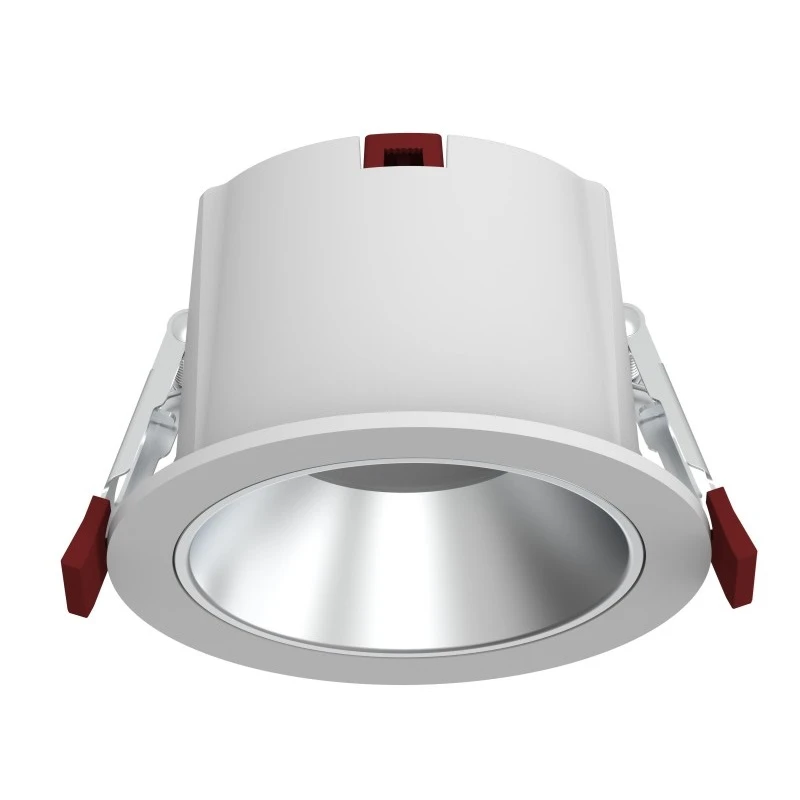

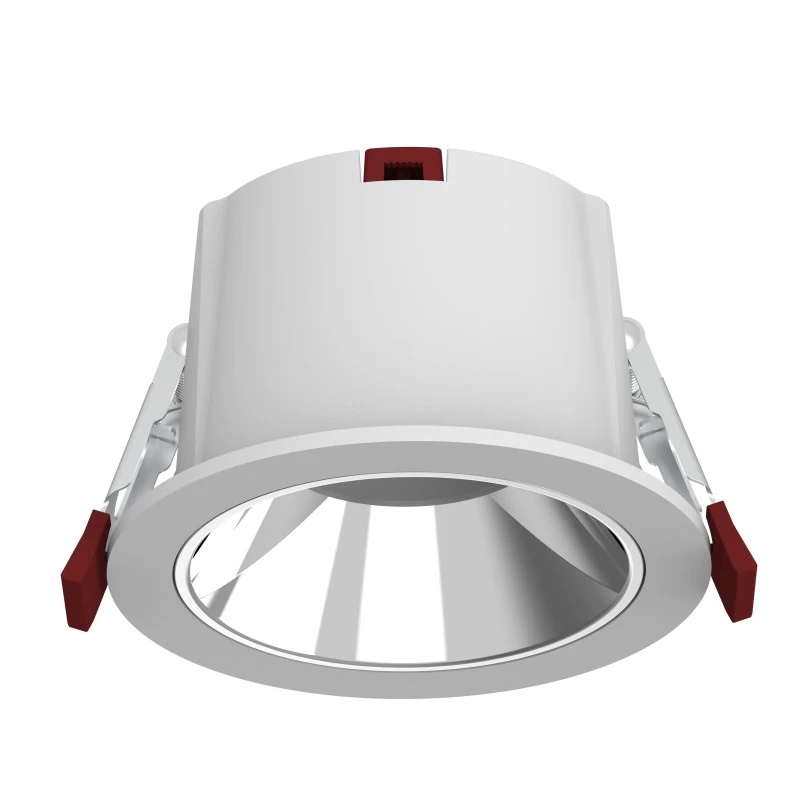

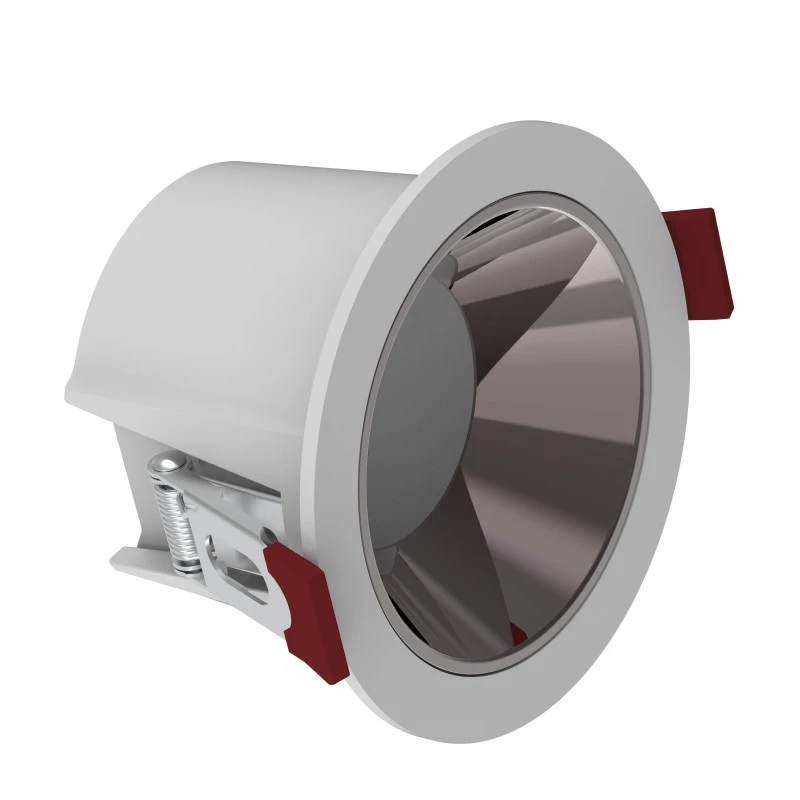

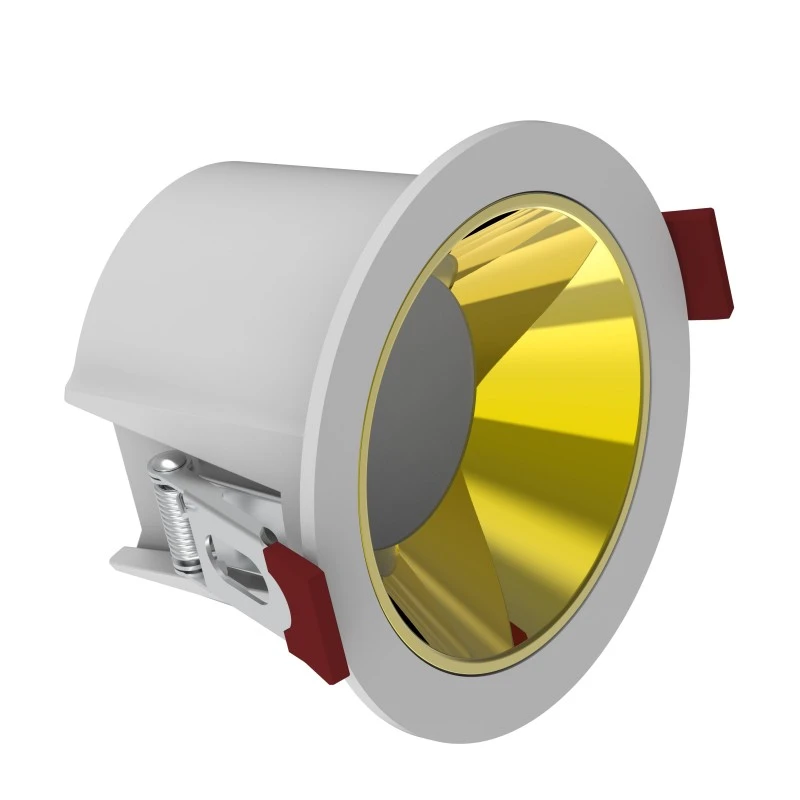

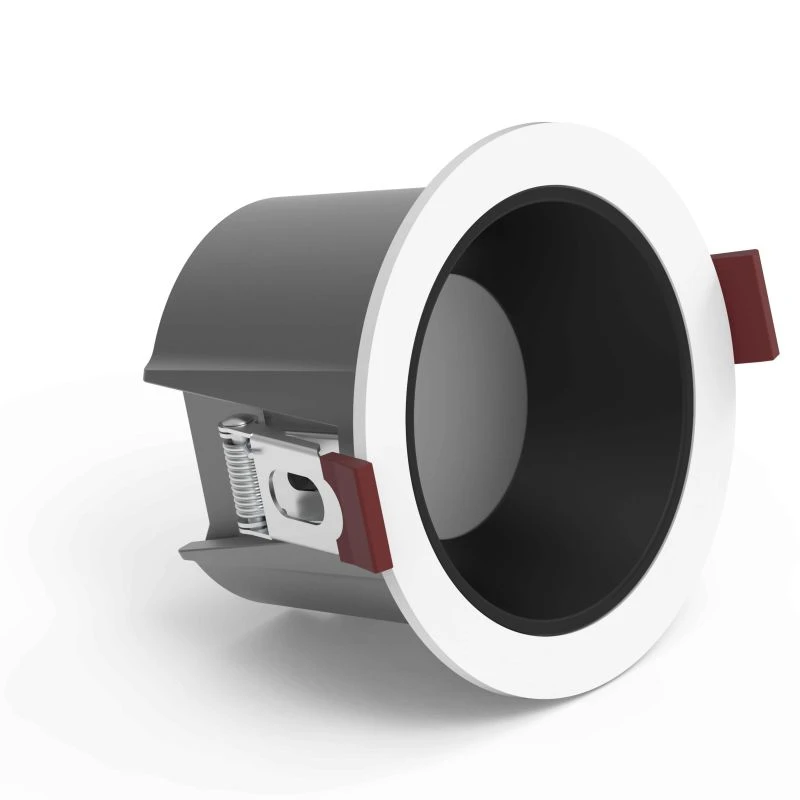

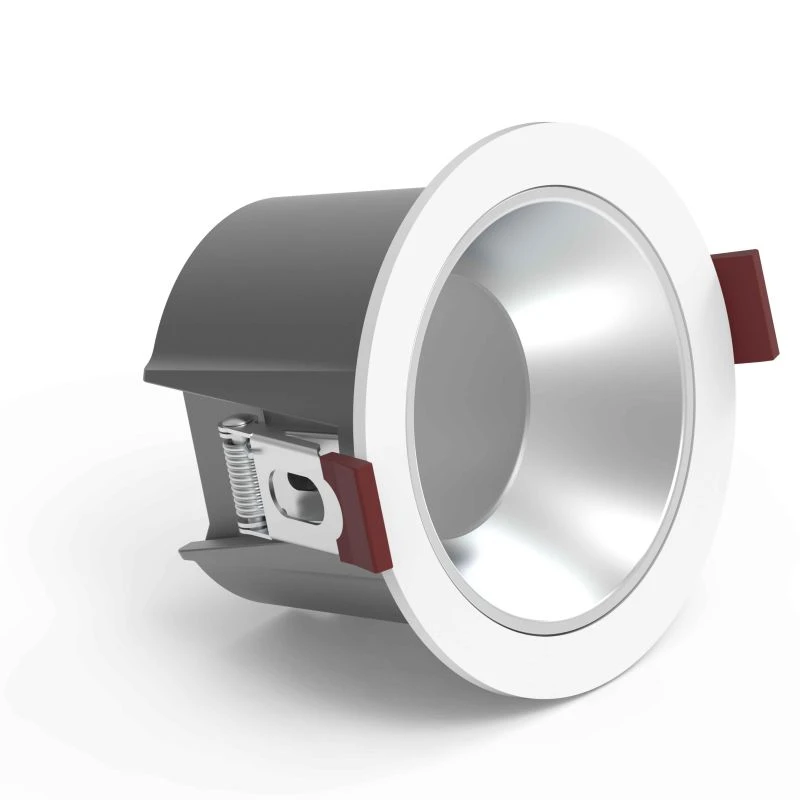

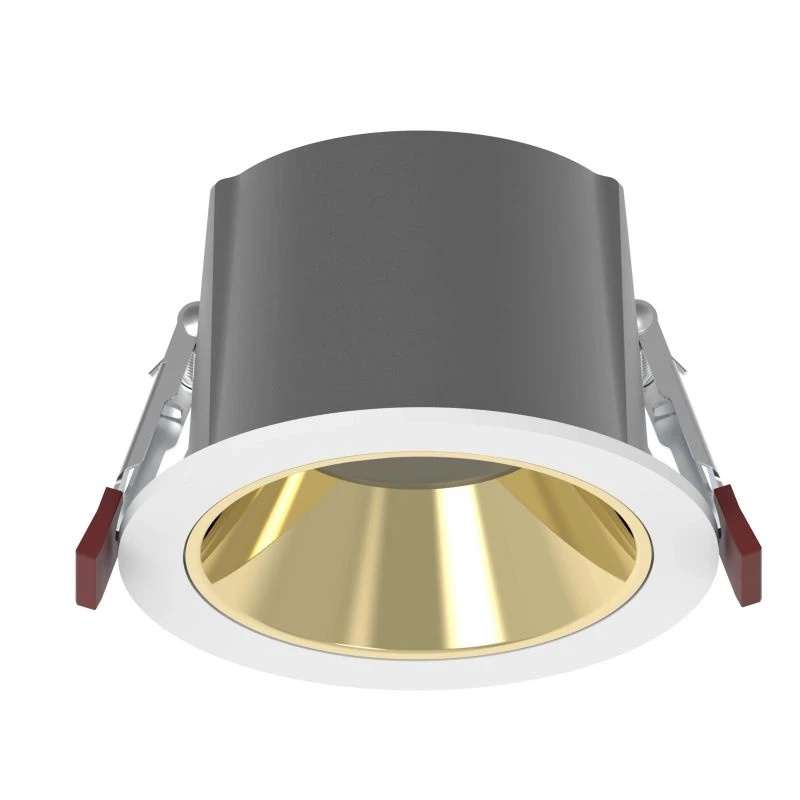

Reflectors in a variety of available colors

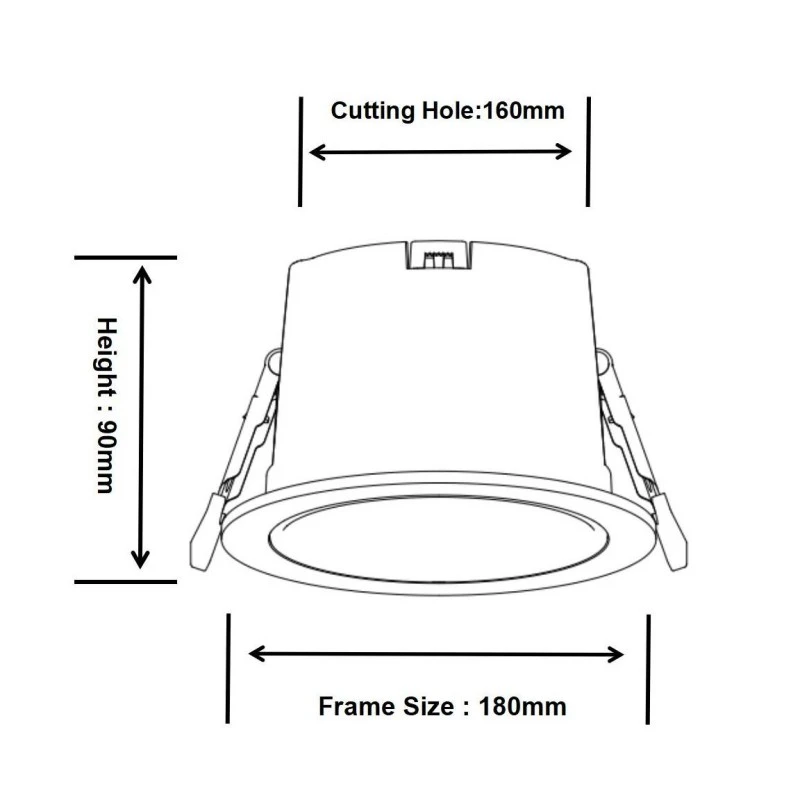

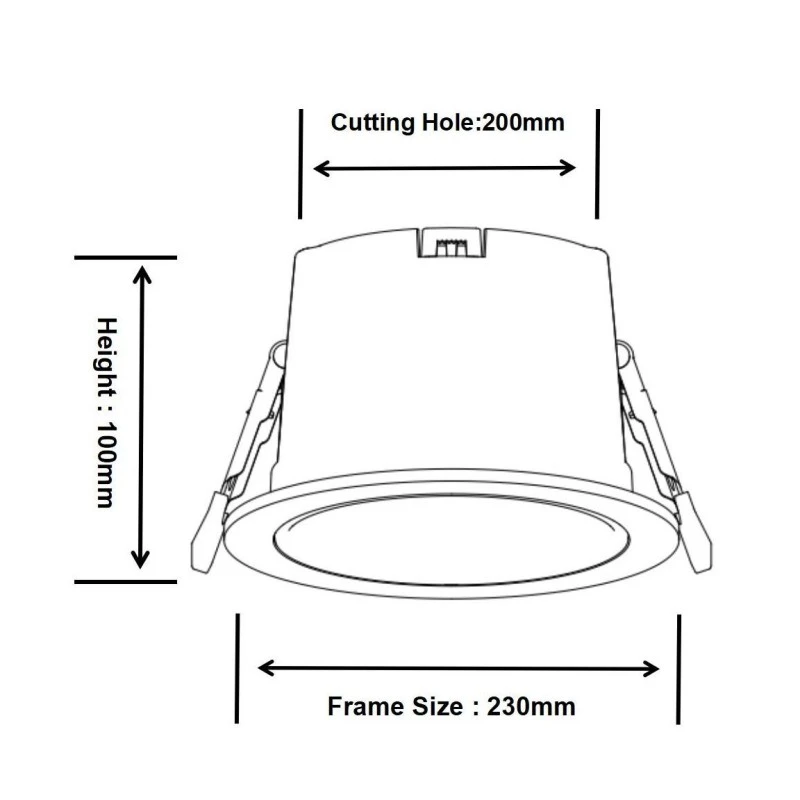

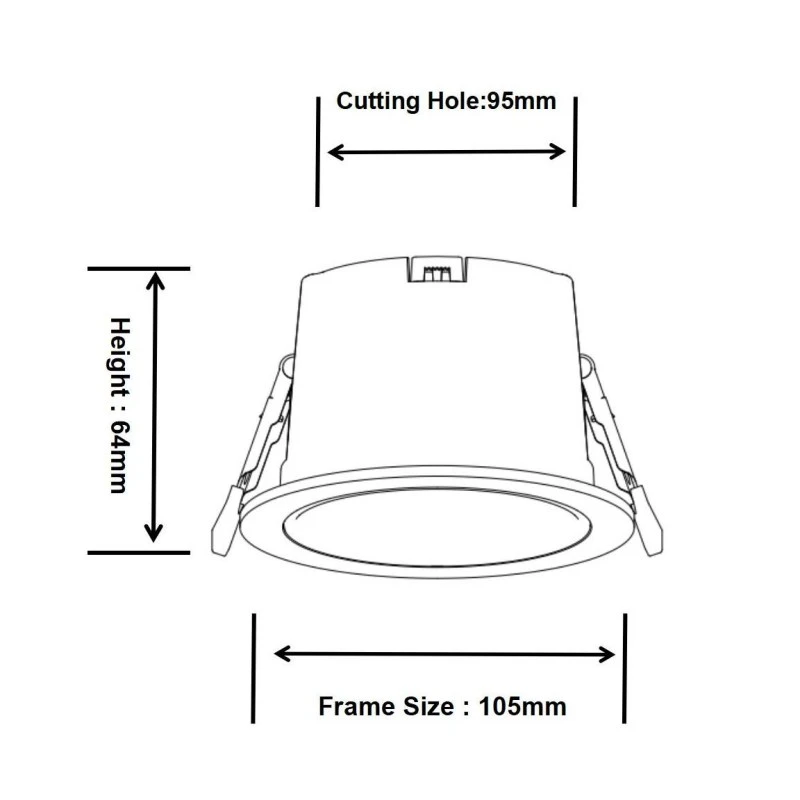

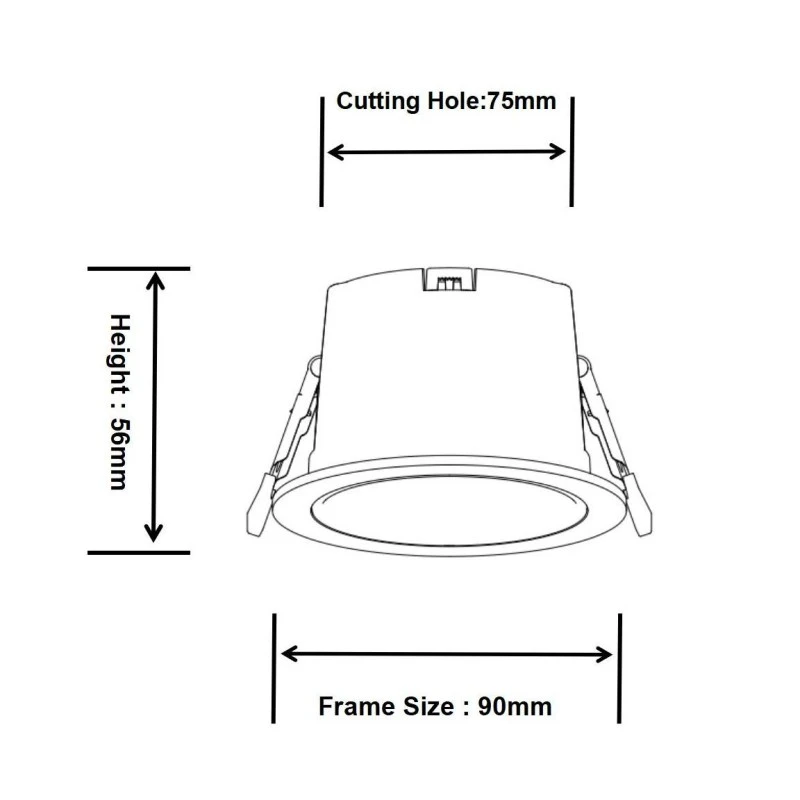

Product Size
