DL99 7W-25W LED Down Light
Applications
- Office lighting
- Hotel lighting
- Stairway
- Lobby
- Corridors
- Reception
- Home
- Etc
Features
DL99 series down light, ultra-thin shape, light source using SMD LED, luminous efficacy can reach 90-100lm/W. PMMA diffuser makes the light more uniform. DL99 series LED Down Light is one of the most economical down light. It can be widely used in indoor lighting application.
| Model No | DL99-7W | DL99-9W | DL99-12W | DL99-16W | DL99-20W | DL99-25W |
|---|---|---|---|---|---|---|
| Wattage | 7W | 9W | 12W | 16W | 20W | 25W |
| Dimension(mm) | ø100X33 | ø120X33 | ø145X34 | ø165X34 | ø180X35 | ø230X36 |
| Cutting Hole(mm) | ø75 | ø95 | ø115 | ø145 | ø165 | ø190 |
| Input Voltage | AC100-240V 50/60Hz | |||||
| Power Factory | >0.9 | |||||
| Lumen Efficacy | 100lm/W | |||||
| Luminous(lm) | 700±10% | 900±10% | 1200±10% | 1600±10% | 2000±10% | 2500±10% |
| CCT | 2700-6500K | |||||
| CRI | >70 | |||||
| Beam Angle | 120° | |||||
| IP Rating | IP20 | |||||
| Body Material | Die-Cast Aluminium | |||||
| Cover Material | PMMA diffuser | |||||
| Product Color | White | |||||
| Working Temperature | -20°~40° | |||||

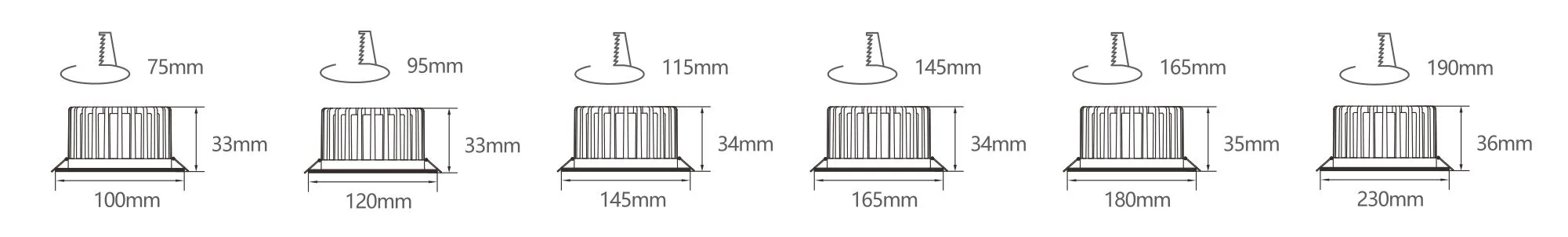

Product Size

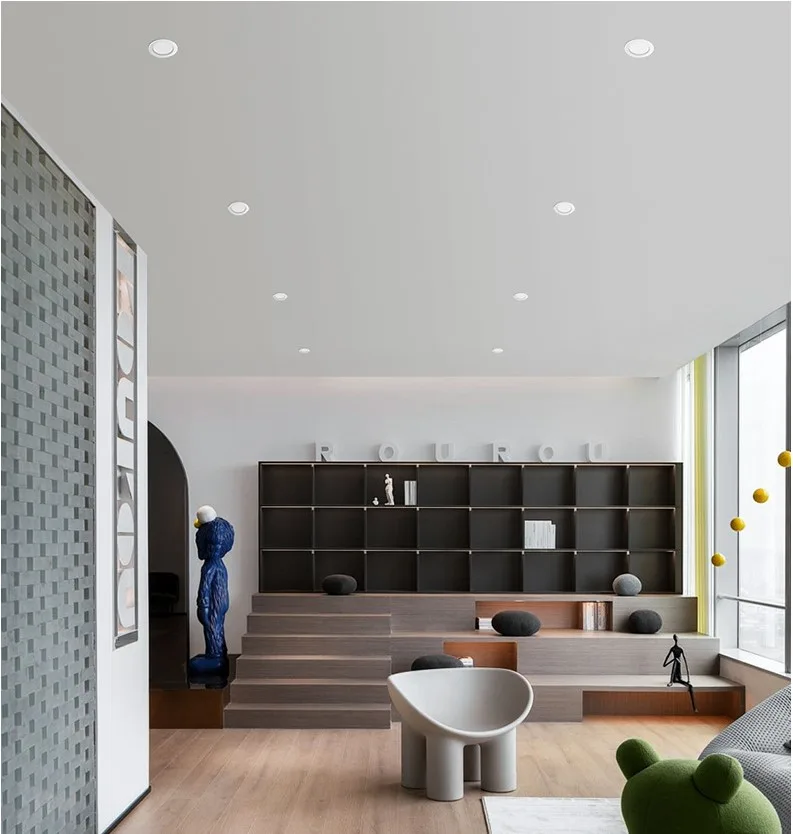

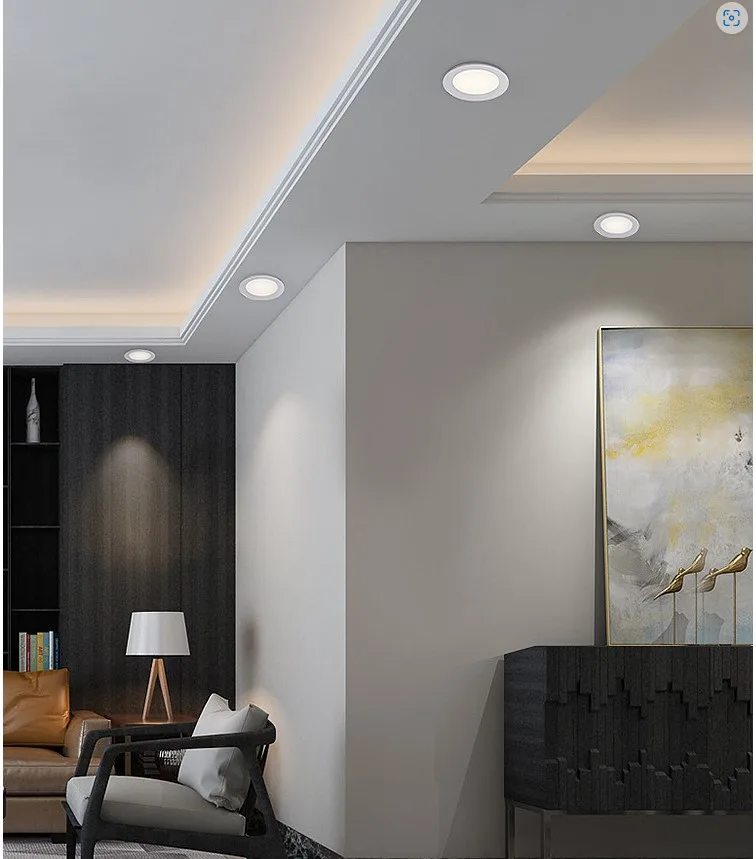

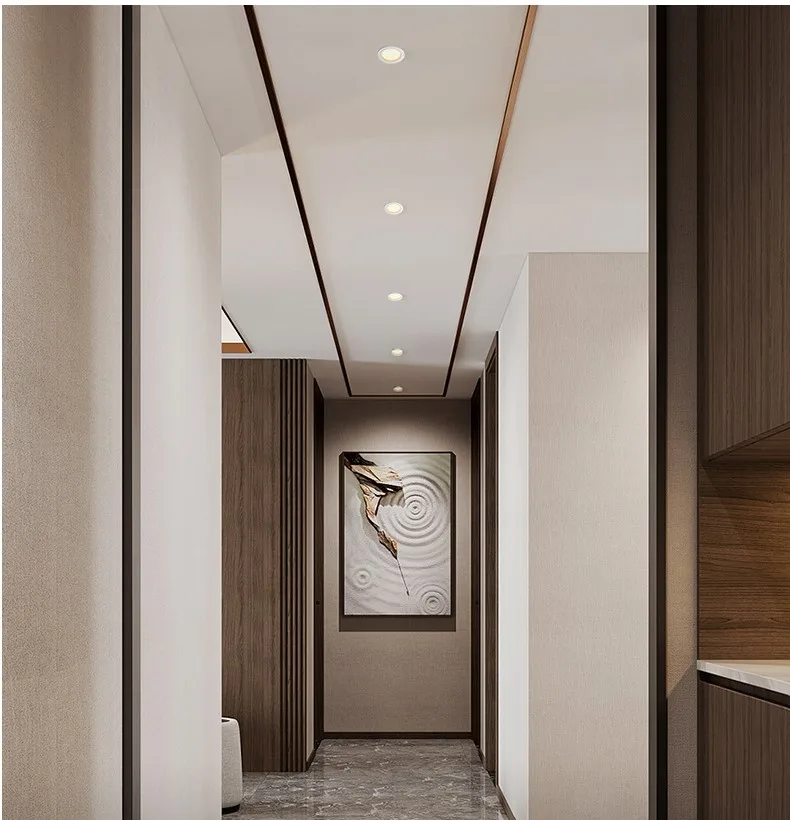

Application
