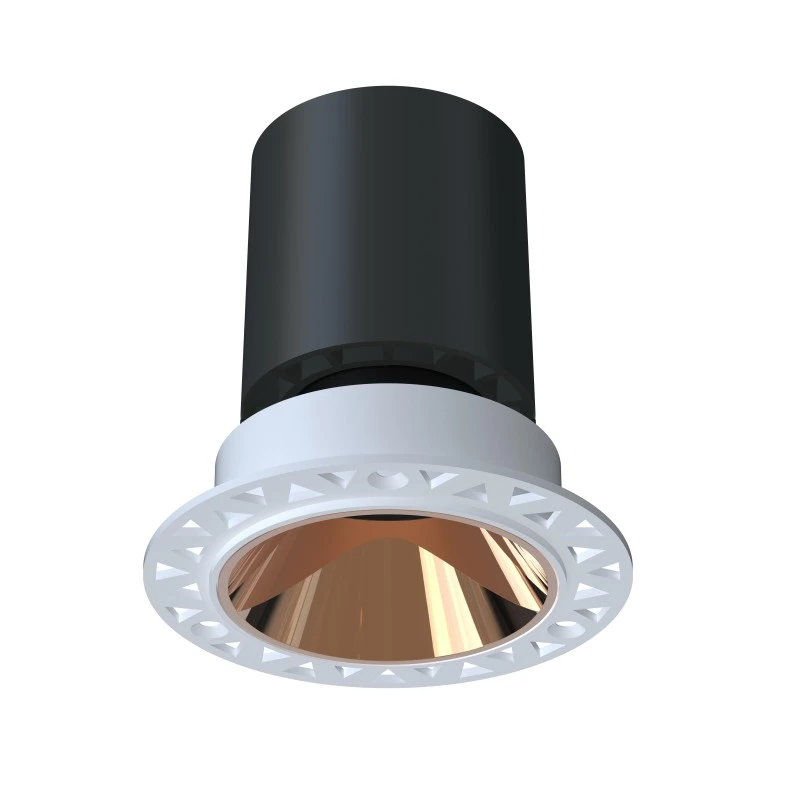

Trimless Plaster-in Fixed Lamp Head LED Downlight 5W-30W For Recessed Lighting | LEDTEK DL4012
Key Features:
Application:
It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.
Product Overview
The LEDTEK DL4012 Trimless Seamless Plaster LED Downlight is a high-performance, energy-efficient lighting fixture designed for modern architectural and interior applications. With a power range of 5W-30W, it offers versatile illumination options to suit diverse environments, from residential spaces to commercial settings. Its trimless, seamless plaster design ensures a flush integration with ceilings, creating a sleek, unobtrusive aesthetic that blends effortlessly into contemporary interiors.
This downlight features multiple reflector color options and multiple beam angles (8°, 15°, 24°, 38°, 55°), allowing precise light distribution tailored to specific needs. The fixed-angle design enhances durability by eliminating movable parts, while the deep anti-glare technology minimizes visual discomfort, making it ideal for areas requiring focused yet comfortable lighting, such as offices, galleries, or living rooms.
Constructed with robust materials and advanced thermal management, the DL4012 ensures longevity and reliability, backed by a 5-year warranty that underscores its quality. Compliant with international safety standard, it combines energy efficiency with low maintenance, reducing operational costs over time.
Perfect for seamless ceiling integration, the DL4012 exemplifies LEDTEK’s commitment to blending cutting-edge technology with elegant design, offering a future-proof solution for modern lighting demands.
We can customize the wattage to meet your needs.
Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.
| Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
|---|---|---|---|---|---|
| DL4012-5W | 5 | 500 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-7W | 7 | 700 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-10W | 10 | 1000 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-12W | 12 | 1200 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-16W | 16 | 1600 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-20W | 20 | 2000 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-25W | 25 | 2500 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
| DL4012-30W | 30 | 3000 | 2700K-6500K | 8°/15°/24°/38°/55° | ≥80 (90 optional) |
Model No | DL4012-5W | DL4012-7W | DL4012-10W | DL4012-12W | DL4012-16W | DL4012-20W | DL4012-25W | DL4012-30W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 20W | 25W | 30W |
| Dimension(mm) | Φ74*H78 | Φ74*H88/Φ99*H87 | Φ99*H87 | Φ99*H90 | Φ99*H105/Φ114*H107 | Φ99*H105/Φ114*H107 | Φ114*H107 | Φ114*H117 |
| Cutting Hole | Φ55 | Φ55/Φ75 | Φ75 | Φ75 | Φ75/Φ95 | Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB/BridgeLux COB | |||||||
| CCT | 3000K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 2000 | 2500 | 3000 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 8°/15°/24°/38°/55° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP54 On Room Side / IP20 At Back Side | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||||
| Installation | Recessed | |||||||
Contact us to request the datasheet.
For recessed lighting installation instructions, please contact us.
The LEDTEK DL4012 Trimless Seamless Plaster LED Downlight is a high-performance, energy-efficient lighting solution designed for seamless integration into modern interiors. With a power range of 5W-30W, multiple beam angles (8°, 15°, 24°, 38°, 55°), and a low UGR (<10) for glare-free illumination, it is ideal for a variety of settings requiring both aesthetic appeal and functional lighting.
Ideal for:
Residential Spaces: Perfect for living rooms, kitchens, and bedrooms, the trimless plaster-in design creates a sleek, unobtrusive look that blends seamlessly with ceilings, enhancing modern home aesthetics.
Offices: Delivers flicker-free, high-CRI (>80, 90 optional) lighting to support productivity and visual comfort in workspaces, with dimming options (0/1-10V or DALI) for customizable ambiance.
Retail Shops: Multiple reflector color options and beam angles allow precise spotlighting to highlight merchandise, ensuring vibrant color accuracy and an inviting shopping environment.
Supermarkets: Provides uniform, energy-efficient illumination for aisles and displays, with robust thermal management ensuring long-term reliability in high-traffic areas.
Schools: Low-glare design and stable, flicker-free output create comfortable lighting for classrooms and study areas, promoting focus and reducing eye strain.
Hotels: Enhances lobbies, corridors, and guest rooms with a minimalist, flush ceiling integration, offering a premium aesthetic and energy-saving performance for hospitality settings.
The DL4012’s durable ADC12 aluminum housing, 5-year warranty, and customizable wattage make it a versatile, future-proof choice for both residential and commercial lighting applications.
Q: What is the LEDTEK DL4012 Trimless Seamless Plaster LED Downlight designed for?
A: The DL4012 is designed for general lighting in residential and commercial spaces, including homes, offices, supermarkets, shops, schools, and hotels, offering a sleek, flush ceiling integration.
Q: What wattage options are available for the DL4012?
A: The DL4012 is available in wattages ranging from 5W to 30W, providing flexible brightness levels for various applications.
Q: Is the DL4012 dimmable?
A: Yes, the DL4012 supports optional dimming with 0/1-10V or DALI systems, allowing customizable light intensity to suit different environments.
Q: What is the Color Rendering Index (CRI) of the DL4012?
A: The DL4012 has a CRI greater than 80 (with a 90 option available), ensuring accurate and vibrant color reproduction for enhanced visual appeal.
Q: What beam angles are available for the DL4012?
A: The DL4012 offers fixed beam angles of 8°, 15°, 24°, 38°, and 55°, providing precise light distribution for specific lighting needs.
Q: How does the DL4012 reduce glare?
A: The DL4012 features a deep reflector design, achieving a Unified Glare Rating (UGR) of less than 10, minimizing visual discomfort for comfortable lighting in work or living spaces.
Q: Is the DL4012 suitable for high-traffic commercial environments?
A: Yes, its robust ADC12 aluminum die-cast housing, efficient thermal management, and 5-year warranty ensure durability and reliability in high-traffic areas like supermarkets and hotels.
Q: What is the lifespan of the DL4012?
A: The DL4012 is built for longevity, with a lifespan exceeding 50,000 hours, reducing maintenance costs over time.
Q: What are the installation requirements for the DL4012?
A: The DL4012 is a recessed downlight with a trimless plaster-in design, requiring a cutout hole (ranging from Φ55mm to Φ95mm, depending on the model) for seamless ceiling integration.
Q: Can the DL4012 be customized?
A: Yes, the DL4012 offers customizable wattage and multiple reflector color options to meet specific project requirements.
Q: What is the ingress protection rating of the DL4012?
A: The DL4012 has an IP54 rating on the room side and IP20 at the back, suitable for indoor environments and offering protection against dust and splashes.
Q: Where can I find more technical specifications or purchase details?
A: For detailed specifications or purchasing information, visit the product page at LEDTEK DL4012 LED Downlight.
Reflectors in a variety of available colors

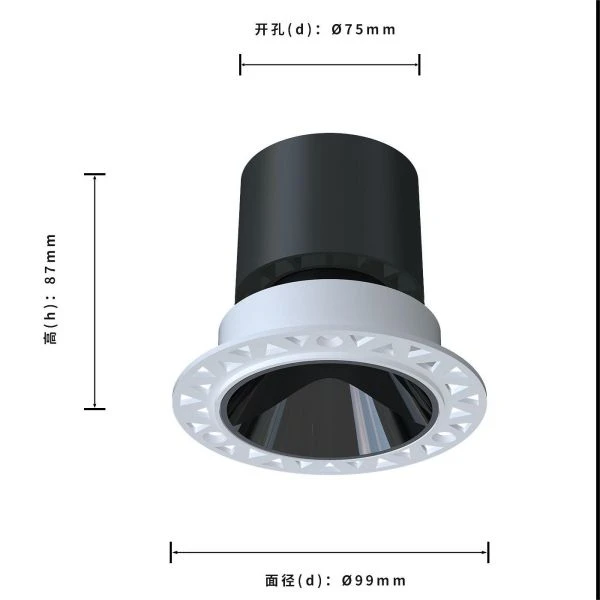

Product Size
