What wattages are available for DL4063?

The DL4063 Mini LED Spotlight is available from 1W to 10W.

What beam angles can I choose?

Beam angle options include 5°, 8°, 10°, 15°, 24°, 25°, 38°, 40°, and 60°.

Does DL4063 support dimming?

Yes, DL4063 supports 0-10V and DALI dimming options.

Is DL4063 suitable for outdoor use?

No, DL4063 is designed for indoor recessed lighting with IP44 (front) and IP20 (rear) protection ratings.

What warranty does DL4063 have?

The DL4063 Mini LED Spotlight comes with a 5-year warranty.

MINI LED SPOTLIGHT 1W-10W For Recessed Lighting | LEDTEK

Name: LEDTEK DL4063 Mini Recessed LED Spotlight
Brand: LEDTEK
SKU: DL4063
Price: 1.0 USD
Availability: InStock
Rating: 4.7 (42 reviews)

DL4063

Key Feature:

MINI RECESSED SPOTLIGHT
Die-Cast aluminum construction – Excellent heat dissipation
Power options – 1W to 10W for flexible brightness
Cree/Bridge COB LED – High efficiency & stability
Customizable lenses – 5°,8°,10°,15°,24°,25°,38,40°,60° beam angles
Deep anti-glare – Comfortable lighting experience
Non-flicker LED driver – Stable and eye-friendly illumination
5-year warranty – Long-term reliability

Application:

It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.

Product Overview

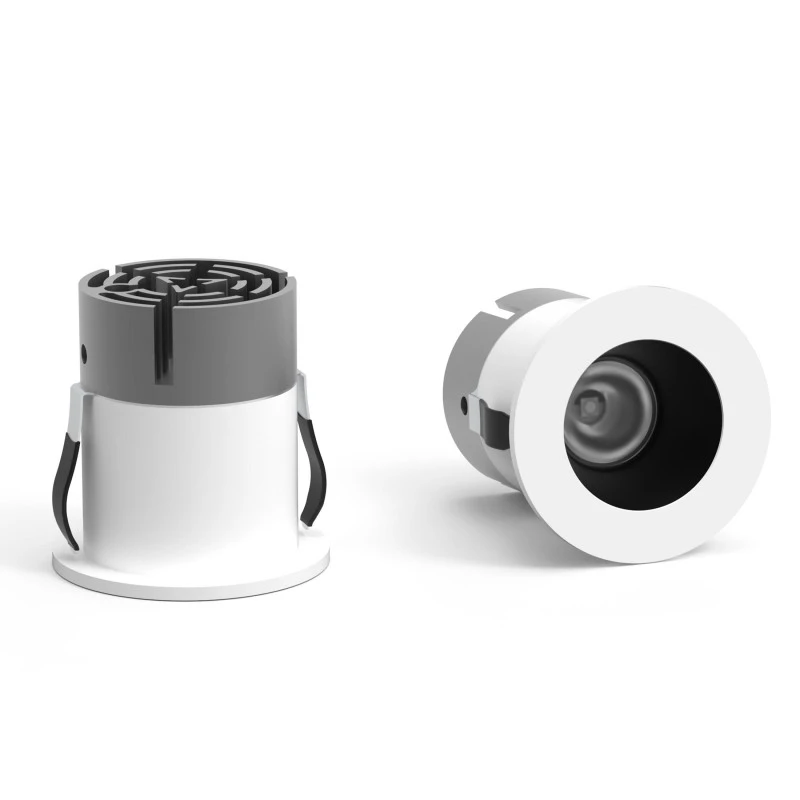

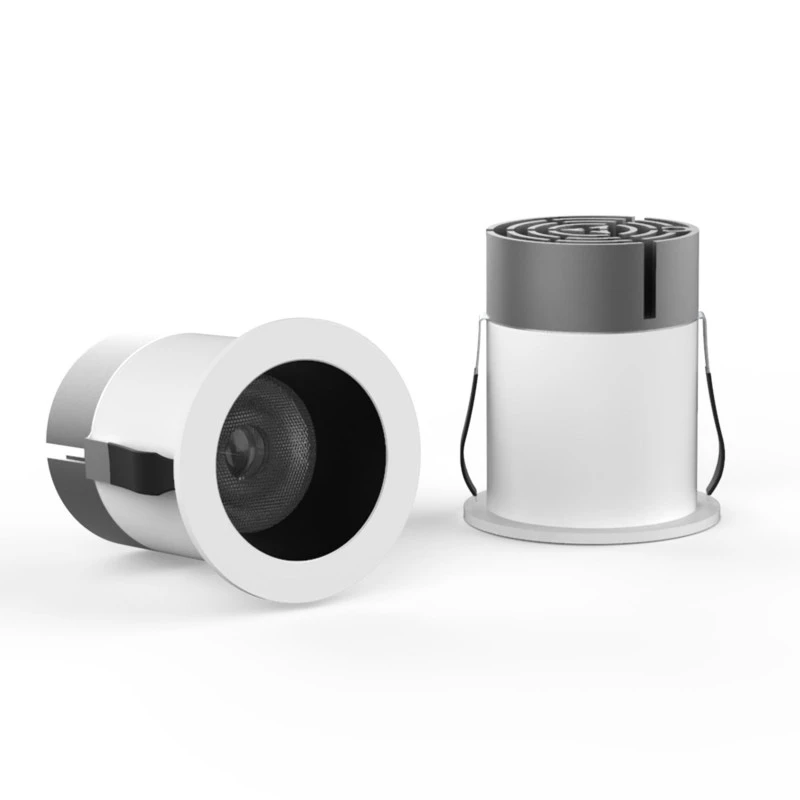

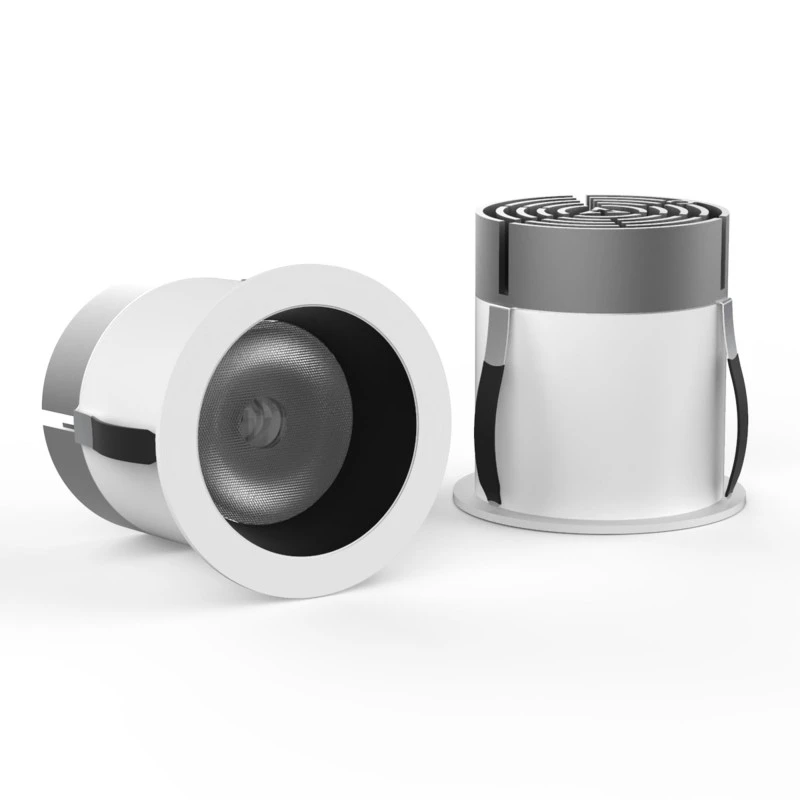

The LEDTEK DL4063 Mini Spotlight is a compact and versatile LED downlight designed to seamlessly integrate into various interior spaces. Its small aperture allows for greater design flexibility, making it particularly suitable for applications such as wardrobes, display cabinets, and wine cellars. The luminaire is available in three finishes—entirely black, entirely white, and a combination of white exterior with a black interior—ensuring compatibility with diverse aesthetic preferences.

Featuring a deep reflector design, the DL4063 effectively minimizes glare, enhancing visual comfort. Constructed from high-quality aluminum, the fixture offers efficient heat dissipation, thereby extending its operational lifespan. Equipped with a flicker-free LED driver, it ensures stable and consistent illumination. The spotlight offers a broad range of wattages from 1W to 10W and provides multiple beam angles—including 5°, 8°, 10°, 15°, 24°, 25°, 38°, 40°, and 60°—to cater to specific lighting requirements. Additionally, the reflector is available in six different colors, allowing for further customization to meet project-specific needs. With its minimalist and timeless design, the DL4063 Mini Spotlight serves as a reliable and elegant lighting solution for contemporary interiors.

We can customize the wattage to meet your needs.

Looking for more LED downlight for LED recessed lighting solution? Explore our full collection of LED downlights.

Model List

Model	Wattage (W±5%)	Luminous Flux (lm)	CCT (K)	Beam Angle (°)	CRI (Ra)
DL4063-1W	1	100	2700K-6500K	15°/ 24°/ 38°	≥80 (90 optional)
DL4063-2W	2	200	2700K-6500K	15°/ 24°/ 40°	≥80 (90 optional)
DL4063-3W	3	300	2700K-6500K	5° / 8° / 10° / 25° / 40°	≥80 (90 optional)
DL4063-4W	4	400	2700K-6500K	15° / 24° / 38° / 60°	≥80 (90 optional)
DL4063-5W	5	500	2700K-6500K	15° / 24° / 38° / 60°	≥80 (90 optional)
DL4063-7W	7	700	2700K-6500K	15° / 24° / 38° / 60°	≥80 (90 optional)
DL4063-8W	8	800	2700K-6500K	15° / 24° / 38° / 60°	≥80 (90 optional)
DL4063-10W	10	1000	2700K-6500K	15° / 24° / 38° / 60°	≥80 (90 optional)

Technical Specifications

Model No	DL4063-1W	DL4063-2W	DL4063-3W	DL4063-4W	DL4063-5W	DL4063-7W	DL4063-8W	DL4063-10W
Wattage	1W	2W	3W	4W	5W	7W	8W	10W

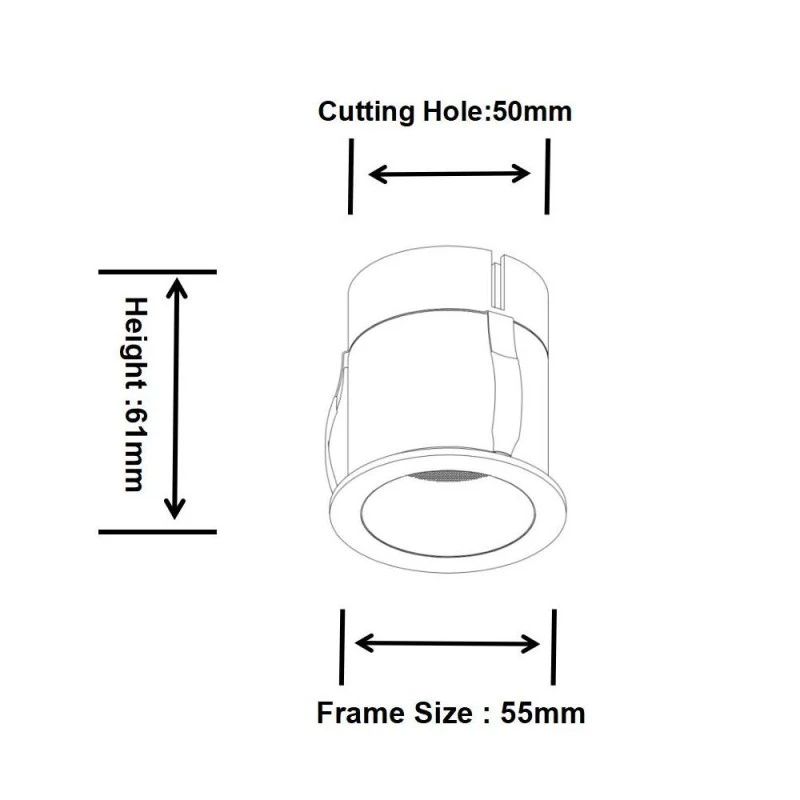

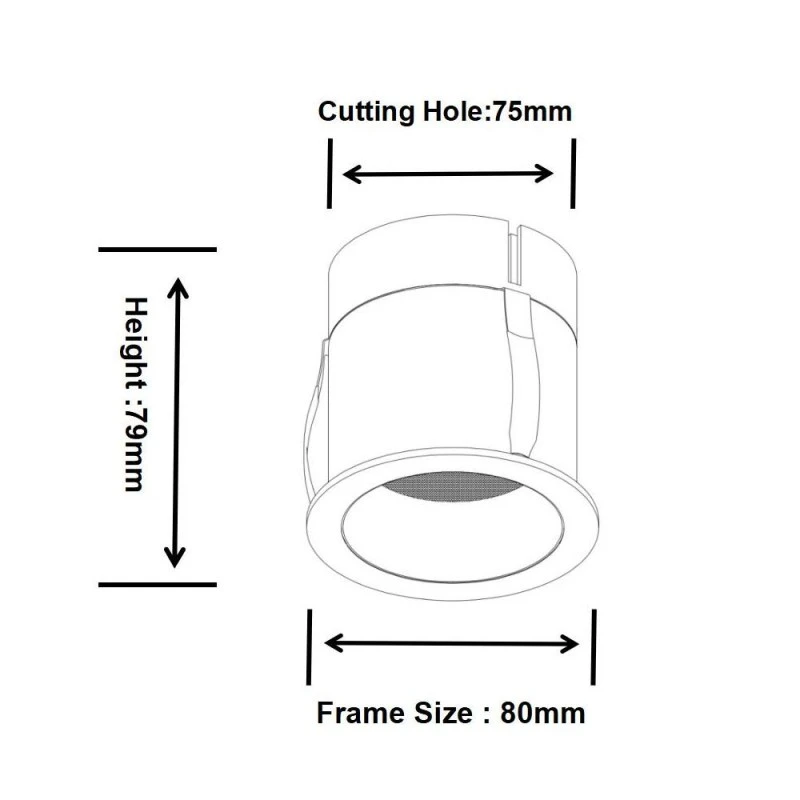

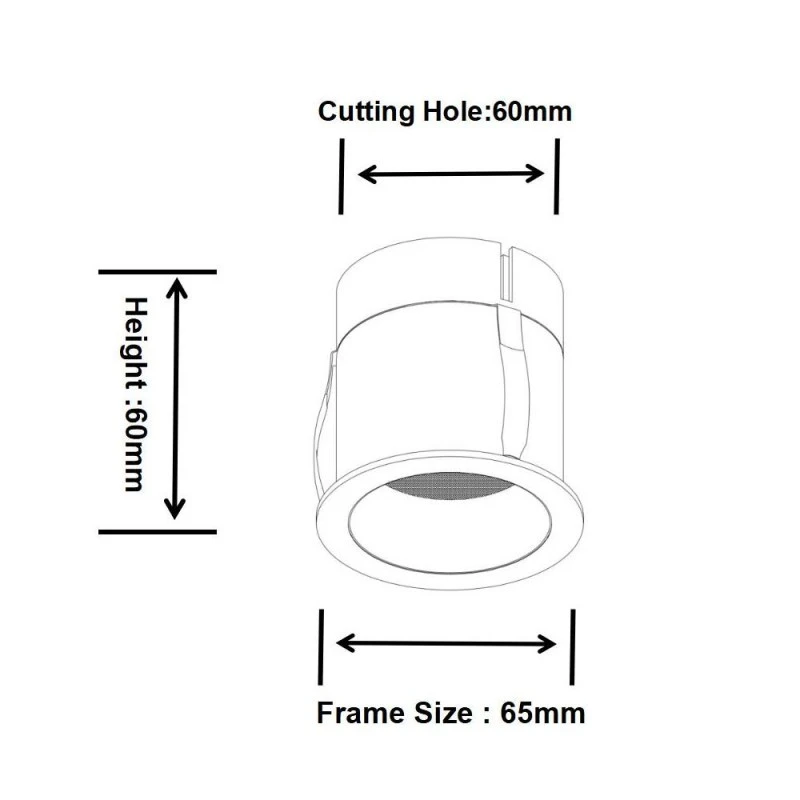

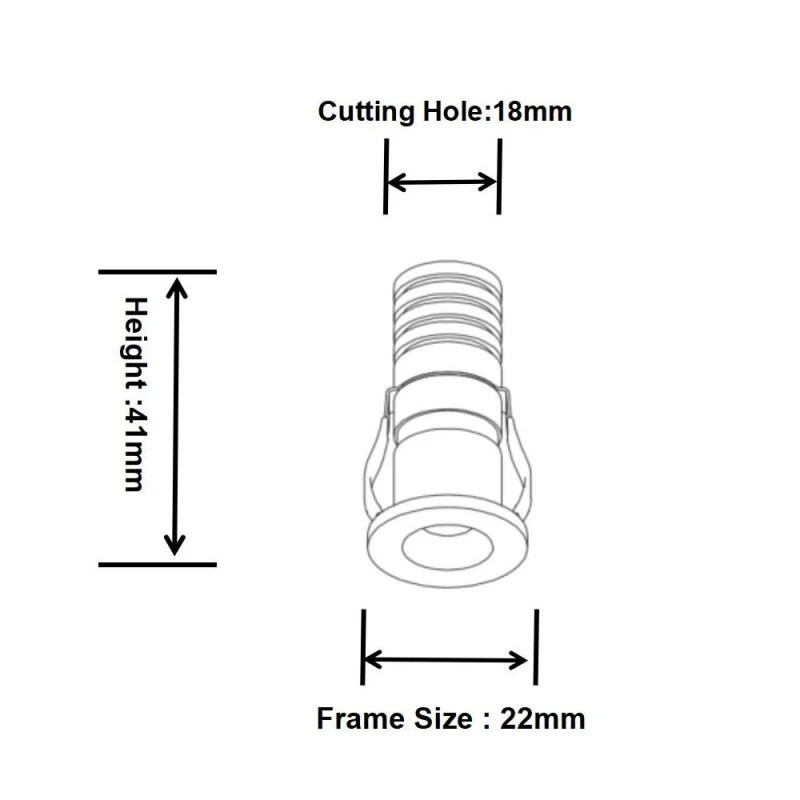

Dimension(mm)	Φ22*H41	Φ35*H38	Φ45*H46	Φ55*H61	Φ55*H61	Φ65*H69	Φ80*H79	Φ80*H79
Cutting Hole	Φ18	Φ30	Φ40	Φ50	Φ50	Φ60	Φ75	Φ75
Input Voltage(V)	AC110-240V 50/60Hz
Light Source	Cree /Bridgelux
CCT	2700K-6500K
Luminous Flux (lm) ±5%	100	200	300	400	500	700	800	1000
CRI	>80(90 optional)
Beam Angle	15°/24°/38°	10°/25°/40°	5°/8°/10°/25°/40°	15°/24°/38°/60°
LED Driver	External LED Driver
Dimming Option	Optional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)	IP44 (front/room side) / IP20 (rear/ceiling side)
Product Finishing	All White/All Black	White Exterior, Black Interior
Materials of Optics	PMMA
Operating Temp. (℃ )	-20℃ ~55℃
Installation	Recessed

Datasheet Downloads

Recessed Lighting Installation

For recessed lighting installation instructions, please contact us.

Applications

The LEDTEK DL4063 Mini LED Spotlight is designed for versatile indoor lighting projects, especially where compact size, low glare, and precision illumination are required. Typical applications include:

Commercial spaces – Offices, supermarkets, retail shops, schools, and hotels where stable and comfortable lighting is needed.
Display and cabinet lighting – Ideal for showcases, wardrobes, wine cellars, and other small spaces that require focused lighting with deep anti-glare design.
Modern interiors – Sleek recessed design with multiple reflector options, providing a stylish yet functional lighting solution.
Customized lighting projects – Available from 1W to 10W with multiple beam angles and reflector finishes to fit diverse design requirements.

1. What wattages and beam angles are available for DL4063?
The DL4063 comes in 1W to 10W options, with beam angles including 5°, 8°, 10°, 15°, 24°, 25°, 38°, 40°, and 60°.

2. What is the installation method and required cut-out size?
It is a recessed-mounted spotlight. Cut-out sizes vary from Ø18mm to Ø75mm depending on the selected model.

3. Does the DL4063 support dimming?
Yes. It supports 0-10V and DALI dimming for smart lighting control.

4. How about heat dissipation and driver design?
The external LED driver ensures stable operation, while the ADC12 aluminum housing and deep reflector design provide efficient heat dissipation and reduced glare.

5. What is the working temperature range and protection rating?
Operating temperature: -20°C to +55°C.
Protection rating: IP44 (front side) and IP20 (rear side).

6. What CCT and CRI options are available?
Color temperature: 2700K–6500K.
CRI >80 (CRI 90 optional).

7. Is there a warranty?
Yes, the DL4063 comes with a 5-year warranty.

8. Can I customize reflector colors or finishes?
Yes. Available in white, black, or white housing with black inner ring, with additional customization options upon request.
