LED High Bay Light With Motion Sensor
We are about to launch a microwave High Bay Light with a 20m hanging height soon. By choosing us, you will get the best product in your local area and no one will be able to compete with you!
Features
LED High bays with motion sensor are very suitable for illuminating the largest and tallest spaces. For example the lighting of factory halls, sports halls, high warehouses etc. In these areas it is very important that the lighting is of high quality, there is a high light output, and that these huge spaces are illuminated in an energy efficient way. The motion sensor on the high bay provides a lot of energy savings.

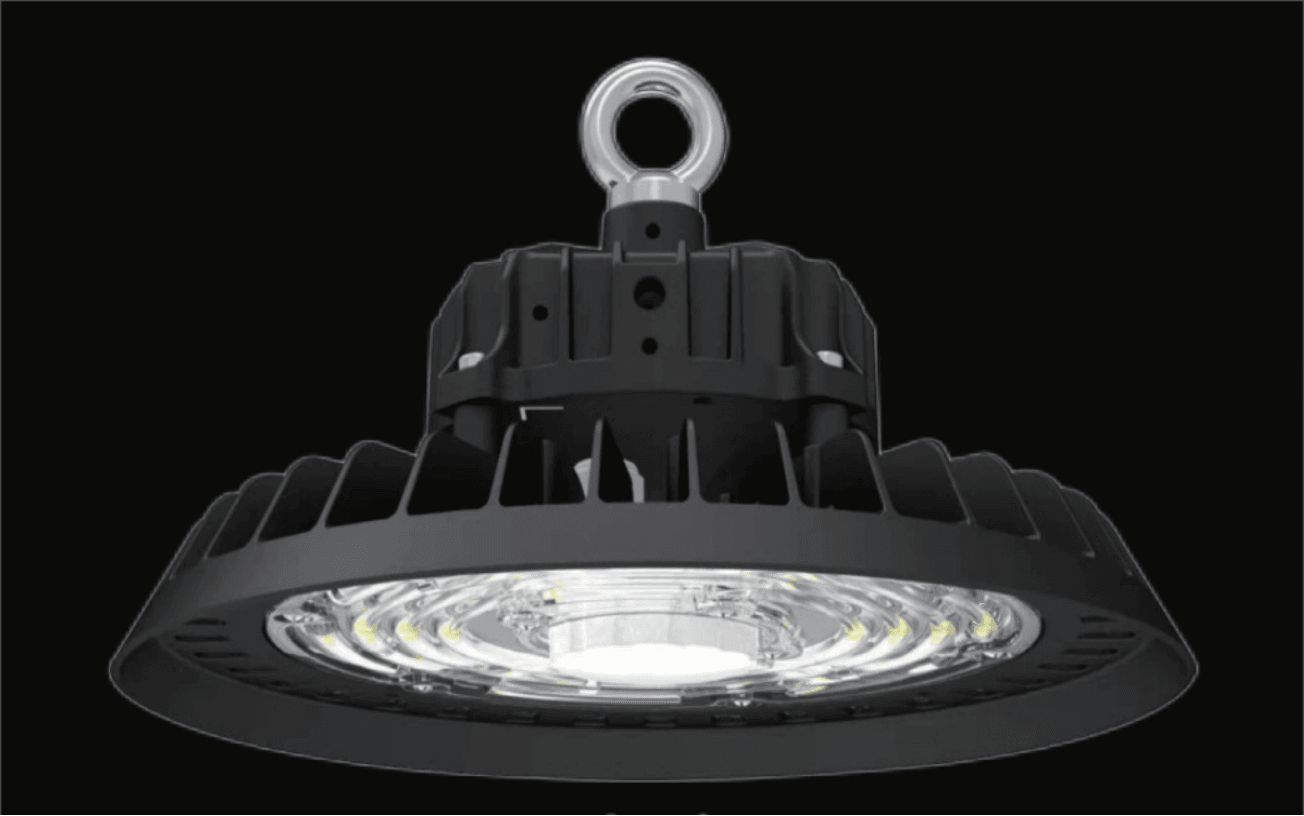

LEDTEK’S UFO style high bay LED lighting with motion sensor is perfect replacement of MH, HPS & fluorescent t8 high bay light.
The 5.8G Microwave motions sensor can detect the motion of the object, While the motion sensor detect the movement, the high bay light will be lighted up at 100% brightness, while people left the detection area, the high bay light will be dimming to low brightness, after the time pass the stand-by time, the high bay will be dimming to very low brightness or switch off completely.
There are two light photo sensor inside the motion sensor controller, the light sensor is use to measure the lux level of the environment, so the light sensor can control the working status of the high bay light depend on the brightness of the environment. Make the LEDTEK’s high bay more intelligent.
All the working parameter can be set by the remoter, the user can easily set the request parameter by himself through the remoter.
Motion sensor LED high bay light is becoming popular. As they can help the users to save more energy than traditional LED high bay lights.
| Model No | HBF-100W | HBF-120W | HBF-150W |
|---|---|---|---|
| Wattage | 100W | 120W | 150W |
| Dimension | 253*149 (mm) | 308*155 (mm) | 308*155 (mm) |
| Input Voltage | AC220-240V 50/60Hz | ||
| Lumen Efficacy | 130-150lm/W | 130-150lm/W | 130-150lm/W |
| Luminous | 13000-15000lm | 15600-18000lm | 19500-22500lm |
| CCT | 3000-6500K | ||
| CRI | >80 | ||
| Beam Angle | 60°/90°/120° | ||
| Detection Range | Install Height:15Meter(max18 Meter) Detection Range:Radius 8-10Meter | ||
| Power Factor | >0.9 | ||
| IP Grade | IP66 | ||
| Working Temp | -20˚-45˚C |
| Model No | HBF-200W | HBF-240W | HBF-300W |
|---|---|---|---|
| Wattage | 200W | 240W | 300W |
| Dimension | 354*160 (mm) | 405*168 (mm) | 405*168 (mm) |
| Input Voltage | AC220-240V 50/60Hz | ||
| Lumen Efficacy | 130-150lm/W | 130-150lm/W | 130-150lm/W |
| Luminous | 26000-30000lm | 31200-36000lm | 39000-45000lm |
| CCT | 3000-6500K | ||
| CRI | >80 | ||
| Beam Angle | 60°/90°/120° | ||
| Detection Range | Install Height:15Meter(max 18meter ) Detection Range: Radius 8-10Meter | ||
| Power Factor | >0.9 | ||
| IP Grade | IP66 | ||
| Working Temp | -20˚-45˚C |

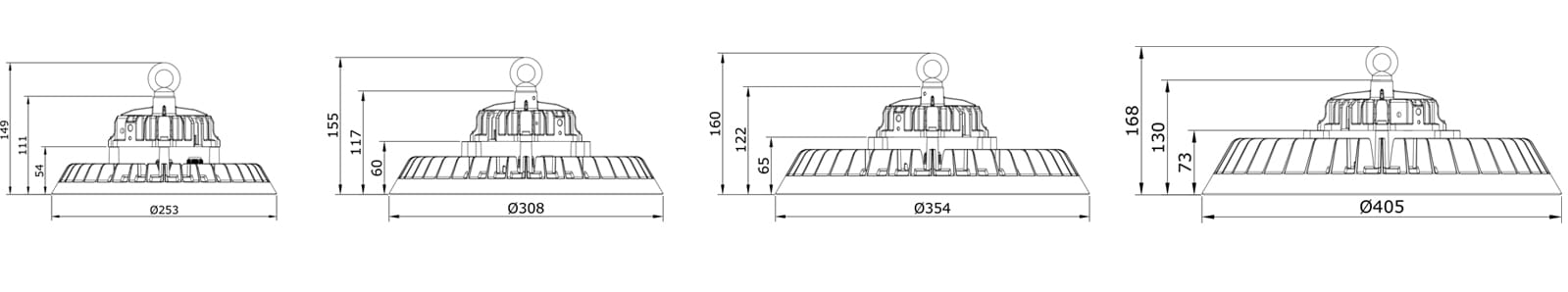

Prodcut Size
Motion Sensor Main Function Introduce

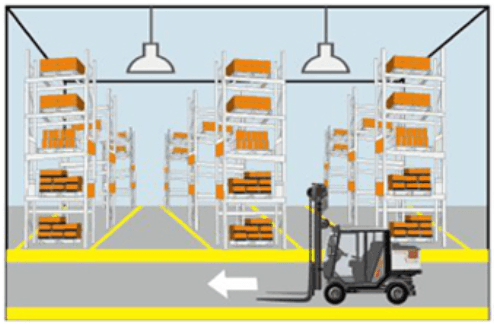

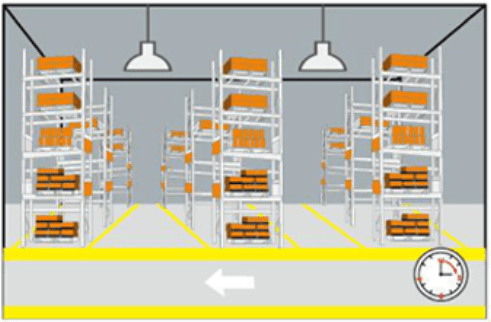

1)On-Off Function(Stand-by Period set to “0S”)
1. With sufficient environment light in the day time, the high bay light will not be switched on even with some movement detected.
2. With insufficient environment light in the night time, the high bay light will switched on while movement detected.
3. After elapse of the hold time, the motion sensor will switch off the LED high bay while there is no any motion detected.

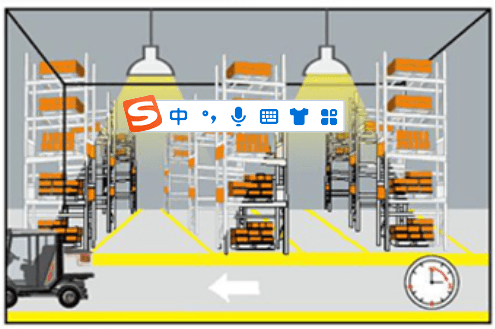

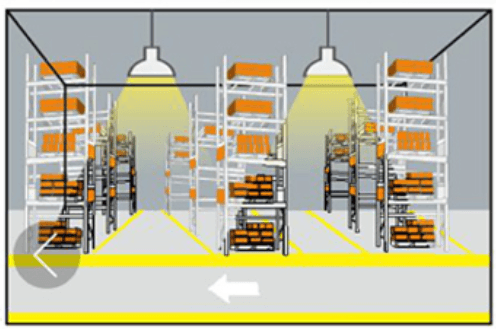

2) 2-Step Dimming Function (Stand-By Period Be Set To “+∞”)
1. If there is no any motion detected, the LED high bay ligth will be keep remained at the low level brightness.
2. When motion is detected, the micorwave sensor will switch on the LED high bay light to 100% brightness
3. After elapse of the hold time, the motion sensor will dim the LED high bay while there is no any motion detected.

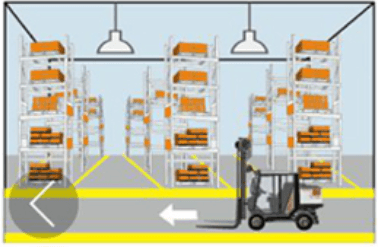

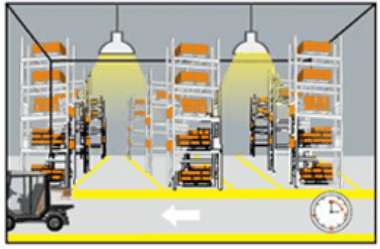

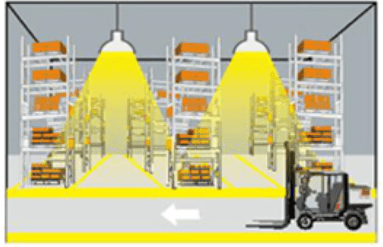

3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)
1. With sufficient environment light, the LED high bay will not be lighted up even there is some movement detected
2. With insufficient environment light, the LED high bay will be lighted up while there is some movement detected
3. After elapse of the hold time, the motion sensor will dim the LED high bay while there is no any motion detected.
4. After elapse of the stand-by time, the motion sensor will switch off the LED high bay while there is no any motion detected.
Remoter
Remoter
MicroWave Motion Sensor
