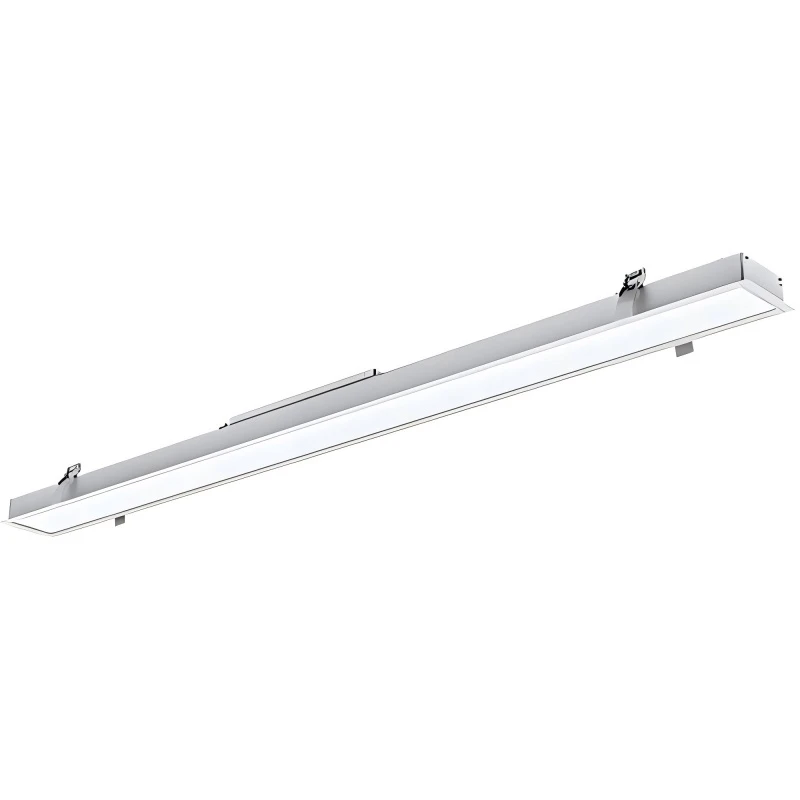

LED Recessed Linear Light -Model RLL5035(12W-40W)
Key Features:
Applications:
Suitable for indoor public lighting in offices, airports, shopping malls, hospitals, etc.
Product Overview
Linear recessed lighting fixture is favored because of its clean appearance, easy installation, and excellent integration into ceilings while providing sufficient brightness. Initially， recessed linear lighting applied in commercial office lighting projects, the recessed linear led lighting has since been widely used by customers in airports, stations, retail supermarkets, and other extensive venues. This LED recessed linear lighting has also become a common choice among lighting designers.
Length and Power — Flexible Enough for Most Projects
We stock five industry-standard lengths: 60cm, 100cm, 120cm, 150cm, and 180cm.
Each size is equipped with LED modules ranging from 10W to 40W, so you can choose the appropriate length and brightness based on ceiling height or space usage.
We can also design different lengths and wattages according to your project requirements to meet your needs to the fullest extent. For example, if you need a 128cm, 36W, 3000K, DALI dimmable linear recessed lighting fixtures, don’t worry — LEDTEK’s design team can create a custom solution for you.
Slim Design — Fits Tight Spaces
The recessed ceilings linear lighting housing is only 50mm wide, made of aluminum for good heat dissipation and long LED life.
Only a 40mm cut-out is required to recess the fixture, with a visible light aperture of 35mm. Embedded into the ceiling, users barely notice the fixture, making the space perfectly consistent overall.
Integrated Driver — Saves Ceiling Space
The LED driver is directly mounted on the back of the linear recessed lighting fixture, eliminating the need for additional driver boxes.
This reduces wiring complexity and voltage drop, while freeing ceiling space for other equipment.
It supports 110-240V AC input with a power factor above 0.95. Customers can select standard LED constant current drivers or choose fixtures with 0-10V or DALI dimming. LEDTEK uses high-quality LED drivers for all recessed fixtures to guarantee a 5-year warranty.
Quick Installation — Tool-Free
Factory-installed spring clips allow installers to press-fit the fixture into place without screws or additional tools.
Even in gypsum board or acoustic ceilings, the clips apply even pressure to prevent fixture sagging.
Long Seamless Runs — Up to 30 Meters
Most designers dislike visible breaks in linear lighting. We have developed a seamless connection system where the diffuser can extend up to 30 meters without joints or light leaks.
Modular PCBs ensure consistent color and brightness along the entire length.
Light Quality — Soft and Glare-Free
The opal diffuser provides over 85% light transmission and excellent glare control. The light is soft, shadow-free, and very uniform.
Custom Options and Bulk Orders
We support custom wattages, dimming curves, lengths precise to the millimeter, and color temperatures from 2200K to 6500K.
Colors include white, black, and aluminum finishes.
Built to Last — Tested and Guaranteed
All critical components undergo 2,000 hours of thermal and electrical stress testing.
The LED Linear recessed lighting fixture is rated L80 > 60,000 hours with a 5-year warranty.
We can customize the length or wattage to meet your needs. If you have such needs, Please fell free to contact us.
Interested in more LED Recessed Linear Lights? Explore our full collection of Recessed linear LED lights.
| Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
|---|---|---|---|---|---|
| RLL5035-12W | 12 | 1200lm | 2700K-6500K | 120° | ≥80 (90 optional) |
| RLL5035-20W | 20 | 2000lm | 2700K-6500K | 120° | ≥80 (90 optional) |
| RLL5035-24W | 24 | 2400lm | 2700K-6500K | 120° | ≥80 (90 optional) |
| RLL5035-30W | 30 | 3000lm | 2700K-6500K | 120° | ≥80 (90 optional) |
| RLL5035-40W | 40 | 4000lm | 2700K-6500K | 120° | ≥80 (90 optional) |
| RLL5035-xxW | Customizable | Customizable | 2700K-6500K | 120° | Customizable |
| Model No. | RLL5035-12W | RLL5035-20W | RLL5035-24W | RLL5035-30W | RLL5035-40W |
|---|---|---|---|---|---|
| Wattage | 12W | 20W | 24W | 30W | 40W |
| Dimension(mm) | 600X50X60 | 1000X50X60 | 1200X50X60 | 1500X50X60 | 1800X50X60 |
| Input Voltage | AC110-240V 50/60HZ | ||||
| Dimming Option | 0-10V/DALI | ||||
| Luminous | 1200lm | 2000lm | 2400lm | 3000lm | 4000lm |
| CCT | 2700-6500K | ||||
| CRI | >80(90/95 available) | ||||
| Beam Angle | 120° | ||||
| Materials of Housing | Aluminum | ||||
| Materials of Optics | Opal Diffuser White | ||||
| IP Rating | IP20 IP54(Room Side)/IP20(Ceiling Side) | ||||
| Operating Temp. (C ) | -20°~40° | ||||
Please contact us to request the datasheet.
Please contact us to request the installation instructions.
LED Recessed Linear Lights are ideal for a wide range of commercial and residential settings due to their sleek design and efficient lighting performance. Common applications include:
Office spaces and conference rooms
Retail stores and shopping malls
Airports, train stations, and transportation hubs
Hotels and hospitality areas
Educational facilities such as classrooms and libraries
Hospitals and healthcare centers
Museums and galleries
Residential kitchens, living rooms, and hallways
Corridors and lobbies
Showrooms and exhibition halls
Q1: What are the dimensions of the RLL5035 recessed linear light?
A1: The Linear recessed lighting fixture has an aluminum housing measuring 55mm in width and 35mm in height. Visible width is 40mm.
Q2: What LED type is used in this model?
A2: It utilizes high-brightness SMD 2835 LEDs, known for their high intensity and low power consumption.
Q3: What is the lumen efficiency of the RLL5035?
A3: The light offers a high lumen efficiency of over 100 lumens per watt.
Q4: What color rendering index (CRI) does this light have?
A4: The standard CRI is greater than 80, with an optional CRI of over 90 available.
Q5: What sizes are available for the RLL5035?
A5: Standard lengths include 600mm, 1000mm, 1200mm, 1500mm, and 1800mm. Custom lengths are also available upon request.
Q6: Can multiple units be connected seamlessly?
A6: Yes, the RLL5035 Linear recessed lighting fixture supports ultra-long seamless connections, allowing for continuous runs.
Q7: What is the installation method for this light?
A7: The RLL5035 Linear recessed lighting fixture is designed for recessed installation, ensuring a sleek and modern appearance.
Q8: Does the fixture come with a driver?
A8: Yes, the RLL5035 Linear recessed lighting fixture includes a high-quality external flicker-free LED driver for stable performance.
Q9: What is the warranty period for the RLL5035?
A9: The RLL5035 Linear recessed lighting fixture comes with a 5-year warranty, reflecting its durability and quality.
Q10: Is this light suitable for commercial applications?
A10: Absolutely. With its high lumen output and sleek design, the RLL5035 is ideal for commercial spaces such as offices, retail stores, and public areas.

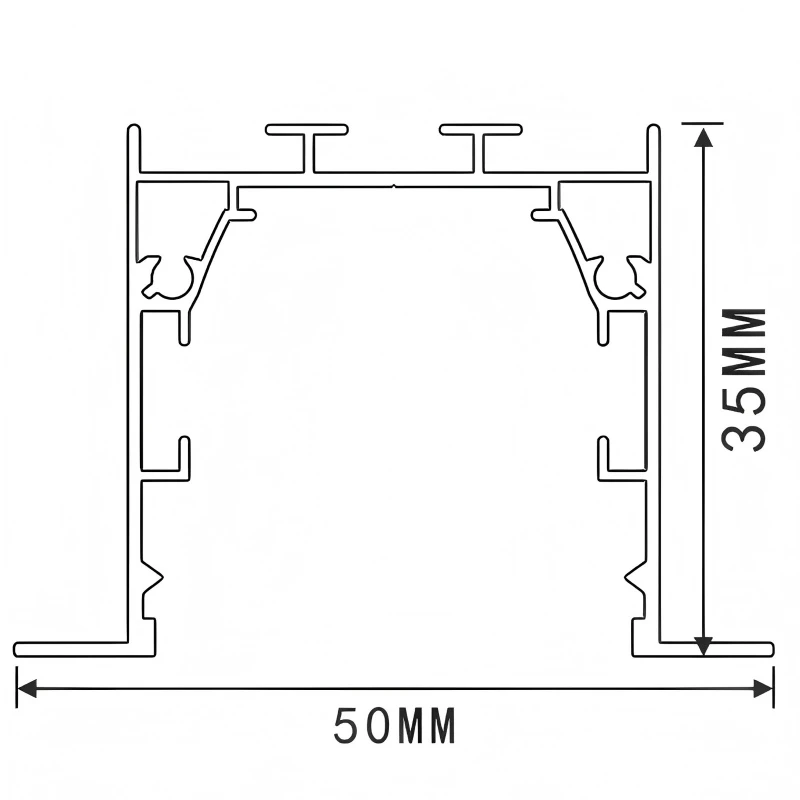

Product Size
