LED Suspended Linear Light – Model SLL6070 (16W–60W)

  • LEDTEK LED Suspende Linear Light SLL6050 12W-60W

Key Features：

  • 60mX70mm(Aluminum Fixture Width * Height)

  • High lumen efficiency, >100lm/W.

  • High Bright SMD 2835 LEDs, high intensity and low power consumption
  • CRI>80 (>90 optional)

  • Sizes: 600mm / 1000mm / 1200mm / 1500mm/1800mm. Custom lengths available with OEM support.

  • Customizable ultra-long seamless connections available.

  • Installation way: Suspended

  • High quality External flicker free LED driver.

  • 5 years warranty

Applications:

Suitable for indoor public lighting in offices, airports, shopping malls, hospitals, etc.

Product Overview

The LEDTEK Suspended Linear Luminaire offers cutting-edge LED performance paired with a sleek, modern design, ideal for office, commercial, and premium interior lighting applications. It provides consistent, glare-free illumination that enhances visual comfort and fosters a productive environment, while maintaining excellent energy efficiency.

The SLL6070 model features a streamlined profile measuring 60 mm in width and 70 mm in height. Its durable aluminum housing ensures effective heat dissipation and long-lasting reliability. The adjustable suspension system allows flexible installation to suit different ceiling heights and spatial layouts.

Equipped with high-brightness SMD2835 LEDs mounted on aluminum PCB, this luminaire is driven by a high-efficiency constant current driver delivering a high power factor and low total harmonic distortion. Supported by a 5-year warranty, LEDTEK guarantees dependable quality and steady performance for professional lighting projects.

Available in standard lengths of 600 mm, 1000 mm, 1200 mm, 1500 mm, and 1800 mm, the LEDTEK Suspended Linear Luminaire supports seamless runs up to 30 meters, making it perfect for large open spaces. Whether used in offices, showrooms, or retail environments, the SLL6070 integrates smoothly with various architectural styles, improving both lighting quality and overall ambiance..

We can customize the length or wattage to meet your needs.

Interested in more LED suspended linear luminaires? Browse our complete range here.

Product Specifications

Model No.SLL6070-16WSLL6070-30WSLL6070-40WSLL6070-50WSLL6070-60W
Wattage16W30W40W50W60W
Dimension(mm)600X60X701000X60X701200X60X701500X60X701800X60X70
Input VoltageAC110-240V 50/60HZ
Dimming Option0-10V/DALI
Luminous1600lm3000lm4000lm5000lm6000lm
CCT2700-6500K
CRI>80(90/95 available)
Beam Angle120°
Materials of HousingAluminum
Materials of OpticsOpal Diffuser White
IP RatingIP54
Operating Temp. (C )-20°~40°

Product Size

LEDTEK SLL3570 Suspended Linear Light, black or silver housing, 35x70mm profile, 10W–50W power range, 5-year warranty.
LEDTEK SLL3570 Suspended Linear Light, black or silver housing, 35x70mm profile, 10W–50W power range, 5-year warranty.

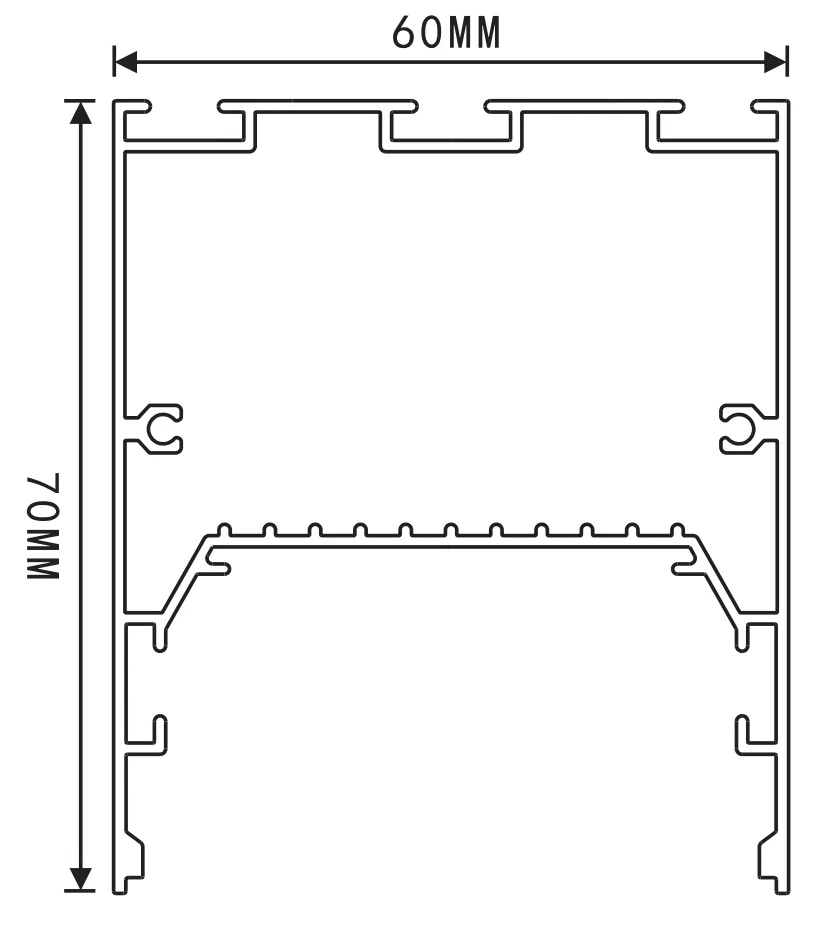

LEDTEK suspended linear light SLL6070 size picture
