MEAN WELL ELG-240 LED POWER SUPPLY

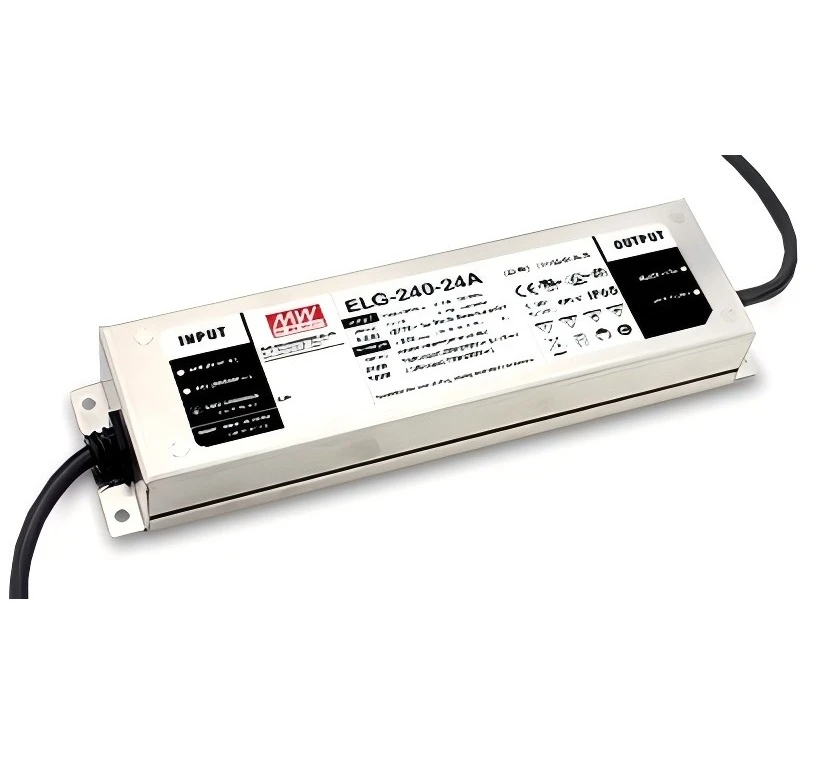

Meanwell ELG-240 LED Driver Picture

Wattage:240W

Features:

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;
  • 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Description:

ELG-240 series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-240 operates from 100~305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optional design flexibility for LED lighting system.

Model

  • ELG-240-24 (BLANK, A, B, AB, DA, D2) / ELG-240-36 (BLANK, A, B, AB, DA, D2) / ELG-240-42 (BLANK, A, B, AB, DA, D2) / ELG-240-48 (BLANK, A, B, AB, DA, D2) / ELG-240-54 (BLANK, A, B, AB, DA, D2)
WEIGHT 1.22Kg
DIMENSIONS244× 71× 37.5mm
LED ELG SERIESELG-240, ELG-240-24, ELG-240-36, ELG-240-42, ELG-200-48, ELG-200-54
