MEAN WELL ELG-75 LED POWER SUPPLY

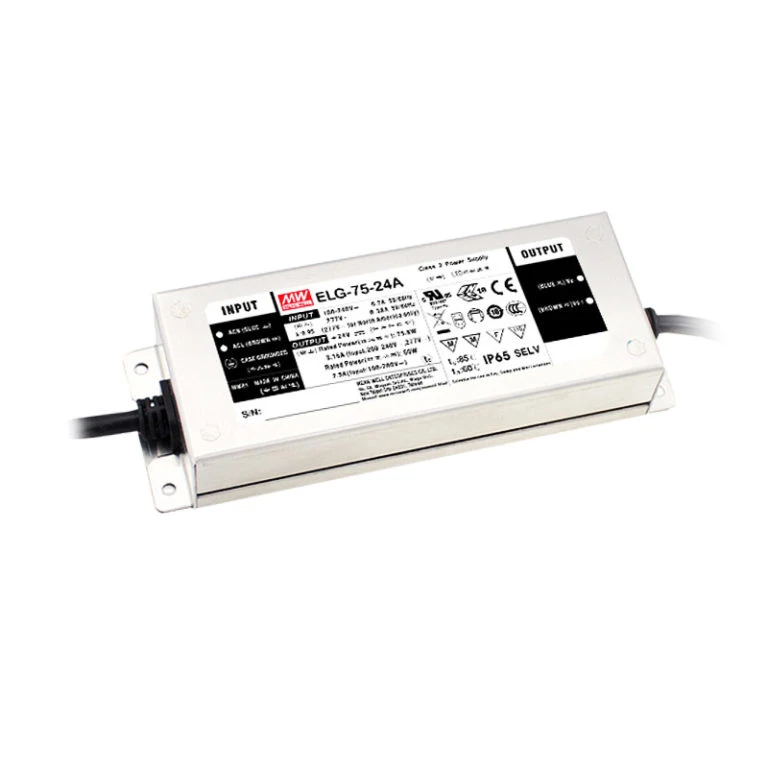

mean well ELG-75 waterproof LED power supply

Wattage:75W

Features:

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;
  • 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Description:

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40C~+85C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as -24
ELG-75A Rated output voltage(12/24/36/42/48V) Rated wattage Series name Function mode option 8 dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Model

  • ELG-75-12 (A B AB DA D2) / ELG-75-24 (A B AB DA D2) / ELG-75-36 (A B AB DA D2) / ELG-75-42 (A B AB DA D2) / ELG-75-48 (A B AB DA D2)
WEIGHT 0.8Kg
DIMENSIONS 180× 63× 35.5mm
