MEAN WELL PWM-200(DA2) LED POWER SUPPLY

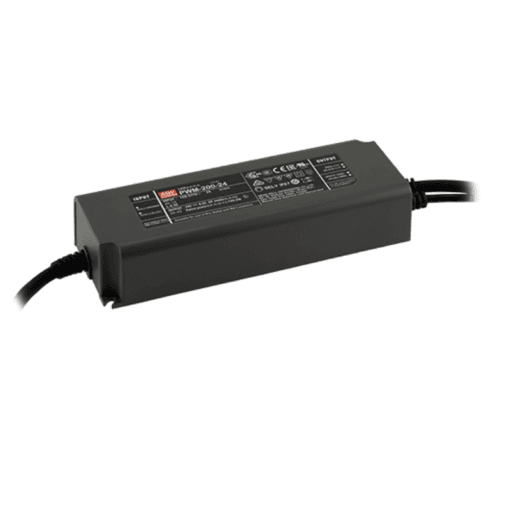

MEAN WELL PWM-200 Waterproof Dimming LED Power Supply

Wattage:200W

Features:

  • Constant voltage PWM style output
  • with frequency up to 4kHz compliant IEEE1789-2015
  • Plastic housing with class II and PFC design
  • Emergency lighting application is available according to IEC61347-2-13
  • Standby power consumption <0.5W
  • Fully encapsulated with IP67 level
  • Function options: 3 in 1 dimming
  • (dim-to-off and Isolated Design)/DALI-2
  • Minimum dimming level 0.2% for DA2 type
  • Typical lifetime >50000 hrs and 5 years warranty
Description:

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-200 operates from 100 ~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 94% with the fanless design, the entire series is able to operate for -40°C~+85°C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM 200 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.



Model

  • PWM-200-12 / PWM-200-24 / PWM-200-36 / PWM-200-48 / PWM-200-12DA2 / PWM-200-24DA2 / PWM-200-36DA2 / PWM-200-48DA2
WEIGHT 1.03Kg
DIMENSIONS195× 68× 39.5mm
LED PWM SERIESPWM-200, PWM-200-12, PWM-200-24, PWM-200-36, PWM-200-48, PWM-200-12DA2, PWM-200-24DA2, PWM-200-36DA2, PWM-200-48DA2
