Zoomable Recessed Spotlight 5W-35W For Recessed Lighting | LEDTEK DL4059
Key Feature:
Application:
It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.

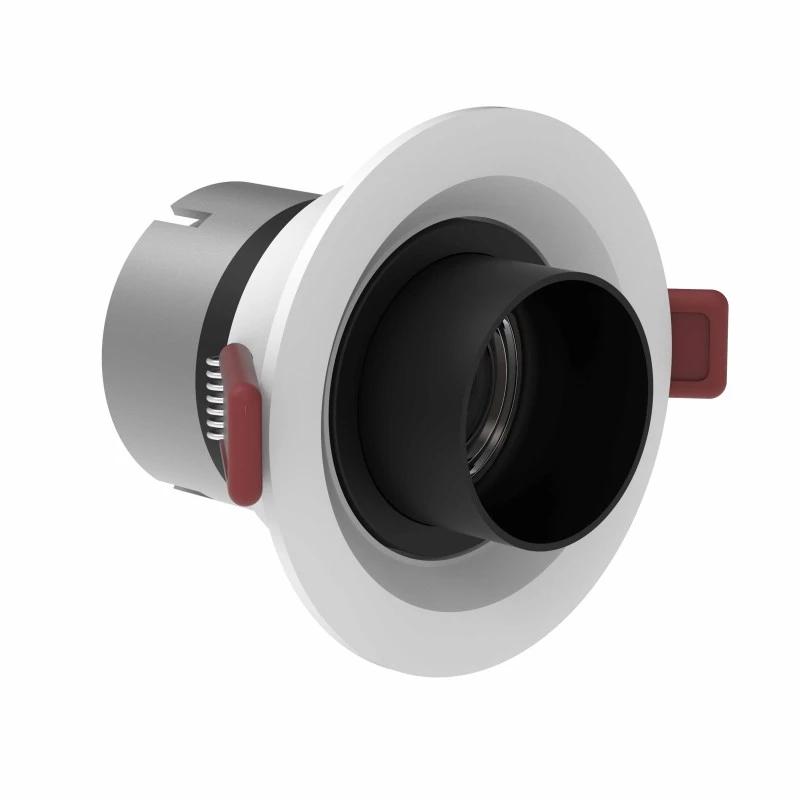

Optional White Frame Color

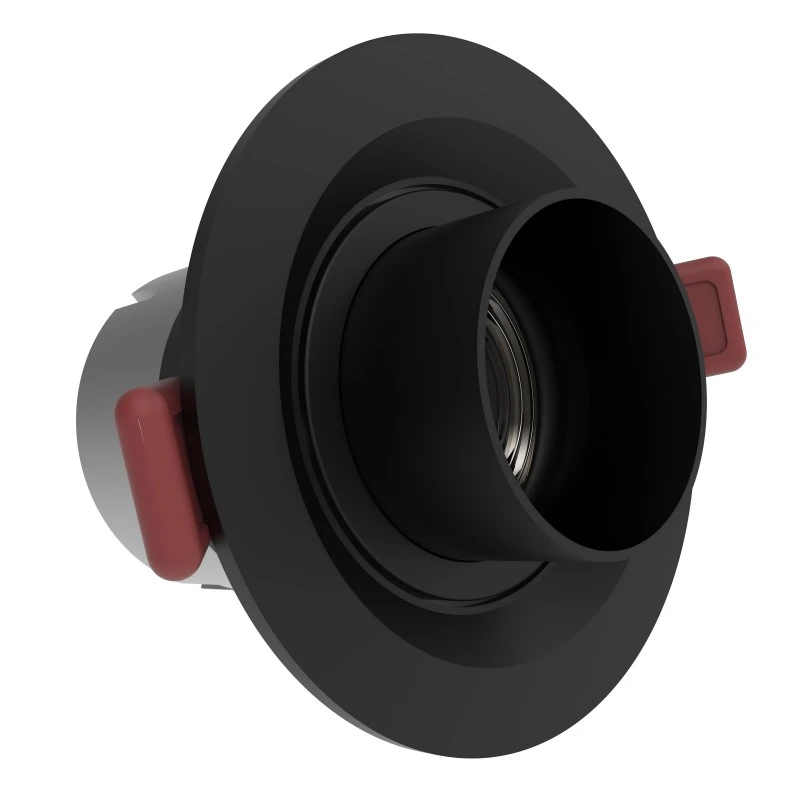

Optional Black Frame Color
Product Overview
The LEDTEK DL4059 Series Zoomable Recessed Spotlight redefines flexibility and precision in architectural lighting. Designed for both residential and commercial lighting applications, this 5-35W COB adjustable spotlight combines cutting-edge technology with sleek aesthetics to meet diverse lighting needs.

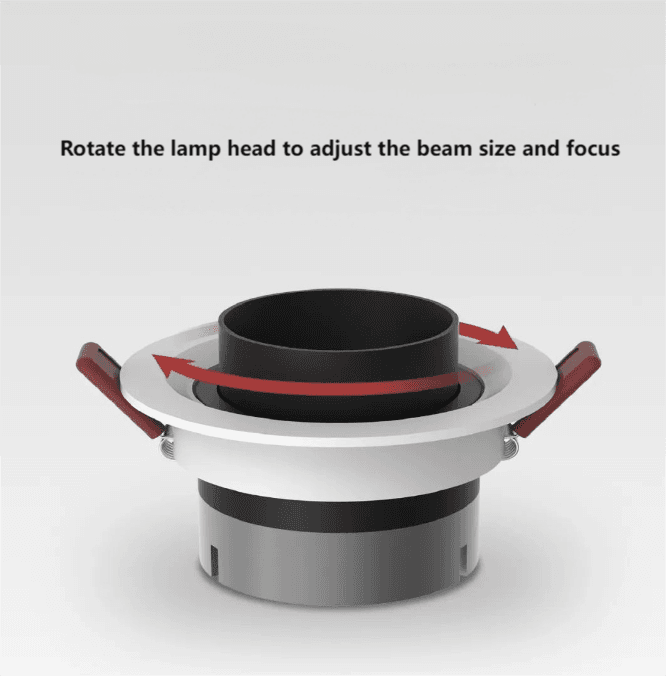

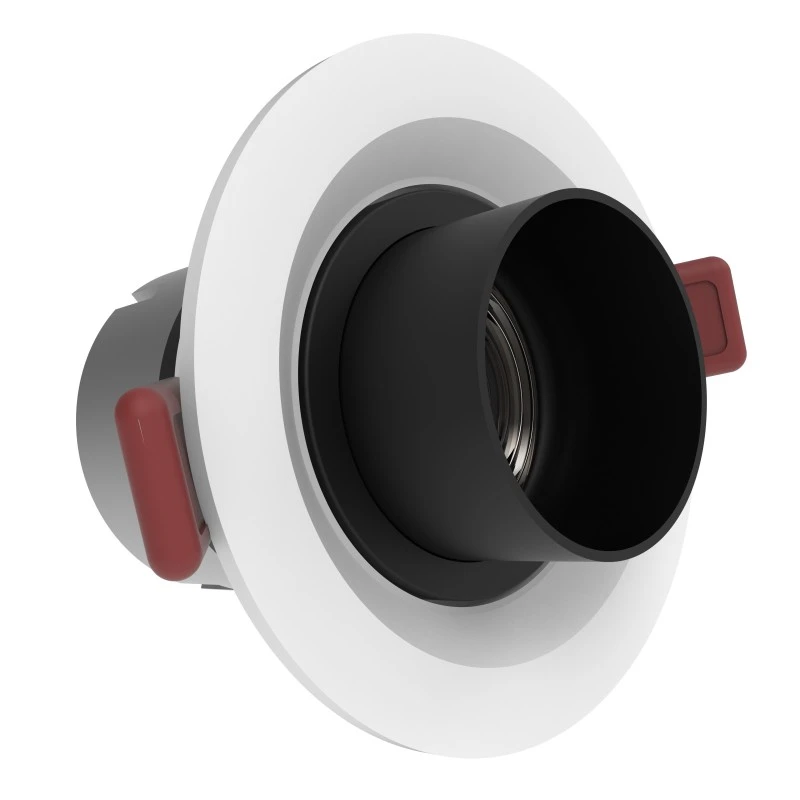

Featuring free-zoom functionality, the DL4059 allows users to effortlessly adjust beam angles from 15° to 60° by rotating its lamp head, enabling seamless transitions between focused task lighting and broad ambient illumination. The double-layer convex lens enhances light convergence, delivering superior spot effects with minimal glare. Powered by CREE or BRIDGELUX COB light sources, it ensures high color rendering and consistent brightness, ideal for galleries, retail displays, or home decor.

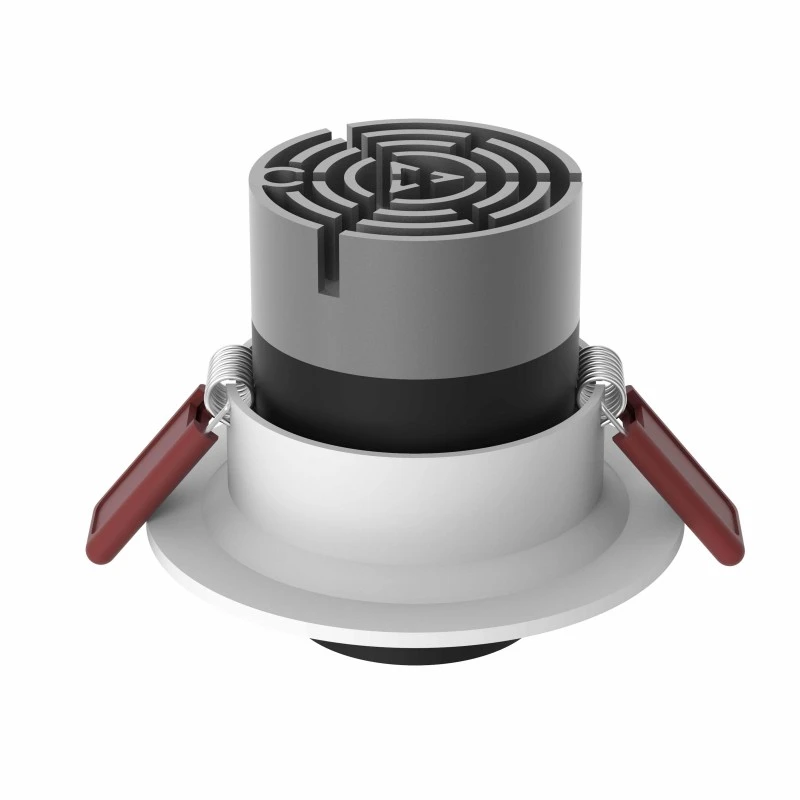

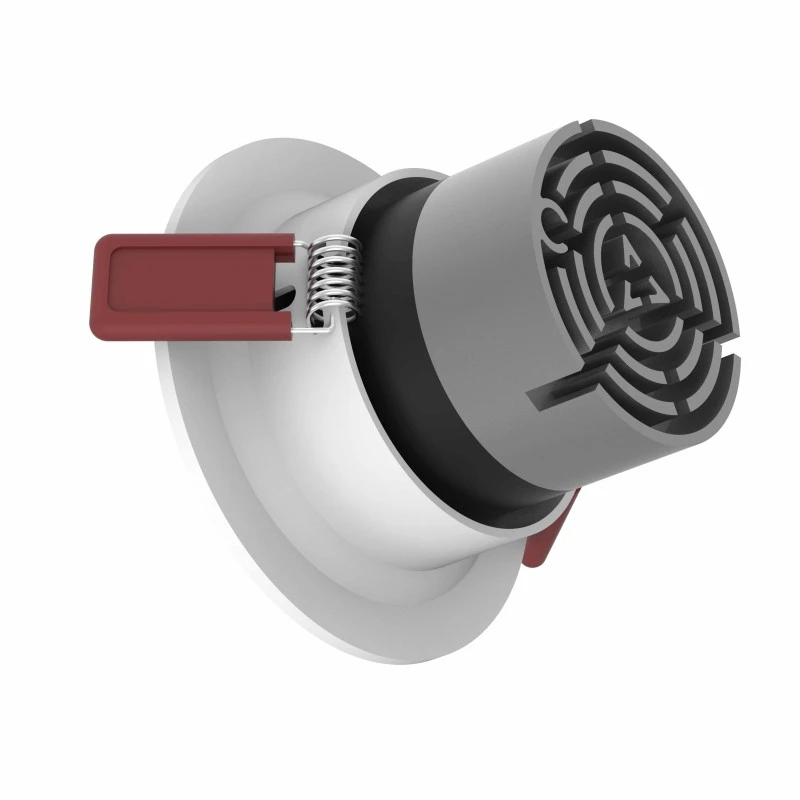

Built for durability, the spotlight boasts a matte-finished aluminum housing with optimized heat dissipation. Strategically placed cooling vents and an integrated heat sink extend the fixture’s lifespan while maintaining stable performance. Paired with a high-quality flicker-free LED driver, it guarantees eye comfort and energy efficiency, reducing long-term maintenance costs.
Aesthetically, the DL4059 shines with a sleek embedded design and a striking black-and-white contrast, blending seamlessly into modern interiors. Its tool-free installation simplifies setup, while the 5-year warranty underscores its reliability.
From accent lighting in museums to functional illumination in offices, the LEDTEK DL4059 Zoomable Recessed Spotlight offers unmatched adaptability, durability, and style, making it a top choice for architects, designers, and homeowners seeking premium, future-proof lighting solutions.
We can customize the wattage to meet your needs.
Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.
Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
---|---|---|---|---|---|
DL4059-5W | 5 | 500 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-7W | 7 | 700 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-12W | 12 | 1200 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-16W | 16 | 1600 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-20W | 20 | 2000 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-25W | 25 | 2500 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-30W | 30 | 3000 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
DL4059-35W | 35 | 3500 | 2700K-6500K | Zoom 15°-60° | ≥80 (90 optional) |
Model No | DL4059-5W | DL4059-7W | DL4059-12W | DL4059-16W | DL4059-20W | DL4058-25W | DL4059-30W | DL4059-35W |
---|---|---|---|---|---|---|---|---|
Wattage | 5W | 7W | 12W | 16W | 20W | 25W | 30W | 35W |
Dimension(mm) | Φ75*H67 | Φ92*H65 | Φ92*H80 | Φ114*H60 | Φ114*H85 | Φ138*H68 | Φ138*H88 | Φ138*H188 |
Cutting Hole | Φ55 | Φ75 | Φ75 | Φ95 | Φ95 | Φ120 | Φ120 | Φ120 |
Input Voltage(V) | AC110-240V 50/60Hz | |||||||
Light Source | Cree/Bridgelux/Osram | |||||||
CCT | 2700K-6500K | |||||||
Luminous Flux (lm) ±5% | 500 | 700 | 1200 | 1600 | 2000 | 2500 | 3000 | 3500 |
CRI | >80(90 optional) | |||||||
Beam Angle | Zoom 15°-60° | |||||||
LED Driver | External LED Driver | |||||||
Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
Ingress Protection (IP Rating) | IP44 (front/room side) / IP20 (rear/ceiling side) | |||||||
Product Finishing | Frame Color: White/Black | |||||||
Materials of Optics | PMMA | |||||||
Operating Temp. (℃ ) | -20℃ ~55℃ | |||||||
Installation | Recessed |
Contact us to request the datasheet.
For recessed lighting installation instructions, please contact us.
The LEDTEK DL4059 Zoomable Recessed LED Downlight is designed to deliver versatile and efficient lighting for various applications:
Office Lighting: Provides uniform illumination to reduce eye strain and improve productivity.
Retail Stores & Supermarkets: Adjustable beam angles highlight products and attract customer attention.
Schools & Educational Facilities: Bright, even lighting for classrooms and corridors, creating a comfortable learning environment.
Hotel Lobbies & Hallways: Creates a warm and inviting atmosphere, enhancing the overall aesthetic.
Museums & Art Galleries: Precise spotlighting accentuates exhibits and fine details.

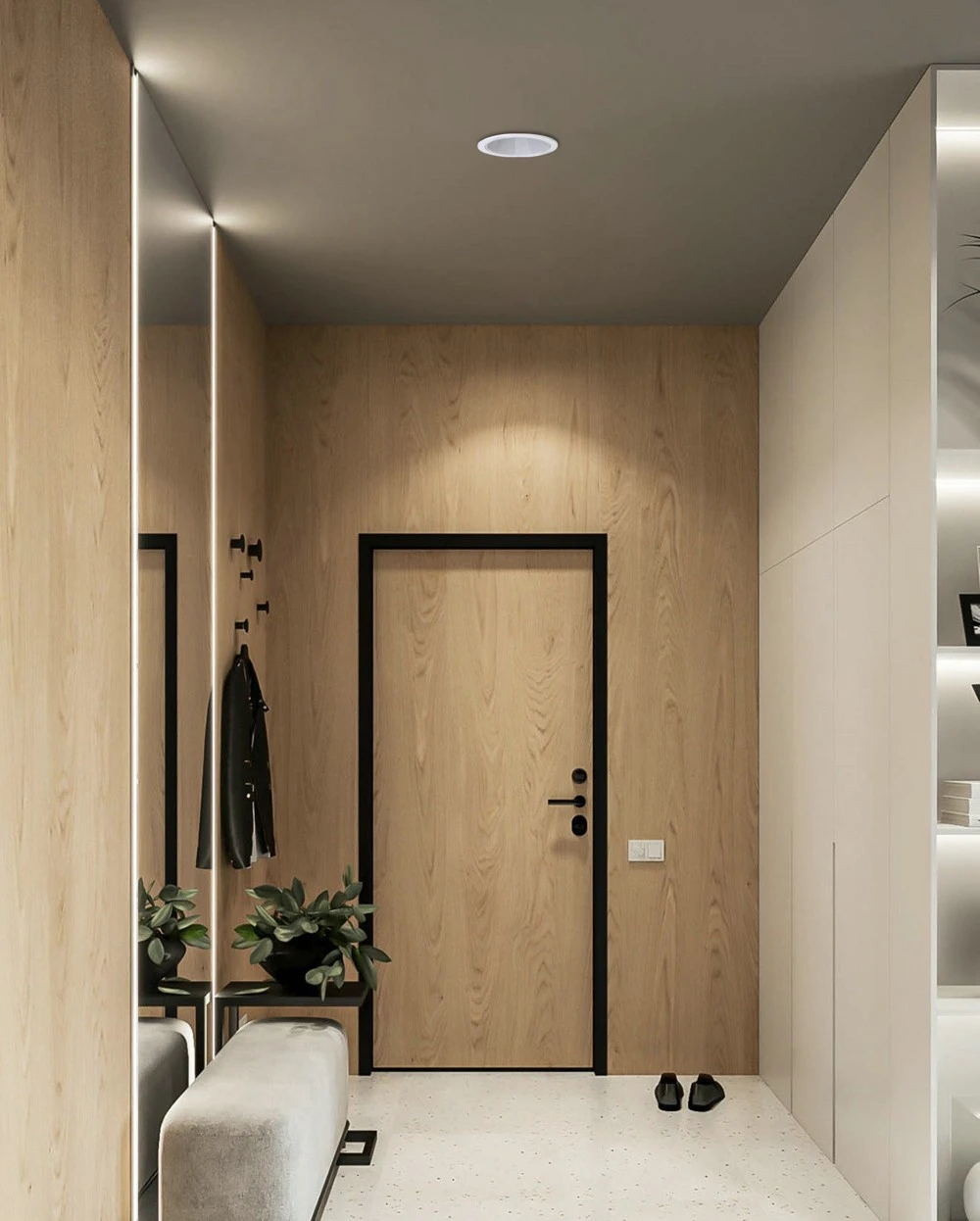

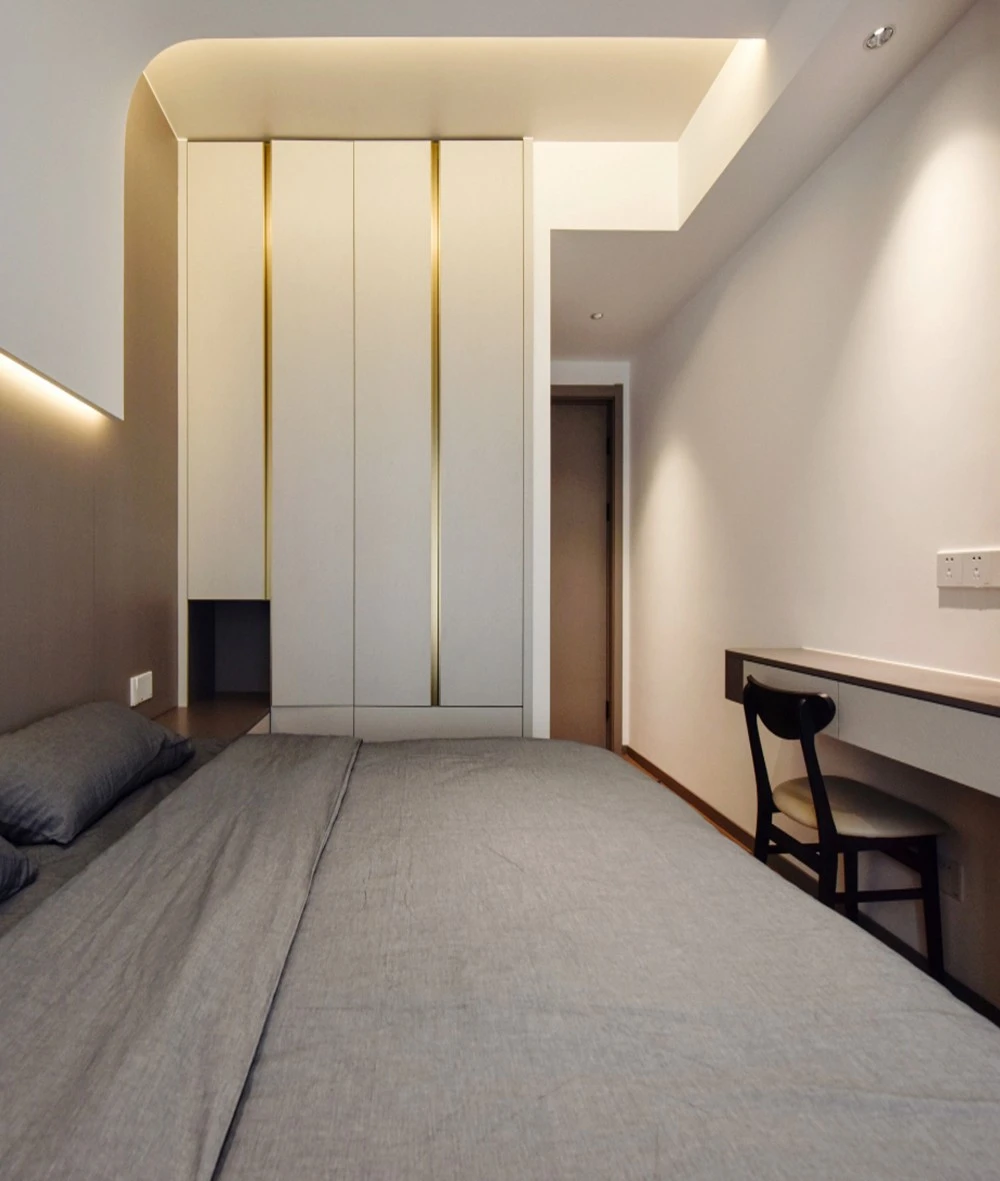

Residential Spaces: Ideal for living rooms, kitchens, and other home areas with flexible zoomable beam control.
Q1: What is the power range of DL4059?
A1: The DL4059 LED Downlight supports 5W to 35W, suitable for different lighting needs.
Q2: Is the DL4059 suitable for outdoor use?
A2: No, DL4059 is designed for indoor recessed lighting applications such as offices, retail stores, and schools.
Q3: What is the adjustable beam angle range?
A3: The DL4059 features a zoomable beam angle, adjustable from 15° to 60° to meet varying lighting requirements.
Q4: Which LED brand is used in DL4059?
A4: The DL4059 uses high-quality Cree or Bridgelux COB LEDs, ensuring stable performance and high efficiency.
Q5: What frame color options are available?
A5: DL4059 is available in white and black frames, matching different interior design styles.

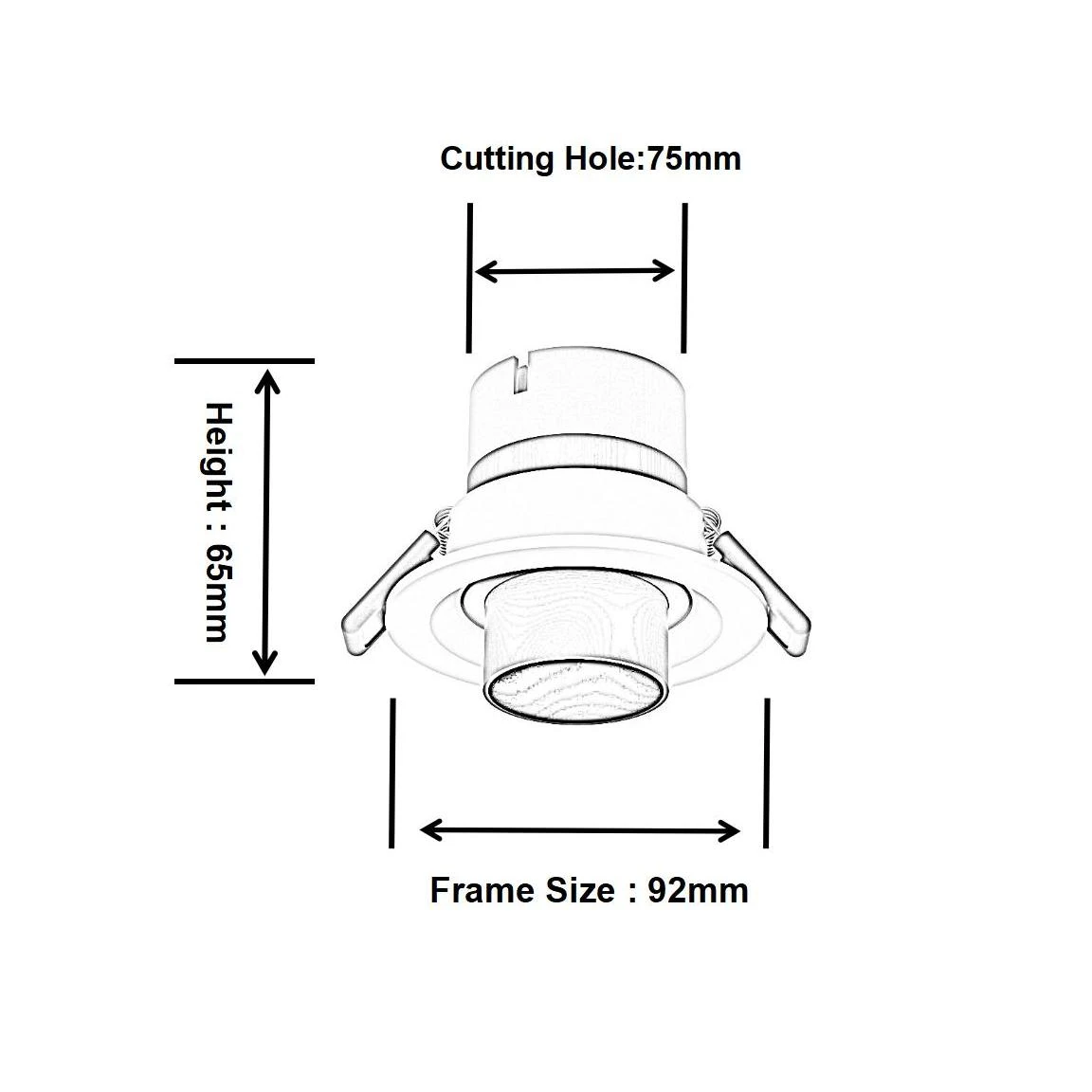

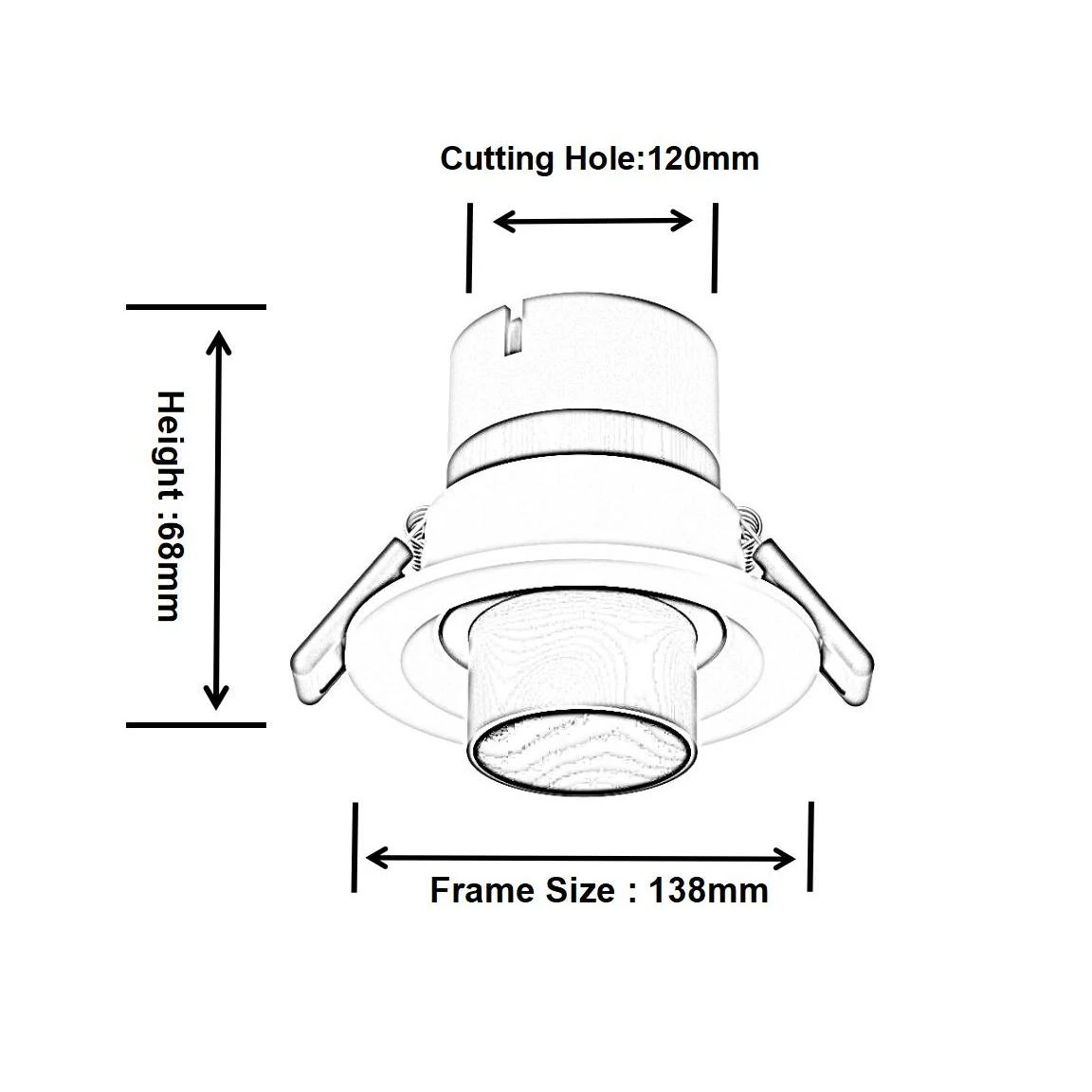

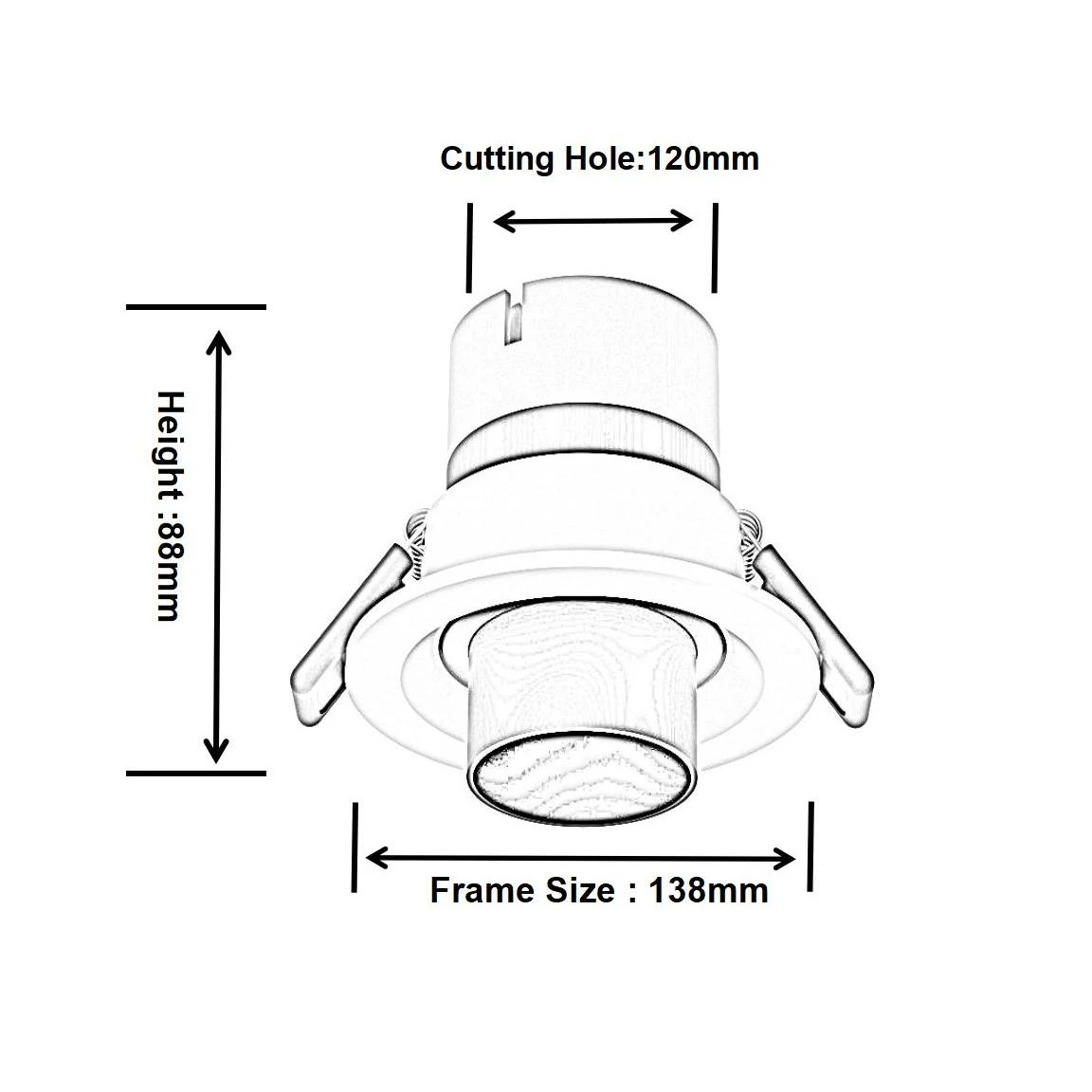

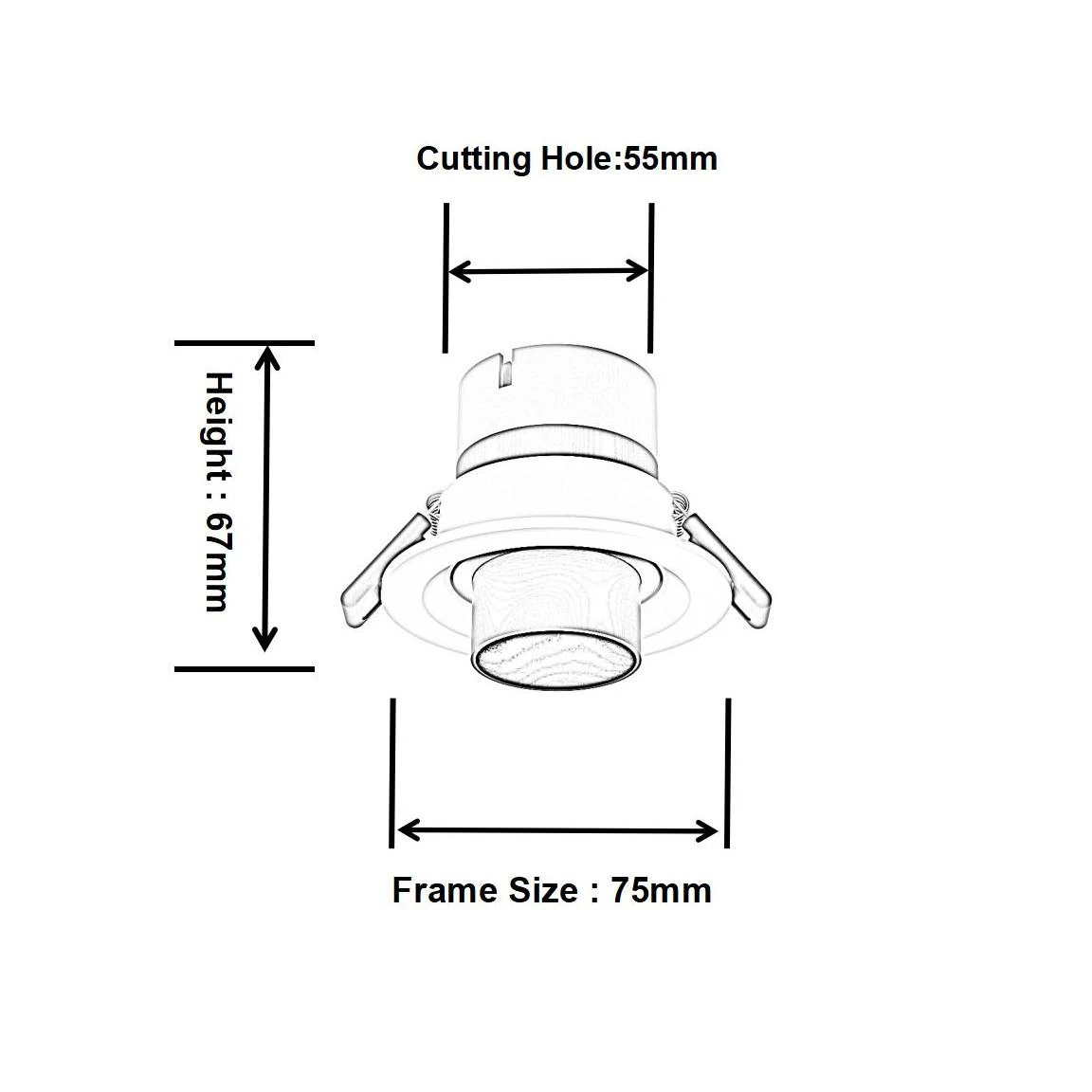

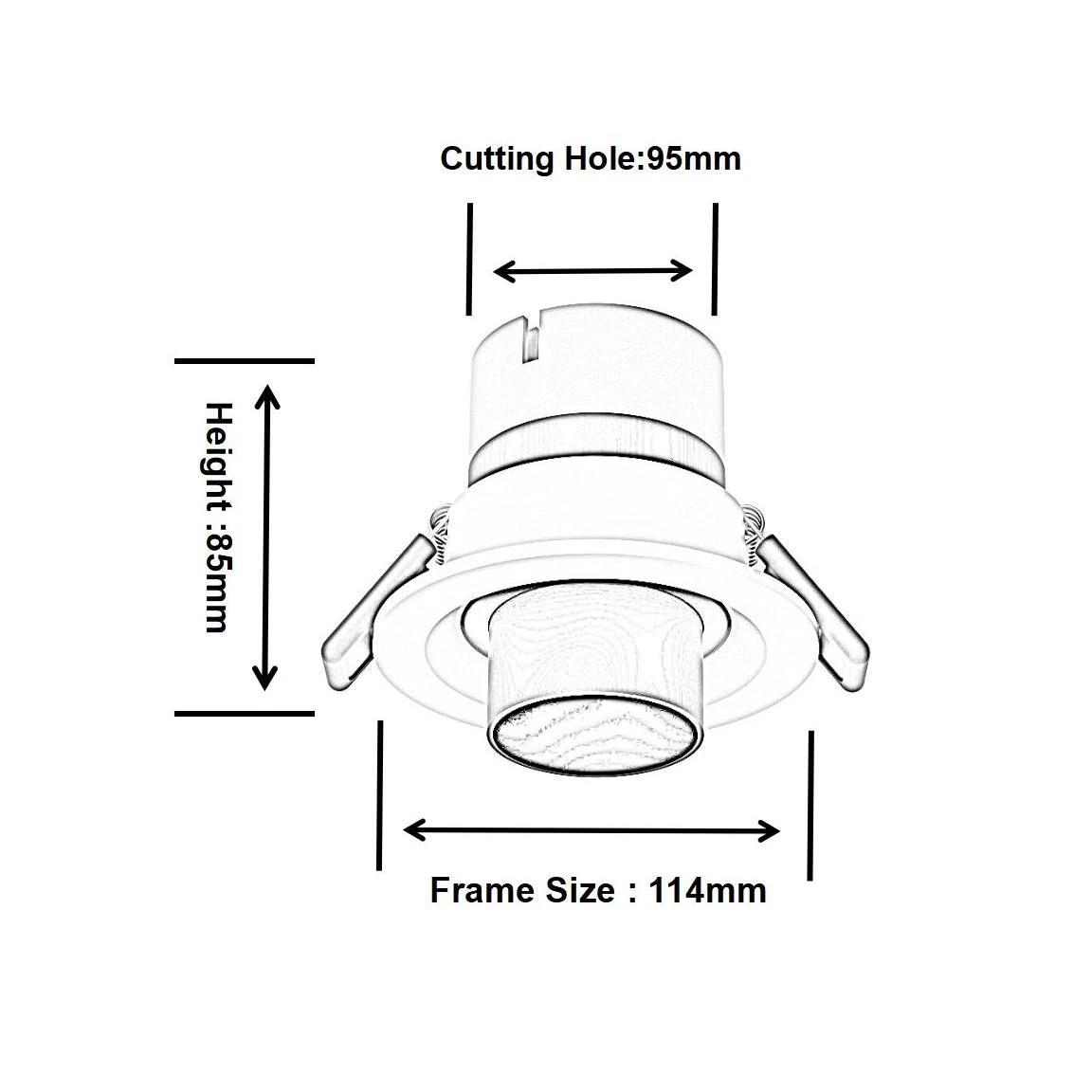

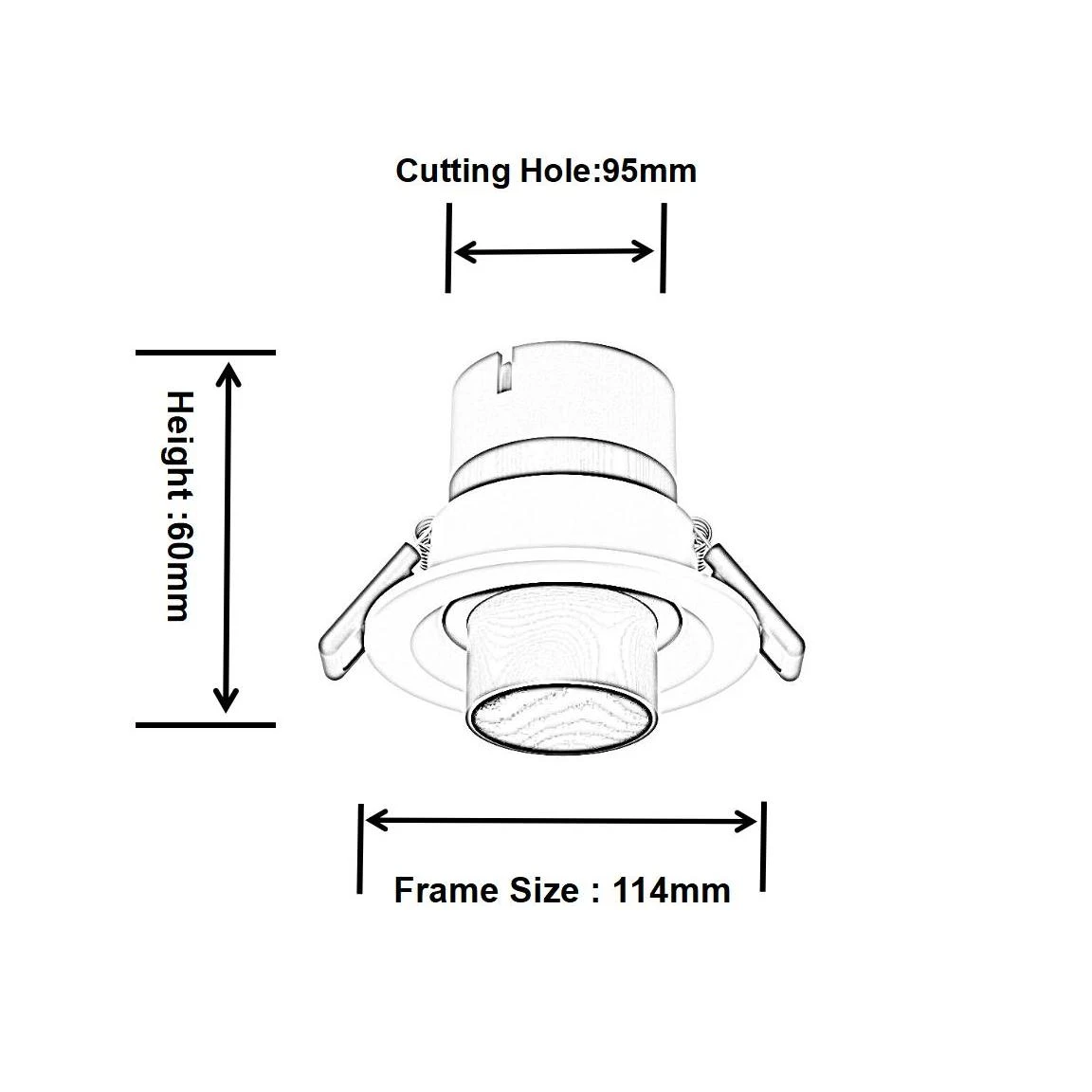

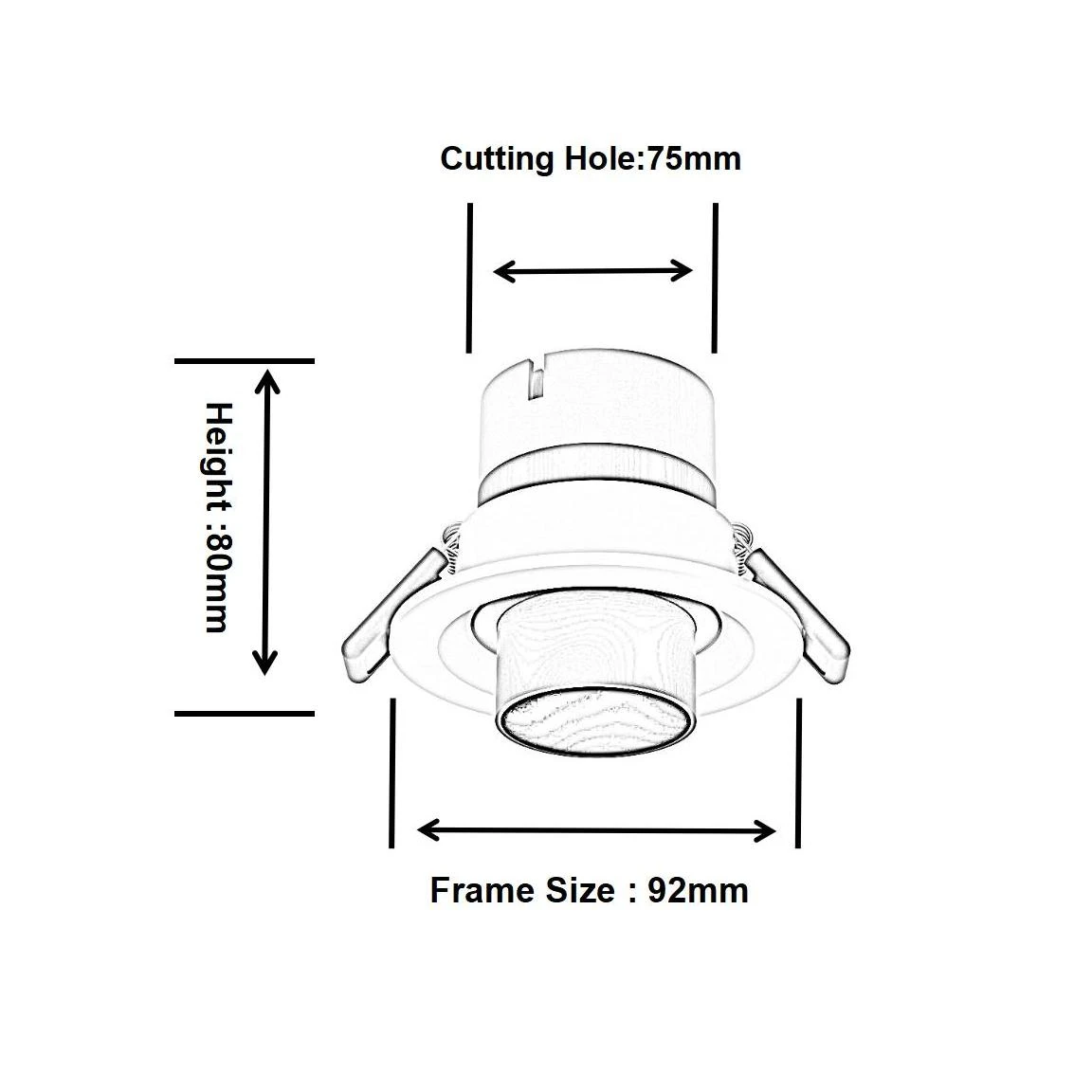

Product Size
