Narrow Trim COB LED Downlight 5W-25W For Recessed Lighting | LEDTEK DL4061
Key Feature:
Application:
It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.
Honeycomb Optional
Product Overview
The DL4061 Downlight is a state-of-the-art lighting solution designed to offer both exceptional performance and a refined aesthetic. Featuring a narrow bezel design with a minimum border of just 6mm, this downlight maximizes the reflective surface for enhanced light distribution while seamlessly integrating with the ceiling. This design not only provides a sleek, modern look but also meets the precise demands of contemporary architectural projects.
Constructed with high-quality aluminum, the DL4061 Downlight incorporates an efficient heatsink that ensures rapid heat dissipation, extending the product’s lifespan and maintaining consistent performance. Its deep reflective cover is engineered to control glare effectively, providing a low UGR (Unified Glare Rating) environment that enhances visual comfort. The downlight is powered by a COB LED light source and is equipped with a flicker-free LED driver, ensuring stable and energy-efficient operation.
Available in a power range of 5-25W and with beam angles of 15°, 24°, and 38°, this versatile product can be adapted to a wide range of installation scenarios. Additionally, the reflective cover is offered in six different colors, allowing for customization to meet various engineering requirements. With its simple yet timeless design, the DL4061 Downlight is a reliable and sophisticated choice for modern interior lighting solutions.
We can customize the wattage to meet your needs.
Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.
| Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
|---|---|---|---|---|---|
| DL4061-5W | 5 | 500 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-7W | 7 | 700 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-10W | 10 | 1000 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-12W | 12 | 1200 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-16W | 16 | 1600 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-20W | 20 | 2000 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-22W | 22 | 2200 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4061-25W | 25 | 2500 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
Model No | DL4061-5W | DL4061-7W | DL4061-10W | DL4061-12W | DL4061-16W | DL4061-20W | DL4061-22W | DL4061-25W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 20W | 22W | 25W |
| Dimension(mm) | Φ65*H60 | Φ65*H60 | Φ85*H76 | Φ85*H76 | Φ105*H108 | Φ105*H108 | Φ105*H108 | Φ105*H108 |
| Cutting Hole | Φ55 | Φ55 | Φ75 | Φ75 | Φ95 | Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB/BridgeLux COB | |||||||
| CCT | 2700K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 2000 | 2200 | 2500 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 15°/24°/38° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP44 (front/room side) / IP20 (rear/ceiling side) | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~55℃ | |||||||
| Installation | Recessed | |||||||
Contact us to request the datasheet.
For recessed lighting installation instructions, please contact us.
DL4061 LED Downlight Applications
The LEDTEK DL4061 Narrow Trim COB LED Downlight is a professional-grade lighting solution designed for modern interior projects. With its ultra-slim bezel, deep anti-glare optics, and flicker-free driver, it delivers both comfort and performance.
This downlight is widely used in:
Offices and conference rooms – providing efficient, glare-free lighting for productive workspaces.
Retail stores, supermarkets, and showrooms – ensuring products are displayed under bright and consistent illumination.
Hotels, lobbies, and hospitality spaces – creating a premium atmosphere with stylish recessed lighting.
Schools, classrooms, and libraries – offering stable, non-flickering light for reading and study environments.
Galleries and museums – enhancing artwork and exhibits with adjustable beam angles for accent lighting.
The DL4061 recessed LED downlight is the ideal choice for projects that require low UGR lighting, reliable heat dissipation, and long service life.
Q1: What power options are available for the DL4061?
A1: The DL4061 comes in a wide range of wattages, including 5 W, 7 W, 10 W, 12 W, 16 W, 20 W, 22 W, and 25 W, making it suitable for both small and large lighting applications.
Q2: What beam angles can I choose?
A2: It offers 15°, 24°, and 38° beam angle options, giving designers flexibility for both general and accent lighting.
Q3: Is the DL4061 designed to reduce glare?
A3: Yes. With a deep reflector design and optional honeycomb louver, the DL4061 effectively reduces glare and ensures a low Unified Glare Rating (UGR) environment.
Q4: Does the DL4061 provide flicker-free lighting?
A4: Absolutely. It is equipped with a non-flicker LED driver, delivering stable and comfortable illumination for long-term use.
Q5: What warranty is offered for the DL4061?
A5: LEDTEK provides a 5-year warranty for the DL4061, ensuring long-lasting performance and peace of mind for professional lighting projects.

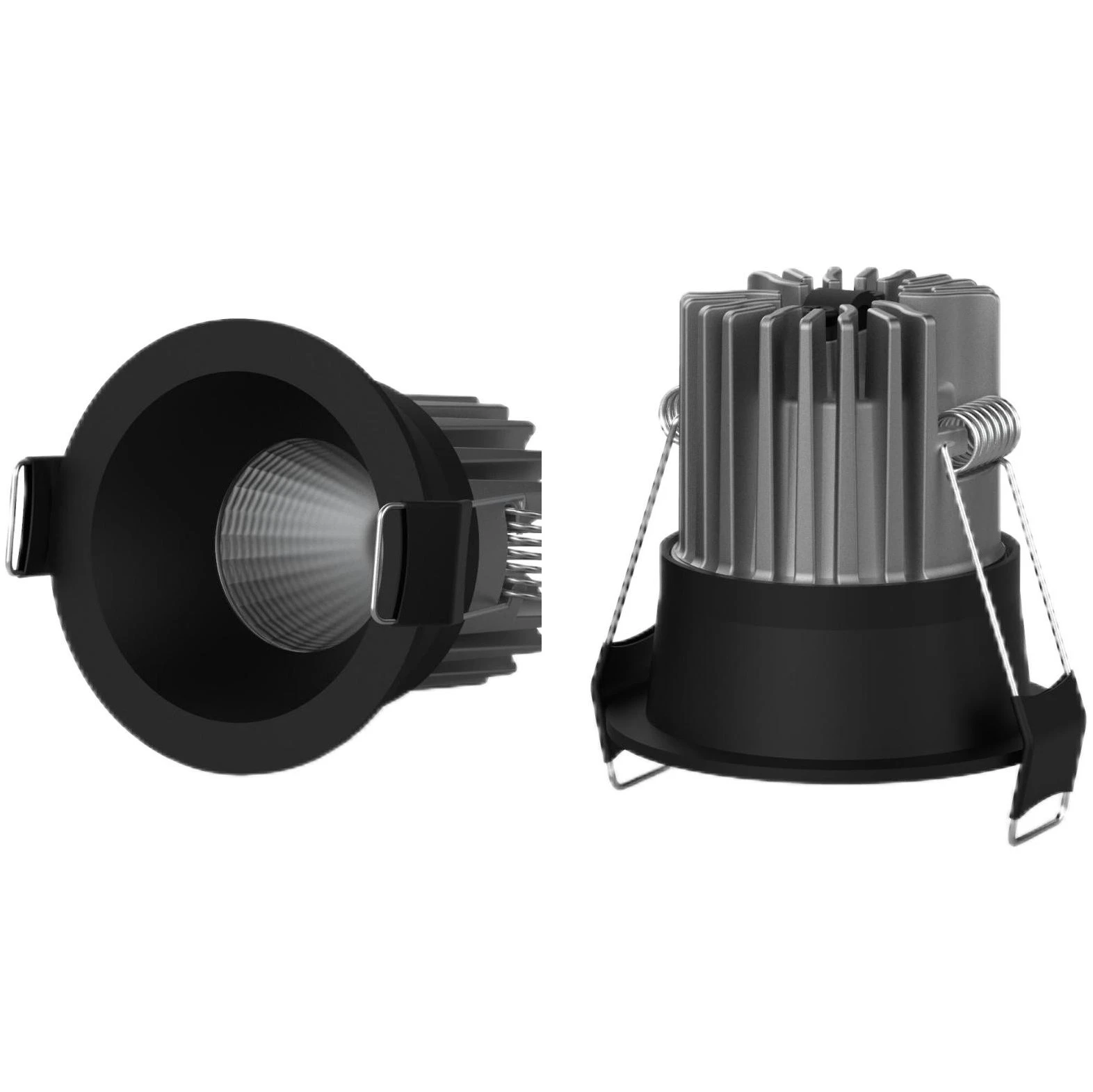

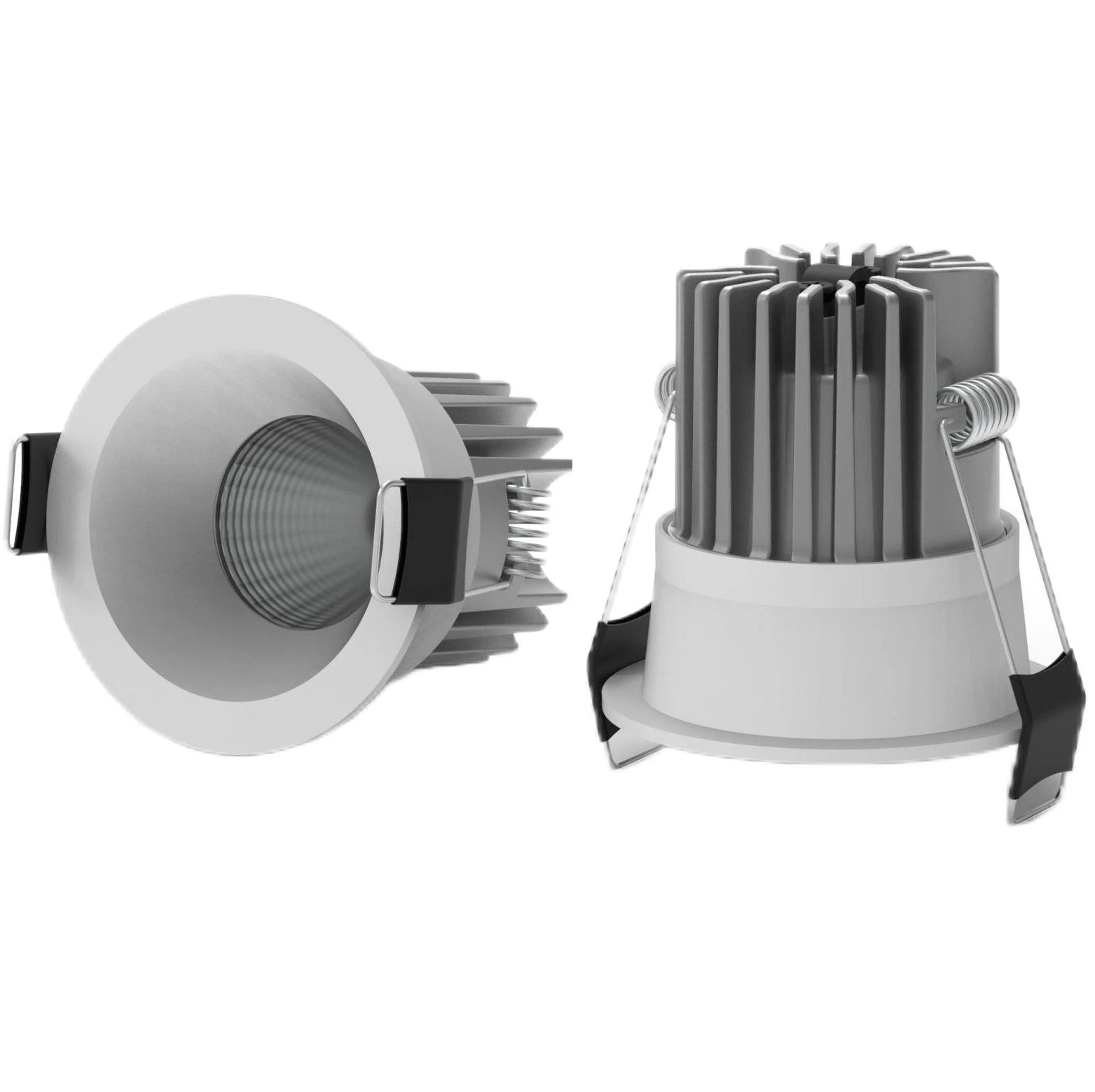

Available in all black and all white lamp housing.

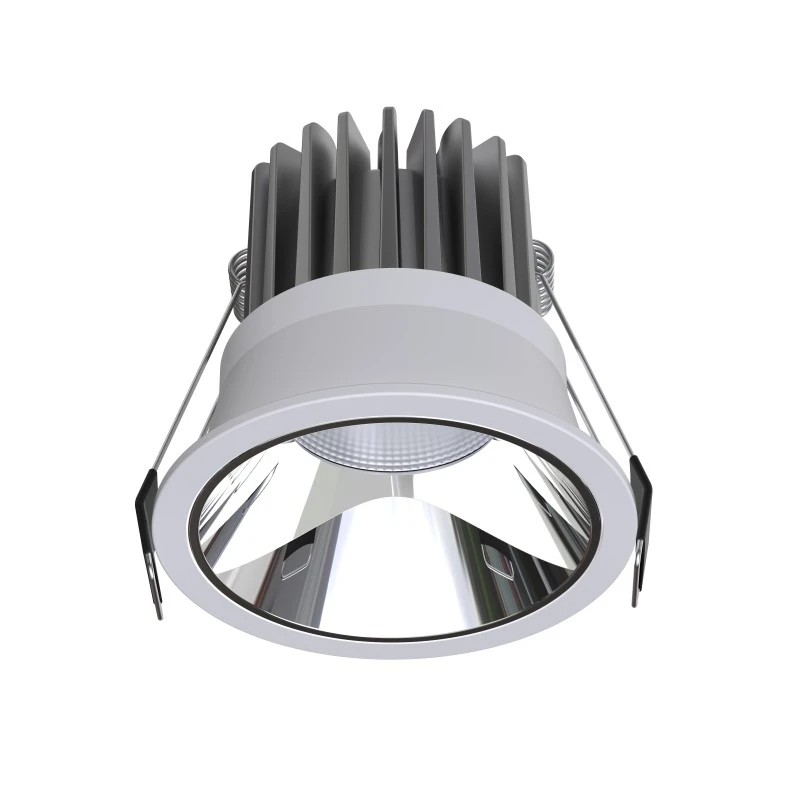

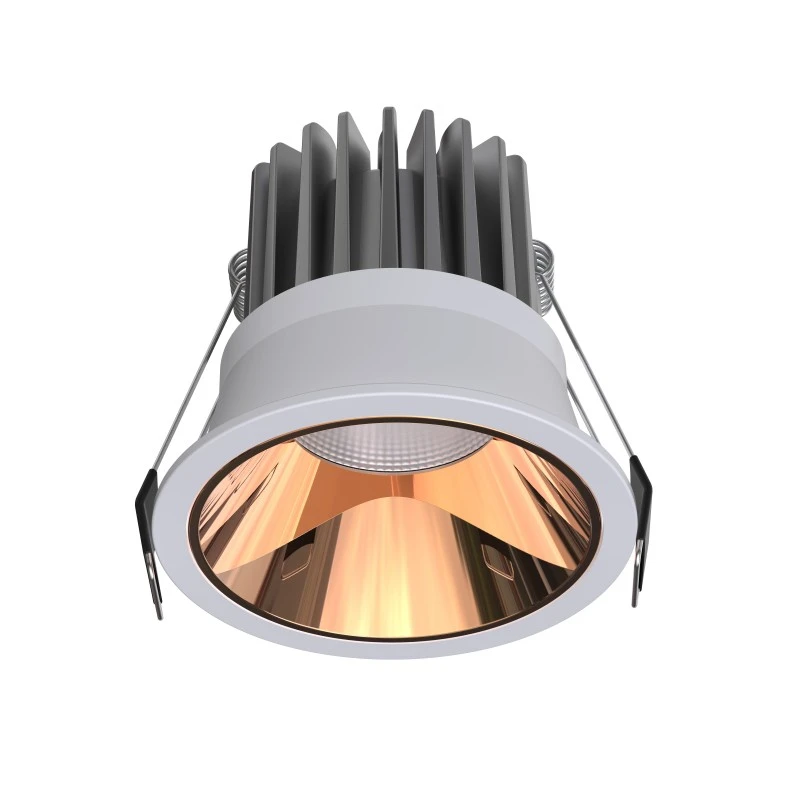

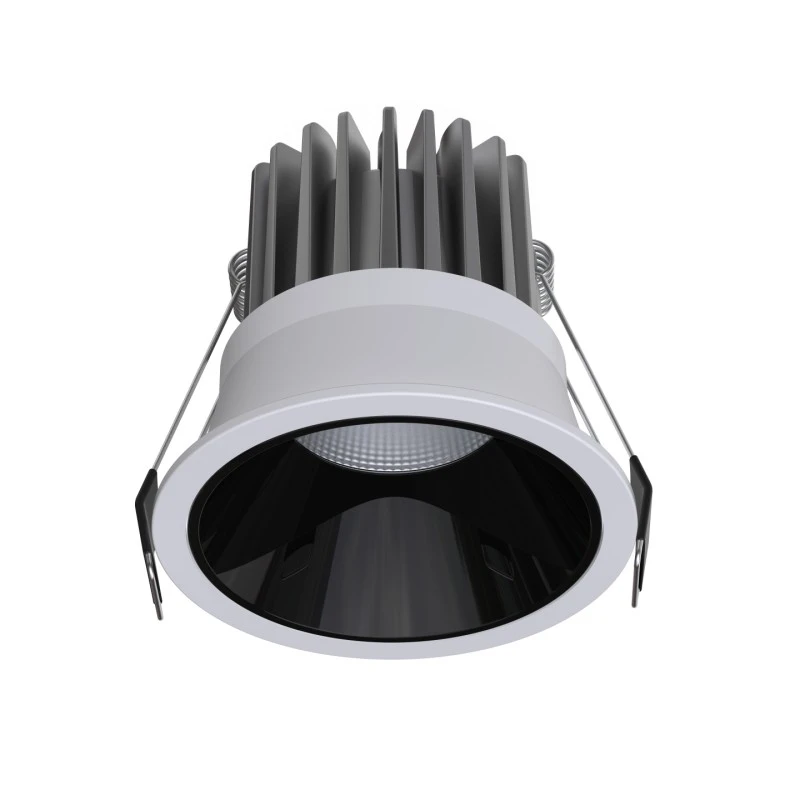

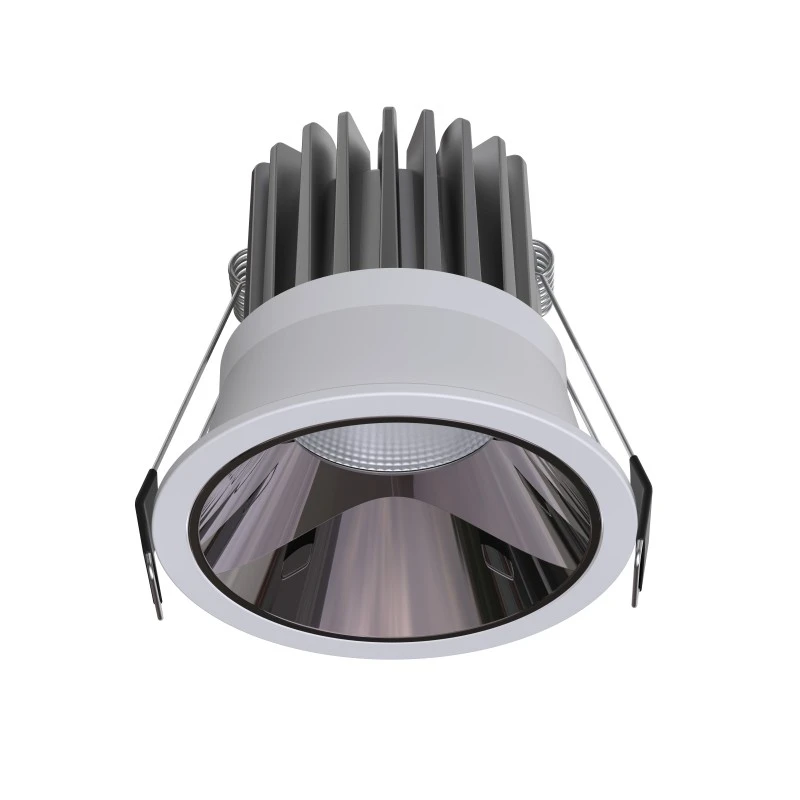

Reflectors in a variety of available colors
Product Size
