Adjustable Tilt COB LED Downlight 5W-25W For Recessed Lighting | LEDTEK DL4062
Key Feature:
Application:
It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.

Honeycomb Optional

Available in black and white

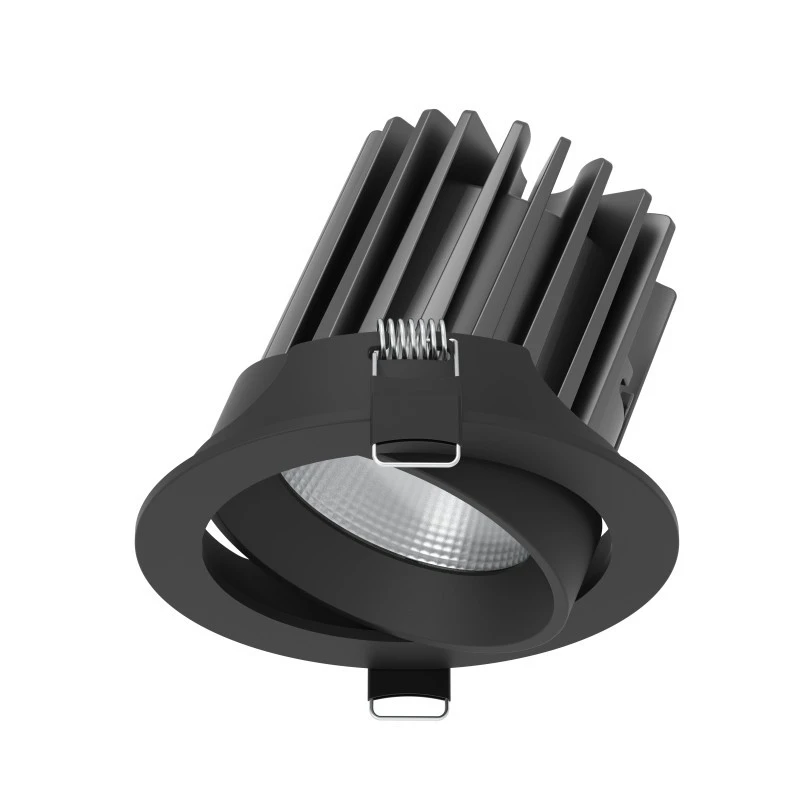

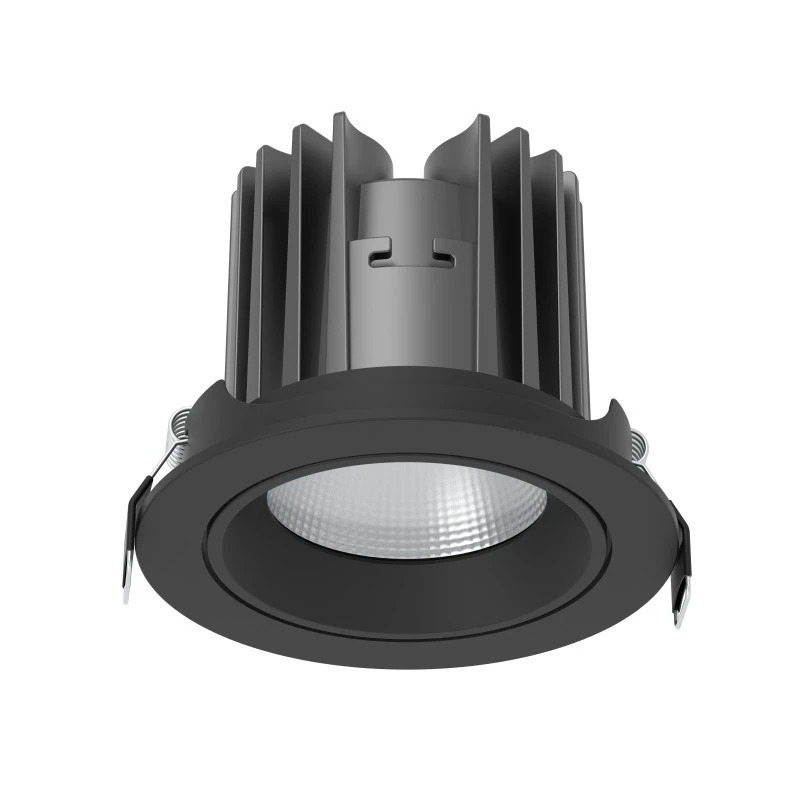

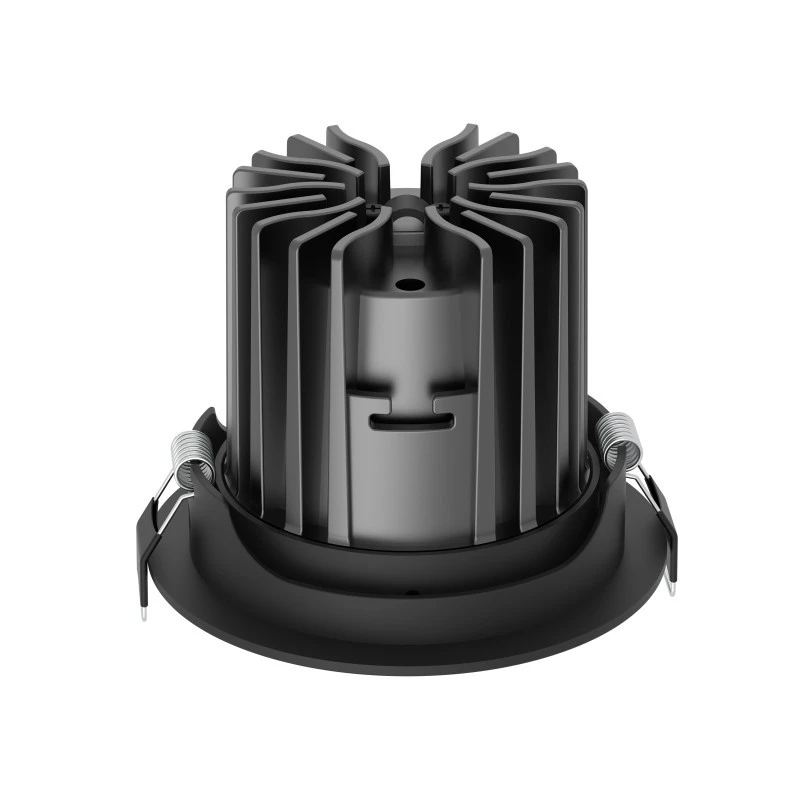

Product Overview
The DL4062 LED downlight offers a refined lighting solution that seamlessly integrates into modern ceiling designs. With its classic black and white color scheme, LEDTEK DL4062 LED downlight is designed to blend harmoniously with any interior décor while providing a minimalist, sophisticated appearance. The innovative design features an adjustable tilt angle ranging from 0 to 24 degrees, ensuring versatile light direction to suit varied installation needs. Moreover, available wattage options from 5W to 25W and selectable beam angles of 15°, 24°, and 38° provide flexibility to meet diverse project requirements. This LED downlight not only enhances aesthetics but also delivers precision lighting performance that aligns with current engineering standards.
Constructed with a high-quality aluminum heatsink, the DL4062 LED downlight ensures rapid heat dissipation, which extends its lifespan and maintains consistent performance. In addition, the deep reflector design effectively minimizes glare, resulting in a low Unified Glare Rating (UGR) for a more comfortable visual experience. Powered by a flicker-free LED driver and a reliable COB LED light source, this LED downlight guarantees stable illumination without compromising on energy efficiency. Furthermore, its practical and timeless design meets the engineering demands of both commercial and residential projects, ensuring that every installation benefits from both durability and a sleek, classic look. Overall, the DL4062 LED downlight is a testament to quality engineering, offering a balanced combination of performance, style, and efficiency that is essential for modern lighting solutions.
We can customize the wattage to meet your needs.
Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.
| Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
|---|---|---|---|---|---|
| DL4062-5W | 5 | 500 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-7W | 7 | 700 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-10W | 10 | 1000 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-12W | 12 | 1200 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-16W | 16 | 1600 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-20W | 20 | 2000 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-22W | 22 | 2200 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
| DL4062-25W | 25 | 2500 | 2700K-6500K | 15°/ 24°/ 38° | ≥80 (90 optional) |
Model No | DL4062-5W | DL4062-7W | DL4062-10W | DL4062-12W | DL4062-16W | DL4062-20W | DL4062-22W | DL4062-25W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 20W | 22W | 25W |
| Dimension(mm) | Φ79*H55 | Φ79*H55 | Φ94*H64 | Φ94*H64 | Φ109*H85 | Φ109*H85 | Φ109*H85 | Φ109*H85 |
| Cutting Hole | Φ65 | Φ65 | Φ80 | Φ80 | Φ95 | Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB/BridgeLux COB | |||||||
| CCT | 2700K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 2000 | 2200 | 2500 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 15°/24°/38° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP44 (front/room side) / IP20 (rear/ceiling side) | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~55℃ | |||||||
| Installation | Recessed | |||||||
Contact us to request the datasheet.
For recessed lighting installation instructions, please contact us.

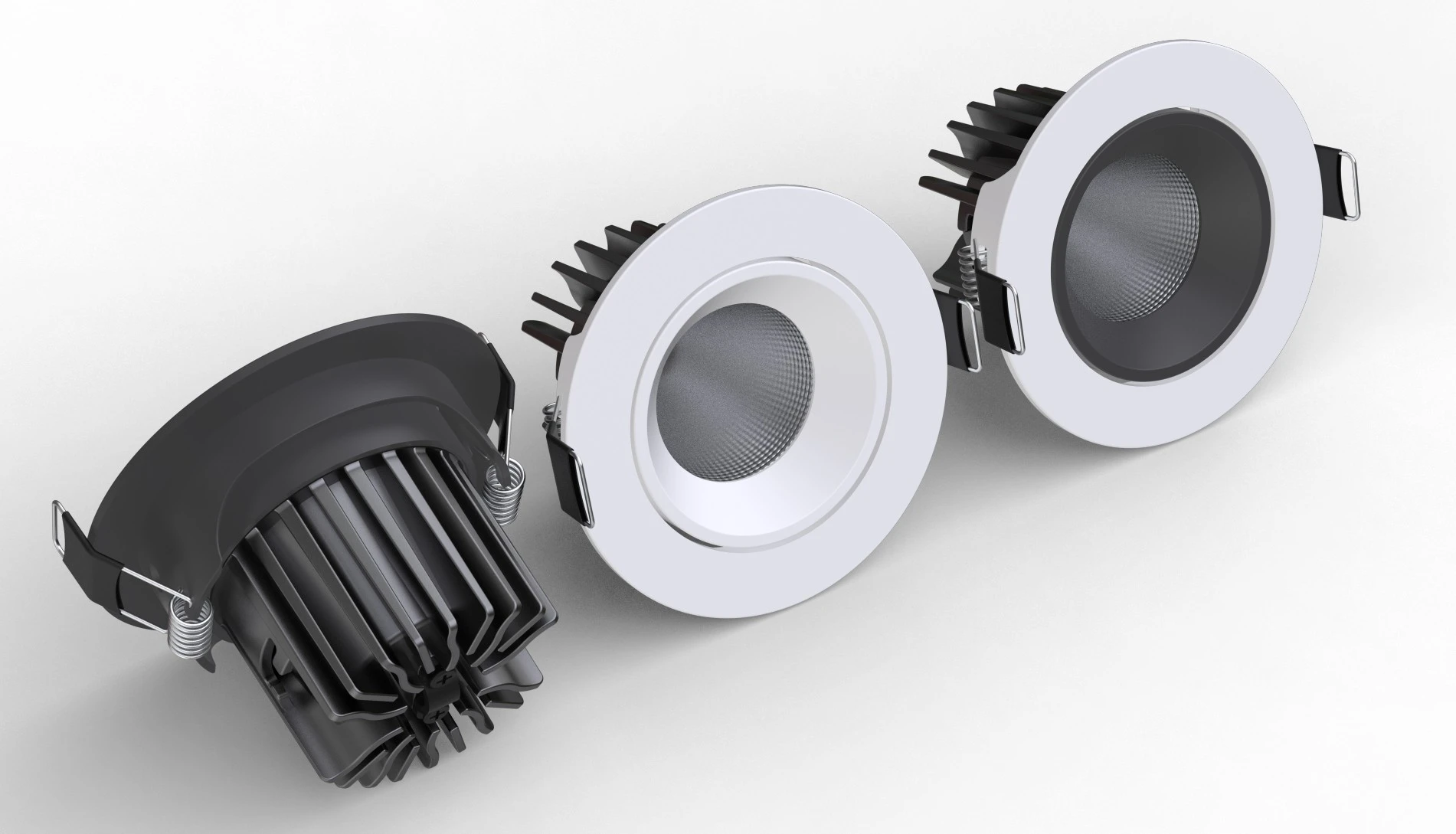

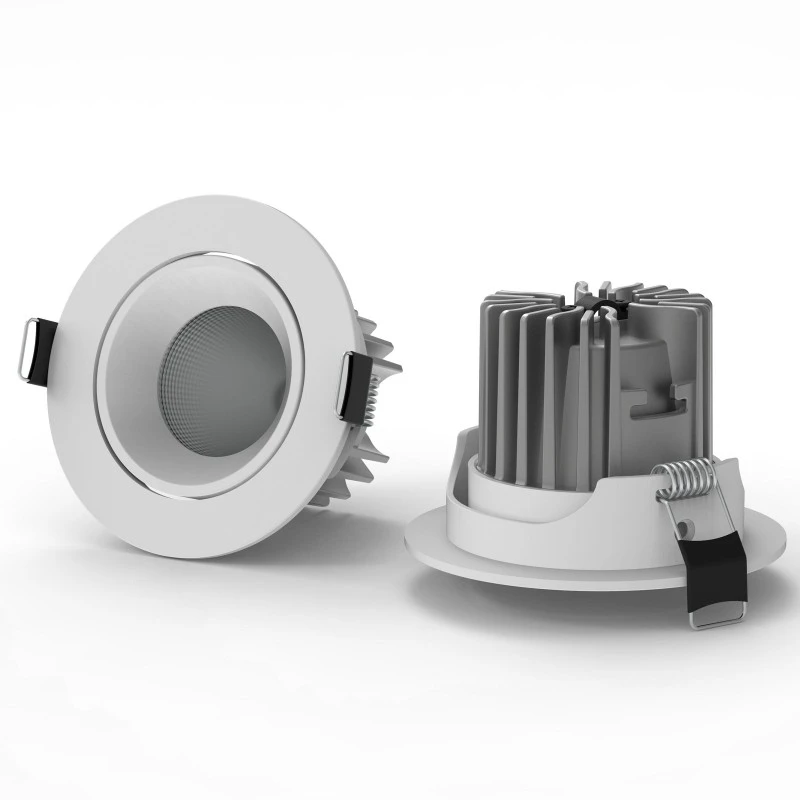

Available in all black and all white lamp housing.

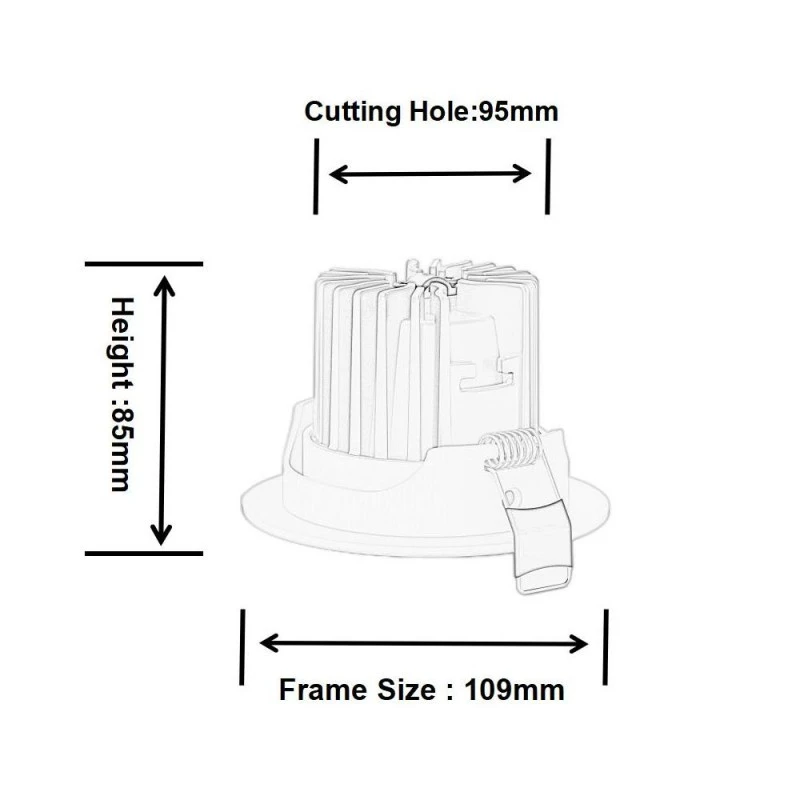

Product Size
