What beam angles are available for DL4067?

Selectable beam angles available are 15°, 24°, and 38°.

What adjustability does the DL4067 offer?

It offers 24° tilt and 360° rotation for flexible lighting direction adjustment.

Narrow Trim Adjustable Tilt COB LED Downlight 5W-35W For Recessed Lighting | LEDTEK DL4067

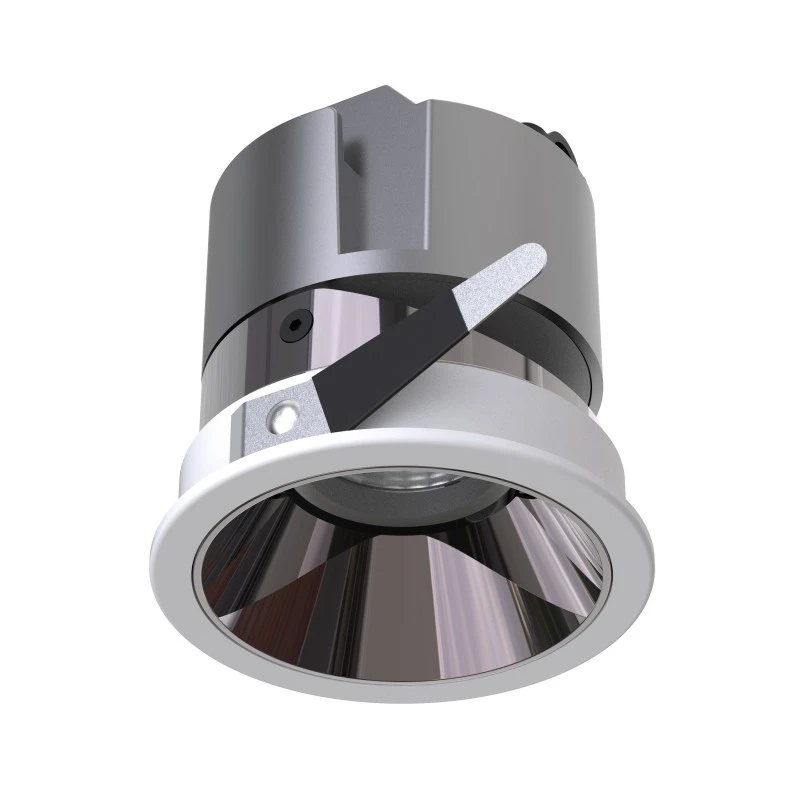

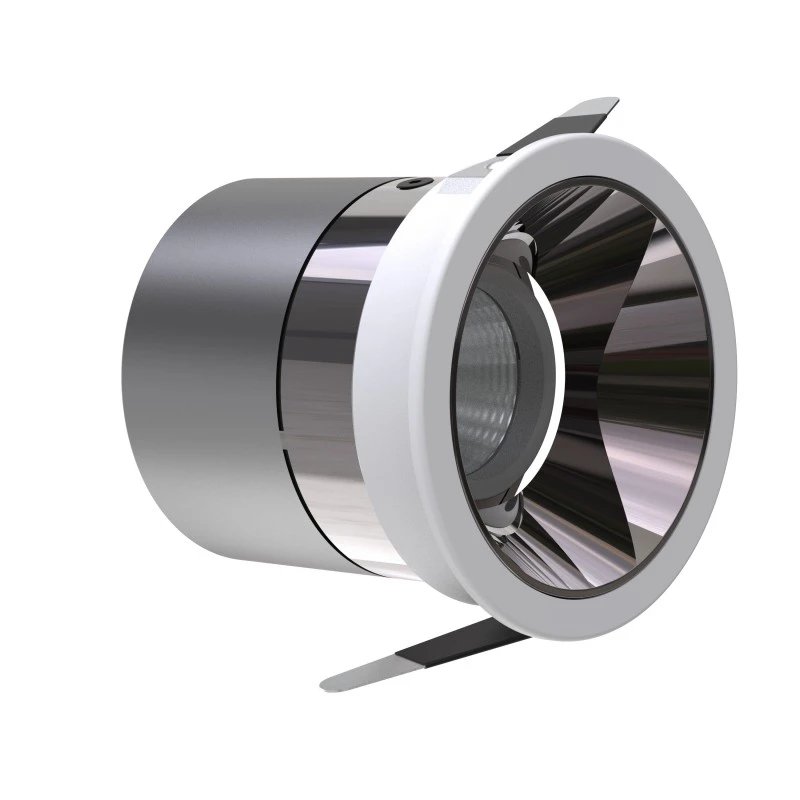

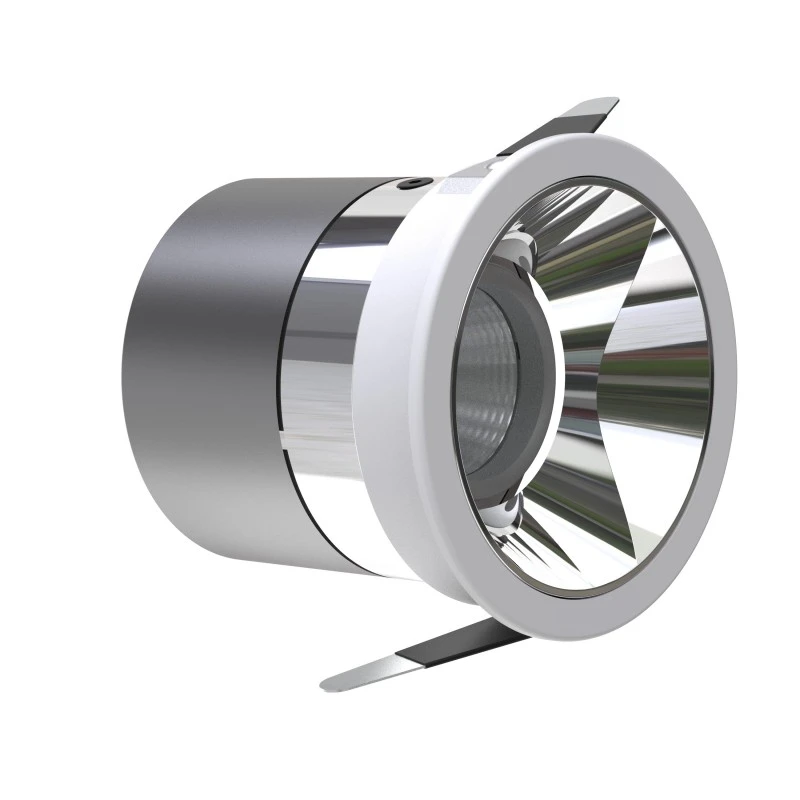

Name: LEDTEK DL4067 Narrow Trim Adjustable COB LED Downlight
Brand: LEDTEK
SKU: DL4067
Availability: InStock
Rating: 4.6 (38 reviews)

Key Feature:

Adjustable – 24° Tilt and 360° Rotation
Narrow Trim
Die-Cast aluminum construction – Excellent heat dissipation
Power options – 5W to 35W for flexible brightness
Cree/Bridge COB LED – High efficiency & stability
Customizable reflectors & lenses – 15°, 24°, 38° beam angles
Deep anti-glare & honeycomb louver options – Comfortable lighting experience
Non-flicker LED driver – Stable and eye-friendly illumination
5-year warranty – Long-term reliability

Application:

It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.

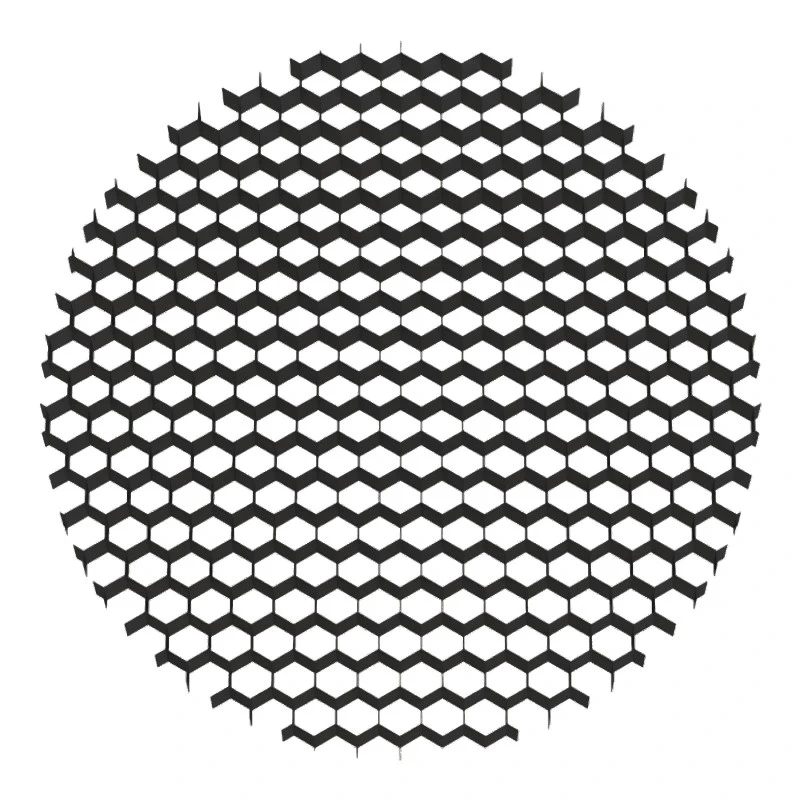

LED Downlight Honeycomb reduce glare low UGR

Optional Honeycomb

Optional small round hole

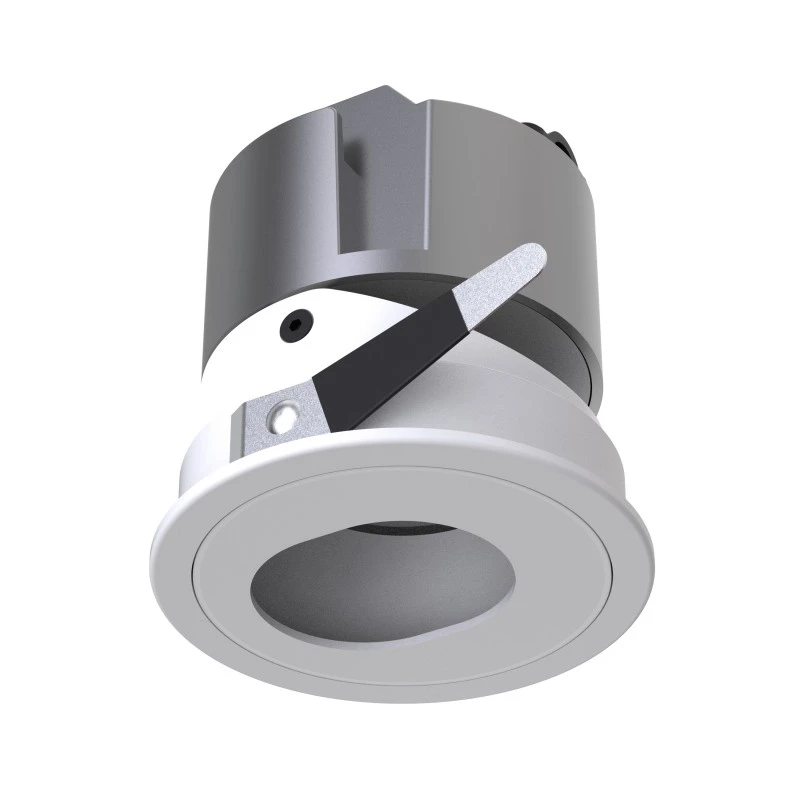

Optional oval hole

Product Overview

The LED DOWNLIGHT featuring the LEDTEK DL4067 model is engineered for high-performance and seamless integration in both residential and commercial spaces. Designed to merge flawlessly with ceilings, only the light is visible, enhancing the overall ambience by embodying the “only light, not the fixture” concept.

At its core, the LEDTEK DL4067 DOWNLIGHT features a robust, high-quality aluminum heat sink that ensures rapid heat dissipation. This efficient thermal management not only sustains peak performance but also extends the product’s lifespan. The deep reflective housing is precisely designed to minimize glare and optimize light distribution, while the flicker-free LED driver power supply guarantees consistent and comfortable illumination.

The LEDTEK DL4067 DOWNLIGHT is available in a versatile power range of 5-35W and is offered with selectable beam angles of 15°, 24°, and 38° to suit a variety of lighting scenarios. To meet diverse project requirements, the reflector is produced in eight different colors, providing customizable design options.

In addition to its advanced engineering and design features, the LEDTEK DL4067DOWNLIGHT comes with a reassuring 5-year warranty. This extended warranty underscores the product’s durability and quality, ensuring reliable performance and peace of mind for users who invest in this sophisticated and timeless lighting solution.

We can customize the wattage to meet your needs.

Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.

Model List

Model	Wattage (W±5%)	Luminous Flux (lm)	CCT (K)	Beam Angle (°)	CRI (Ra)
DL4067-5W	5	500	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-7W	7	700	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-10W	10	1000	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-12W	12	1200	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-16W	16	1600	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-20W	20	2000	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-25W	25	2500	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4067-30W	30	3000	2700K-6500K	15 / 24 / 38	≥80 (90 optional)

Technical Specifications

Model No	DL4067-5W	DL4067-7W	DL4067-10W	DL4067-12W	DL4067-16W	DL4067-20W	DL4067-25W	DL4067-30W
Wattage	5W	7W	10W	12W	16W	20W	25W	30W

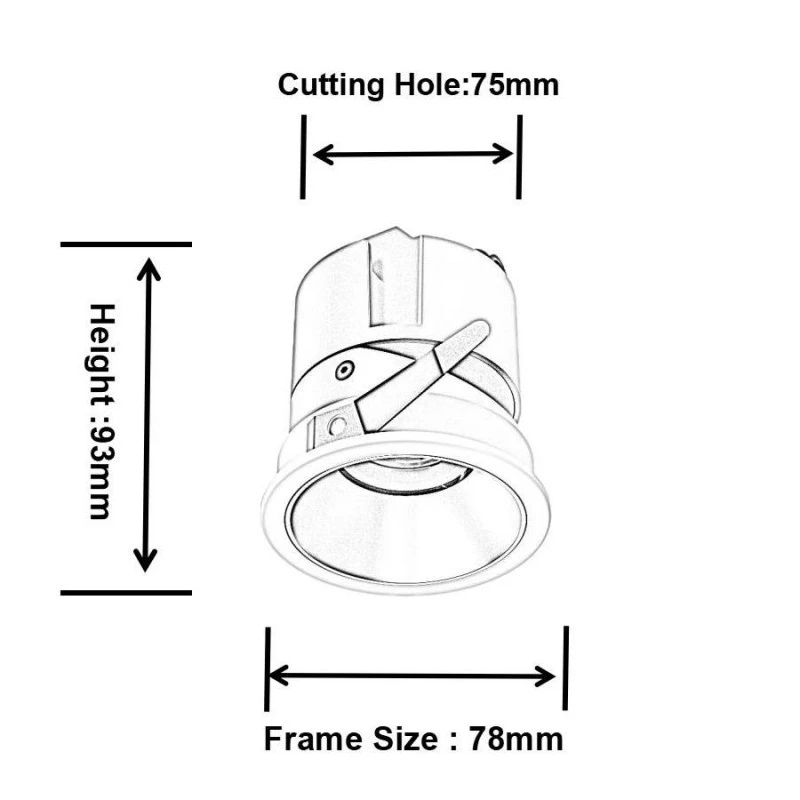

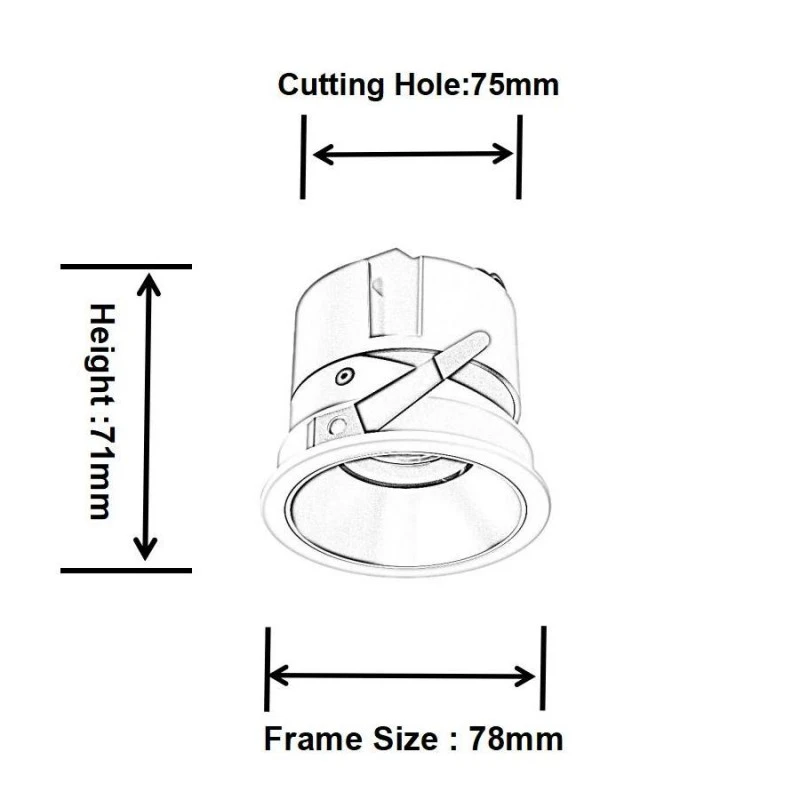

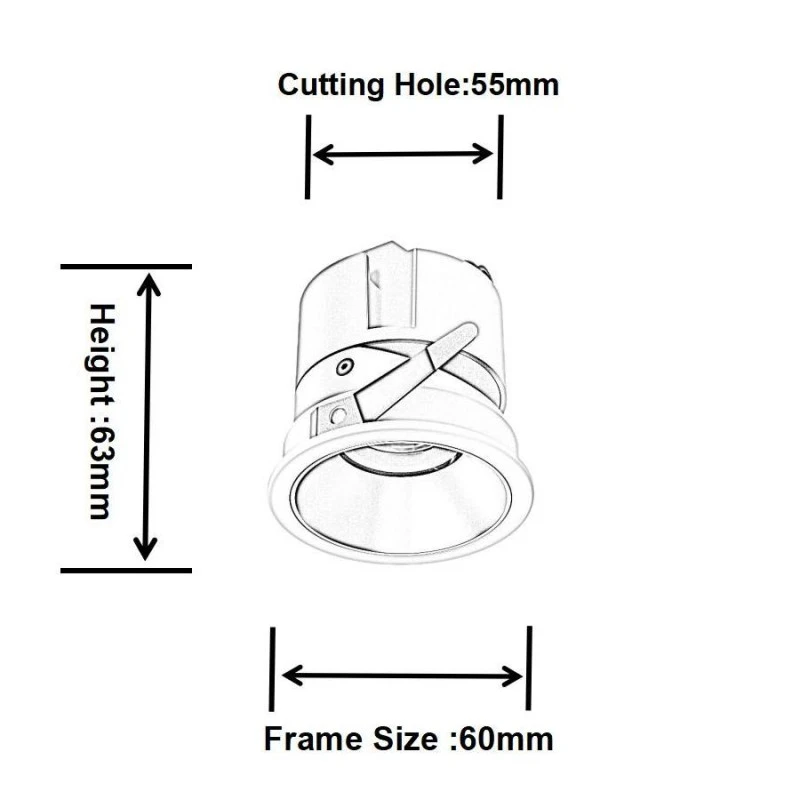

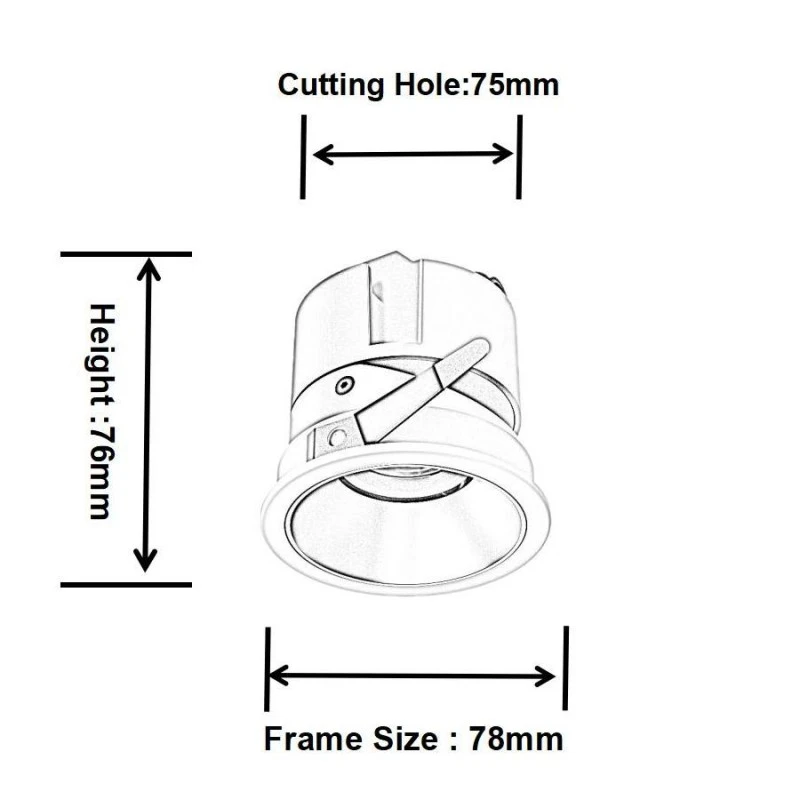

Dimension(mm)	Φ63*H68	Φ63H68/Φ85H71	Φ63H78/Φ85H76	Φ85*H76	Φ85H93/Φ105H99	Φ85H93/Φ105H99	Φ105*H115	Φ130*H115
Cutting Hole	Φ55	Φ55/ Φ75	Φ55/Φ75	Φ75	Φ75/Φ95	Φ75/Φ95	Φ95	Φ120
Input Voltage(V)	AC110-240V 50/60Hz
Light Source	Cree COB/Bridgelux COB
CCT	2700K-6500K
Luminous Flux (lm) ±5%	500	700	1000	1200	1600	2000	2500	3000
CRI	>80(90 optional)
Beam Angle	15°/24°/38°
LED Driver	External LED Driver
Dimming Option	Optional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)	IP44 (front/room side) / IP20 (rear/ceiling side)

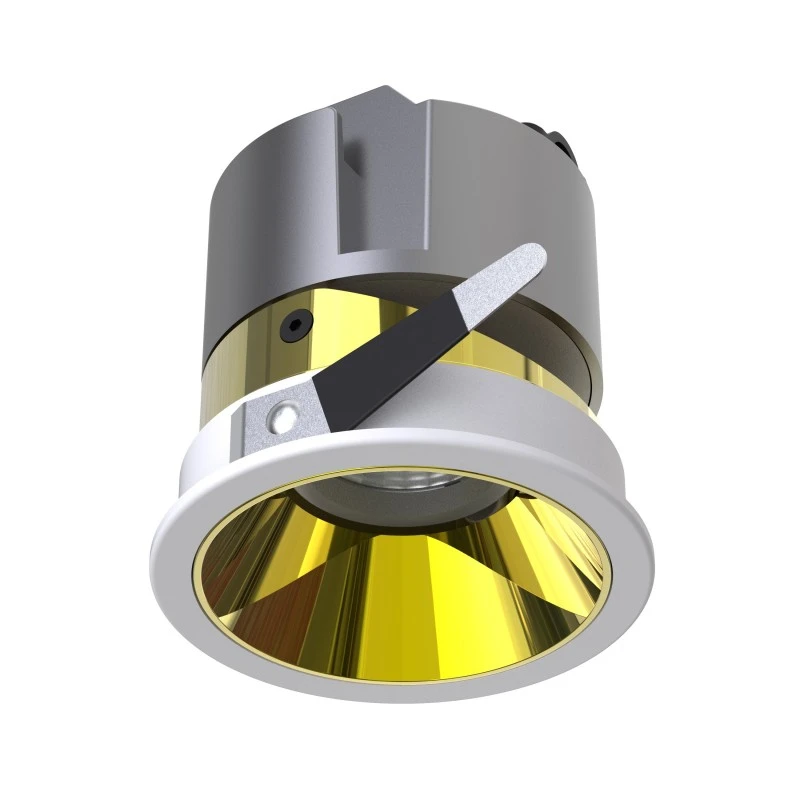

Product Finishing	Aluminium Housing Color: White/Black Reflector Color: White, Black, Matte Silver, Matte Black, Gunmetal, Bright Silver, Champagne. Gold.
Materials of Optics	PMMA
Operating Temp. (℃ )	-20℃ ~55℃
Installation	Recessed

Datasheet Downloads

Recessed Lighting Installation

For recessed lighting installation instructions, please contact us.

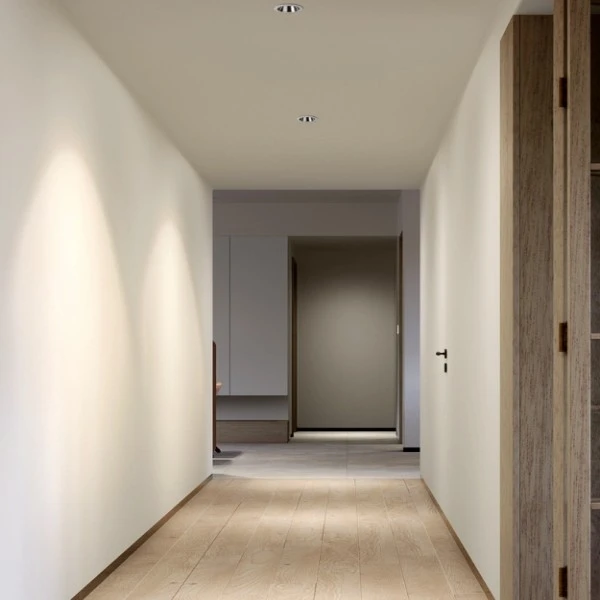

Applications

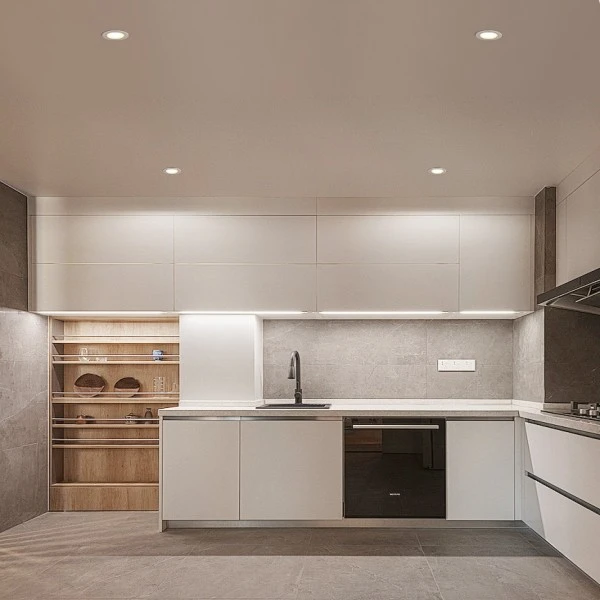

Ideal for residential lighting such as living rooms, bedrooms, and kitchens, where a clean ceiling appearance is desired.
Perfect for retail stores and showrooms, providing accent lighting for products and displays.
Suitable for hotels, restaurants, and cafes, offering adjustable illumination to create comfortable ambiances.
Widely used in offices, galleries, and museums, allowing flexible beam direction to highlight artworks or focal areas.
Designed for architectural and decorative projects, where slim/narrow trim and anti-glare optics deliver a modern, seamless look.

Q1: What is the power range of DL4067?
A1: The DL4067 is available in 5 W to 35 W options, suitable for different brightness requirements.

Q2: What beam angles can I choose from?
A2: This model offers 15°, 24°, and 38° beam angles to achieve spot, medium, or wide lighting effects.

Q3: Is the DL4067 adjustable?
A3: Yes, it supports 24° tilt and 360° rotation, giving you full flexibility to direct light where needed.

Q4: What type of LED does it use?
A4: It uses high-performance Cree or Bridgelux COB LEDs, ensuring excellent light output and long lifespan.

Q5: What materials are used in the housing?
A5: The downlight is made from die-cast aluminum, providing strong durability and effective heat dissipation.

Q6: Can DL4067 be dimmable?
A6: Yes, it can be paired with dimmable drivers to achieve flicker-free dimming performance.

Q7: Is it suitable for outdoor use?
A7: No, DL4067 is designed for indoor recessed ceiling installations.
