What is the power range of the DL4068 LED Downlight?

The DL4068 LED Downlight supports a power range from 5W to 35W, offering flexible brightness options.

Is the DL4068 suitable for outdoor use?

No, the DL4068 is designed for indoor general lighting applications, such as offices, supermarkets, shops, schools, and hotels.

What features help reduce glare in the DL4068?

The DL4068 features a deep anti-glare design and optional honeycomb louver to minimize glare and provide a comfortable lighting experience.

What is the warranty period for the DL4068?

The DL4068 comes with a 5-year warranty, ensuring long-term reliability.

Adjustable Tilt COB LED Downlight 5W-35W For Recessed Lighting | LEDTEK DL4068

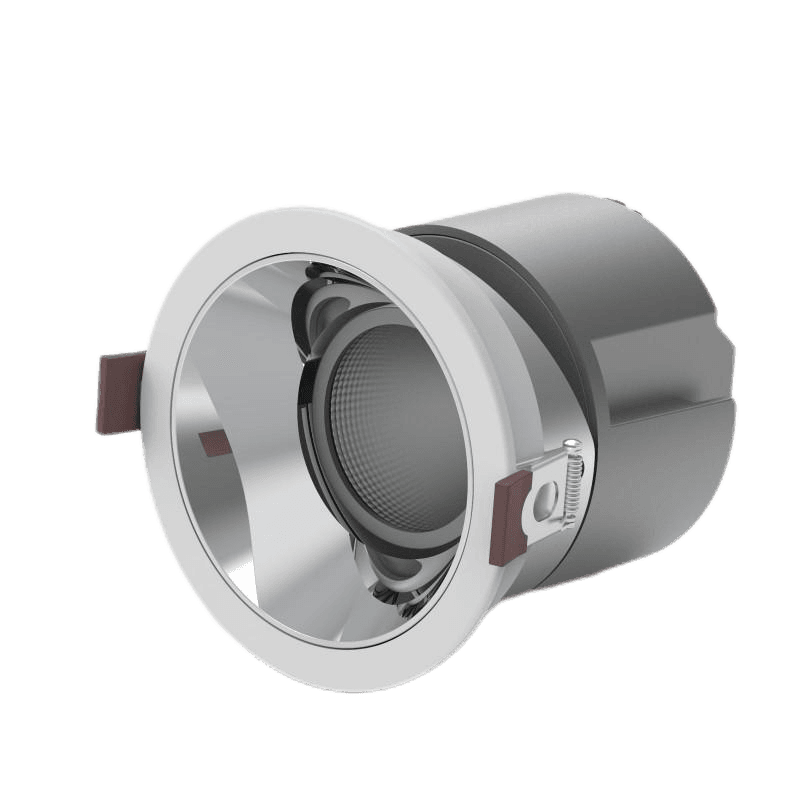

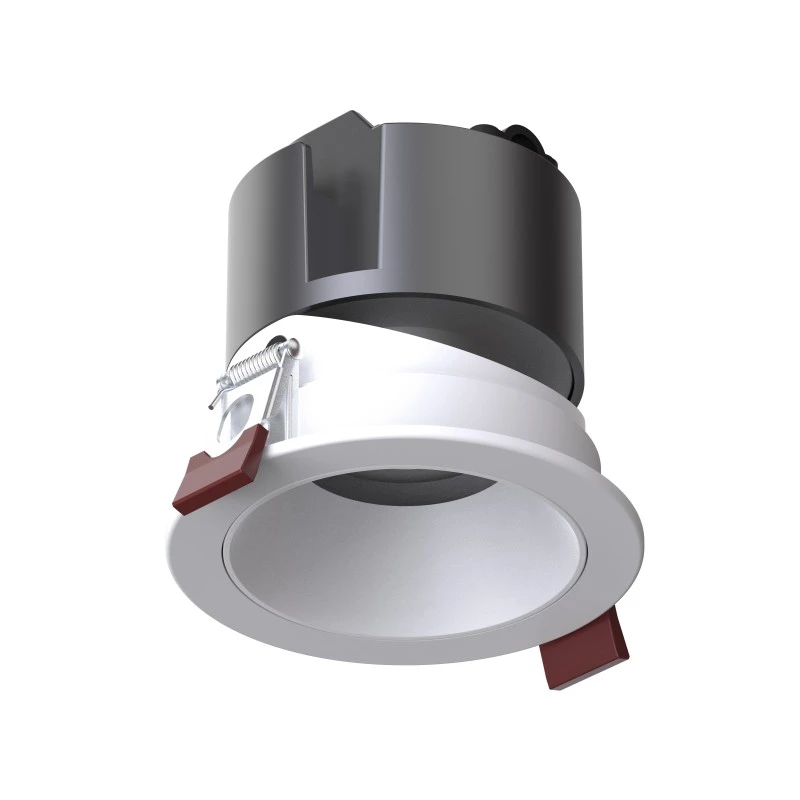

Name: LEDTEK DL4068 Adjustable Tilt COB LED Downlight
Brand: LEDTEK
SKU: DL4068
Price: 1.0 USD
Availability: InStock
Rating: 4.8 (942 reviews)

Key Feature:

Adjustable – 24° Tilt and 360° Rotation
Die-Cast aluminum construction – Excellent heat dissipation
Power options – 5W to 35W for flexible brightness
Cree/Bridge COB LED – High efficiency & stability
Customizable reflectors & lenses – 15°, 24°, 38° beam angles
Deep anti-glare & honeycomb louver options – Comfortable lighting experience
Non-flicker LED driver – Stable and eye-friendly illumination
5-year warranty – Long-term reliability

Application:

It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.

LED Downlight Honeycomb reduce glare low UGR

Optional Honeycomb

Product Overview

The LED DOWNLIGHT featuring the LEDTEK DL4068 model is engineered for high-performance and seamless integration in both residential and commercial spaces. Designed to merge flawlessly with ceilings, only the light is visible, enhancing the overall ambience by embodying the “only light, not the fixture” concept.

At its core, the LEDTEK DL4068 DOWNLIGHT features a robust, high-quality aluminum heat sink that ensures rapid heat dissipation. This efficient thermal management not only sustains peak performance but also extends the product’s lifespan. The deep reflective housing is precisely designed to minimize glare and optimize light distribution, while the flicker-free LED driver power supply guarantees consistent and comfortable illumination.

This LED downlight is available in a versatile power range of 5-35W and is offered with selectable beam angles of 15°, 24°, and 38° to suit a variety of lighting scenarios. To meet diverse project requirements, the reflector is produced in eight different colors, providing customizable design options.

In addition to its advanced engineering and design features, the LEDTEK DL4068 DOWNLIGHT comes with a reassuring 5-year warranty. This extended warranty underscores the product’s durability and quality, ensuring reliable performance and peace of mind for users who invest in this sophisticated and timeless lighting solution.

We can customize the wattage to meet your needs.

Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.

Model List

Model	Wattage (W±5%)	Luminous Flux (lm)	CCT (K)	Beam Angle (°)	CRI (Ra)
DL4068-5W	5	500	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-7W	7	700	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-10W	10	1000	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-12W	12	1200	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-16W	16	1600	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-20W	20	2000	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-25W	25	2500	2700K-6500K	15 / 24 / 38	≥80 (90 optional)
DL4068-30W	30	3000	2700K-6500K	15 / 24 / 38	≥80 (90 optional)

Technical Specifications

Model No	DL4068-5W	DL4068-7W	DL4068-10W	DL4068-12W	DL4068-16W	DL4068-20W	DL4068-25W	DL4068-35W
Wattage	5W	7W	10W	12W	16W	20W	22W	35W

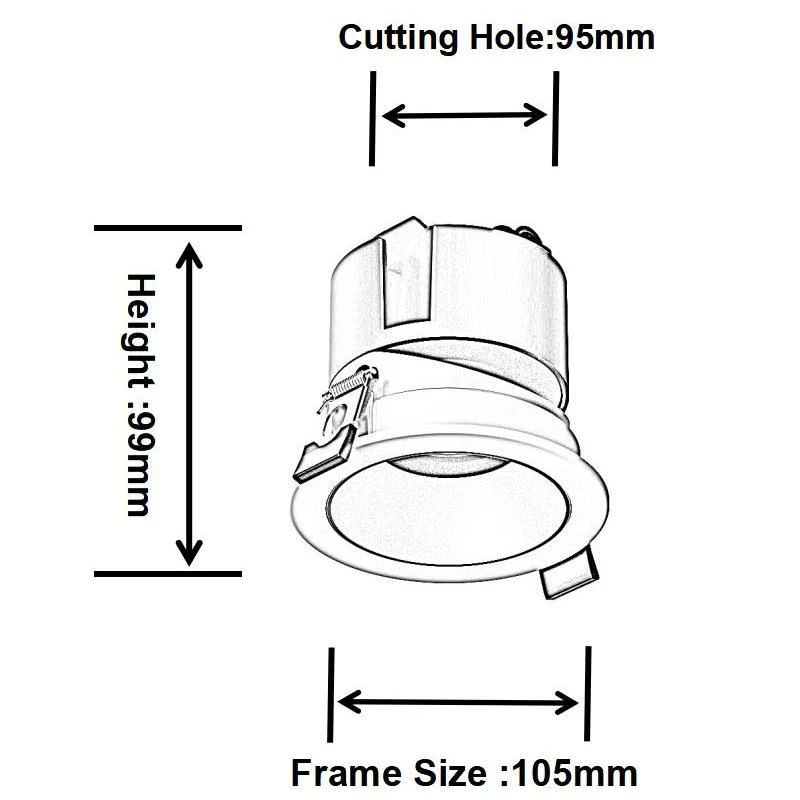

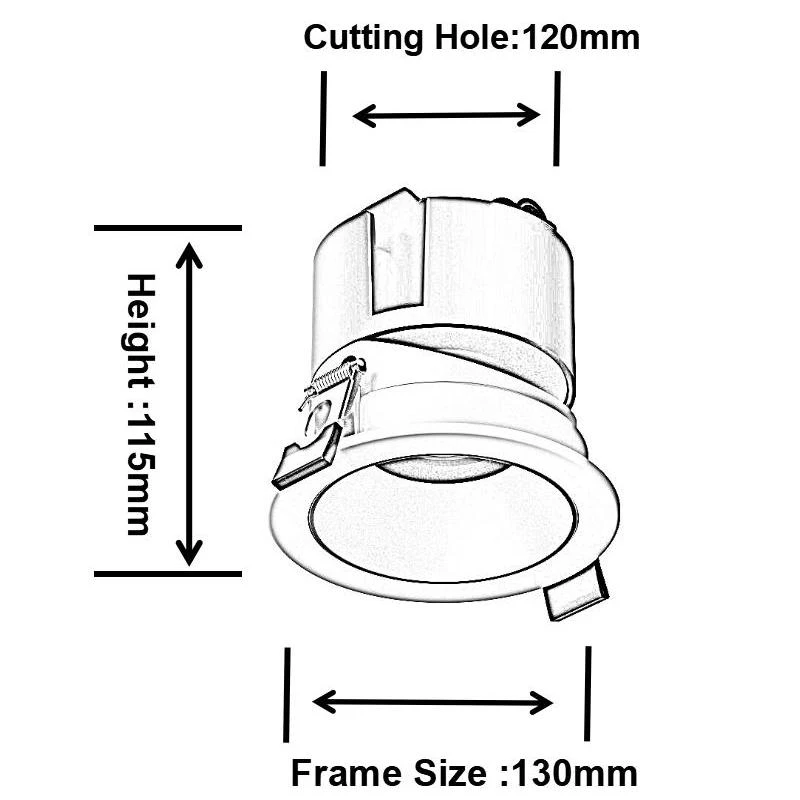

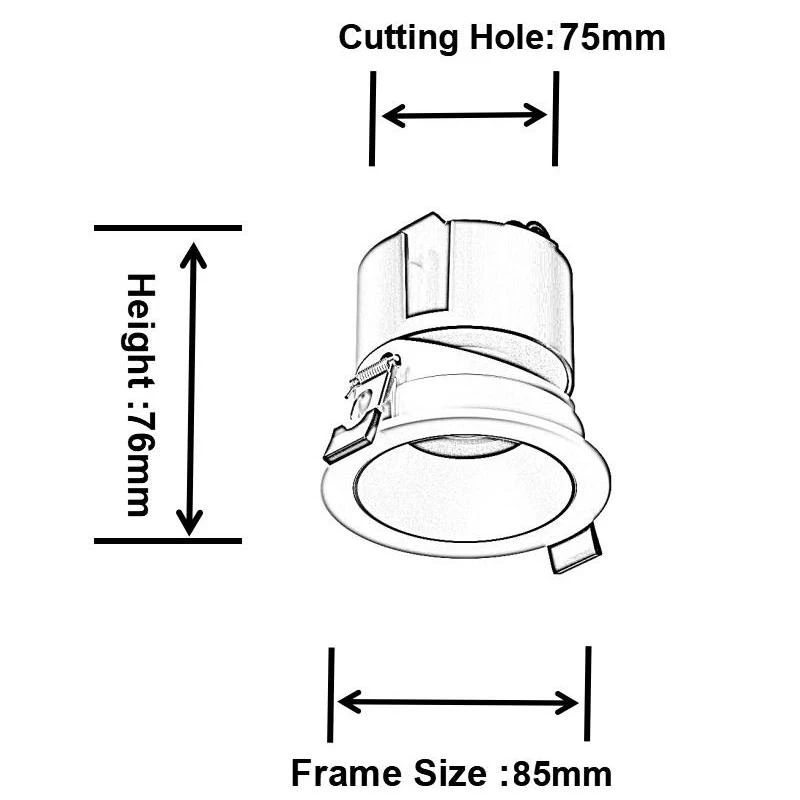

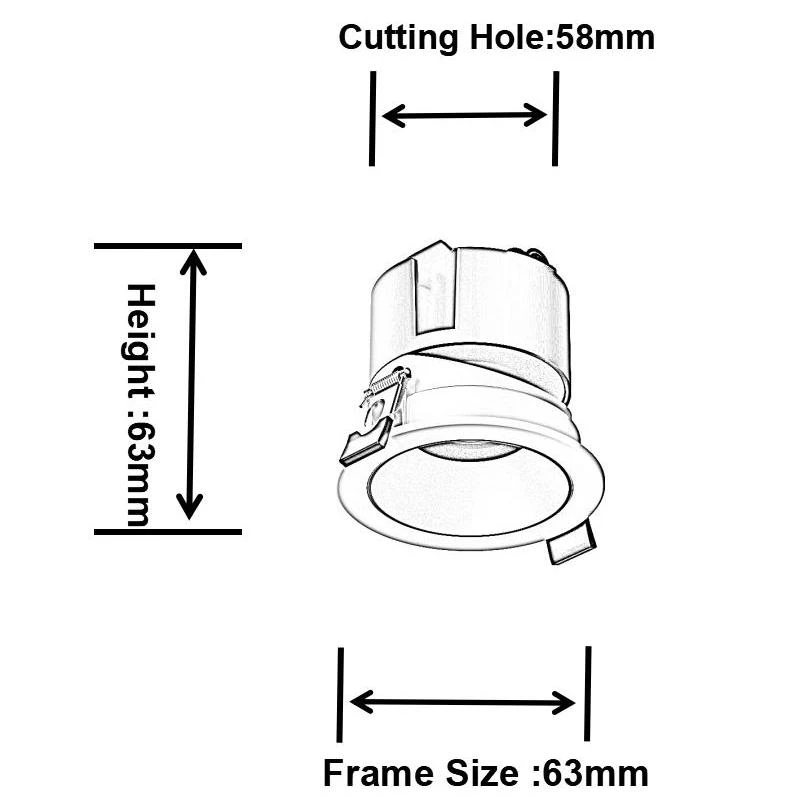

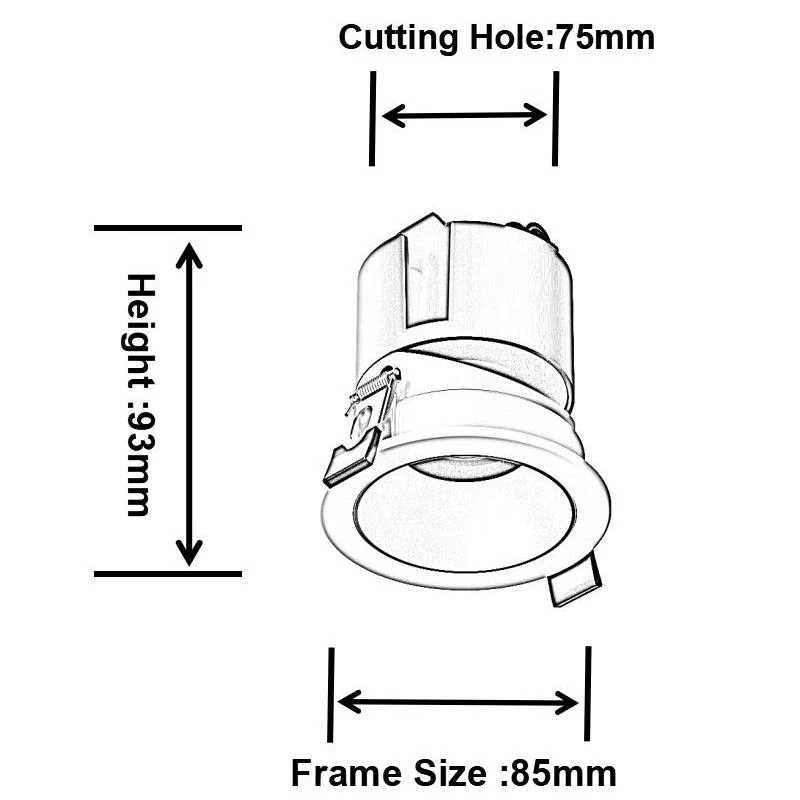

Dimension(mm)	Φ63*H63	Φ63H63/Φ85H71	Φ63H78/Φ85H71	Φ85*H76	Φ85H93/Φ105H99	Φ85H93/Φ105H99	Φ105*H115	Φ130*H115
Cutting Hole	Φ58	Φ58/ Φ75	Φ58/Φ75	Φ75	Φ75/Φ95	Φ75/Φ95	Φ95	Φ120
Input Voltage(V)	AC110-240V 50/60Hz
Light Source	Cree COB/Bridgelux COB
CCT	2700K-6500K
Luminous Flux (lm) ±5%	500	700	1000	1200	1600	2000	2500	3500
CRI	>80(90 optional)
Beam Angle	15°/24°/38°
LED Driver	External LED Driver
Dimming Option	Optional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)	IP44 (front/room side) / IP20 (rear/ceiling side)

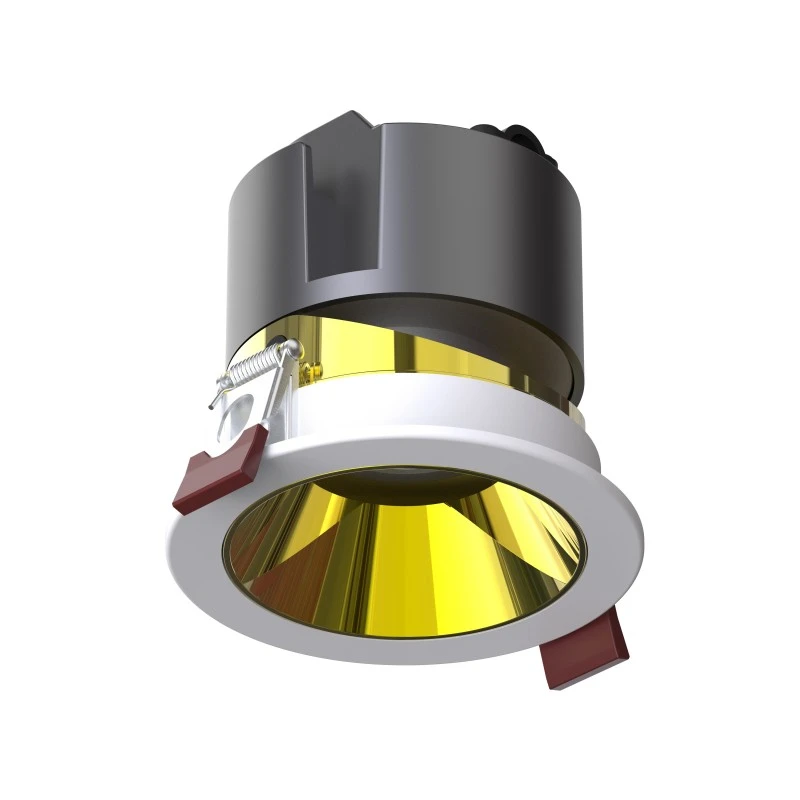

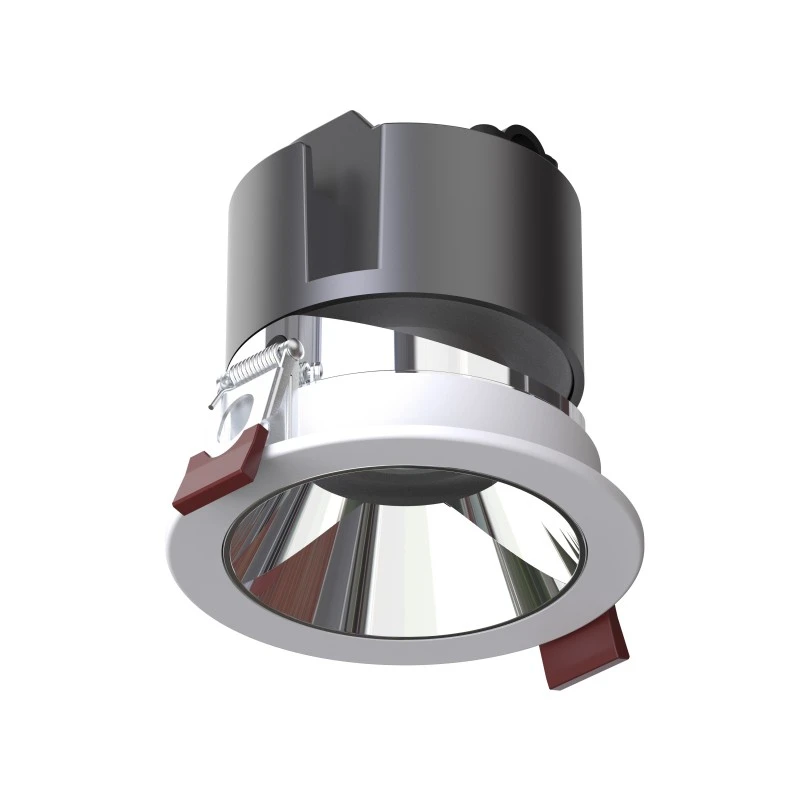

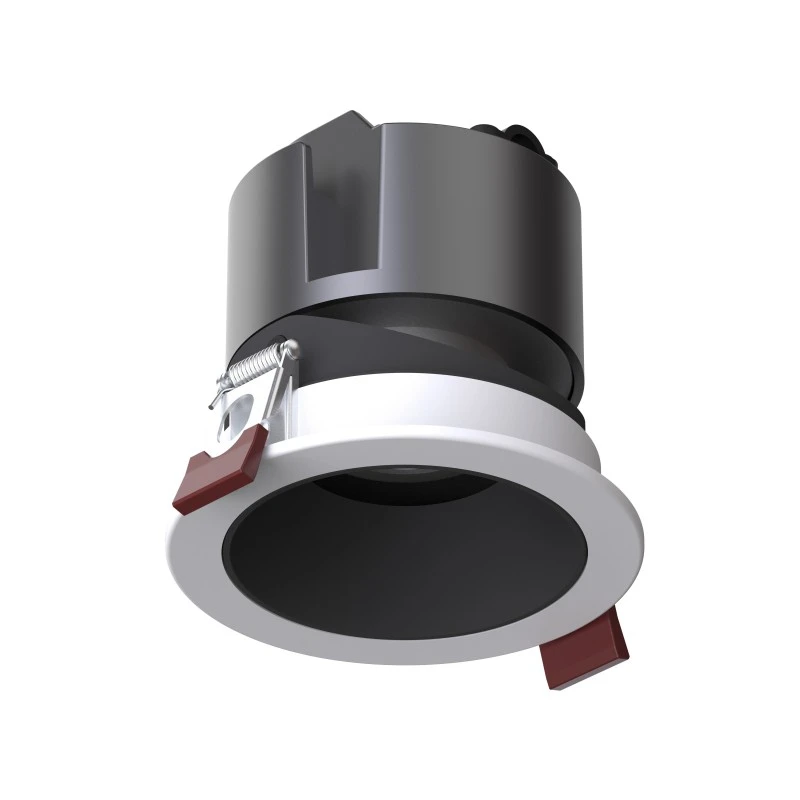

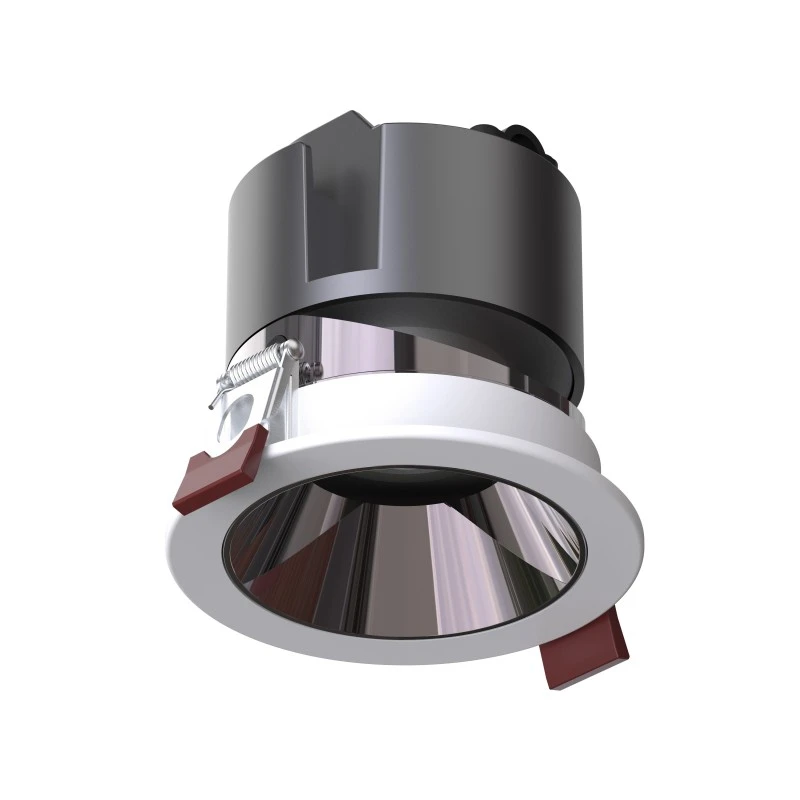

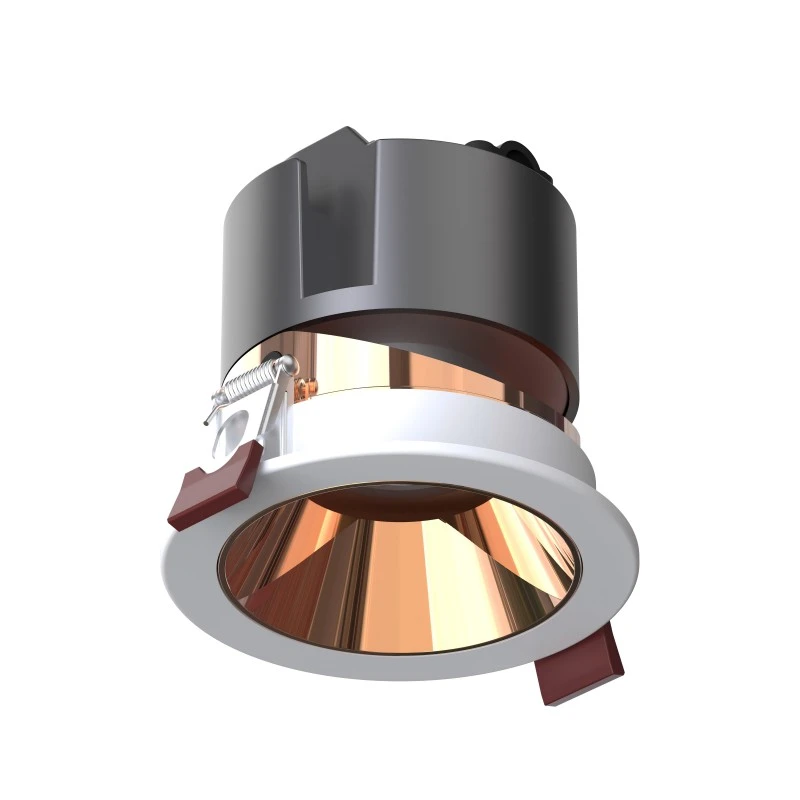

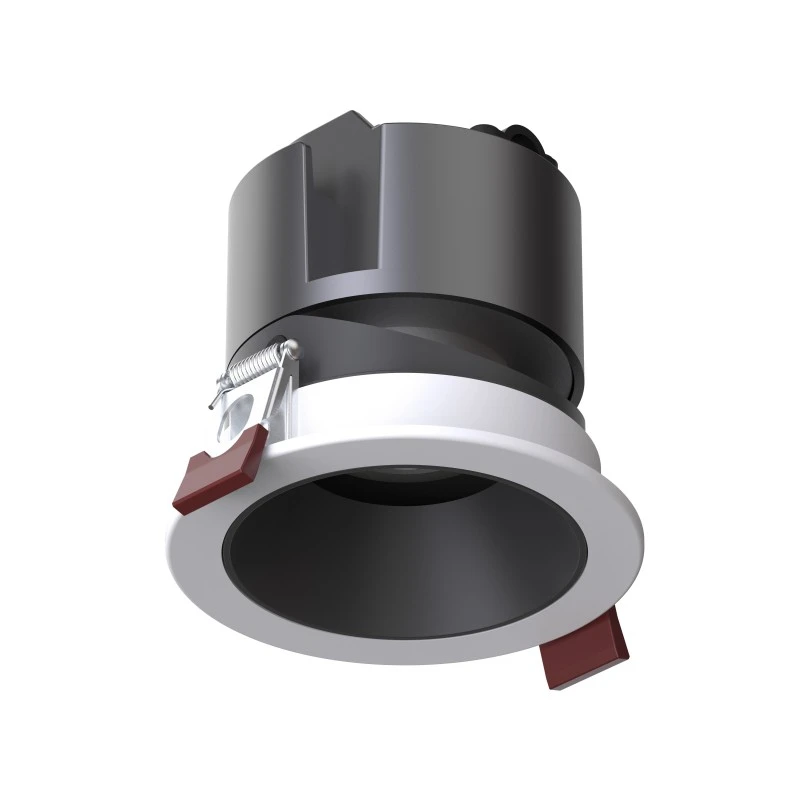

Product Finishing	Aluminium Housing Color: White/Black Reflector Color: White, Black, Matte Silver, Matte Black, Gunmetal, Bright Silver, Champagne. Gold.
Materials of Optics	PMMA
Operating Temp. (℃ )	-20℃ ~55℃
Installation	Recessed

Datasheet Downloads

Recessed Lighting Installation

For recessed lighting installation instructions, please contact us.

Applications

Applications

The LEDTEK DL4068 Adjustable COB LED Downlight is designed for versatile use across a wide range of settings, providing high-performance lighting with customizable options. Below are the key applications for this product:

Offices: The DL4068’s adjustable 24° tilt and 360° rotation, combined with selectable beam angles (15°, 24°, 38°), make it ideal for illuminating workstations, conference rooms, and reception areas. The deep anti-glare design and optional honeycomb louver ensure a comfortable, low-glare environment for prolonged work hours.
Supermarkets and Retail Shops: With power options ranging from 5W to 35W and customizable reflector colors, the DL4068 enhances product displays by providing focused, vibrant lighting. The high CRI (>80, with 90 optional) ensures accurate color representation, making products more appealing to customers.
Schools and Educational Institutions: The non-flicker LED driver and stable illumination create a conducive learning environment. The DL4068’s durability, backed by a 5-year warranty, ensures long-term reliability in classrooms, libraries, and auditoriums.
Hotels and Hospitality: The sleek, recessed design and multiple beam angle options allow the DL4068 to create ambient or accent lighting in lobbies, corridors, guest rooms, and dining areas. The ability to customize wattage and reflector colors helps match the aesthetic of luxury interiors.
Residential Spaces: For homes, the DL4068 is perfect for living rooms, kitchens, and bedrooms, offering a seamless “only light, not the fixture” aesthetic. Its adjustable angles and dimming options (0/1-10V or Dali) provide flexibility for creating cozy or bright atmospheres.
Galleries and Museums: The high-efficiency Cree/Bridgelux COB LED and precise beam angles make the DL4068 suitable for highlighting artwork or exhibits without causing glare or UV damage, ensuring artifacts are showcased effectively.
Healthcare Facilities: The flicker-free illumination and IP44 rating (room side) make the DL4068 appropriate for hospitals, clinics, and waiting areas, where consistent, eye-friendly lighting is critical for patient comfort and staff efficiency.

1. What is the power range of the LEDTEK DL4068 Downlight?

The DL4068 is available in a power range of 5W to 35W, allowing flexibility to suit various lighting needs. Custom wattages can also be requested to meet specific project requirements.

2. What beam angles are available for the DL4068?

The DL4068 offers three selectable beam angles: 15°, 24°, and 38°. These options allow users to customize the light spread for focused task lighting or broader ambient illumination.

3. Is the DL4068 dimmable?

Yes, the DL4068 supports optional dimming with 0/1-10V or Dali dimming systems, providing flexibility for adjusting brightness in different environments.

4. What is the purpose of the honeycomb louver option?

The optional honeycomb louver reduces glare and enhances visual comfort by diffusing light, making it ideal for spaces where low UGR (Unified Glare Rating) is essential, such as offices or healthcare facilities.

5. What is the color rendering index (CRI) of the DL4068?

The DL4068 has a standard CRI of >80, with an optional CRI of >90 for applications requiring high color accuracy, such as retail or art galleries.

6. Can the DL4068 be used in outdoor or damp environments?

The DL4068 has an IP44 rating on the room side and IP20 at the back, making it suitable for indoor use and some damp locations (e.g., bathrooms), but it is not designed for fully outdoor or wet environments.

7. What materials are used in the DL4068’s construction?

The DL4068 features a die-cast aluminum housing for excellent heat dissipation and PMMA optics for efficient light distribution. Reflectors are available in multiple colors, including White, Black, Matte Silver, Matte Black, Gunmetal, Bright Silver, Champagne, and Gold.

8. What is the lifespan of the DL4068 Downlight?

While the exact lifespan depends on usage conditions, the DL4068’s high-quality Cree/Bridgelux COB LED and robust thermal management contribute to a long operational life, backed by a 5-year warranty for reliability.

9. Can the reflector colors be customized?

Yes, the DL4068 offers reflectors in eight different colors (White, Black, Matte Silver, Matte Black, Gunmetal, Bright Silver, Champagne, and Gold) to match various design aesthetics.

10. What is the operating temperature range for the DL4068?

The DL4068 operates effectively in temperatures ranging from -20°C to 55°C, ensuring reliable performance in various environmental conditions.

11. Is the DL4068 compliant with energy regulations?

The DL4068 uses high-efficiency Cree/Bridgelux COB LEDs and a non-flicker driver, making it energy-efficient and compliant with many modern energy standards, such as those set by the California Energy Commission for LED lighting.

12. How does the adjustable tilt and rotation feature work?

The DL4068 offers a 24° tilt and 360° rotation, allowing users to direct light precisely where needed. This feature is particularly useful for accent lighting in retail, galleries, or architectural applications.

13. Where can I find more information about the DL4068 or other LEDTEK products?

For more details, you can visit the official LEDTEK website at www.ledtek.com or explore their full collection of LED downlights for additional options.
