Fixed Head COB LED Downlight 5W-25W For Recessed Lighting | LEDTEK DL4069
Key Feature:

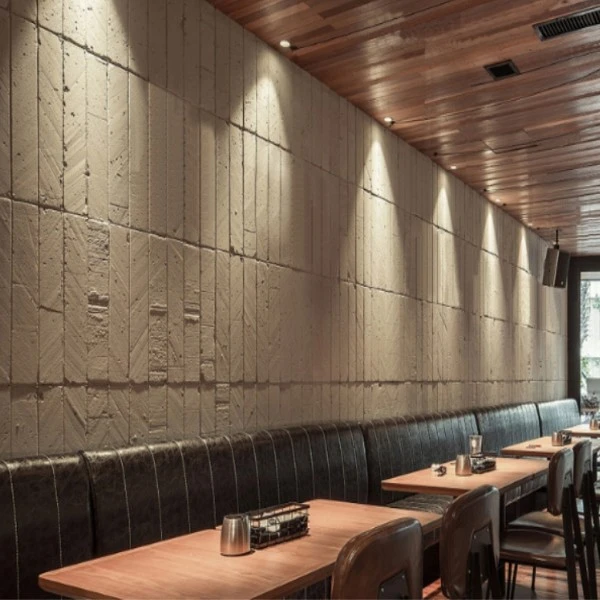

Application:

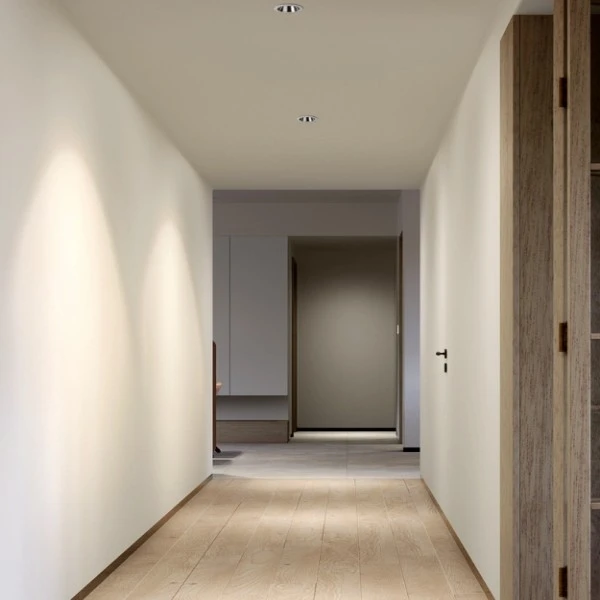

It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.
Honeycomb Optional
Product Overview
The LEDTEK DL4069 is a fixed-body recessed LED downlight designed for both residential and commercial applications. It uses high-quality Cree, Bridgelux, or Osram COB LEDs as the light source, delivering stable performance and long lifespan. With a deep reflector design, this anti-glare LED downlight ensures visual comfort while providing excellent light distribution.
Constructed from durable die-cast aluminum in a cylindrical form, the luminaire offers efficient heat dissipation for reliable operation. Power options range from 5W to 25W, with CCT choices of 2700K, 3000K, 4000K, and 6500K. Multiple beam angle LED downlight options—15°, 24°, and 38°—allow flexibility for different lighting environments such as homes, offices, hotels, or retail spaces. The color rendering index is available at CRI >80 or CRI >90, ensuring true-to-life color quality.
To suit diverse project needs, the reflector is available in eight finishes: white, matte black, deep black, gun black, satin silver, polished silver, rose gold, and champagne gold. The fixture is paired with a high-quality external isolated constant current LED driver. For dimming requirements, optional 0-10V dimmable LED downlight or DALI dimmable LED downlight drivers are available, making it an ideal choice for modern indoor lighting solutions.
Backed by a 5-year warranty, the DL4069 provides a reliable and energy-saving LED ceiling downlight solution that balances aesthetics, performance, and versatility.
We can customize the wattage to meet your needs.
Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.
| Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
|---|---|---|---|---|---|
| DL4069-5W | 5 | 500 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-7W | 7 | 700 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-10W | 10 | 1000 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-12W | 12 | 1200 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-16W | 16 | 1600 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-18W | 18 | 1800 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-20W | 20 | 2000 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
| DL4069-25W | 25 | 2500 | 2700K-6500K | 15 / 24 / 38 | ≥80 (90 optional) |
Model No | DL4069-5W | DL4069-7W | DL4069-10W | DL4069-12W | DL4069-16W | DL4069-18W | DL4069-20W | DL40694-25W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 18W | 20W | 25W |
| Dimension(mm) | Φ63*H63 | Φ63*H63/Φ85*H71 | Φ85*H76 | Φ85*H76 | Φ85*H93 | Φ85*H93 | Φ105*H99 | Φ105*H99 |
| Cutting Hole | Φ55 | Φ55/ Φ75 | Φ75 | Φ75 | Φ75 | Φ75 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB/Bridgelux/Osram COB | |||||||
| CCT | 2700K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 1800 | 2000 | 2500 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 15°/24°/38° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP44 On Room Side / IP20 At Back Side | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~55℃ | |||||||
| Installation | Recessed | |||||||
For recessed lighting installation instructions, please contact us.
- Led downlight for home
- Led downlight for office
- Led downlight for hotel
- Led downlight for retail
- Commercial recessed led downlight
- Residential led recessed light
FAQ 1: What is the power range and beam angles available for the LEDTEK DL4069 downlight?
The LEDTEK DL4069 downlight offers a versatile power range from 5W to 25W, allowing for flexible brightness levels suitable for various spaces. It also features customizable reflectors and lenses with selectable beam angles of 15°, 24°, and 38° to optimize light distribution for different lighting scenarios.
FAQ 2: What materials are used in the construction of the DL4069, and how do they benefit performance?
The DL4069 is constructed from ADC12 die-cast aluminum, which provides excellent heat dissipation to maintain optimal LED performance and extend the product’s lifespan. This robust material ensures durability and efficient thermal management, making it ideal for long-term use in residential and commercial settings.
FAQ 3: Is the LEDTEK DL4069 suitable for dimming, and what driver options are available?
Yes, the DL4069 is compatible with dimming systems and comes paired with a high-quality external isolated constant current LED driver. Options include 0-10V or DALI dimmable drivers, ensuring flicker-free, stable illumination. It’s not compatible with standard dimmer switches without the appropriate driver—consult the specifications for compatibility details.
FAQ 4: How do I install the LEDTEK DL4069 recessed downlight?
Installation of the DL4069 involves cutting a precise hole in the ceiling based on the provided product dimensions (typically a cylindrical form factor for recessed mounting). Use basic tools like a drill, screwdriver, and wiring tools to secure the fixture and connect to the LED driver. It’s designed for seamless integration into standard ceilings in offices, hotels, or homes—professional installation is recommended to ensure safety and compliance with local electrical codes.
FAQ 5: What is the warranty and expected lifespan of the DL4069 downlight?
The LEDTEK DL4069 comes with a 5-year warranty, underscoring its reliability and quality. With high-efficiency Cree, Bridgelux, or Osram COB LEDs and non-flicker drivers, the expected lifespan exceeds 50,000 hours under normal use, providing energy-efficient lighting with minimal maintenance for applications in supermarkets, schools, shops, and more.

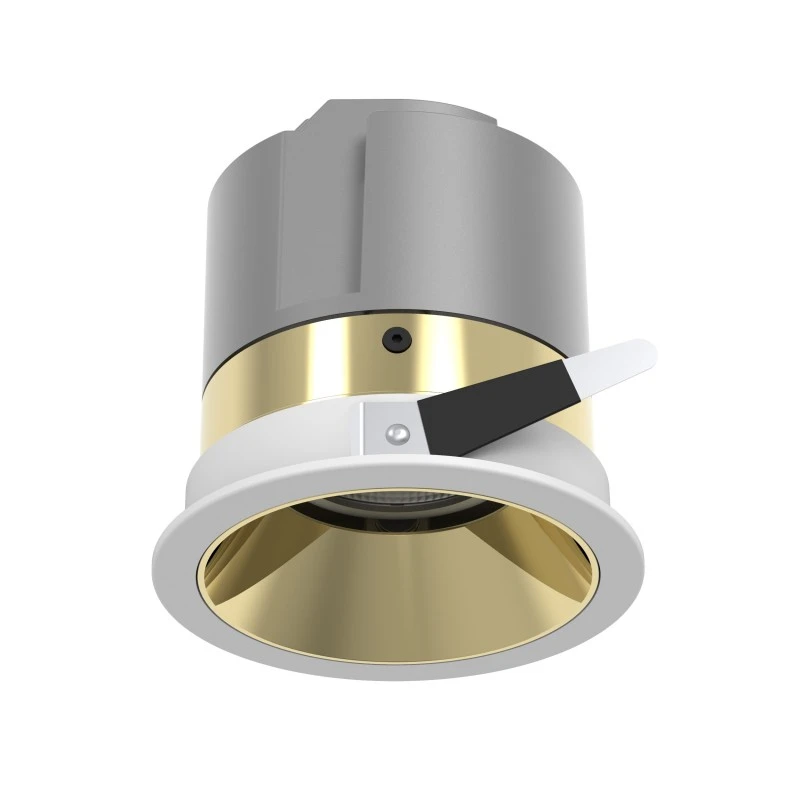

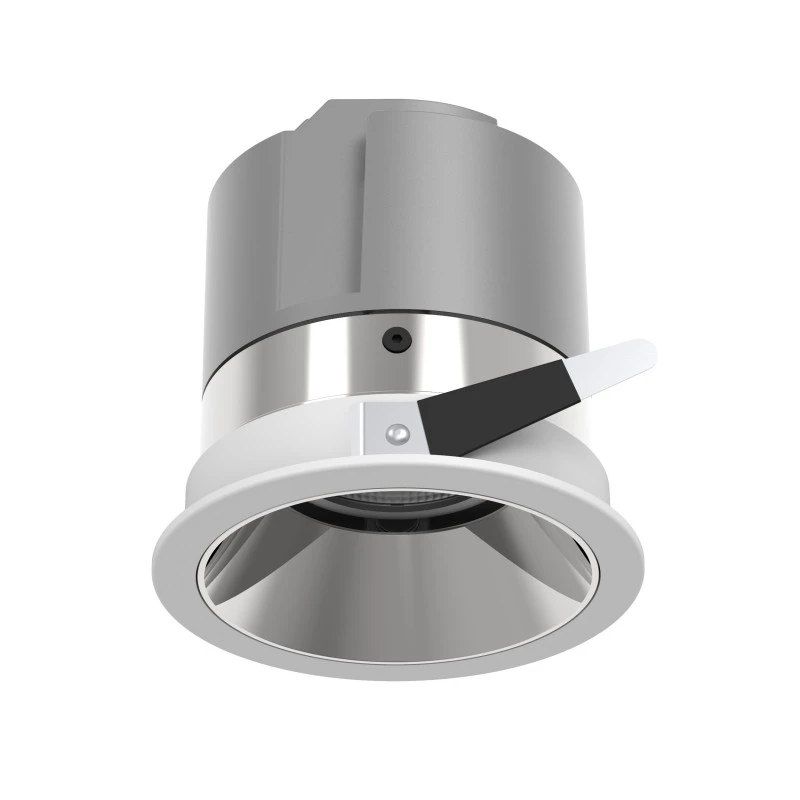

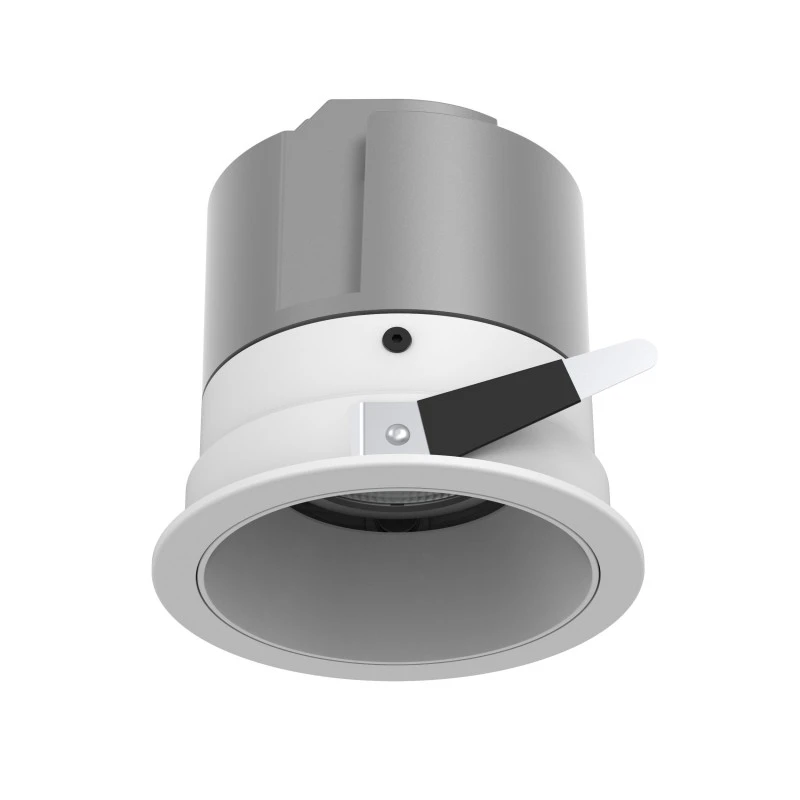

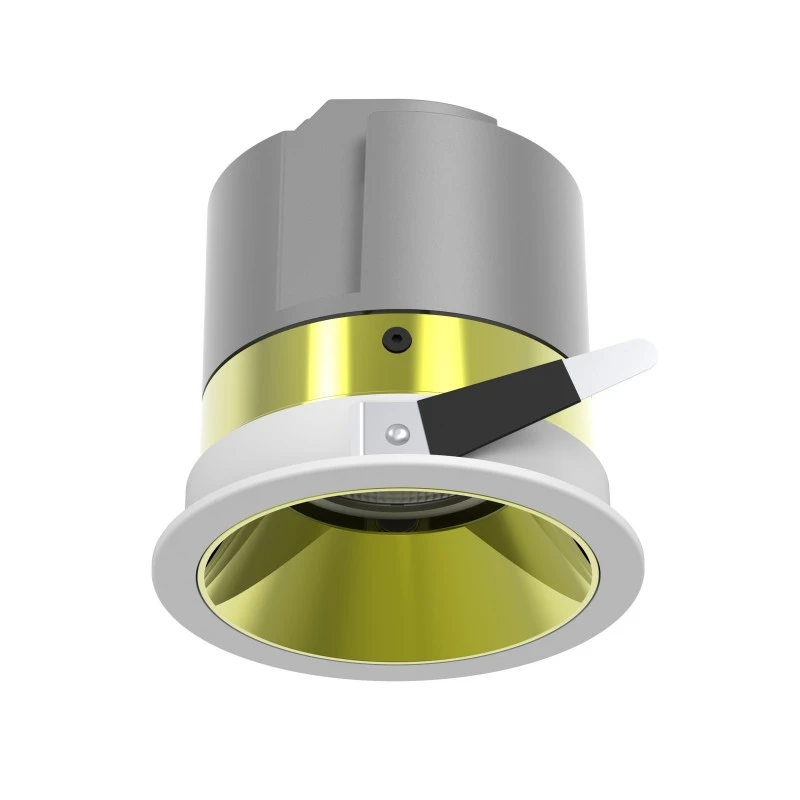

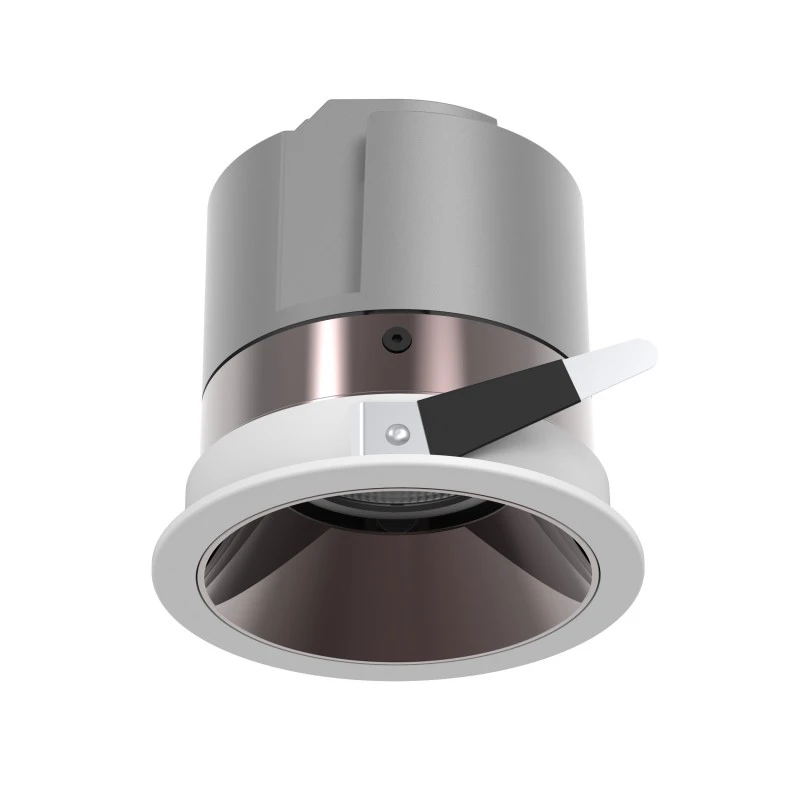

Reflectors available in multiple colors

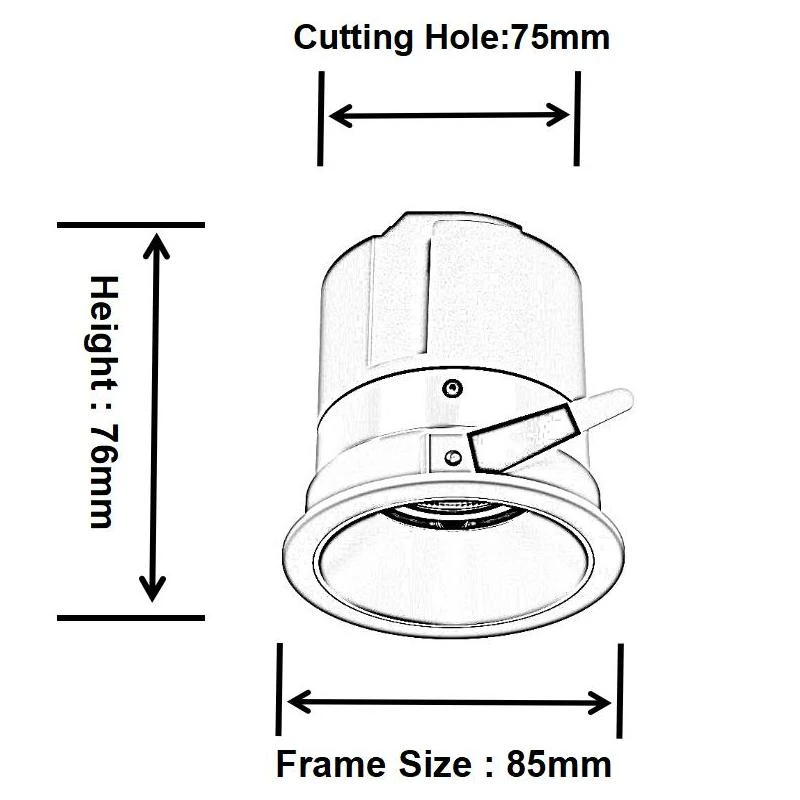

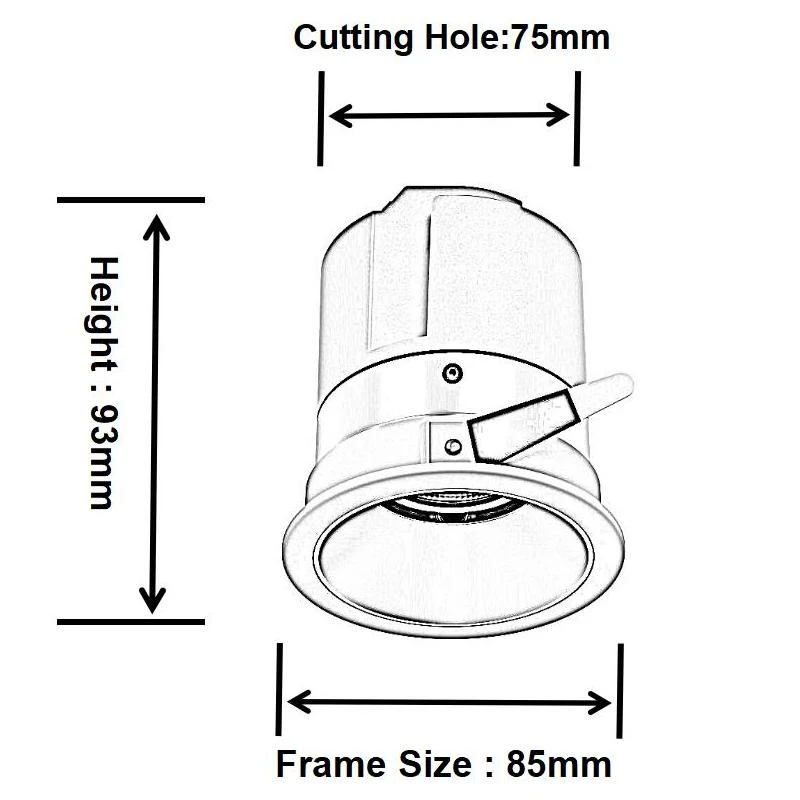

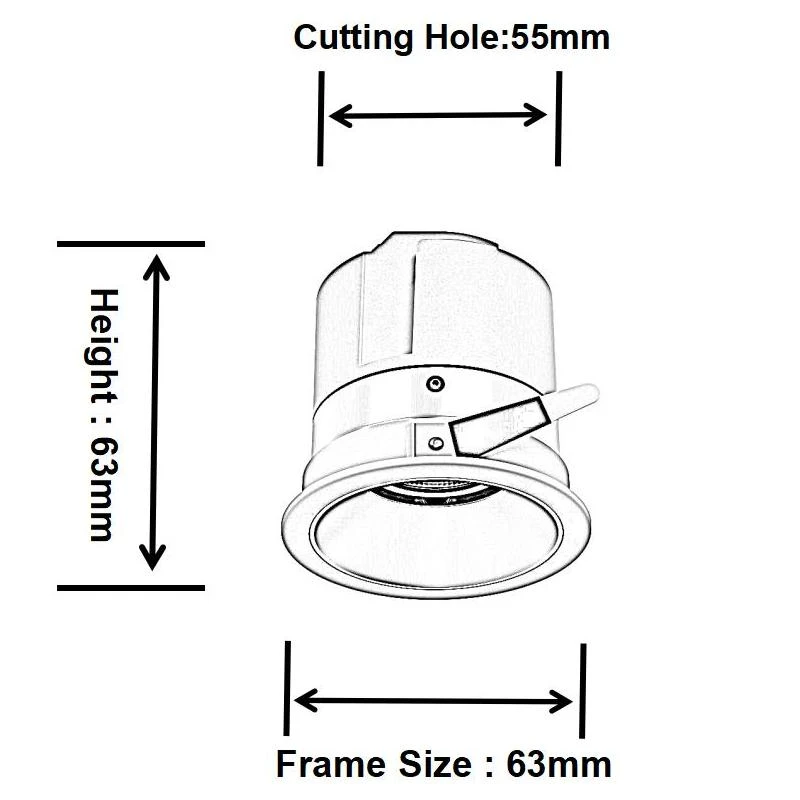

Product Size
