Plaster-in Trimless LED Downlight 5W‑30W for recessed lighting | LEDTEK DL4071
Key Features
Application:
It is designed for recessed lighting applications in office, supermarket, shop, school, hotel etc.
Honeycomb accessory optional
Product Overview

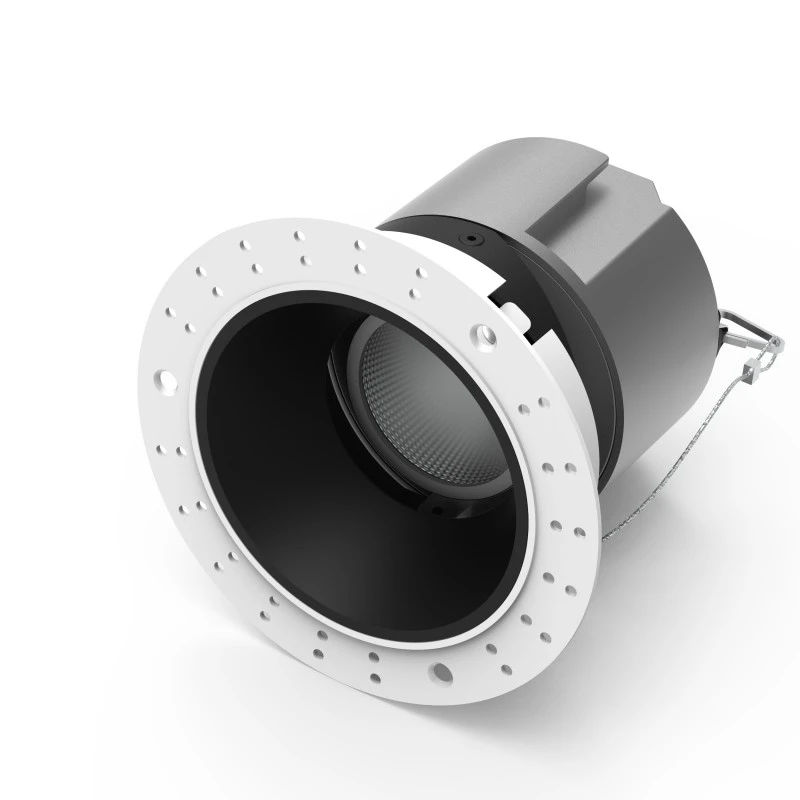

The LEDTEK DL4071 plaster-in recessed LED downlight is designed to blend seamlessly into the ceiling, creating a minimalist and modern aesthetic. With its frameless trimless plaster-in design, it delivers a clean, borderless appearance, keeping the ceiling smooth and visually uninterrupted while ensuring the light source remains discreet.
Crafted from premium ADC12 aluminum with an efficient heat sink, the fixture provides excellent thermal management, extending the LED lifespan. The adjustable downlight head allows vertical tilt from 0–30°, making it flexible for various lighting needs. Featuring a deep reflector with a 35mm recessed light source and triple anti-glare LED downlight design (deep-set source + anti-glare baffle + anti-glare lens), the DL4071 effectively reduces glare and enhances visual comfort. A flicker-free LED driver ensures stable illumination, minimizing eye strain, with optional 0–10V and DALI dimming available.
The luminaire adopts a separable structure between the housing and the light module. The embedded mounting frame is installed first, while the light engine can be removed separately during replacement or maintenance. This design prevents damage to both the luminaire and the ceiling. In addition, a built-in safety cable is provided to ensure secure handling during installation and servicing.
Reflectors are available in gloss or matte finishes, with customizable color options to match project requirements. Power ranges from 5W to 30W, with beam angle choices of 15°, 24°, and 38°, making it suitable for residential and commercial recessed ceiling lighting.
The DL4071 trimless plaster-in downlight combines minimalist design with high performance, ensuring safe installation, easy maintenance, and reliable operation—an ideal choice for modern interior lighting solutions.
We can customize the wattage to meet your needs.
Looking for more LED downlight for recessed lighting solution? Explore our full collection of LED downlights.
| Model | Wattage (W±5%) | Luminous Flux (lm) | CCT (K) | Beam Angle (°) | CRI (Ra) |
|---|---|---|---|---|---|
| DL4071-5W | 5 | 500 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-7W | 7 | 700 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-10W | 10 | 1000 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-12W | 12 | 1200 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-16W | 16 | 1600 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-20W | 20 | 2000 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-25W | 25 | 2500 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
| DL4071-30W | 30 | 3000 | 2700K-6500K | 15° / 24° / 38° | ≥80 (90 optional) |
Model No | DL4071-5W | DL4071-7W | DL4071-10W | DL4071-12W | DL4071-16W | DL4071-20W | DL4071-25W | DL4071-30W |
|---|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 20W | 25W | 30W |
| Dimension(mm) | Φ80*H70 | Φ80*H70/Φ100*H76 | Φ80*H85/Φ100*H83 | Φ100*H83 | Φ100*H100/Φ125*H107 | Φ100*H100/Φ125*H107 | Φ125*H123 | Φ125*H113 |
| Cutting Hole | Φ55 | Φ55/ Φ75 | Φ55/Φ75 | Φ75 | Φ75/Φ95 | Φ75/Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||||
| Light Source | Cree COB/Bridgelux COB | |||||||
| CCT | 2700K-6500K | |||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 2000 | 2500 | 3000 |
| CRI | >80(90 optional) | |||||||
| Beam Angle | 15°/24°/38° | |||||||
| LED Driver | External LED Driver | |||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||||
| Ingress Protection (IP Rating) | IP44 (front/room side) / IP20 (rear/ceiling side) | |||||||
| Product Finishing |
| |||||||
| Materials of Optics | PMMA | |||||||
| Operating Temp. (℃ ) | -20℃ ~55℃ | |||||||
| Installation | Recessed | |||||||
Download Datasheet: PLASTER-IN TRIMLESS RECESSED LED DOWNLIGHT DL4071.PDF
Please contact us to request the installation instructions.
Please contact us to request the installation instructions.
Q1: What Is Trimless LED Downlight?
A: Trimless ceiling downlight is a special type of LED recessed ceiling light that can be embedded into the ceiling. The trim of the fixture is hidden inside the ceiling and fixed in place with screws or nails. Then the surface is plastered and painted together with the ceiling, leaving only the beauty of the light visible. It creates a seamless and high-end visual effect throughout the space. Trimless recessed lighting is the preferred choice for designers who pursue ultimate perfection.
Q2: How is a trimless light installed?
A: The trimless recessed light’s frame is first fixed to the ceiling using screws or nails. Then, the surrounding area is plastered and painted together with the ceiling, making the frame invisible.
Q3: Is the DL4071 Trimless LED Recessed Light adjustable in the angle of the light head?
A: Yes, the DL4071 trimless LED recessed downlight is a recessed LED downlight with an adjustable light head angle.
Q4:How many years is the warranty for the DL4071 trimless LED downlight?
A:The DL4071 recessed LED downlight from LEDTEK has a 5-year warranty.
Q5:How to install the light if the ceiling thickness varies?
A:The trimless mounting ring is adjustable, so you can easily set the right height based on your ceiling thickness. This helps the light sit nicely and flush with the ceiling.
Q6: What’s the small difference between this plaster-in trimless COB LED downlight and trimless recessed ceiling light?
A: This plaster-in trimless mounting ring is installed under the ceiling, that’s fixed below the ceiling surface, so it only works with plastered ceilings. The trimless recessed LED downlight suitable for both gypsum board ceilings and plastered ceilings.
Reflectors available in multiple colors
Product Size
